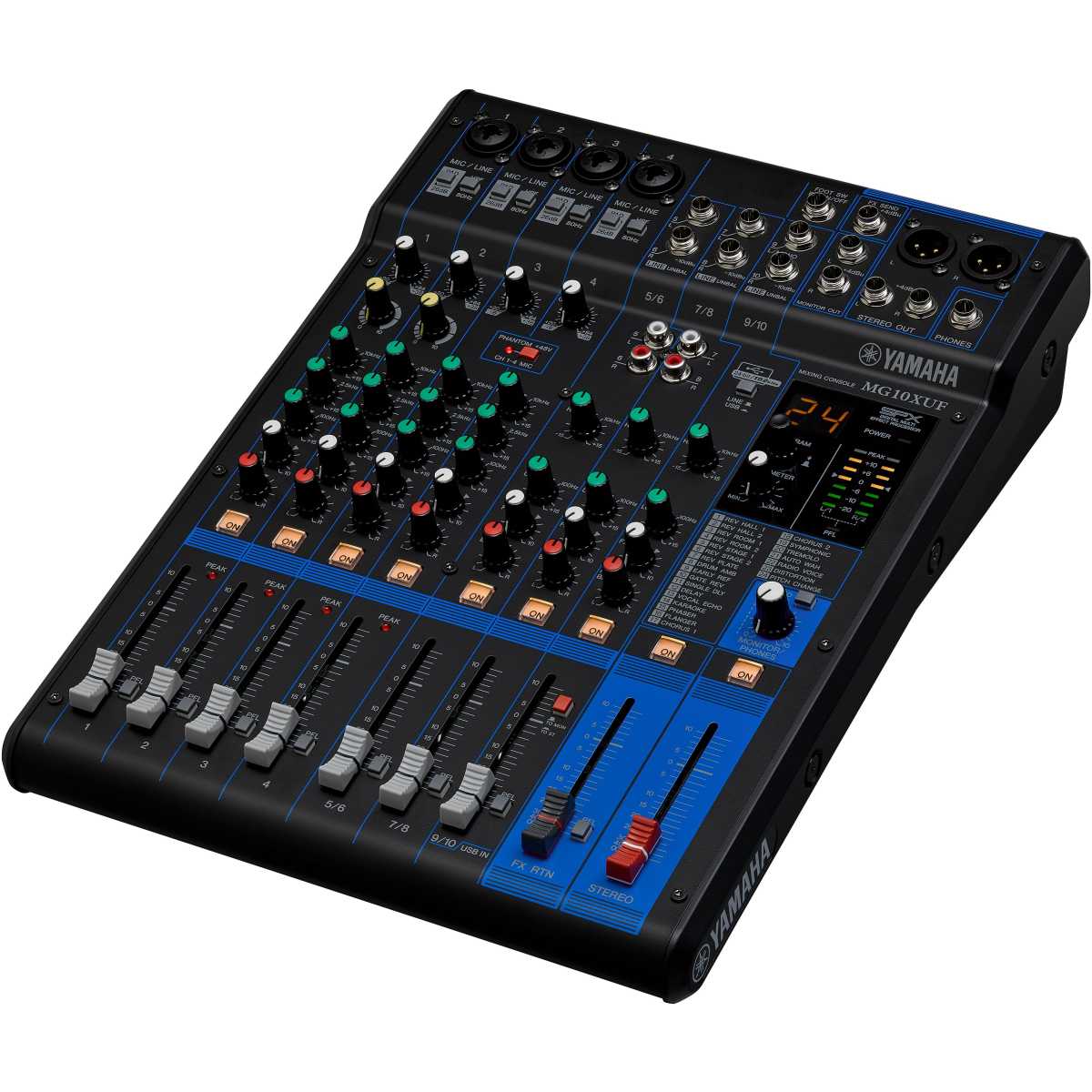

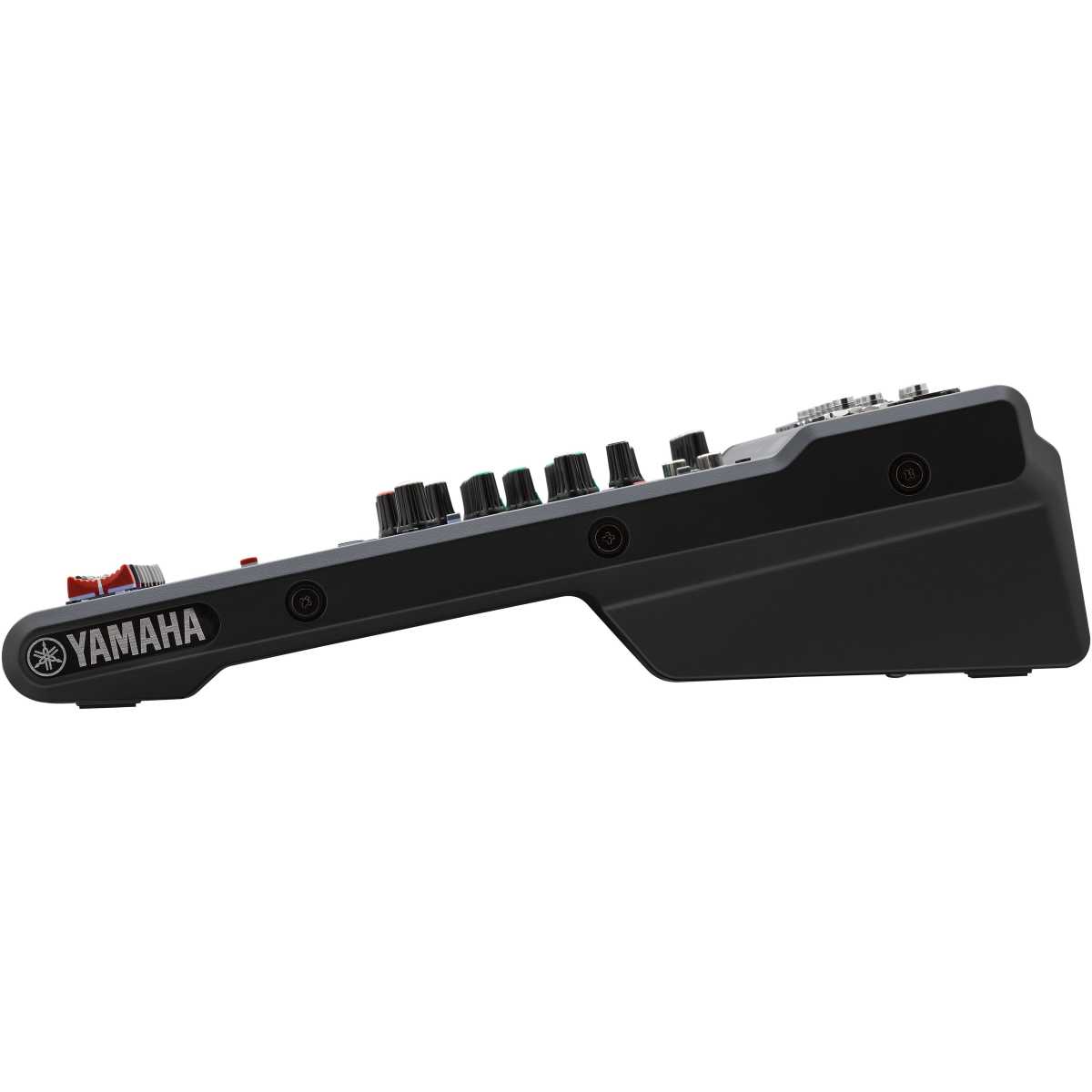

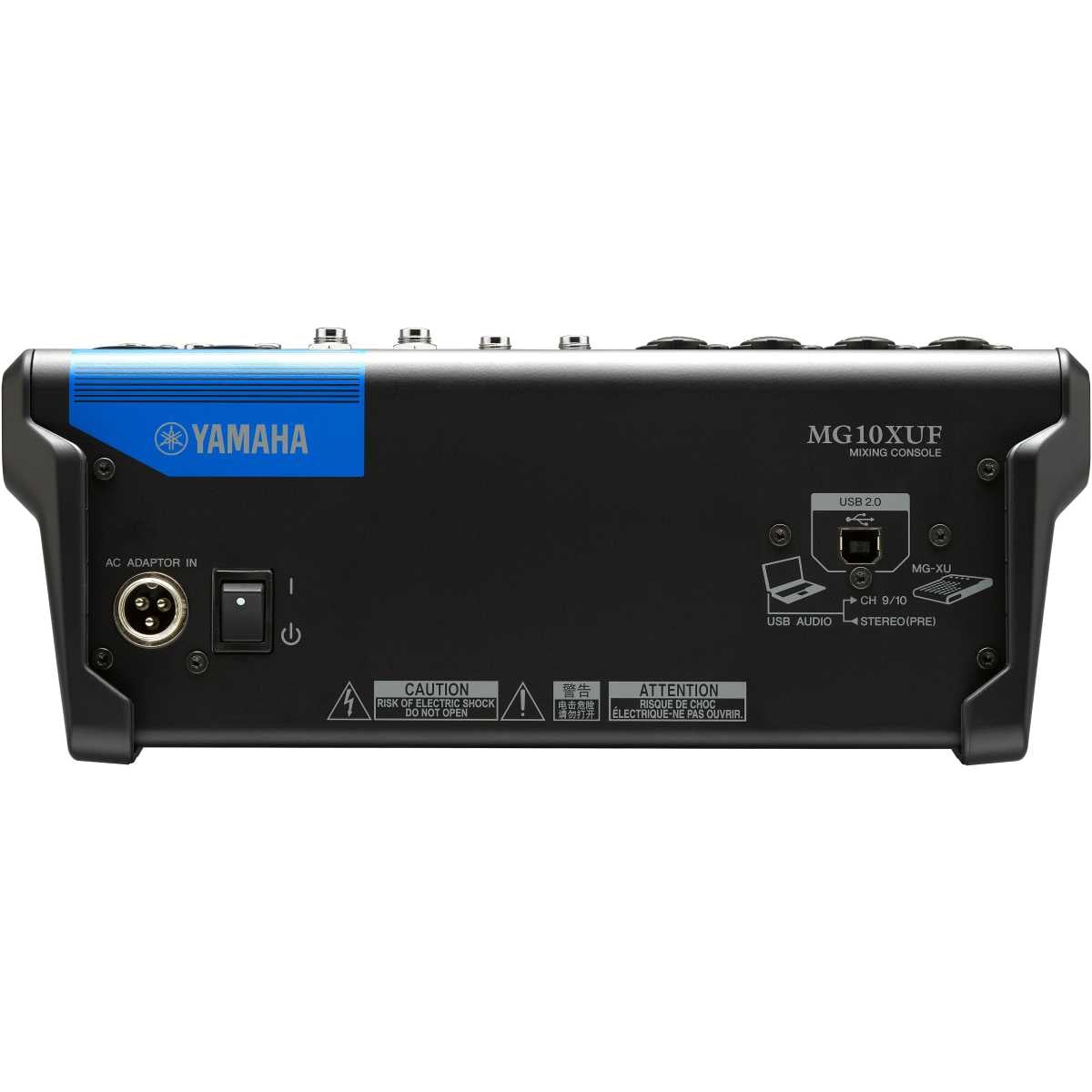

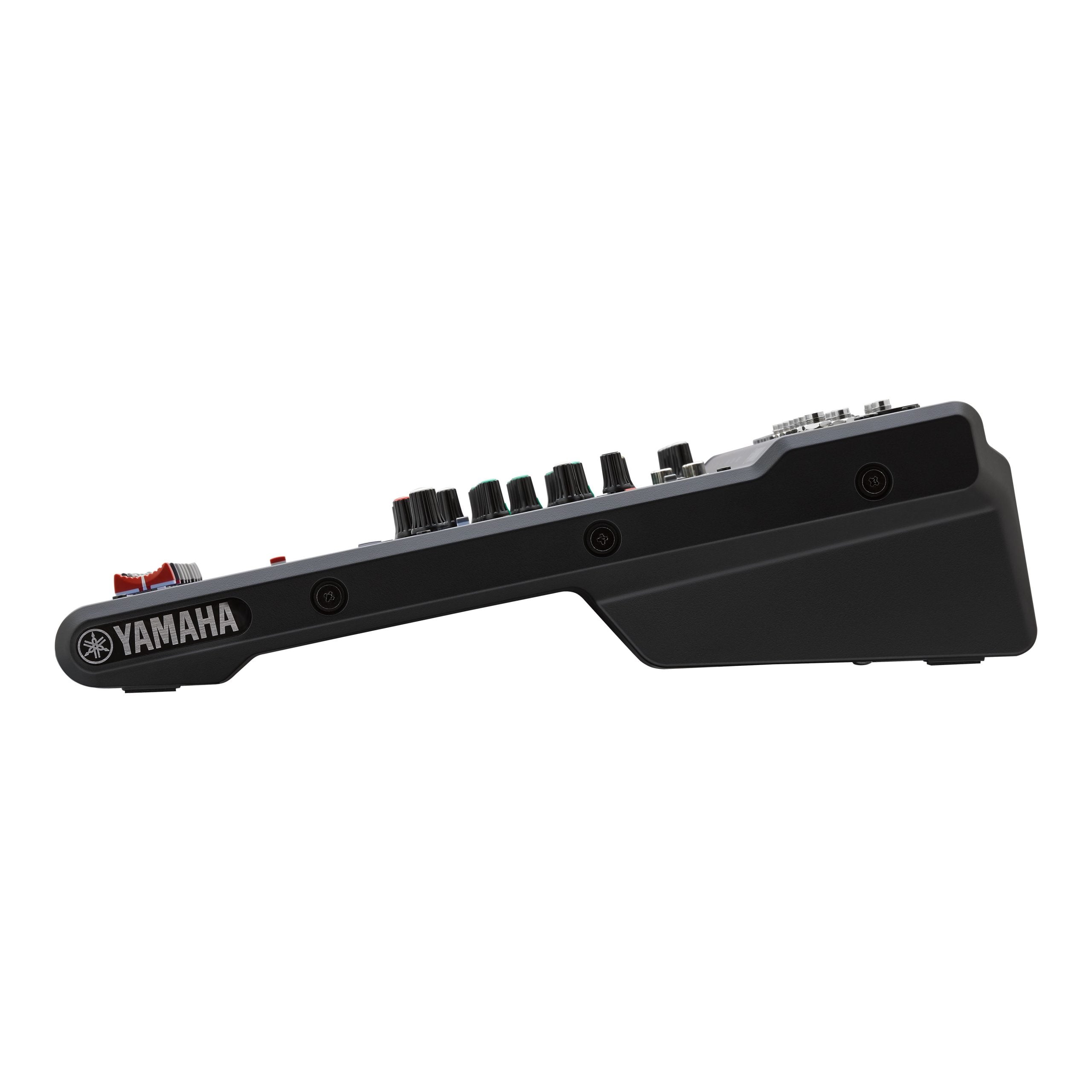

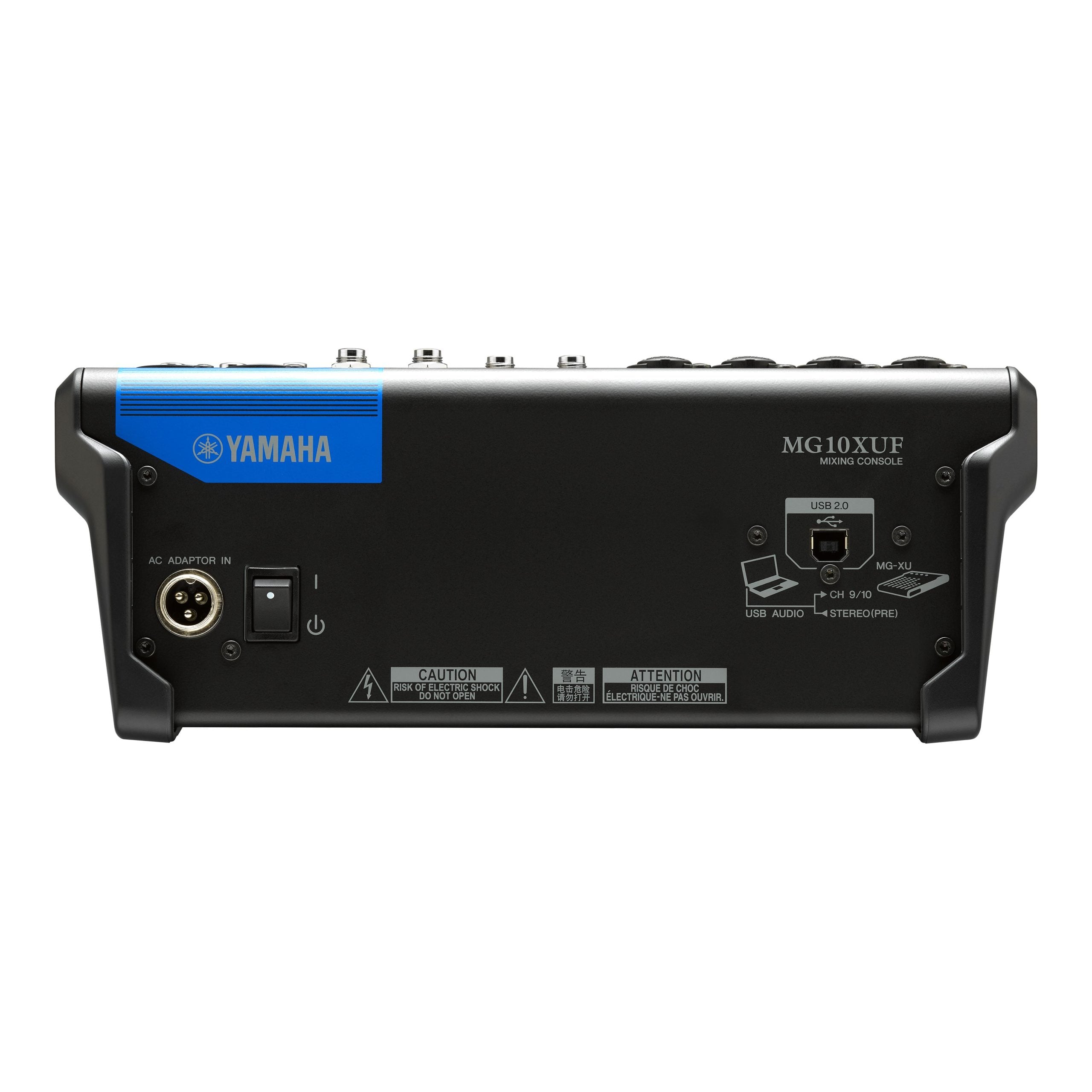

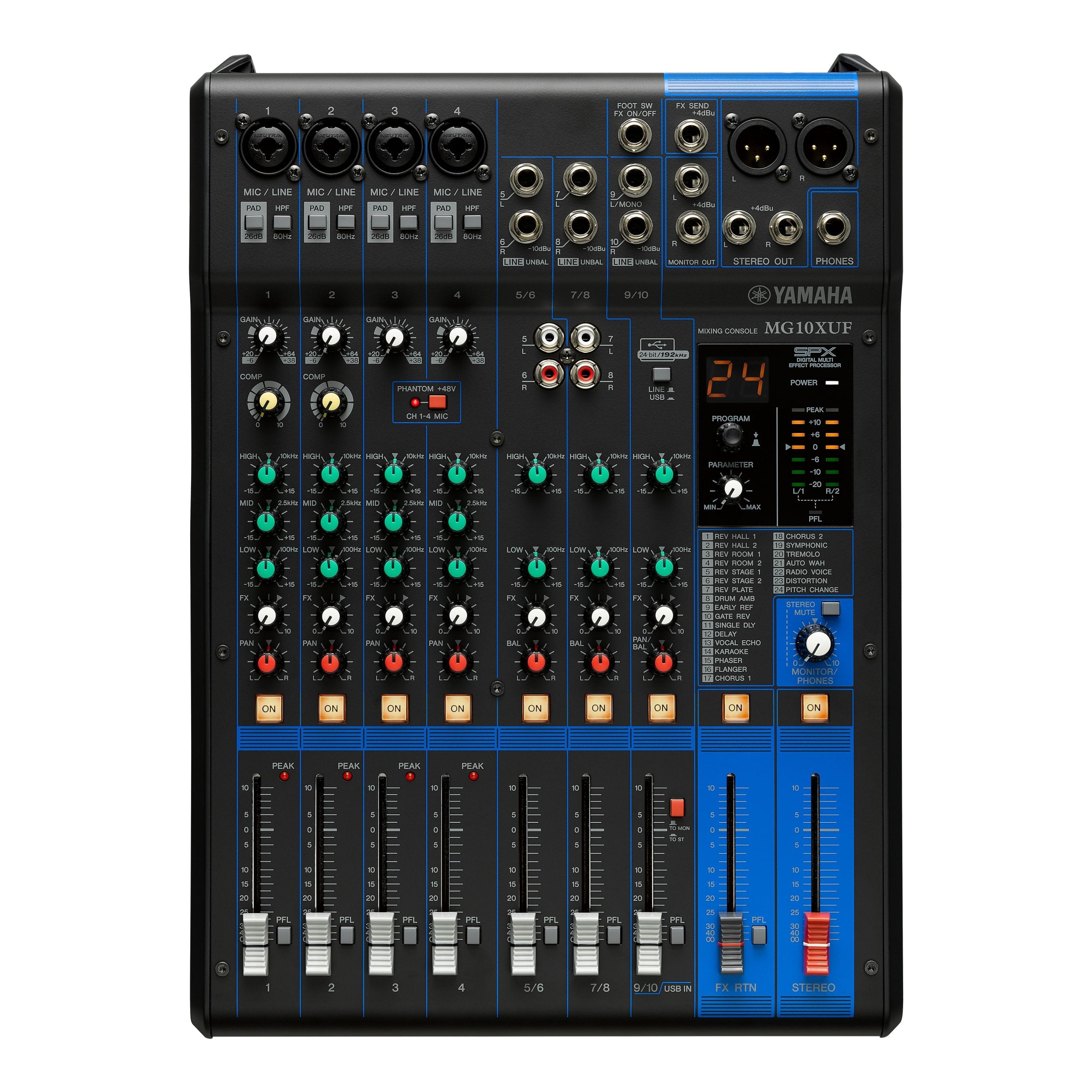

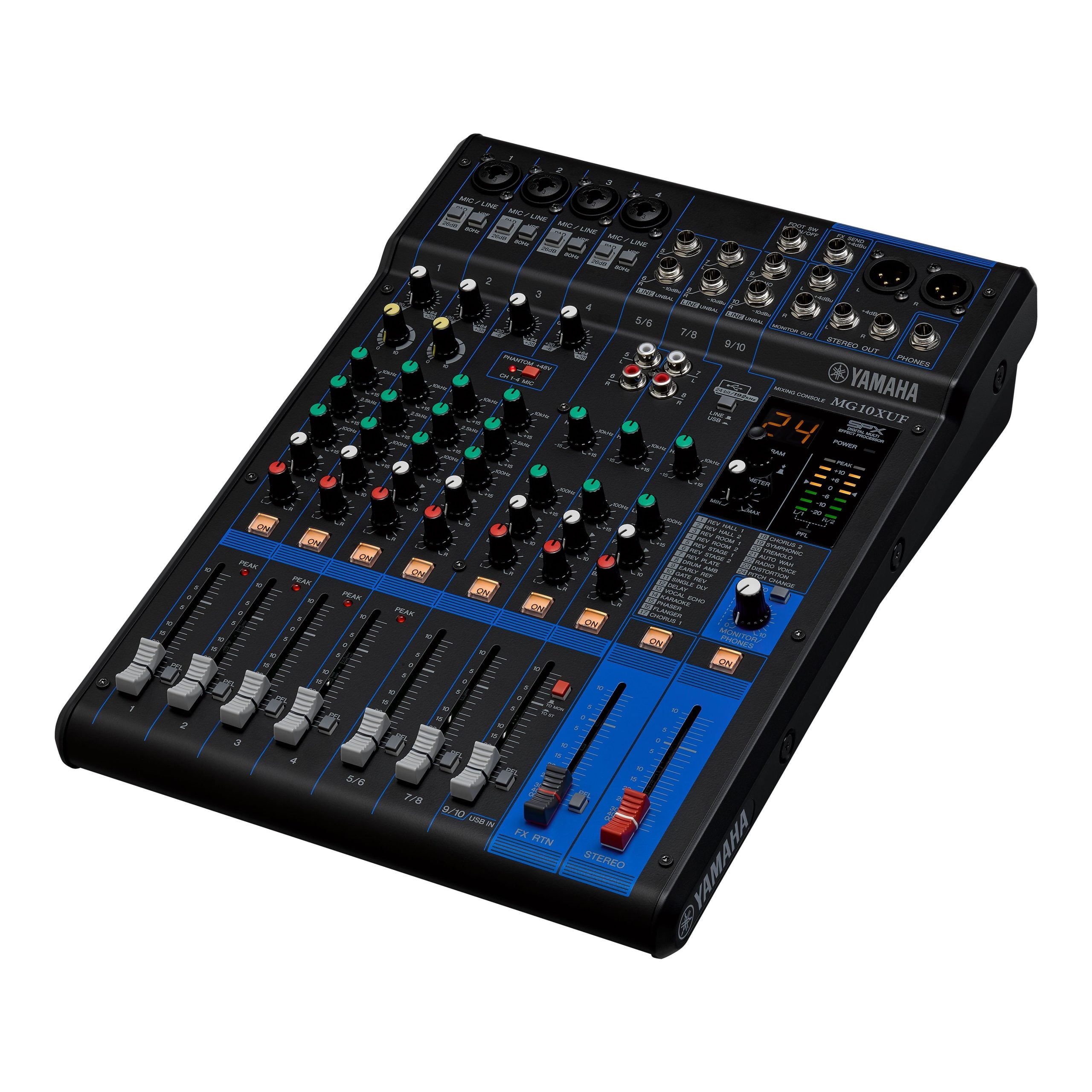

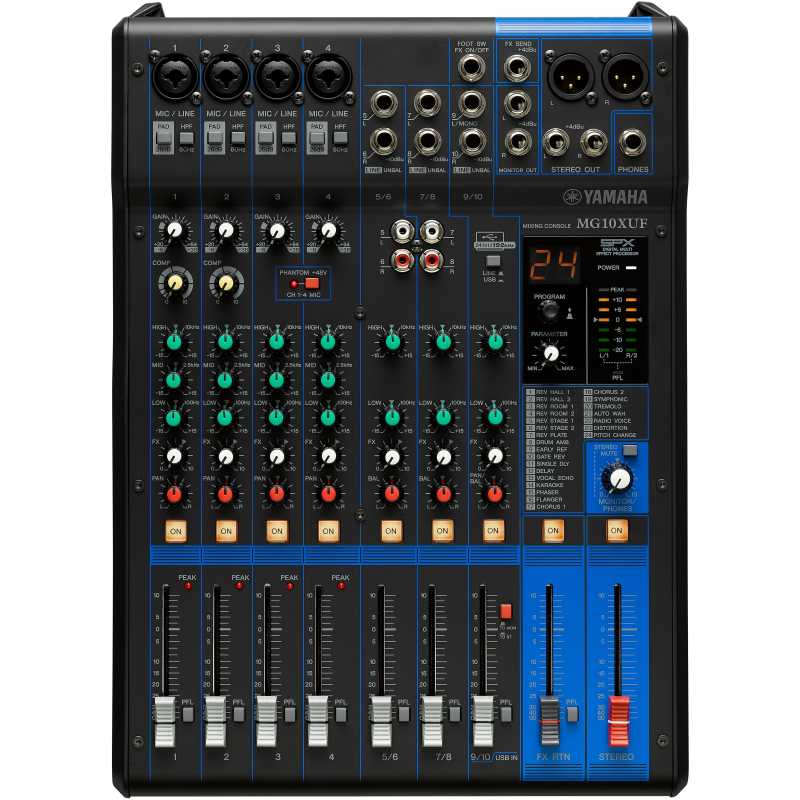

Yamaha MG10XUF Mixing Console

The MG10XUF Is Designed To Provide An Exceptionally Transparent Sound And An Intuitive, Hands-On Mixing Experience.

The MG10XUF Is Equipped With 10 Input Channels, Including 4 Microphone Channels With D-PRE Preamps, Along With Independent 3-Band Eqs, 1-Knob Compressors, Pad Switches And Switchable +48V Phantom Power.

This Yamaha Analog Mixing Console Has An Intuitive Layout And A Heavy-Duty Metal Chassis, Capable Of Withstanding Demanding Conditions Of Both Live Performance And Studio Environments.

The Yamaha MG10XUF Features A Built-In USB Audio Interface Which Enables You To Record Directly To Your Computer And Playback 24-Bit/192khz Audio. The Included Version Of Cubase AI DAW Software Allows You To Record And Edit High-Resolution Tracks.

FEATURES:

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 Mono + 3 Stereo)
• 1 Stereo Bus
• 1 Aux (Incl. Fx)
• “D-Pre” Mic Preamps with an Inverted Darlington Circuit
• 1-Knob Compressors
• High-Grade Effects: Spx with 24 Programs
• 24-Bit / 192khz 2in / 2out Usb Audio Functions
• Works With the Ipad (2 Or Later) Through The Apple Ipad Camera Connection Kit / Lightning To Usb Camera Adapter
• Includes Cubase Ai Daw Software Download Version *This Is Not Bundled In Some Areas
• Cubasis Le for IPad Available At App Store
• Pad Switch On Mono Inputs
• +48v Phantom Power
• Xlr Balanced Outputs
• Metal Chassis

Specifications:

• 10-channel mixer console
• Max. 4 microphone / 10 line inputs (4 mono + 3 stereo)
• 1 Stereo Bus 1 AUX (incl. FX)
• “D-PRE” microphone preamplifier with inverted Darlington circuitry
• 1-button compressors SPX processor with 24 high-quality effect programs
• USB interface with 2 inputs / 2 outputs (24-bit / 192kHz)
• Compatible with iPad (version 2 or higher) via the Apple iPad Camera Connection Kit / Lightning to USB cable
• Cubase AI DAW software included as download version
• PAD switch for mono inputs +48V phantom power
• XLR Outputs
• metal casing
• Dimensions (WxHxD): 275 mm x 110 mm x 390 mm
• weight: 3,1 kg
