General Data
- Display: Front panel multi-color LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 5.8 kg (12 lbs 13 oz)
- Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide
Drivers
- Woofer
- Basket Diameter: 4″
- Voice Coil Diameter: 1″ (25 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equivalent Diaphragm Diameter: 2″ (56 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal, 70° vertical

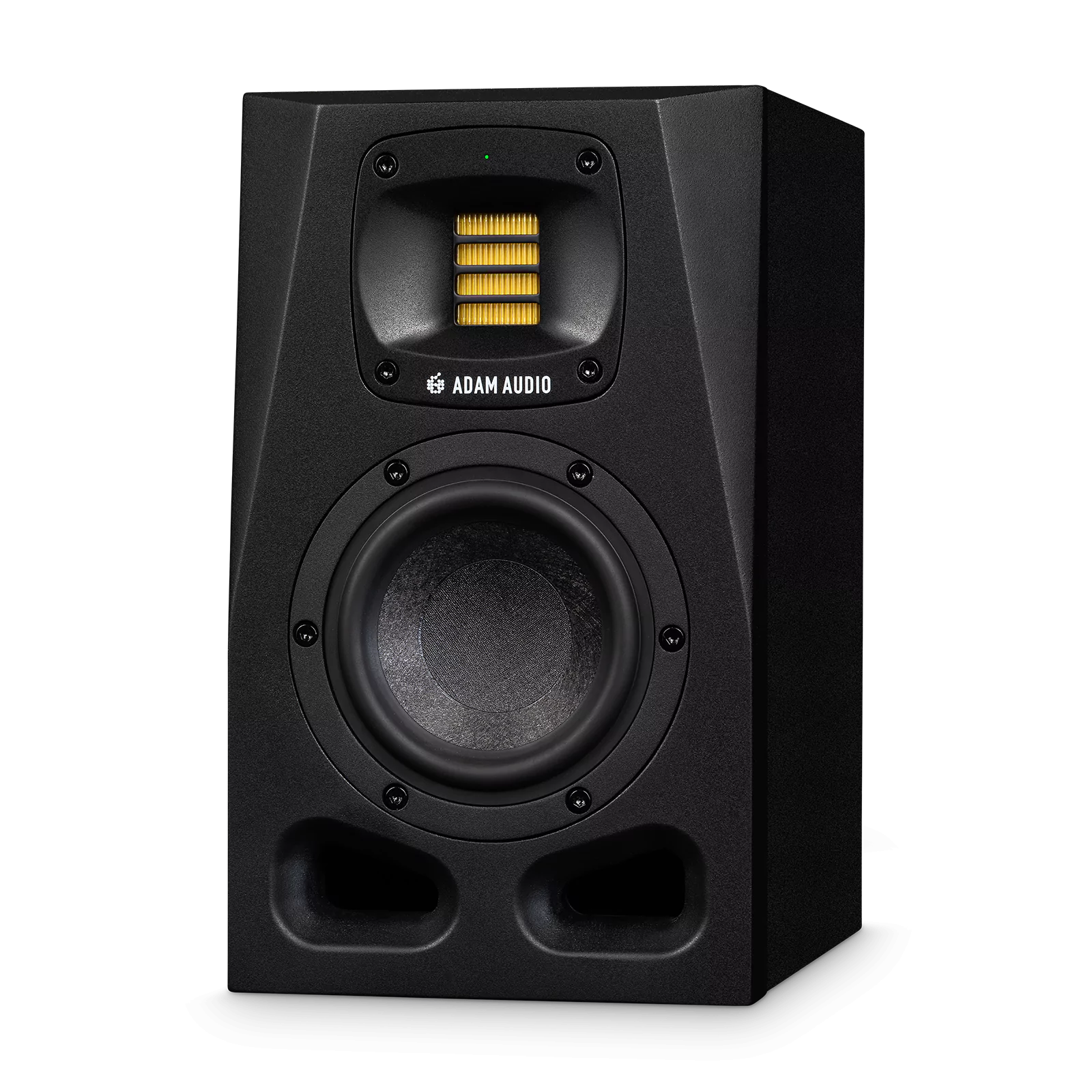

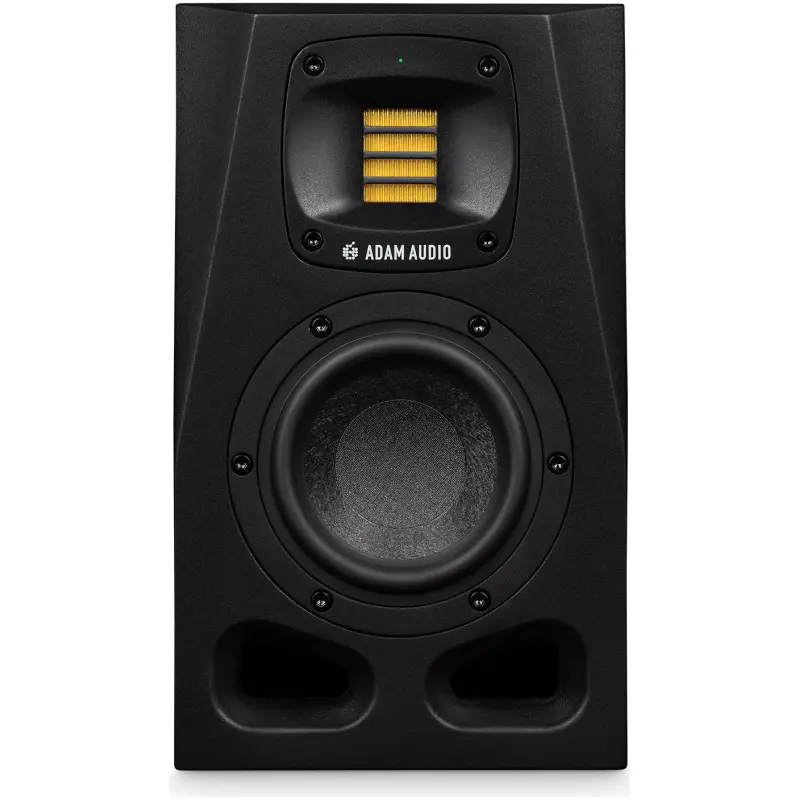

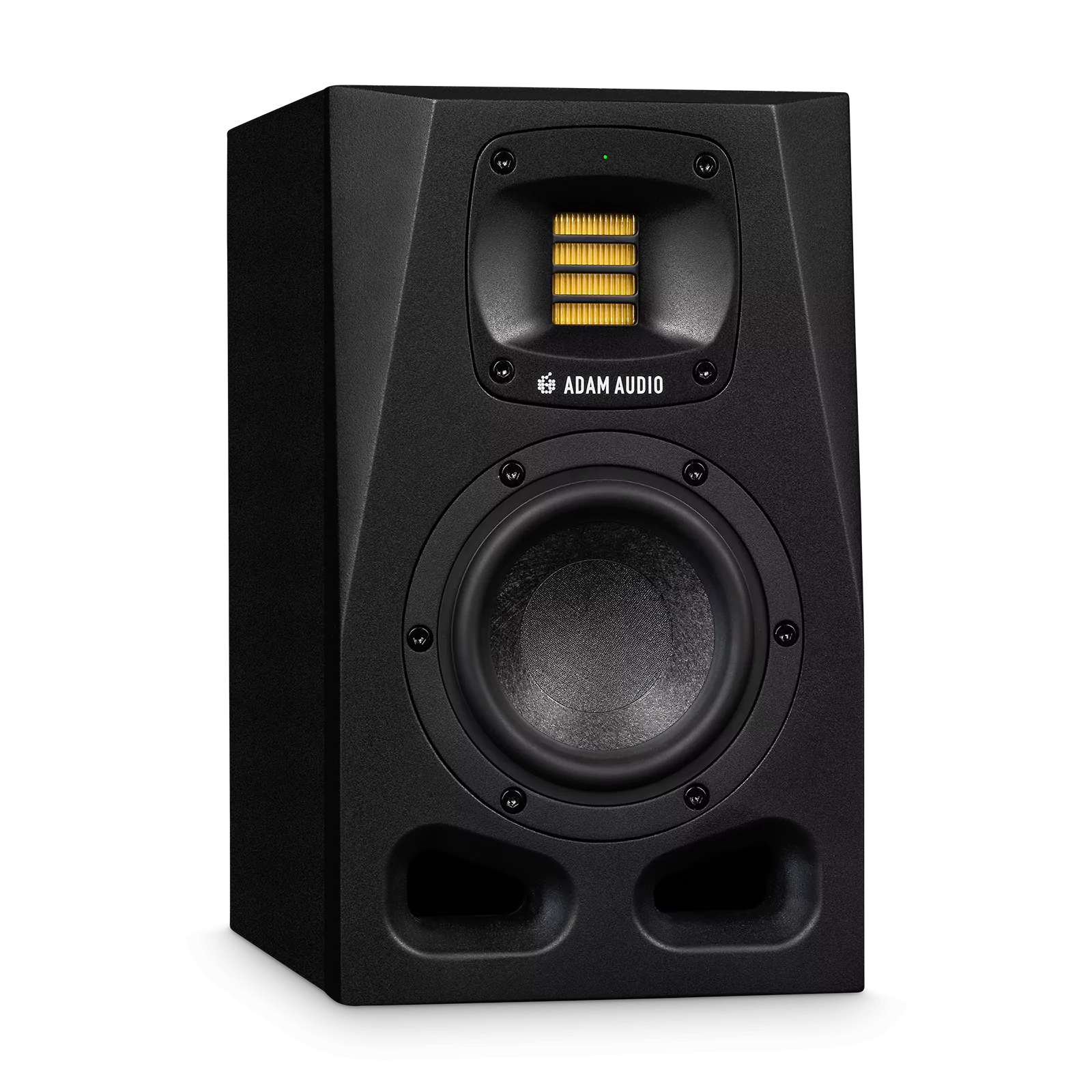

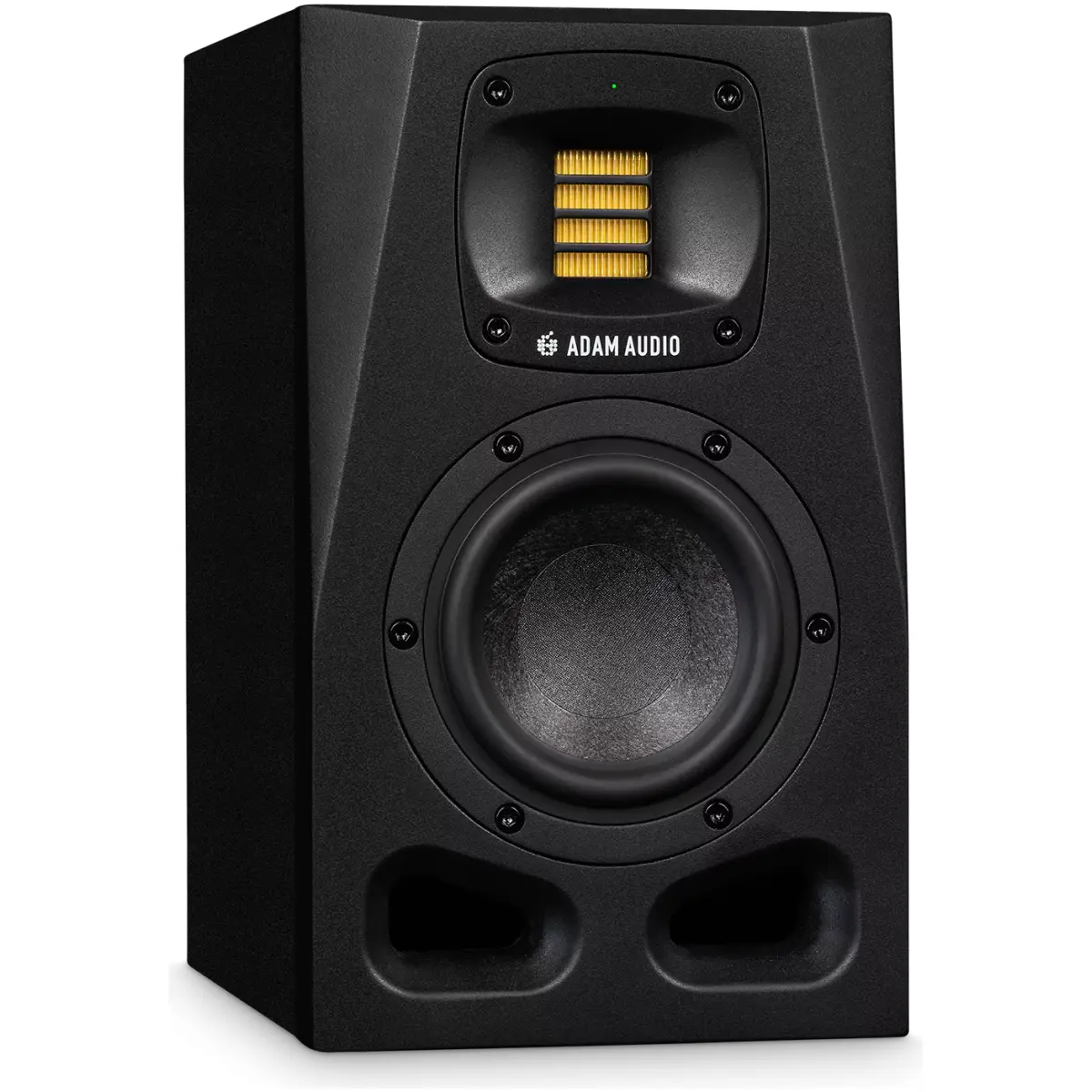

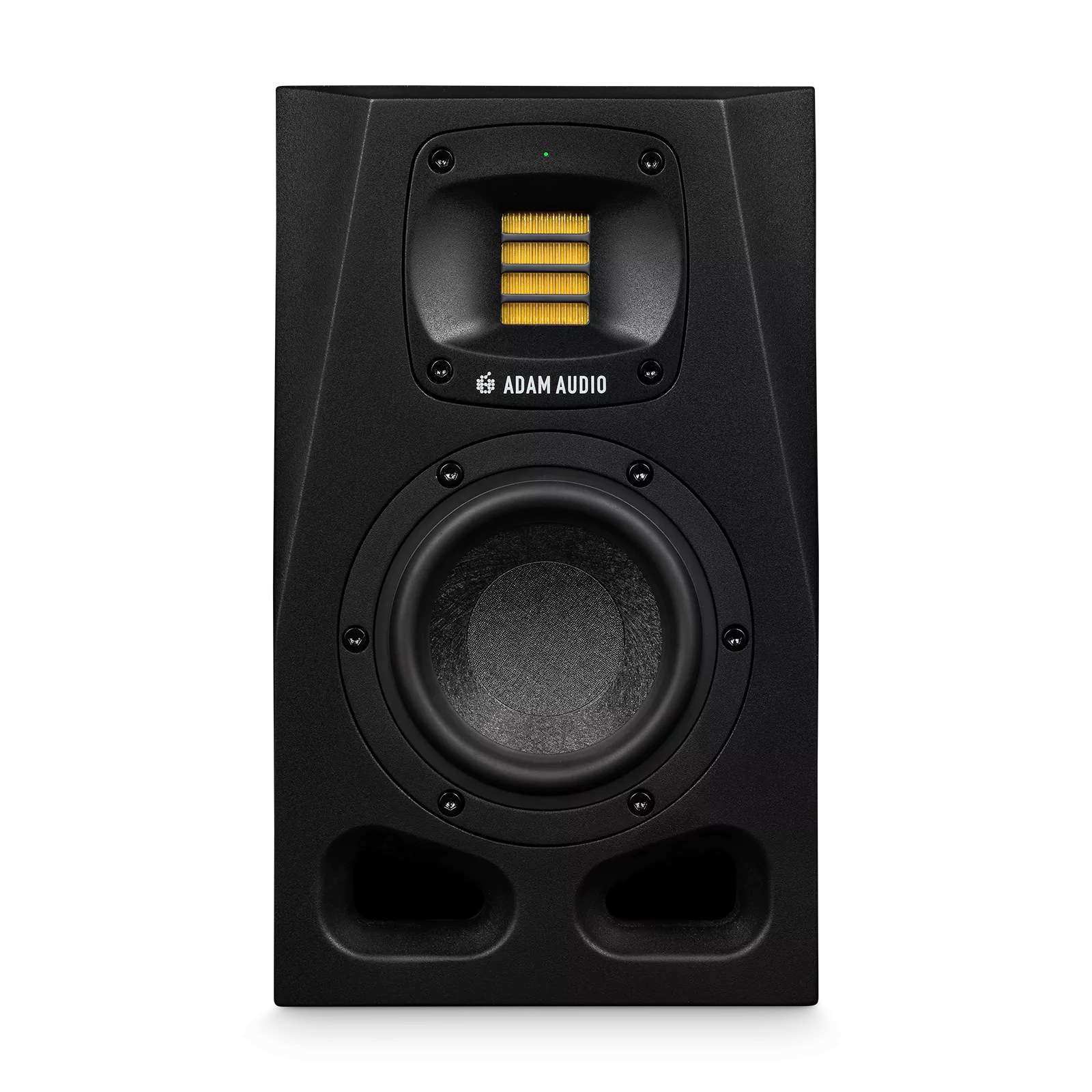

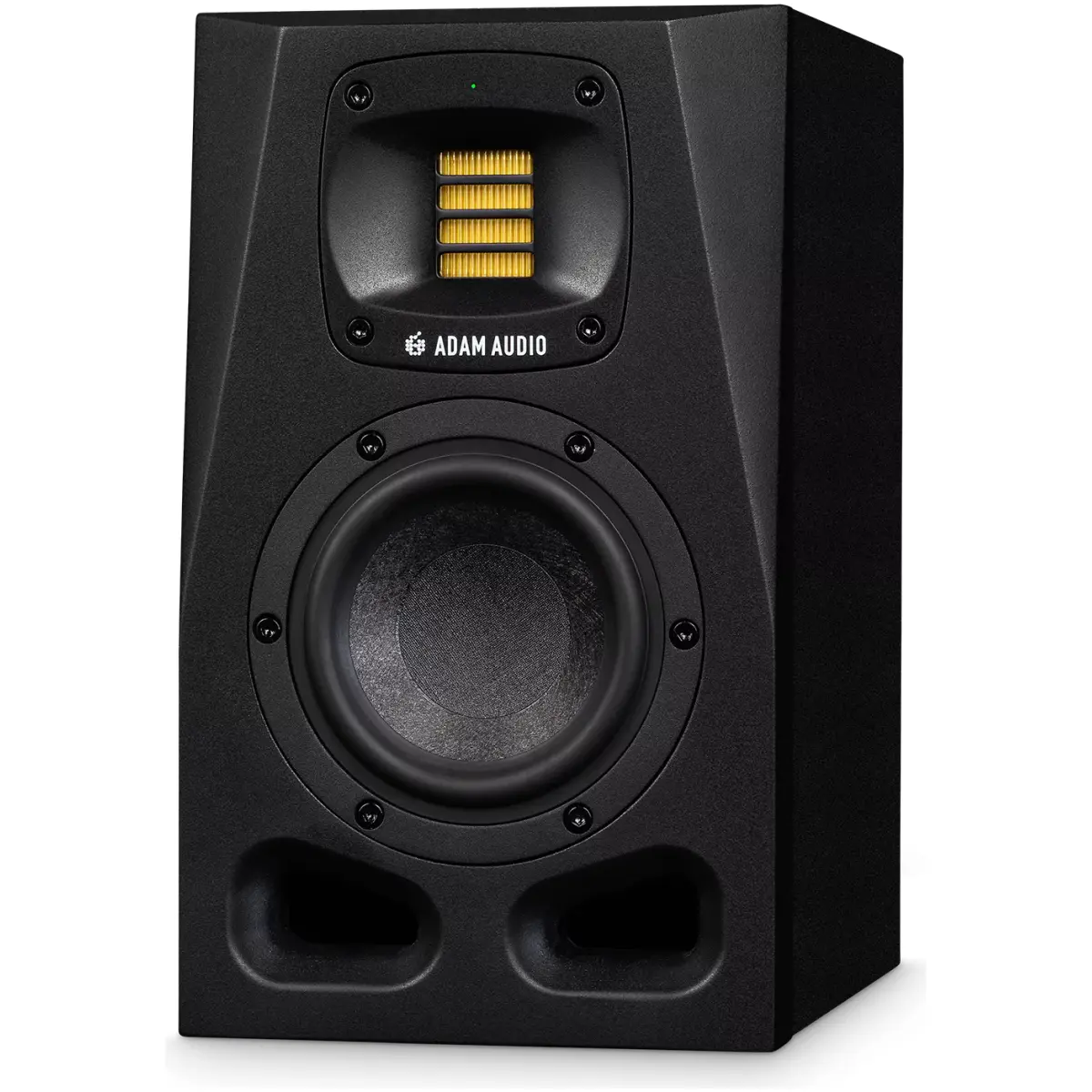

ADAM Audio A4V 4″ Active Studio Monitor
R9 488,00
Back order notice: Products may be available within 2 days depending on supplier stock availability.
| Attribute | Value |
|---|---|
| Driver Configuration: | 1 x 4" LF ; 1 x HF |
| Cabinet Material: | MDF Wood |
| Power Rating (RMS): | 90W |
| Power Rating (Peek): | 180W |
| Magnet Type: | Ferrite |
| Frequency Response | @-3 dB: 58 Hz – 41 kHz ; @-6 dB: 52 Hz – 45 kHz |
| Decibel (dB) | - |
| Shipping Weight | 5,8kg |
18
People watching this product now!
Description
ADAM Audio A4V 4″ Active Studio Monitor
