General Data
- Display: Front panel multi-colour LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions:-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 8.7 kg (19 lb 3 oz)
- Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
-
Drivers
- Woofer
- Basket Diameter: 7″
- Voice Coil Diameter: 1.3″ (33 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equivalent Diaphragm Diameter: 2″ (56 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal, 70° vertical
-
Acoustics
- Frequency Response @ -3 dB: 44 Hz – 41 kHz
- Frequency Response @ -6 dB: 40 Hz – 45 kHz
- Crossover Frequencies: 2.8 kHz
- Max. peak SPL per speaker at 1 m (sine bursts): 105 dB SPL
- Max. peak SPL per speaker at 1 m (IEC-weighted noise): 113 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 105 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 108 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 95 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 98 dB SPL
- Dolby DARDT max SPL in full space: 115 dB SPL
- Dolby DARDT max SPL in full space (bass managed): 119 dB SPL
- Woofer

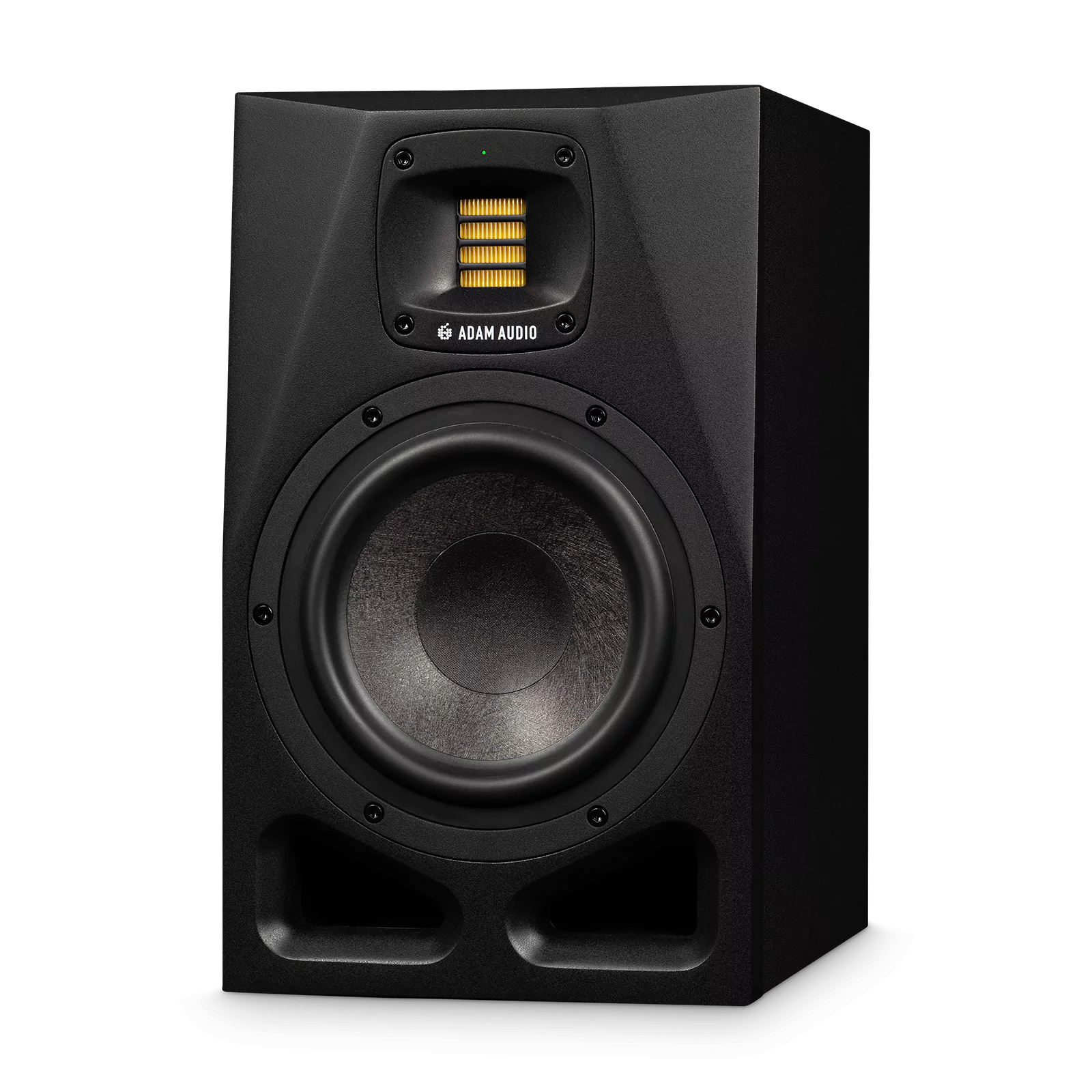

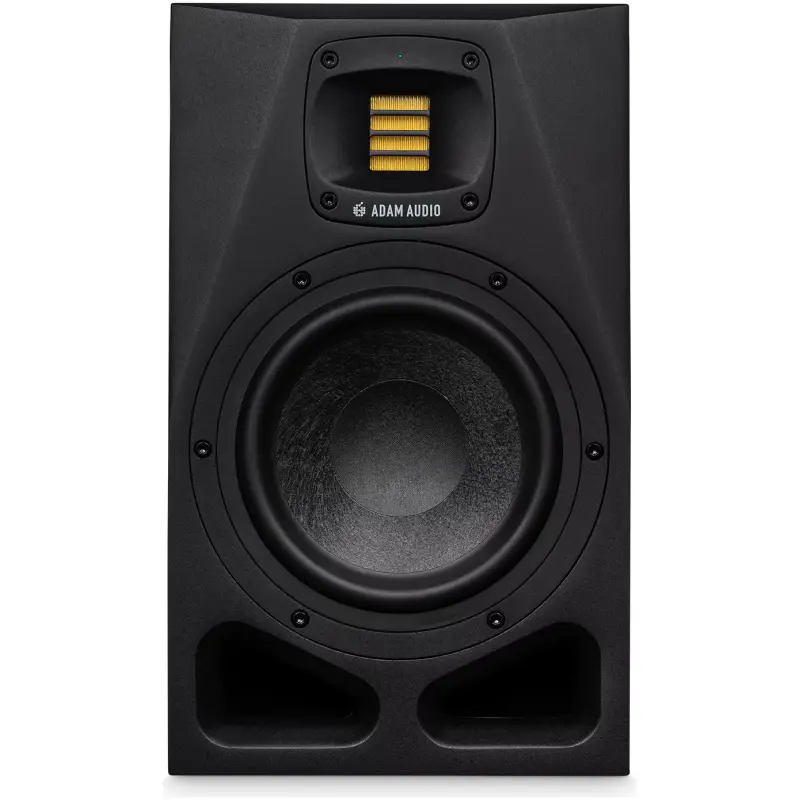

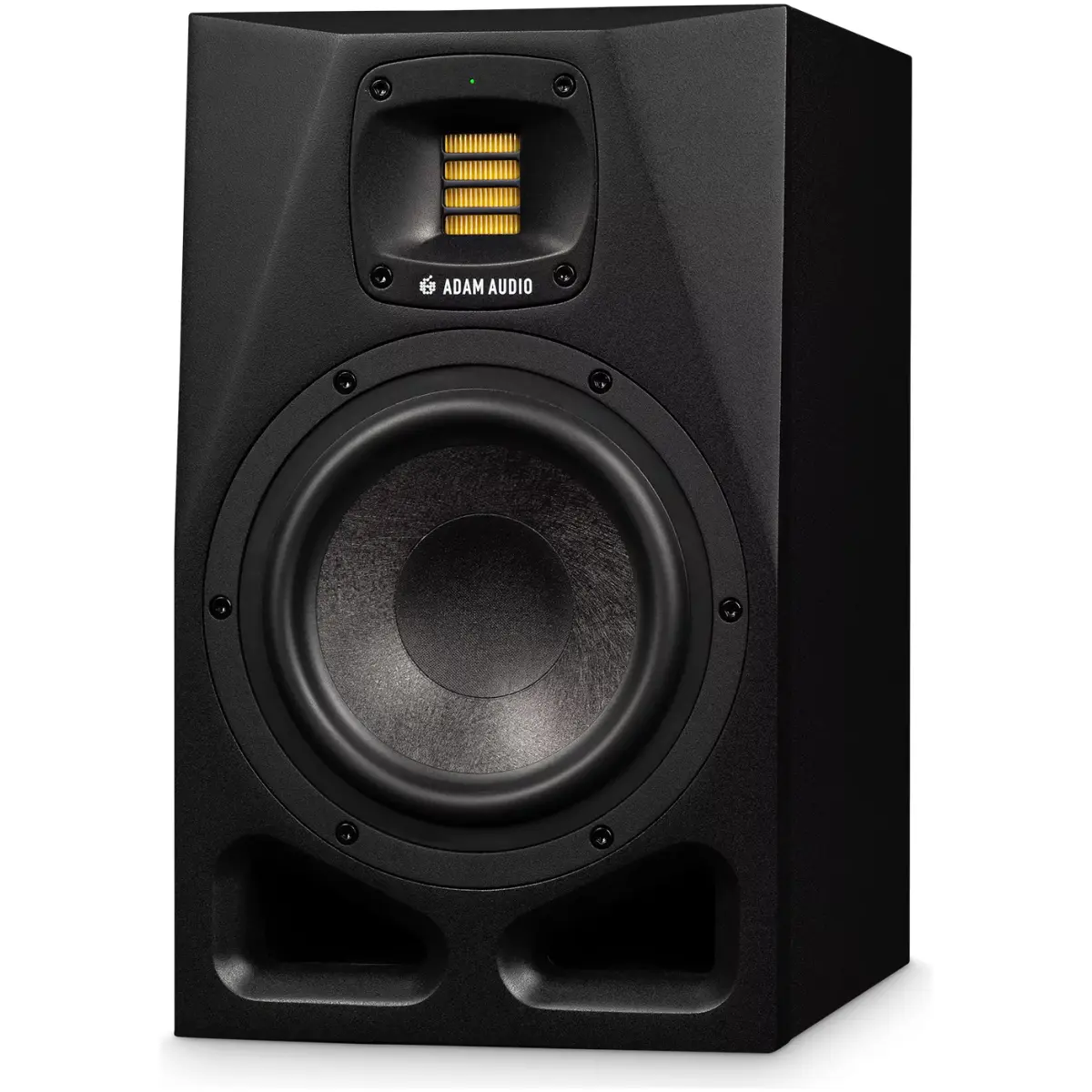

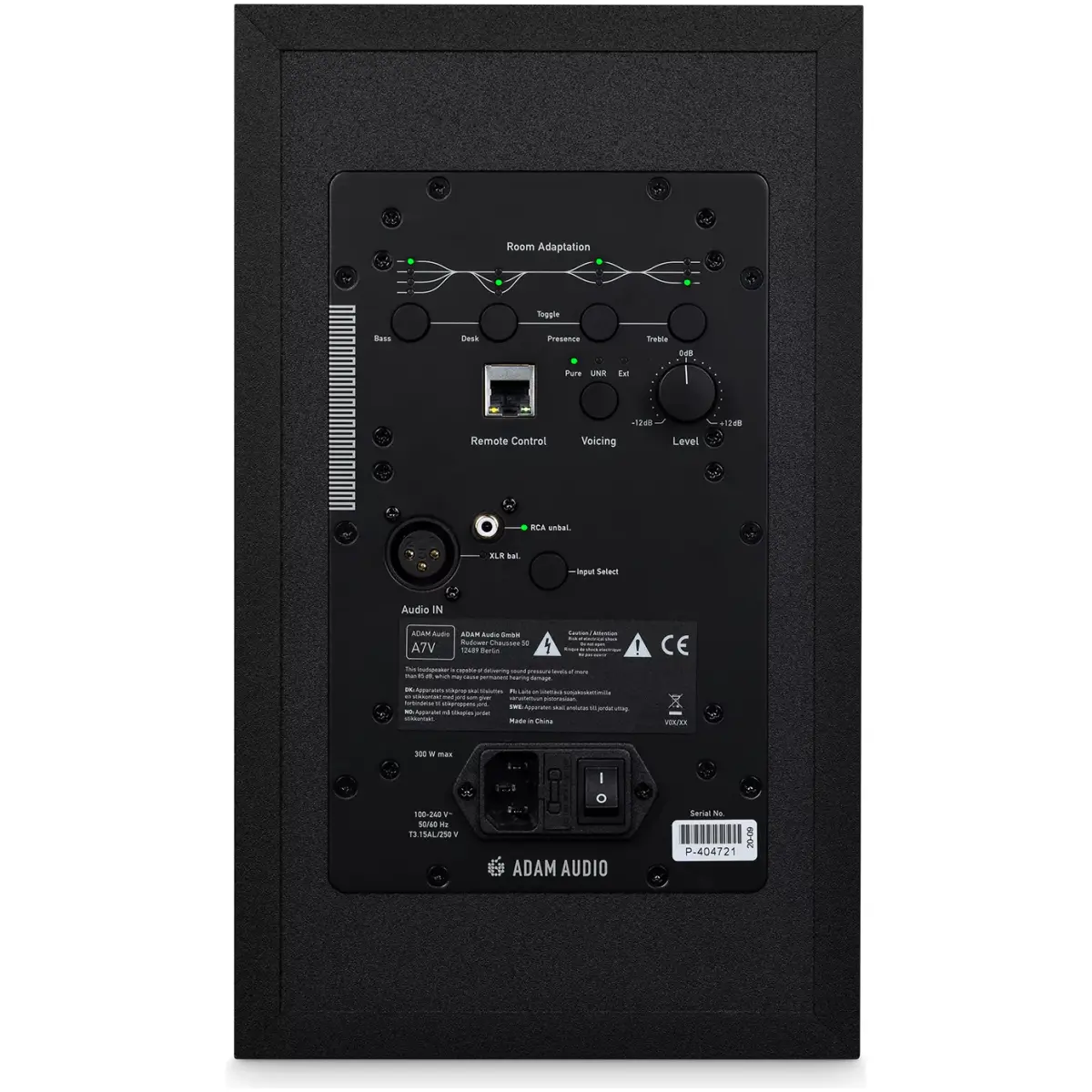

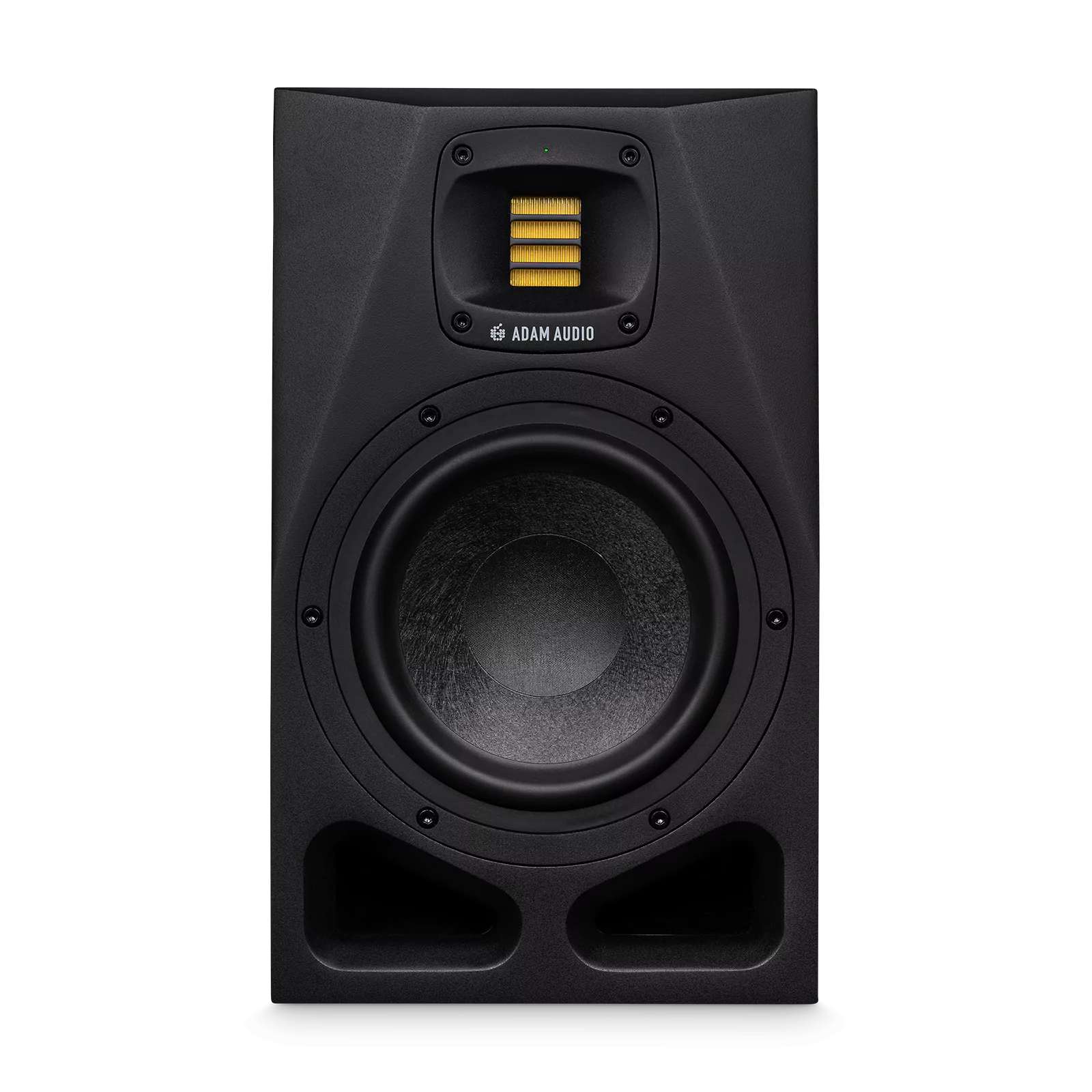

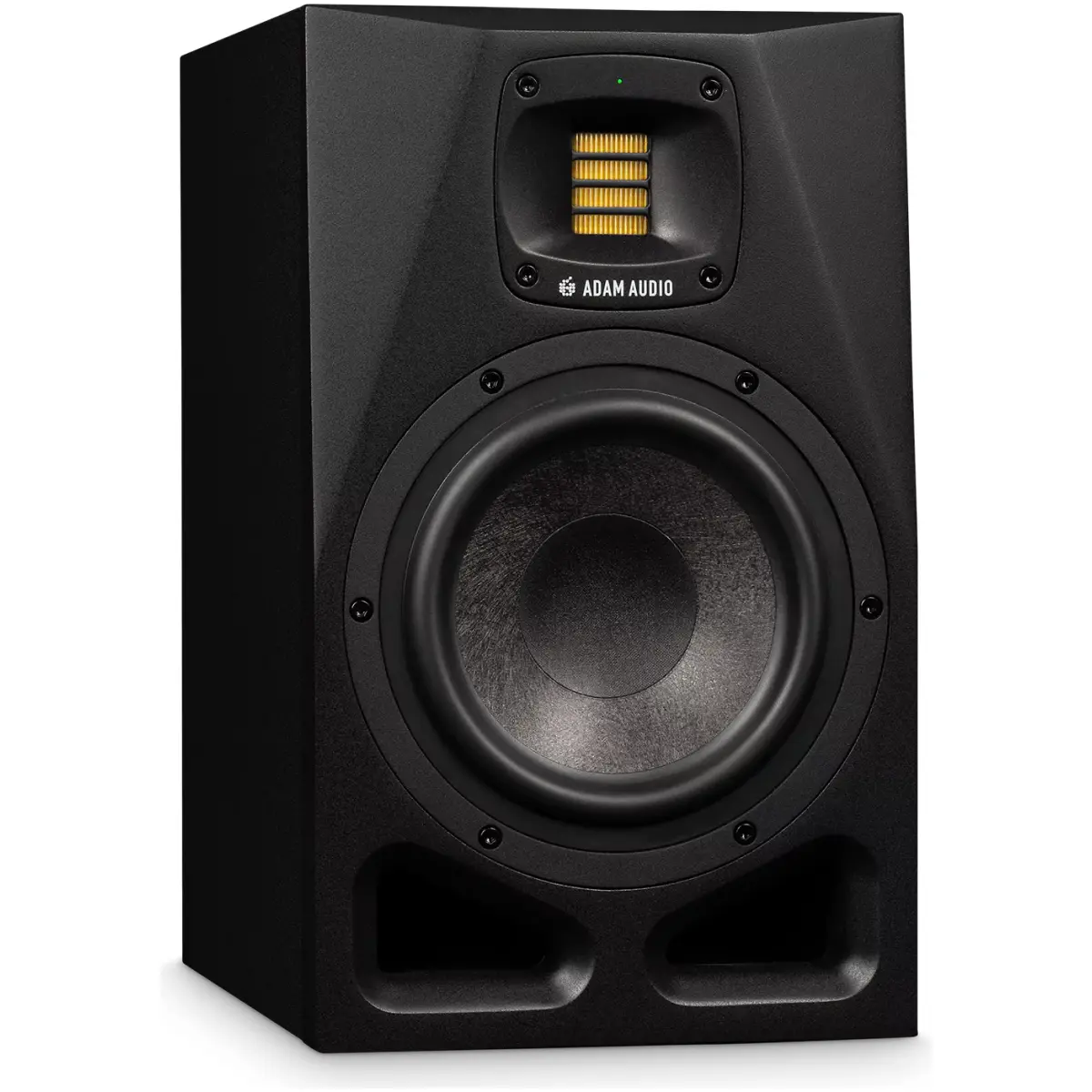

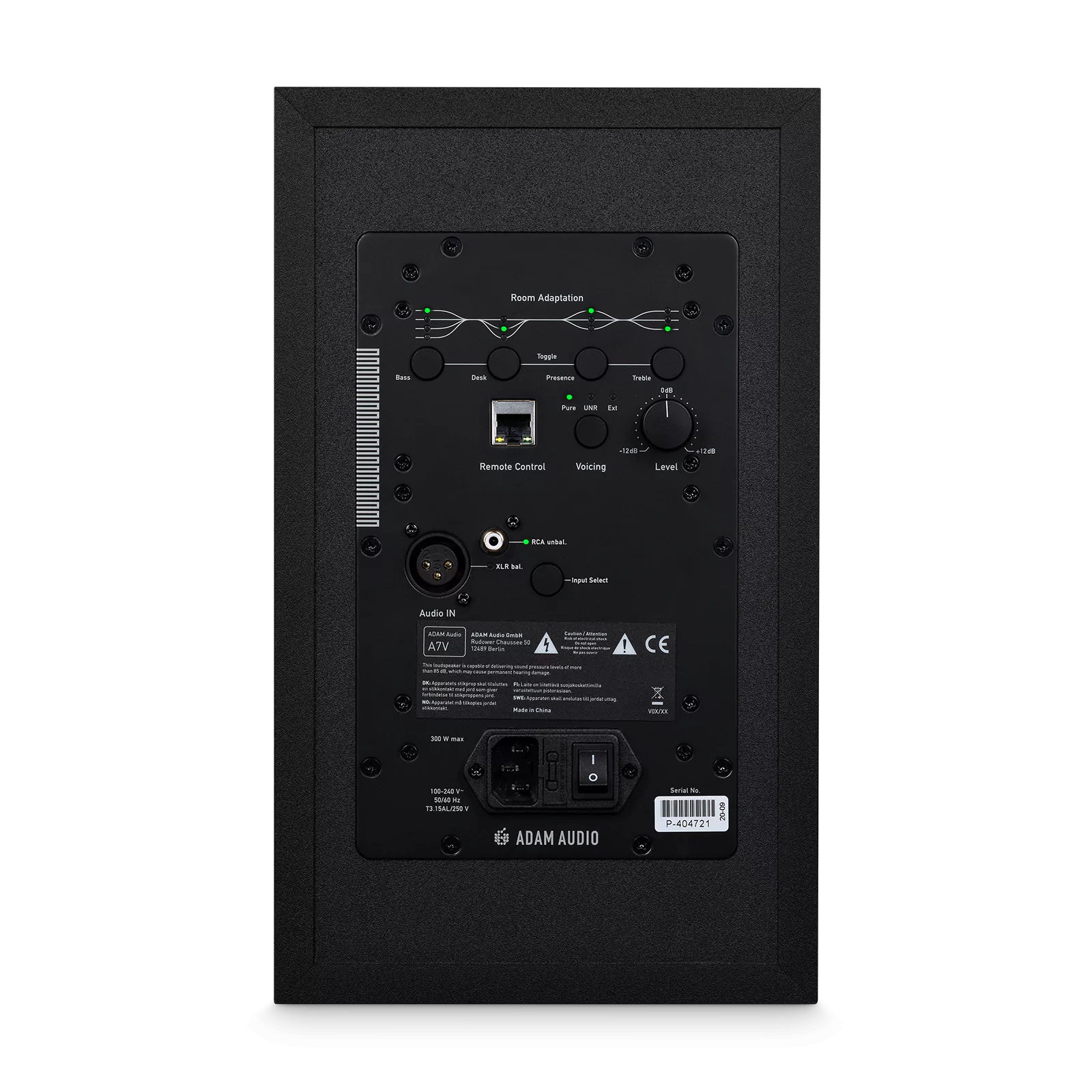

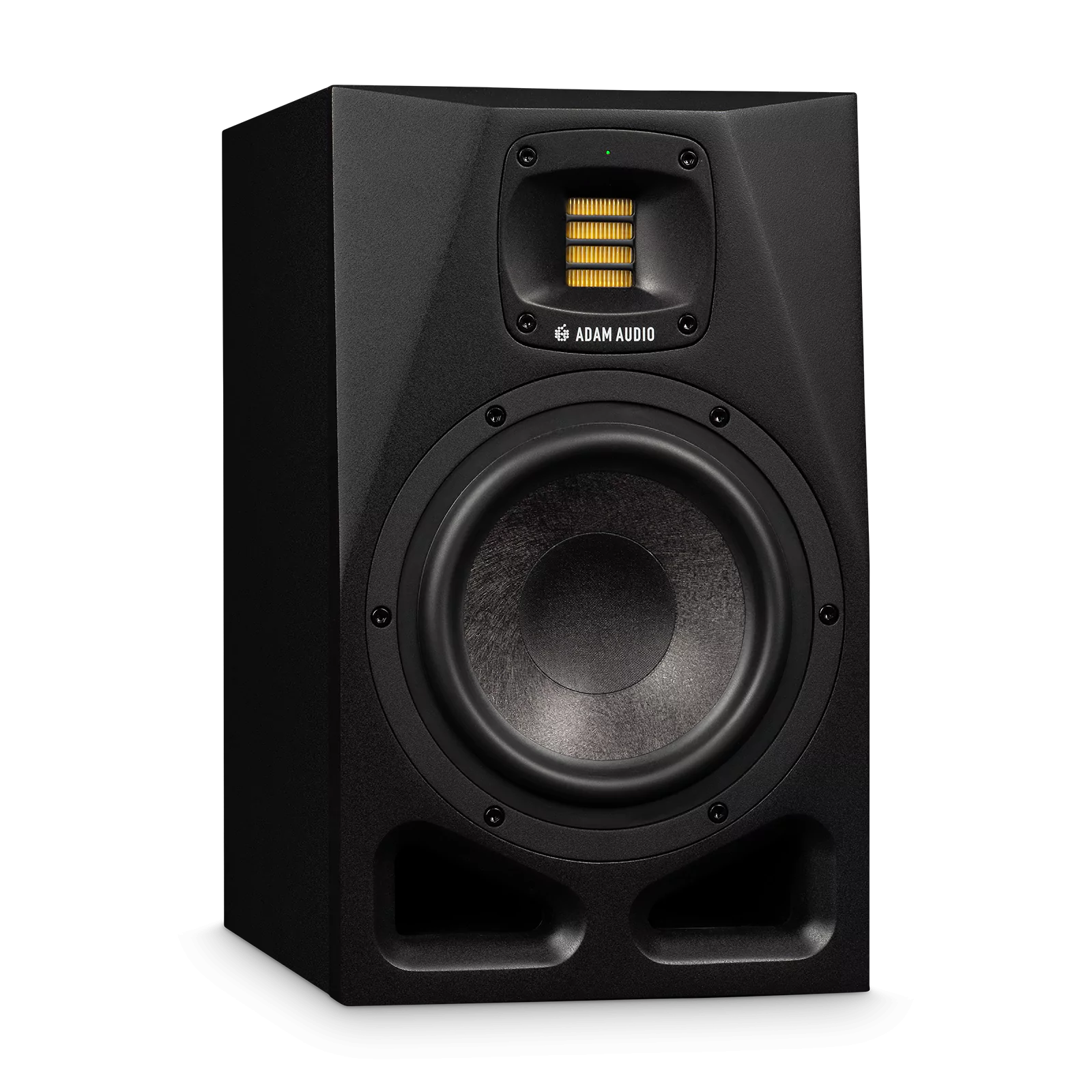

Adam Audio A7V 7″ Active Studio Monitor
R14 740,00
Back order notice: Products may be available within 2 days depending on supplier stock availability.
| Attribute | Value |
|---|---|
| Cabinet Material: | MDF Wood |
| Magnet Type: | Ferrite |
| Driver Configuration: | 1 x 7" LF ; 1 x HF |
| Power Rating (RMS): | 160W |
| Power Rating (Peek): | 300W |
| Frequency Response | @ -6 dB: 40 Hz - 45 kHz |
| Decibel (dB) | - |
| Shipping Weight | 8,7kg |
14
People watching this product now!
Description
Adam Audio A7V 7″ Active Studio Monitor
