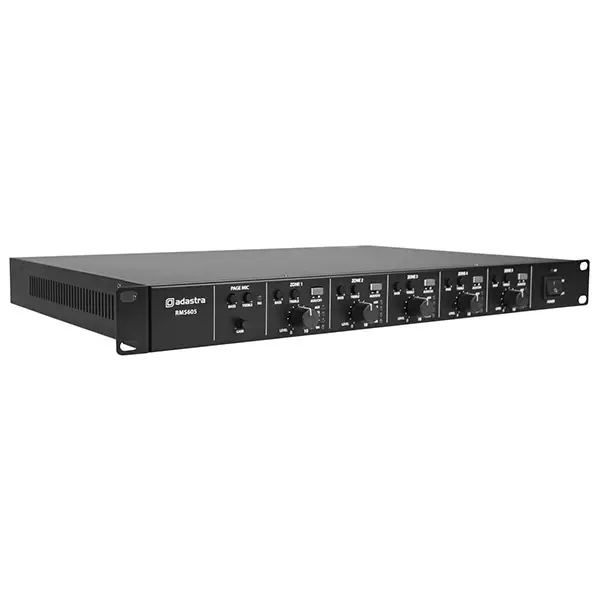

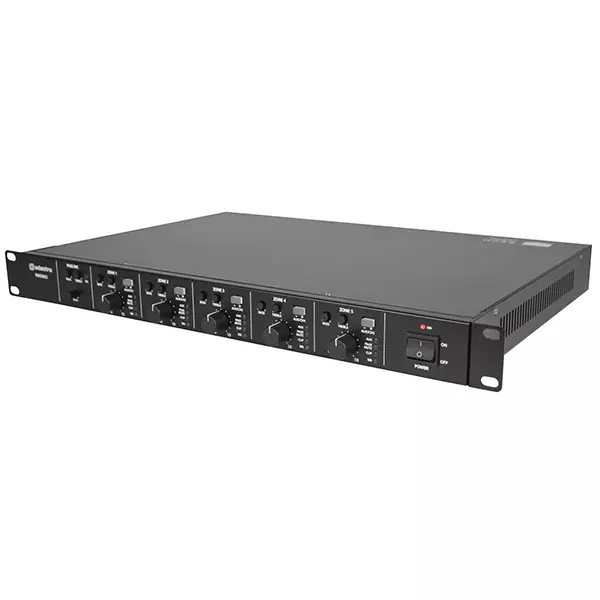

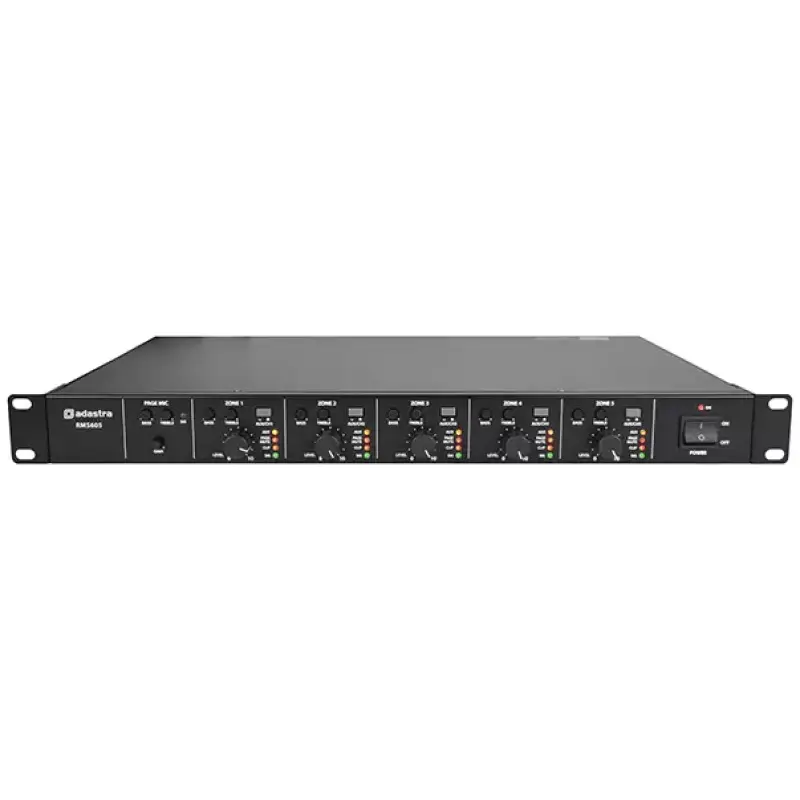

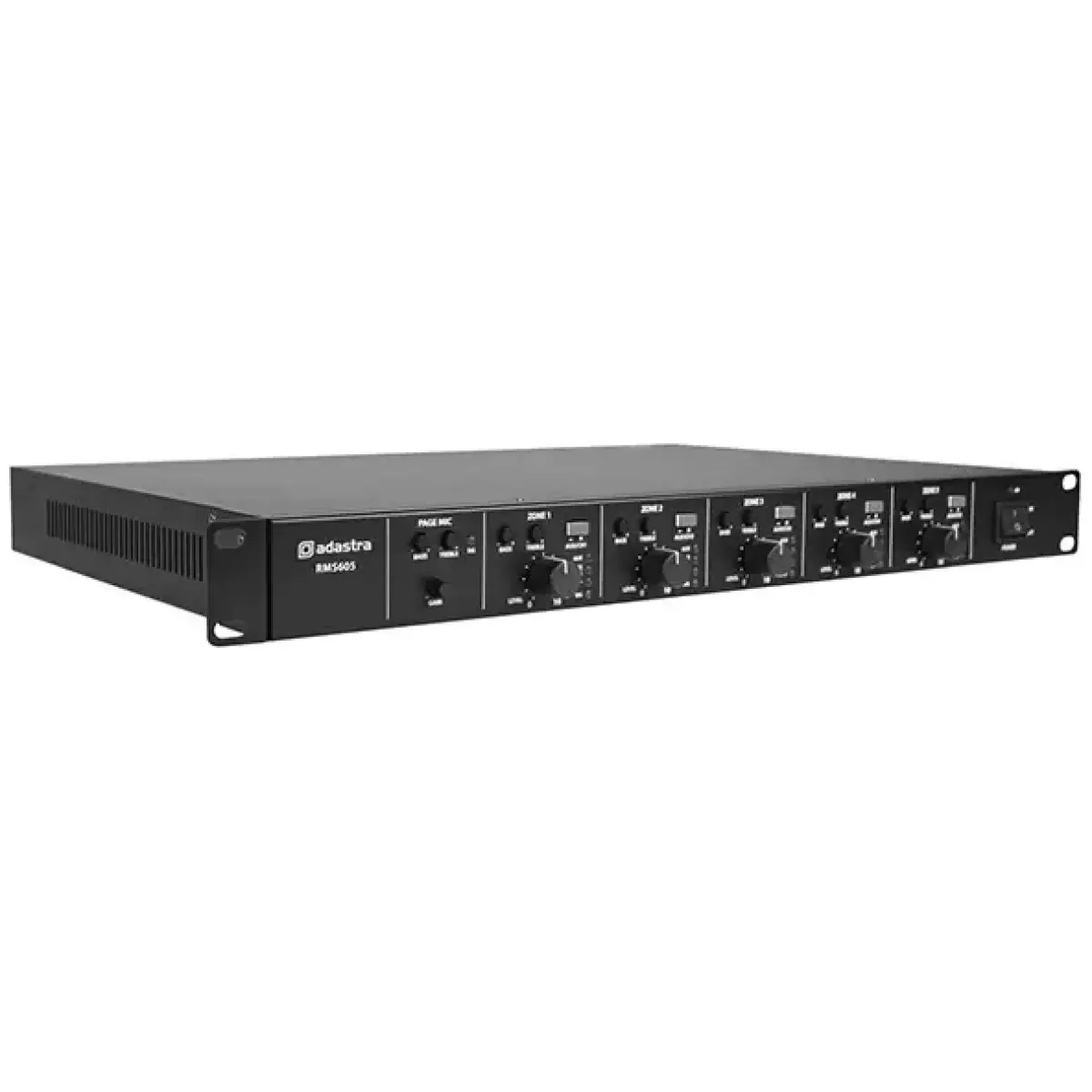

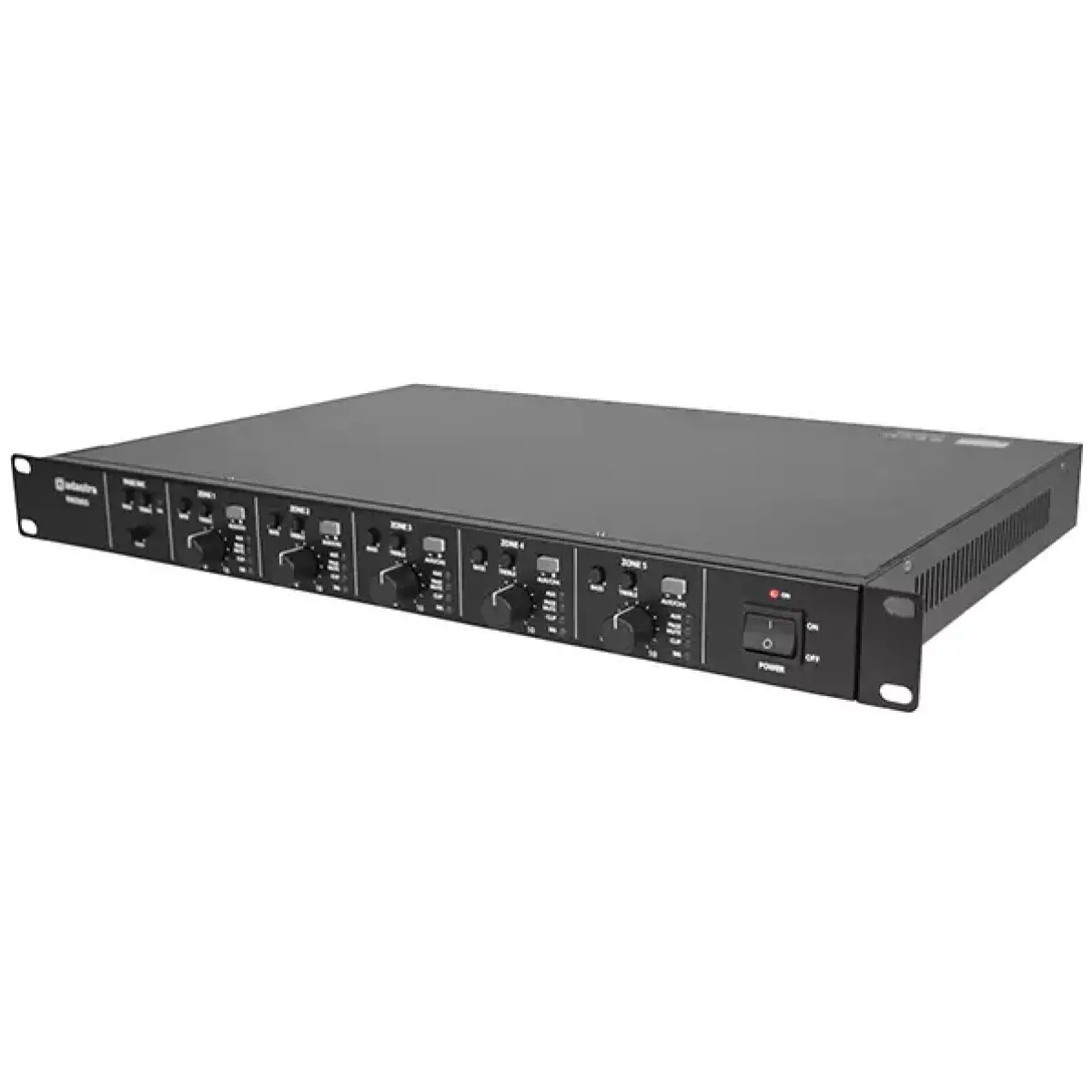

Multi-channel 100V slave amplifier with 5 x 60W outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is always live to all channels for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS605 can be applied as a high power slave amplifier or equally as a fully independent zoning system for a multi-room installation.
Features:
- 5 x class D high efficiency amplifiers
- Outputs for 100V or 4-16 Ohm speakers
- Independent inputs and optional global aux input
- Paging microphone input with vox override
- Switchable +20V phantom power for paging microphone
- 24V contacts for emergency muting
Specifications:
- Power supply: 100-240Vac, 50/60Hz (IEC)
- Fuse: T2AL
- Power rms : 100V line: 5 x 60W
- Power rms : 4 Ohms: 5 x 60W

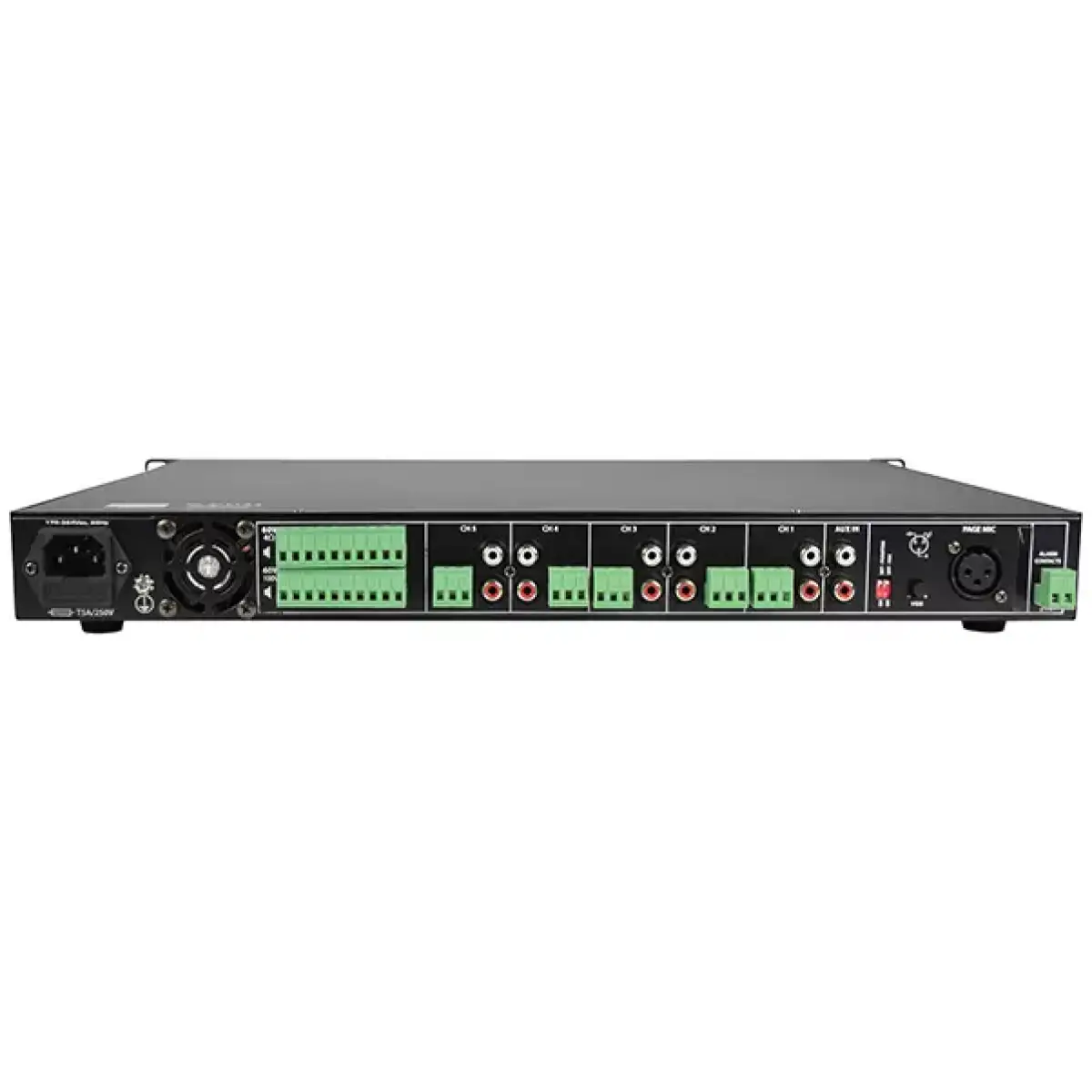

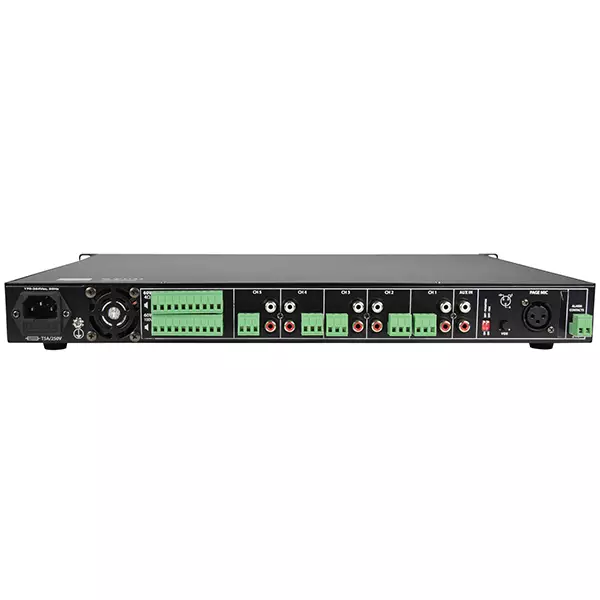

- Microphone input: Balanced XLR (rear panel)
- Mic controls: Gain, Bass, Treble & Vox (rear panel)
- Channel inputs: 5 x L+R RCA or balanced terminal
- Auxiliary input: L+R RCA
- Output controls: Level, Bass, Treble & Ch/Aux switch
- Output connection: 5 x 100V or 4 Ohm (Euroblock terminal)
- Phantom power: +20V switchable (paging mic)
- Emergency control: 24V mute contacts (Euroblock terminal)
- Dimensions: 482 x 330 x 42mm
- Weight: 8.17kg
