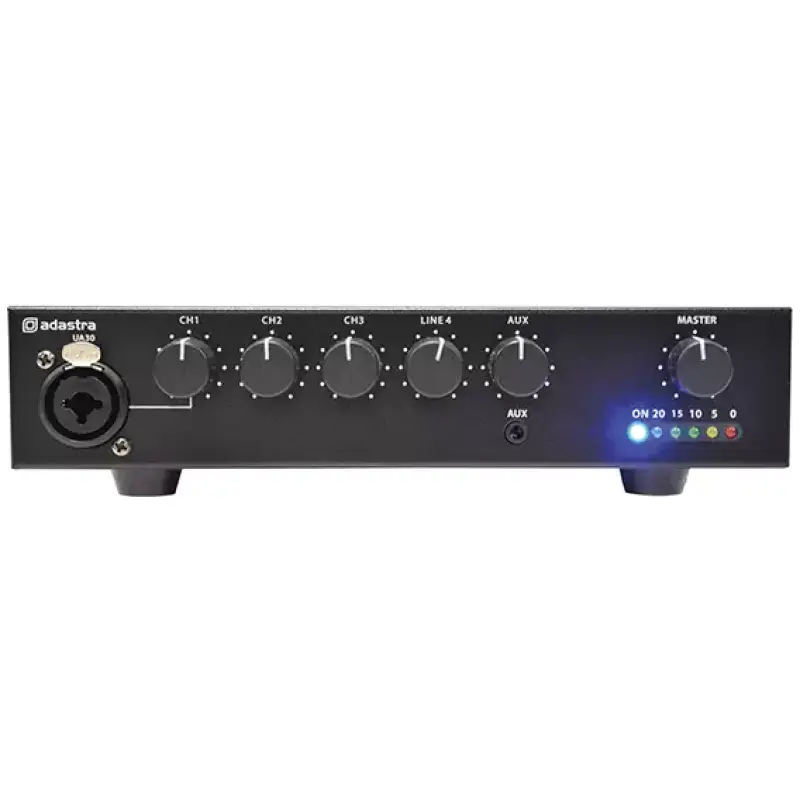

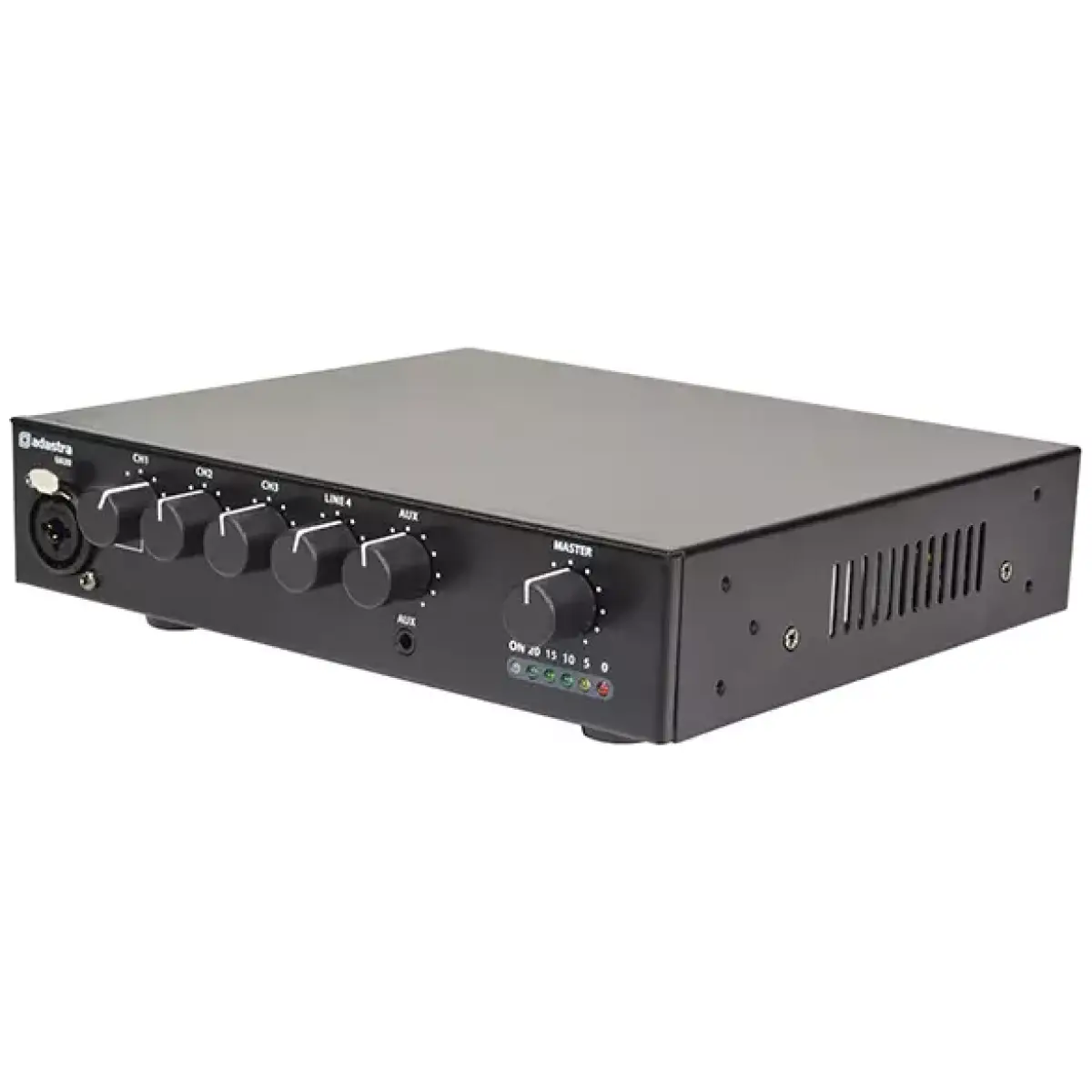

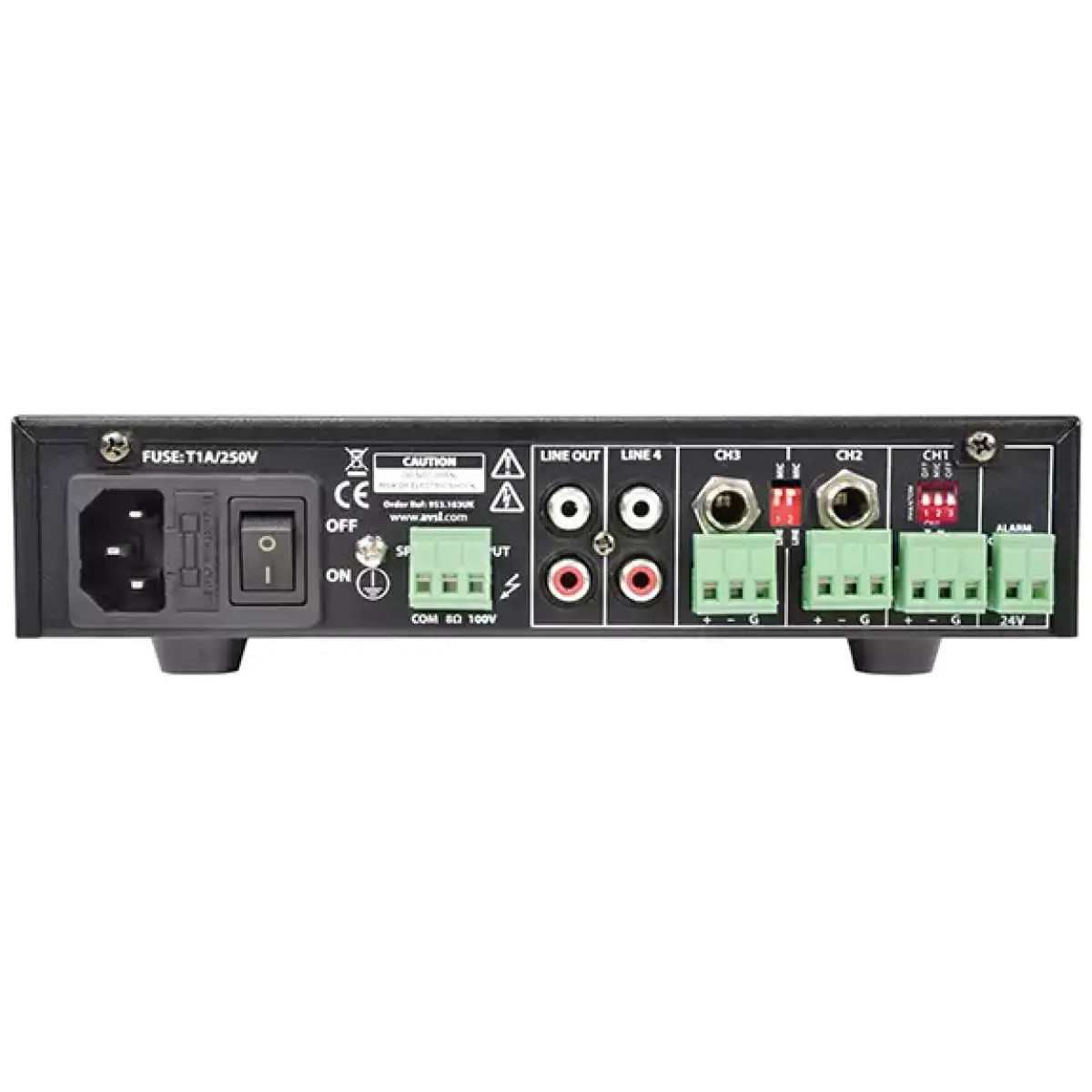

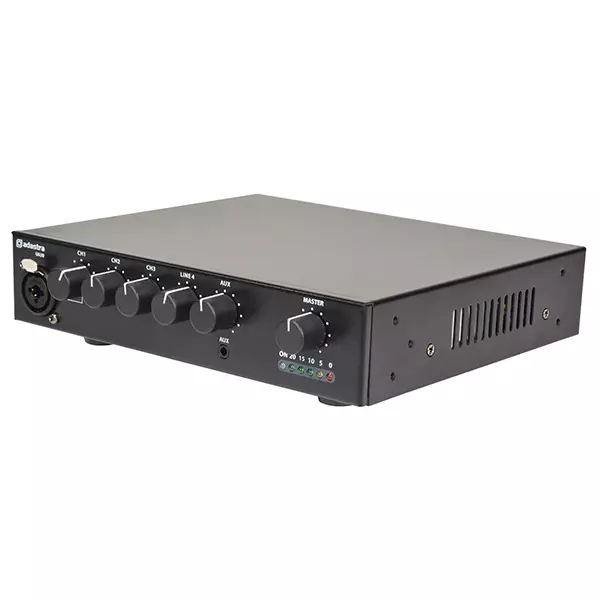

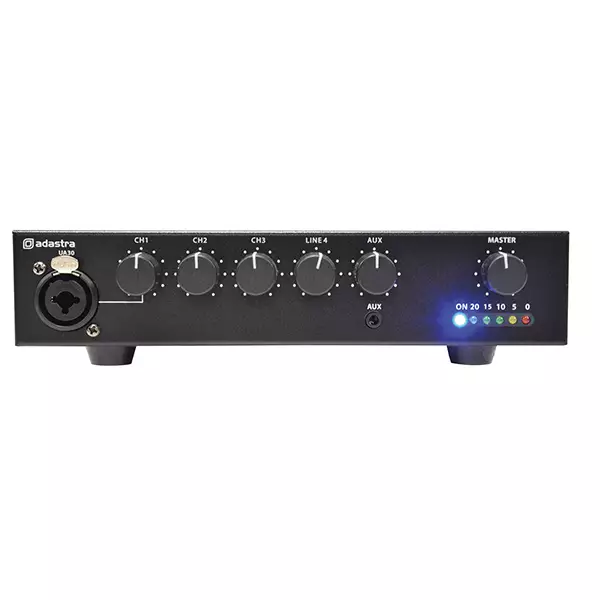

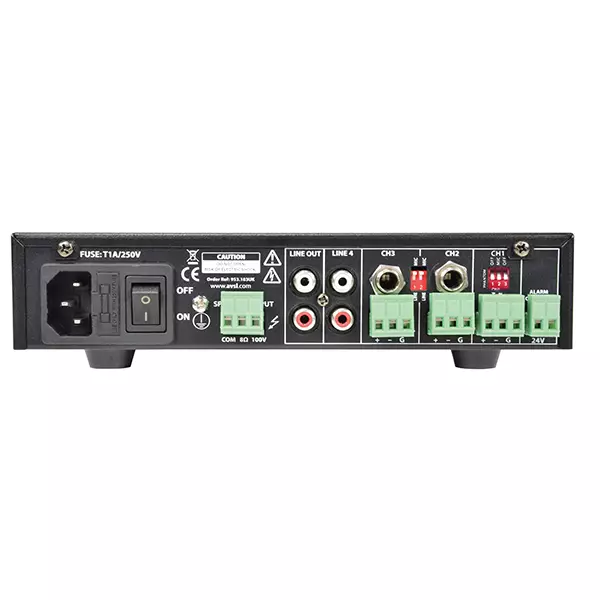

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
Features:
- Supplied with hardware for rack-mounting 2 units
- 5 input channels
- 24V fire alarm mute contacts
- 100V line or 8 Ohms operation
- Switchable +20V phantom power CH1
Specifications:
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier construction: Class D + transformer output
- Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
- Phantom power: +20V CH1 (XLR or rear terminals)
- Line output: 2 x RCA (mono)
- Speaker output: Euroblock terminals: 100V / 8 Ohms / Com
- Mute: 24V relay contacts
- THD: <0.4% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -10dB (line), -45dB (mic)
- SNR80dB: k (line), 75dB (mic)
- Frequency response: 100Hz – 18kHz
- Output power rms: 30W
- Dimensions: 269 x 210 x 44mm
- Weight: 2.35kg
