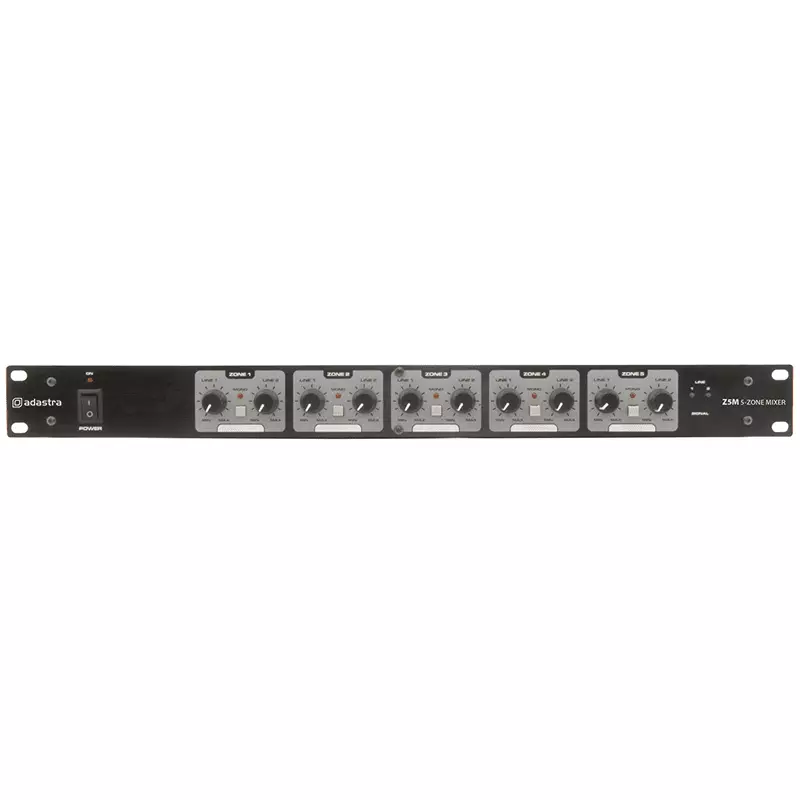

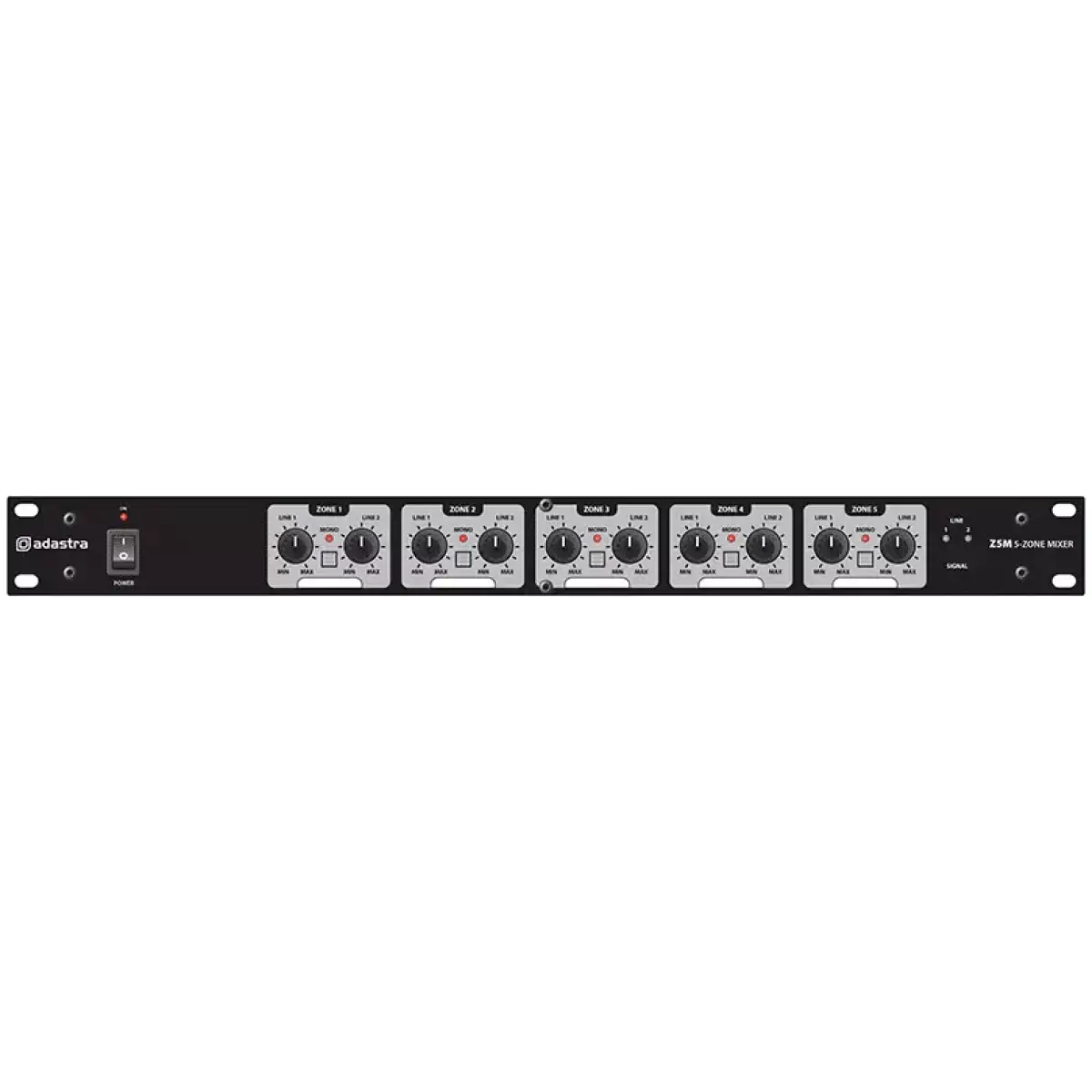

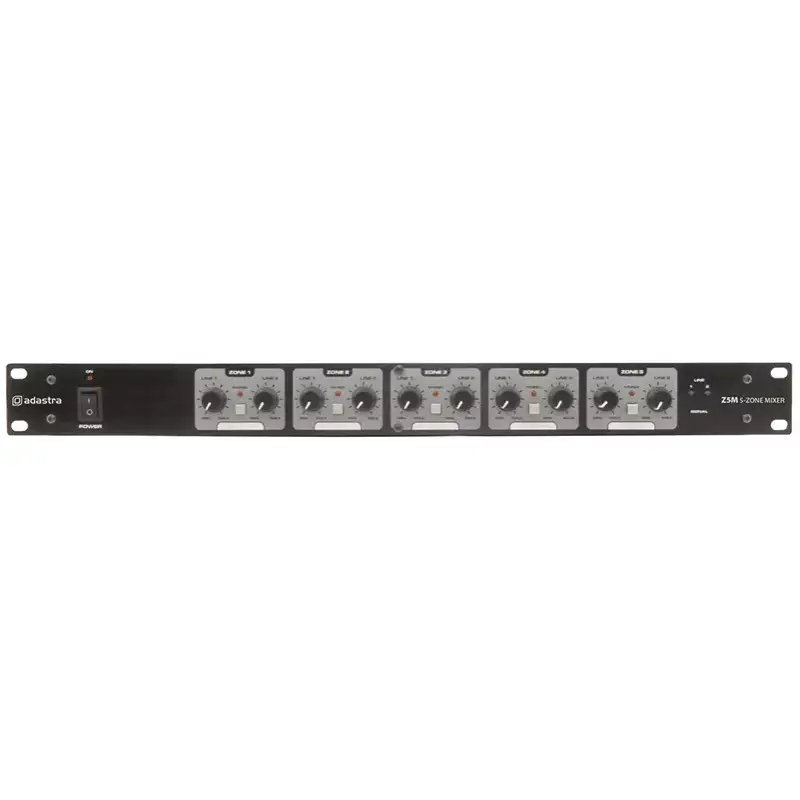

ADASTRA Z5M ZONE MIXER

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

Features:

• 2 inputs to 5 zones
• Mono selectable for each zone

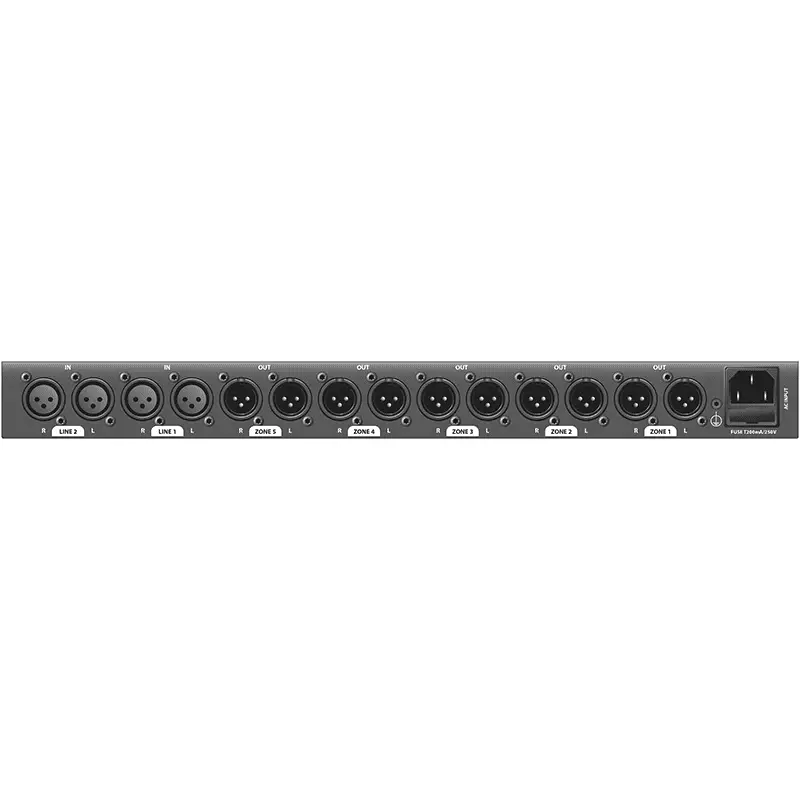

• Fully balanced XLR connections

Specifications:

• Power supply115/230Vac 50/60Hz (IEC)
• InputsLine 1 L+R, Line 2 L+R, balanced XLRF
• OutputsZone 1 to 5 L+R, balanced XLRM
• Input impedance40k Ohms
• Output impedance220 Ohms
• Frequency response20Hz – 25kHz, +0/-1dB
• Signal to noise ratio>100dB
• THD<0.005%
• Dimensions483 x 175 x 44mm
• Weight2.2kg
