- Digital Audio System
ADCs
24-bit @ 44.1, 48, or 96 kHzDACs
24-bit @ 44.1, 48, or 96 kHzDigital Signal Processing
32-bit floating point - Mic Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.2 / -1.2 dB)Dynamic Range
110.0 dB (A-weighted)SNR
101.8 dB (1 kHz, +4 dBu, A-weighted)THD+N
0.002% (1 kHz, +4 dBu, -1 dBFS)Preamp EIN
-131 dBu (max gain, 40 Ω source, A-weighted)
-127 dBu (max gain, 150 Ω source, unweighted)Maximum Input Level
+13 dBu (XLR-Pad ON), -1 dBu (XLR-Pad OFF)Sensitivity
-46 dBu (XLR-Pad ON), -60 dBu (XLR-Pad OFF)Gain Range
59 dB - Line Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.2 / -1.1 dB)Dynamic Range
110.6 dB (A-weighted)SNR
98.6 dB (1 kHz, +4 dBu, A-weighted)THD+N
0.002% (1 kHz, +3 dBu, -1 dBFS)Maximum Input Level
+16 dBuSensitivity
-20 dBuGain Range
36 dB - Phono Inputs
(2) unbalanced RCA
Dynamic Range
92 dB (A-weighted, 135 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)SNR
79 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)THD+N
0.002% (1 kHz, +3 dBu, -1 dBFS)Maximum Input Level
+16 dBuSensitivity
-20 dBuGain Range
36 dB - Line Outputs 1–6
(6) impedance-balanced 1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.03 / -0.18 dB)Dynamic Range
113.8 dB (A-weighted)THD+N
0.003% (1 kHz, -1 dBFS)Maximum Output Level
+12 dBuOutput Impedance
100 Ω - Headphone Output
(1) 1/4” (6.35 mm) stereo headphone
Dynamic Range
111.2 dB (A-weighted)THD+N
0.006% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)Frequency Response
20 Hz – 20 kHz (+0.03 / -0.19 dB)Maximum Power Delivered
+50 mW (<1% THD, 32 Ω headphones)Maximum Output Level
+11 dBuOutput Impedance
32 Ω - Pads
(16) velocity- and pressure-sensitive pas with 3D-sensing technology
(8) banks accessible via Pad Bank buttons
- Knobs
(4) 360° touch-sensitive Q-Link Knobs
(4) Q-Link Knob columns accessible via Q-Link button
(1) 360° encoder for display navigation and selection via push
(1) 270° volume control
- Buttons(60) dedicated function buttons; red-, amber-, or green-backlit
- Display
6.9” / 176 mm (diagonal)
5.9” x 3.7” / 150 x 93 mm (width x height)
Full-color LED-backlit display with touch interface
- CPU
Processor:
8 x Core ARM® processorRAM:
8 GBStorage:
128 GB, expandable via SATA connections - Connections
(2) 1/4” (6.35 mm) Combo XLR/TRS inputs (1 stereo pair)
(6) 1/4” (6.35 mm) TRS outputs (3 stereo pairs)
(1) 1/4” (6.35 mm) stereo headphone output
(2) RCA inputs (1 stereo pair)
(2) 5-pin MIDI inputs
(2) 5-pin MIDI outputs
(4) Stereo 1/8” (3.5 mm) CV/Gate outputs
(2) USB Type-A ports
(1) USB Type-C® port
(1) SD card slot
(1) power adapter input
(1) drive bay for 2.5” (635 mm) SATA drive
- Power
via power adapter:
19 V, 3.42 A, center-positive, Includedvia battery:
lithium-ion, rechargeable, up to 3 hours of battery life with typical use - Dimensions
17.2” x 10.1” x 2.6”
435.9 x 256.0 x 67.1 mm
- Weight
8.6 lbs.
3.9 kg
New

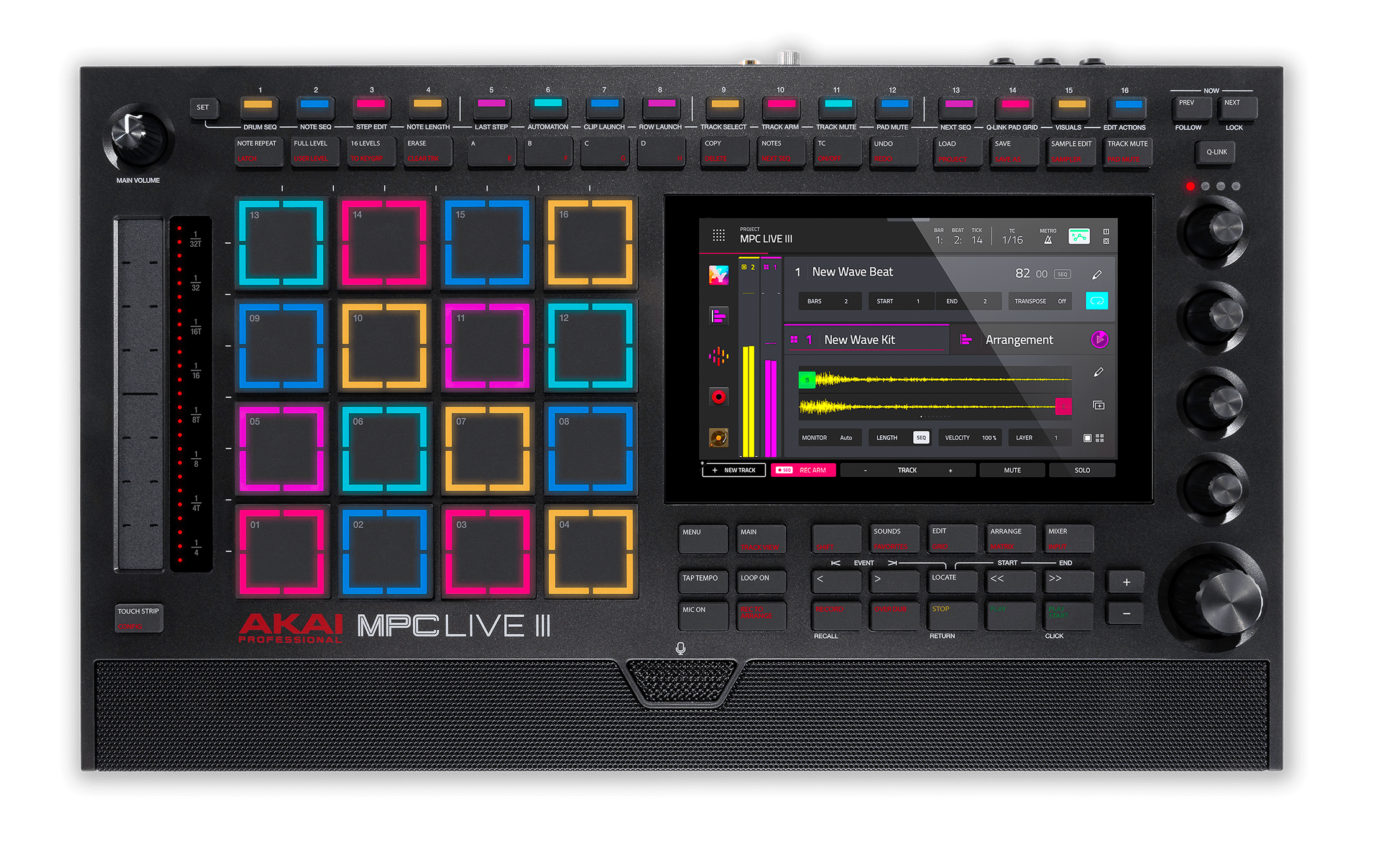

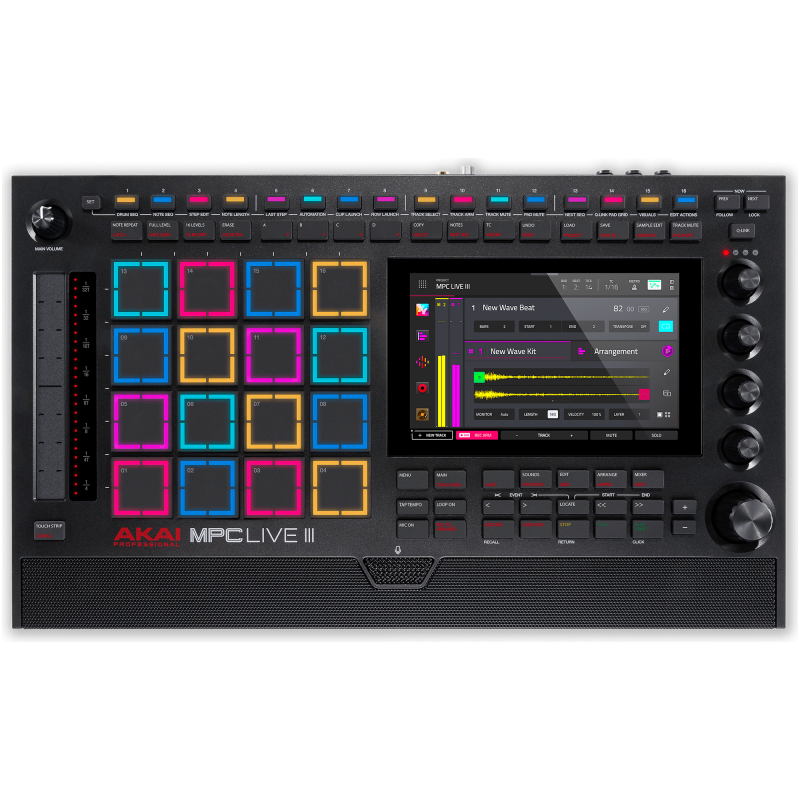

Akai MPC Live III Standalone Music Production Center
R45 995,00
19
People watching this product now!
Description
Technical Specifications
We built MPC Live III for producers who move fast. It’s packed with dynamic production tools, responsive controls, sounds designed by the industry’s top sample makers, and the fastest processor of any MPC to date.
