Key Specs
Keys
- (37) Synth-action keybed w/ Aftertouch / Pitchbend and Modulation Wheel
Pads
- (16) Velocity and pressure-sensitive pads, RGB-backlit
- (8) Banks accessible via 4 Pad Bank buttons
Knobs
- (4) 360° touch-sensitive Q-Link knobs for parameter adjustment
- (1) Data encoder for value adjustment and selection via push buttons
- (38) Dedicated-function buttons
Display
- 7.0” / 177 mm (diagonal)
- 5.9” x 3.7” / 151 x 94 mm (width x height)
- Full-color LED-backlit display with touch interface
Memory
- Processor: Quad-core ARM® processor
- RAM: 2 GB
- Storage: 32 GB (over 22 GB available for user storage)
Power
- via power adapter (12 V, 3.0 A, center-positive, included)

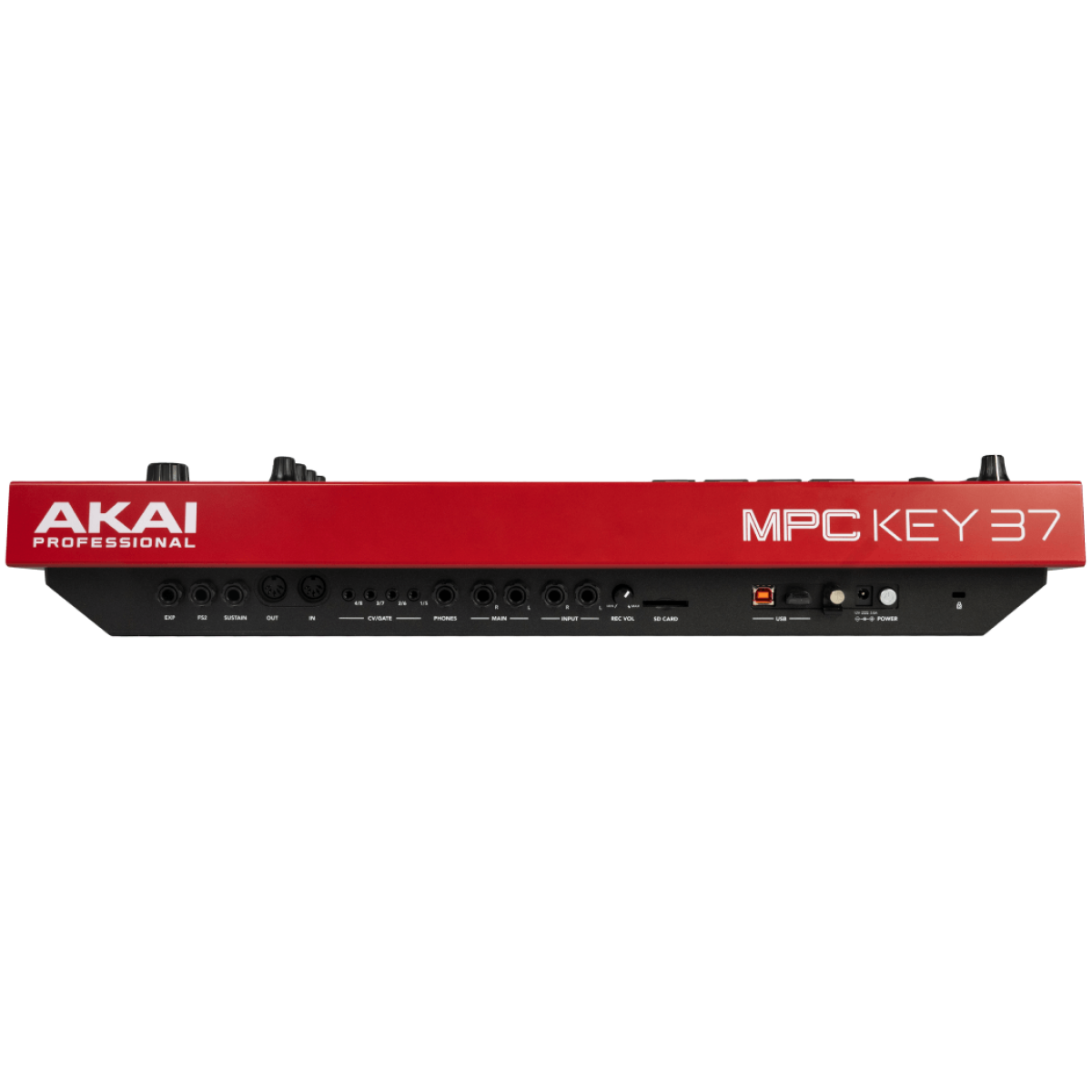

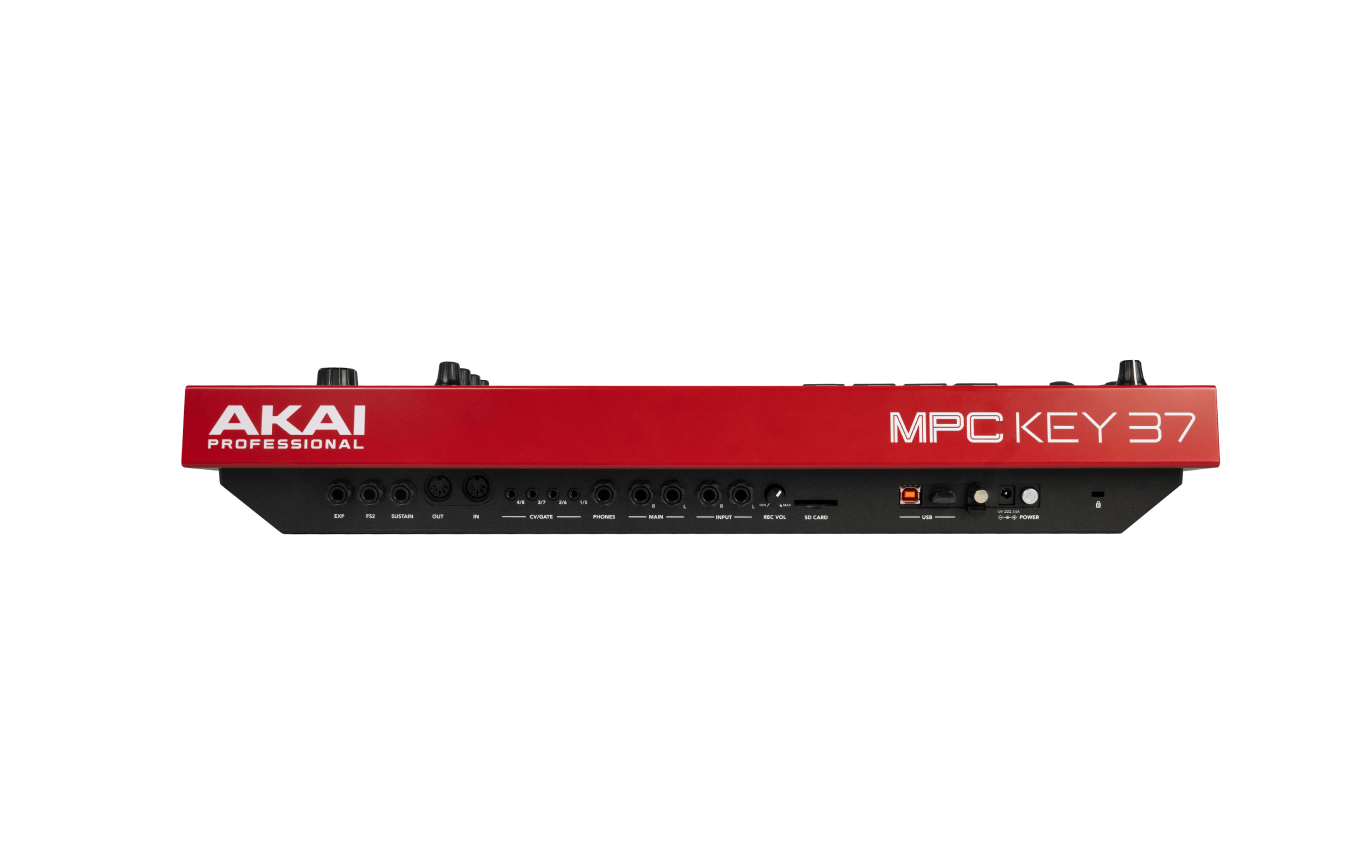

Connections
- (2) 1/4” (6.35 mm) TRS Inputs (1 stereo pair)
- (2) 1/4” (6.35 mm) TRS Outputs (1 stereo pair)
- (1) 1/4” (3.5 mm) stereo headphone Output
- (1) 1/4” Sustain Input
- (1) 1/4” Expression Input
- (1) 1/4” FS2 Input
- (1) 5-pin MIDI Input
- (1) 5-pin MIDI Output
- (4) 4 TRS CV/Gate Jacks, 8 Outputs Total
- (1) USB Type-A port
- (1) USB Type-B port
- (1) SD Card slot
- (1) Power Adapter Input
Product Dimensions(width x depth x height)
- 22.92” x 12.36” x 4.08”
- 58.22cm x 31.39cm x 10.36cm
Product Weight
- 4kg / 8.82lbs
Giftbox Dimensions(width x depth x height)
- 29.52” x 17.28” x 6.84”
- 74.98cm x 43.89cm x 17.37
Giftbox Weight
- 5.9kg / 13lbs
