Key Specs
Pads
- (16) velocity and pressure-sensitive pads, RGB-backlit
- (8) banks accessible via Pad Bank buttons
Knobs
- (4) 360° touch-sensitive Q-Link Knobs
- (4) Q-Link Knob columns accessible via Q-Link button
- (1) 360° encoder for display navigation and selection via push
Buttons
- (27) dedicated function buttons; red, amber, or green backlit
Display
- 6.9” / 176 mm (diagonal)
- 5.9” x 3.7” / 150 x 93 mm (width x height)
- Full-color LED-backlit display with touch interface
CPU
- Quad-core ARM® processor
RAM
- 2 GB
Storage
- 16 GB, expandable via SATA connections

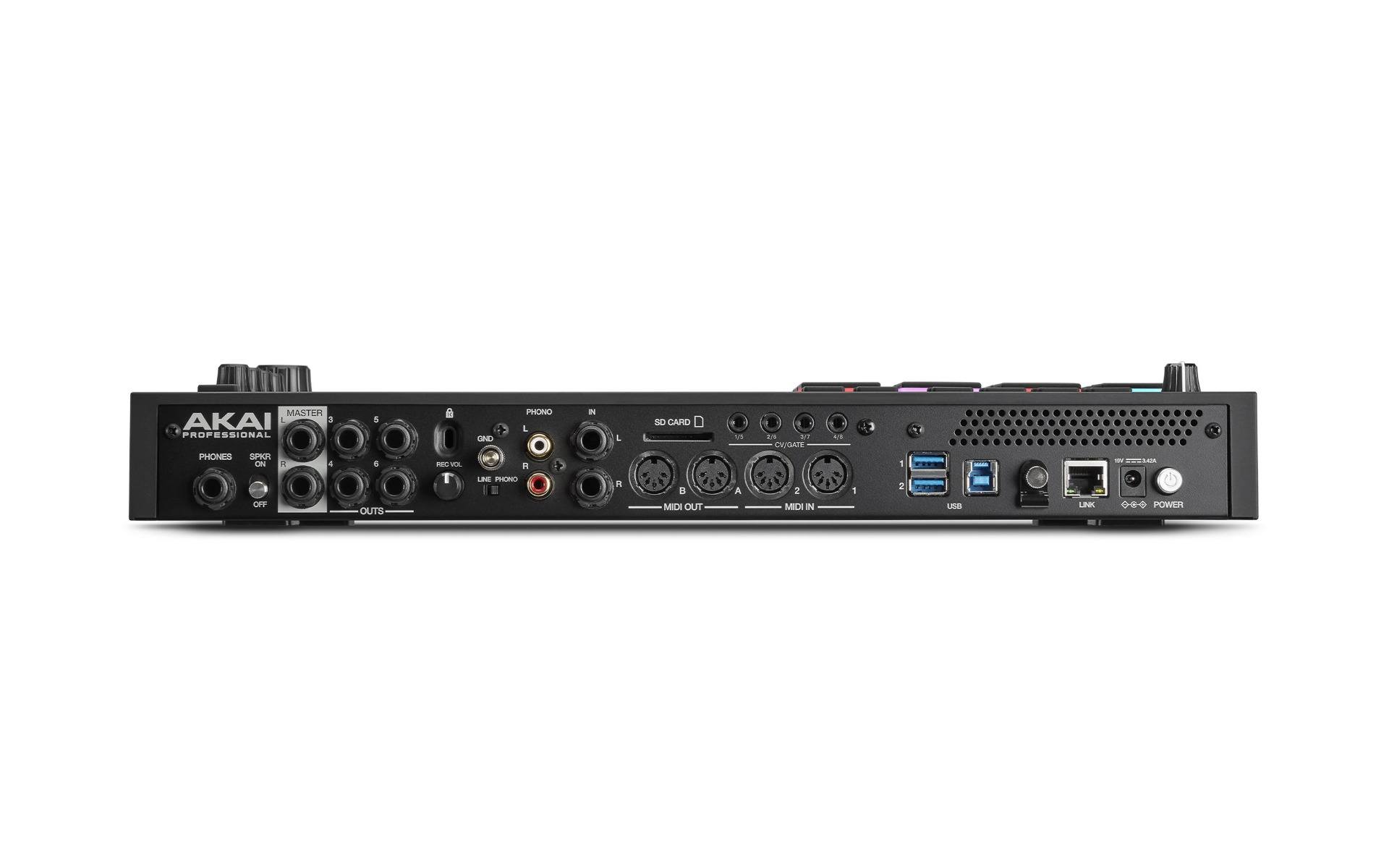

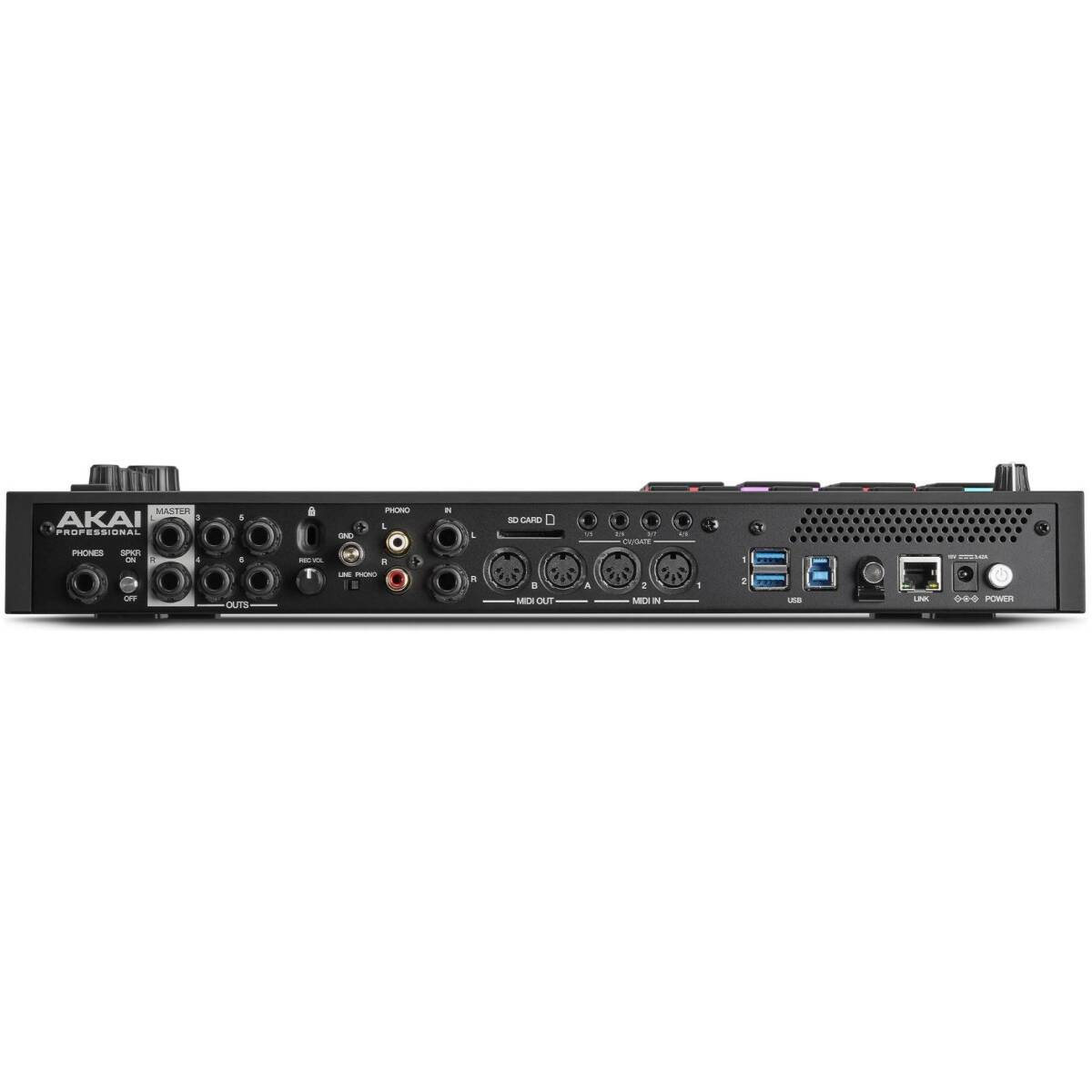

Connections
- (2) 1/4” (6.35 mm) TRS inputs (1 stereo pair)
- (6) 1/4” (6.35 mm) TRS outputs (3 stereo pairs)
- (1) 1/4” (6.35 mm) stereo headphone output
- (2) RCA inputs (1 stereo pair)
- (2) 5-pin MIDI inputs
- (2) 5-pin MIDI outputs
- (4) TRS CV/Gate jacks, 8 outputs total
- (1) Ethernet link port
- (2) USB Type-A ports
- (1) USB Type-B port
- (1) SD Card slot
- (1) Power Adapter input
Power
- Via power adapter: 19 V, 3.42 A, center-positive, included
- Via battery: Up to 5 hours of battery life
Dimensions (width x depth x height)
- 16.2” x 9.6” x 1.8”
- 411.5 x 243.8 x 45.7 mm
Weight
- 7.45 lbs
- 3.38 kg
