Key Specs
Pads
- (16) velocity- and pressure-sensitive pads, RGB-backlit
- (8) banks accessible via 4 Pad Bank buttons
Knobs
- (4) 360° touch-sensitive Q-Link knobs for parameter adjustment (1) data encoder for value adjustment and selection via push
Buttons
- (31) dedicated-function buttons
Display
- 7.0” / 177 mm (diagonal)
- 5.9” x 3.7” / 151 x 94 mm (width x height)
- Full-color LED-backlit display with touch interface
Memory
- Processor: Multi-core ARM® processor
- RAM: 2 GB
- Storage: 16 GB (over 7.8 GB available for user storage)
Power
- via power adapter (12 V, 3.0 A, center-positive, included)

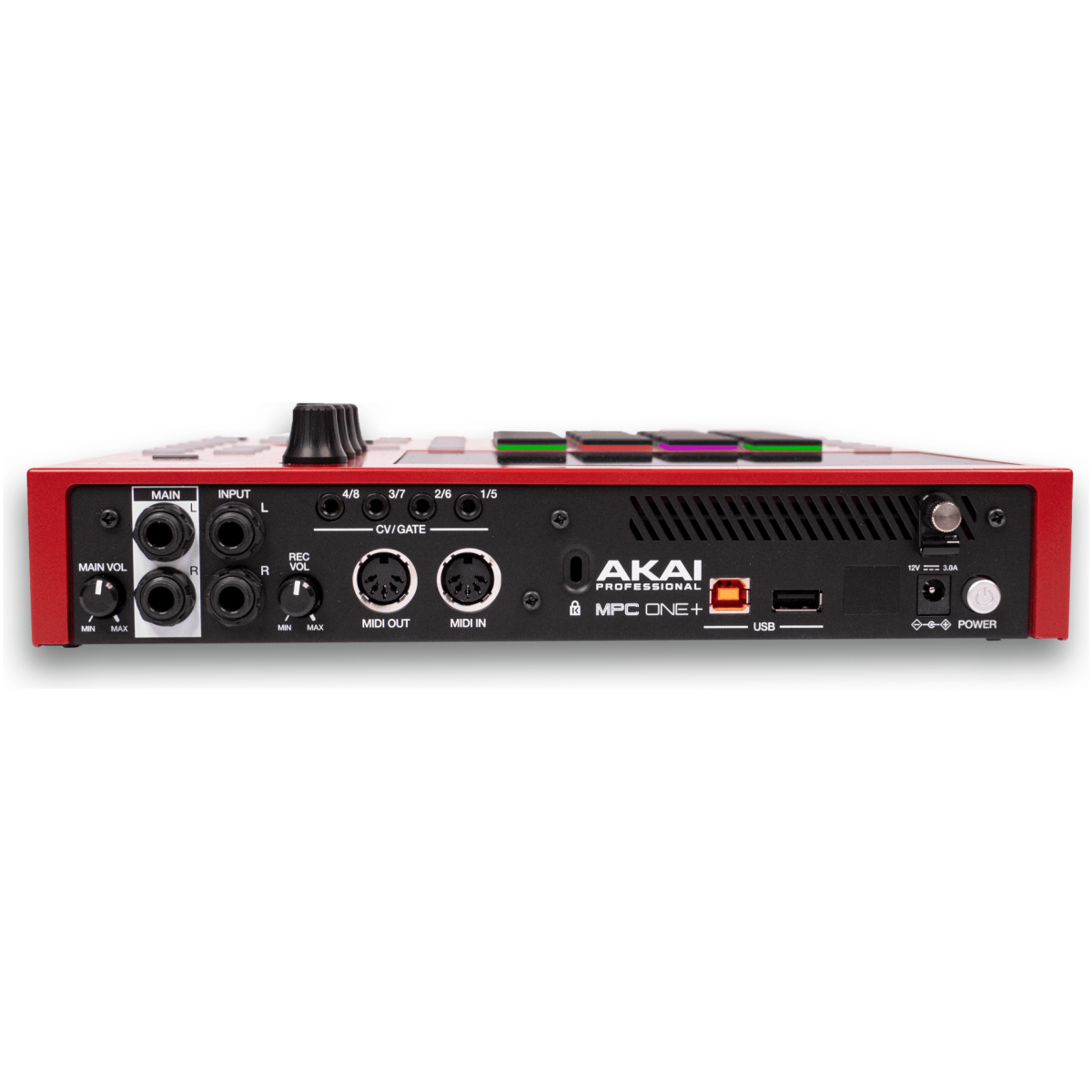

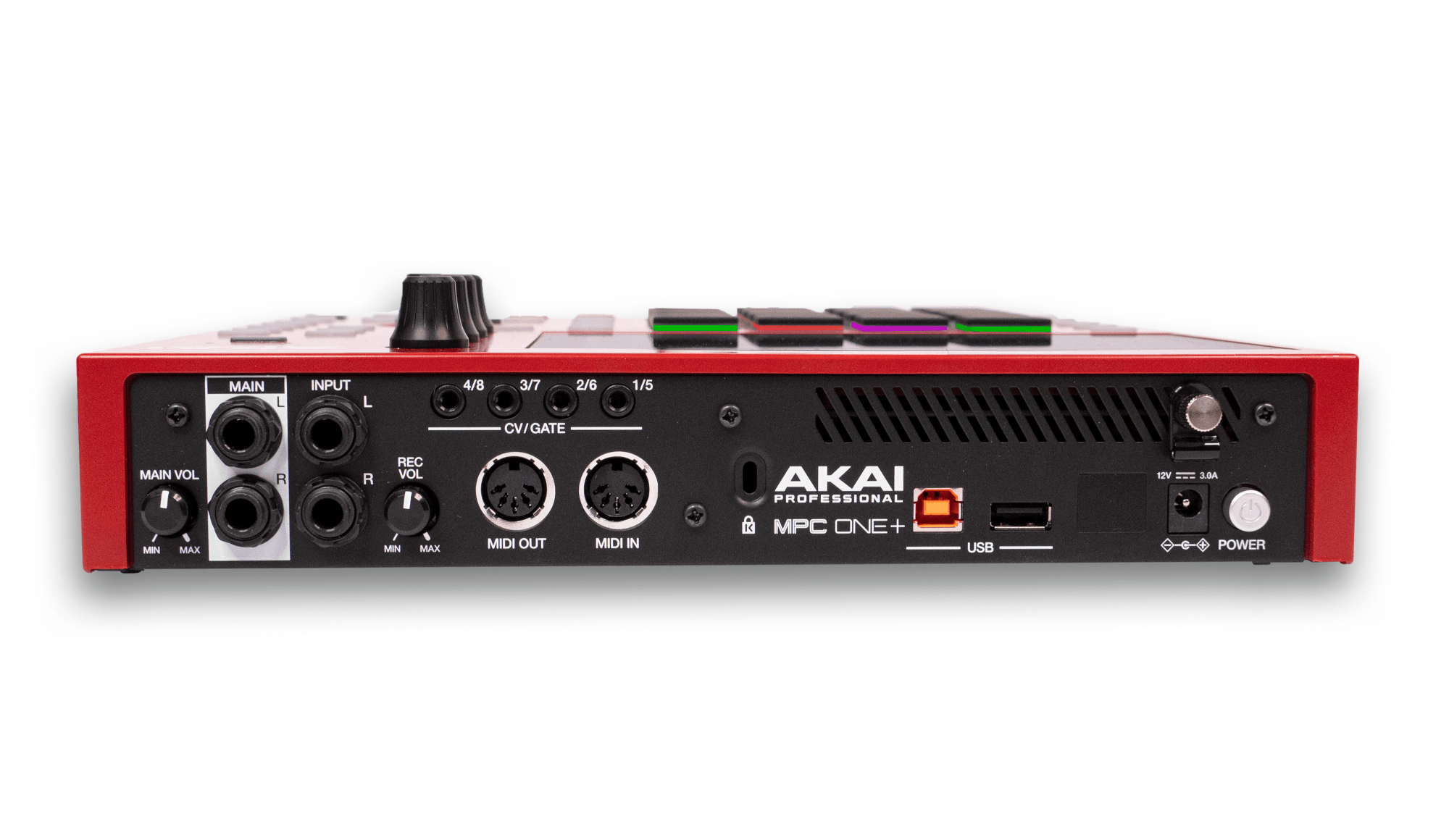

Connections
- (2) 1/4” (6.35 mm) TRS inputs (1 stereo pair)
- (2) 1/4” (6.35 mm) TRS outputs (1 stereo pair)
- (1) 1/8” (3.5 mm) stereo headphone output
- (1) 5-pin MIDI inputs
- (1) 5-pin MIDI output
- (4) 4 TRS CV/Gate Jacks, 8 Outputs Total
- (1) USB Type-A port
- (1) USB Type-B port
- (1) SD Card slot
- (1) Power Adapter input
Dimensions(width x depth x height)
- 10.7” x 10.7” x 2.1”
- 272 x 272 x 53 mm
Weight
- 4.7 lbs / 2.1 kg
