Key Specs
Pads
- (16) velocity- and pressure-sensitive pads, RGB-backlit
- (8) banks accessible via Pad Bank buttons
Knobs
- (16) 360° touch-sensitive Q-Link knobs for parameter adjustment
- (1) 360° encoder for display navigation and selection via push
- (7) 270° knobs for gain, mix & level adjustment
Buttons
- (63) dedicated-function buttons
Display
- 10.1” / 257 mm (diagonal)
- 8.5” x 5.5” / 216 x 139 mm (width x height)
- Full-color LED-backlit display with touch interface
Memory
- Processor: Quad-core ARM® processor
- RAM: 4 GB
- Storage: 48 GB (over 10 GB available for user storage)
Power
- via power adapter (19 V, 3.42 A, center-positive, included)

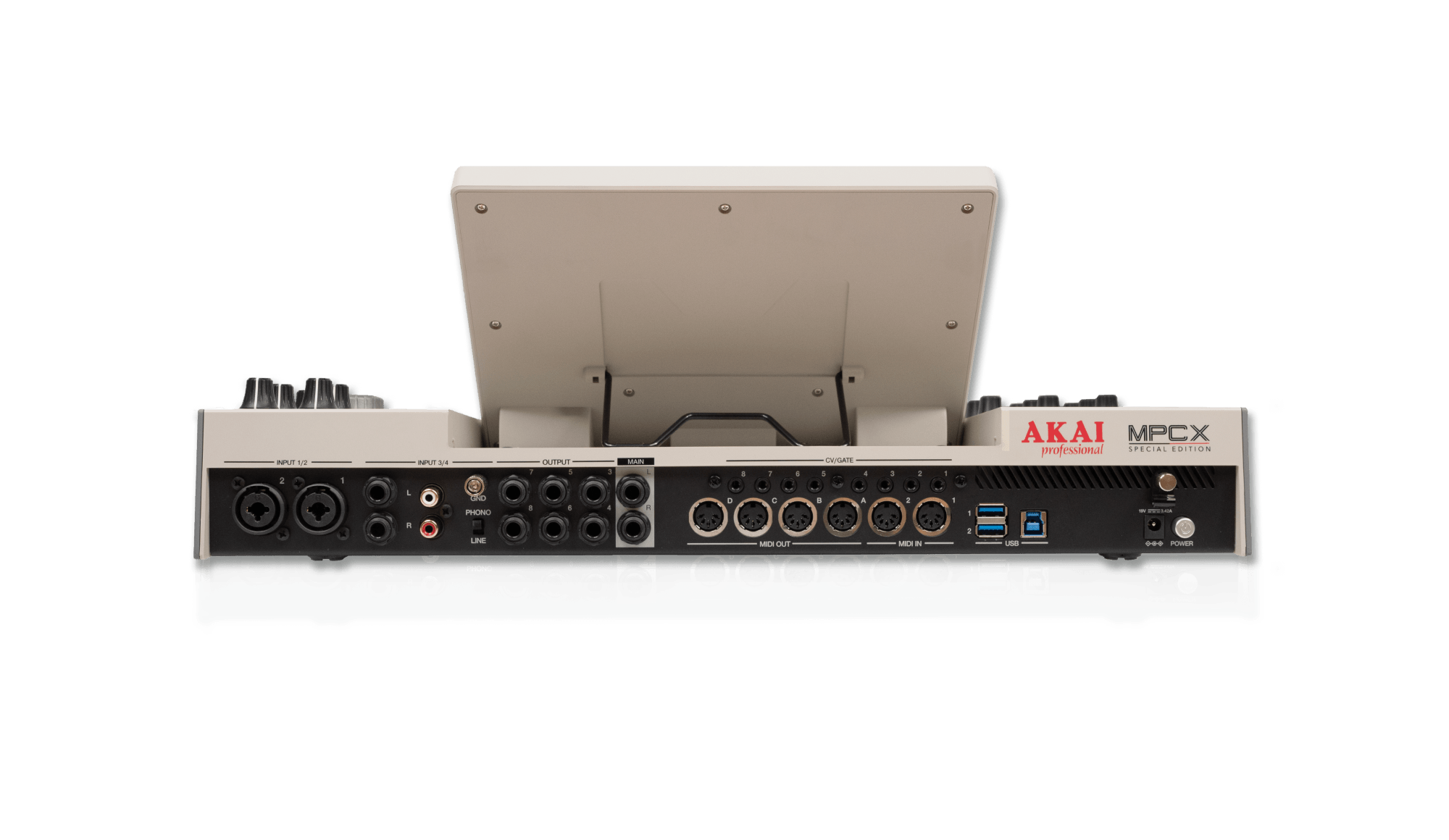

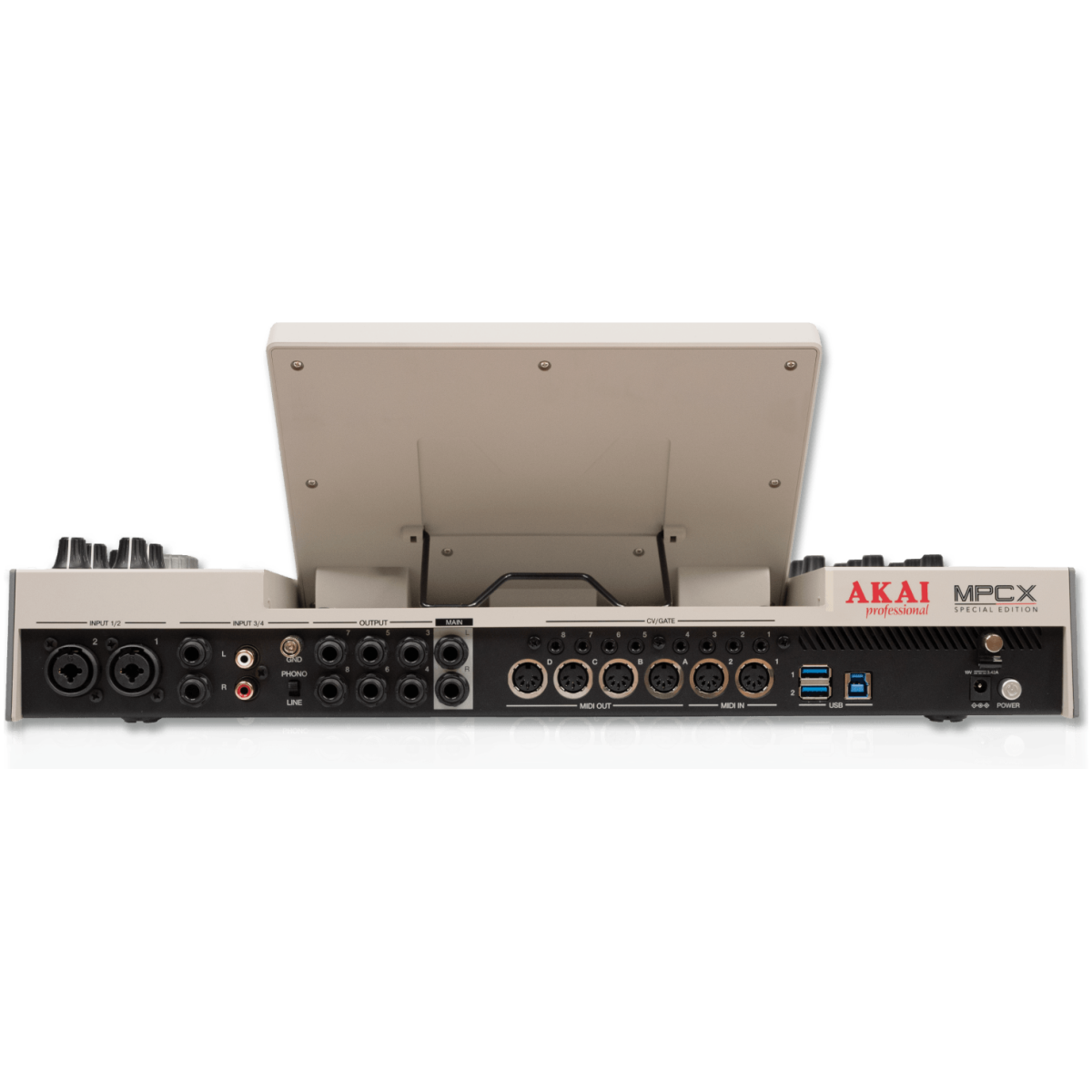

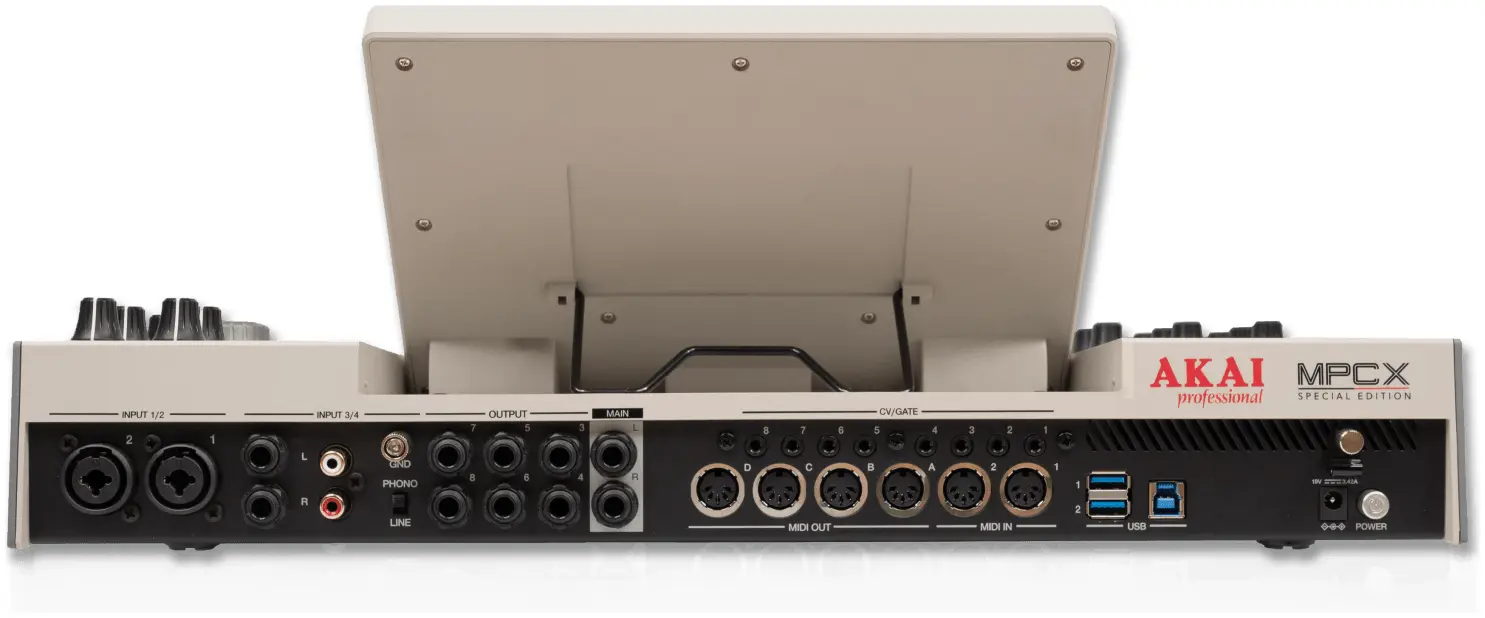

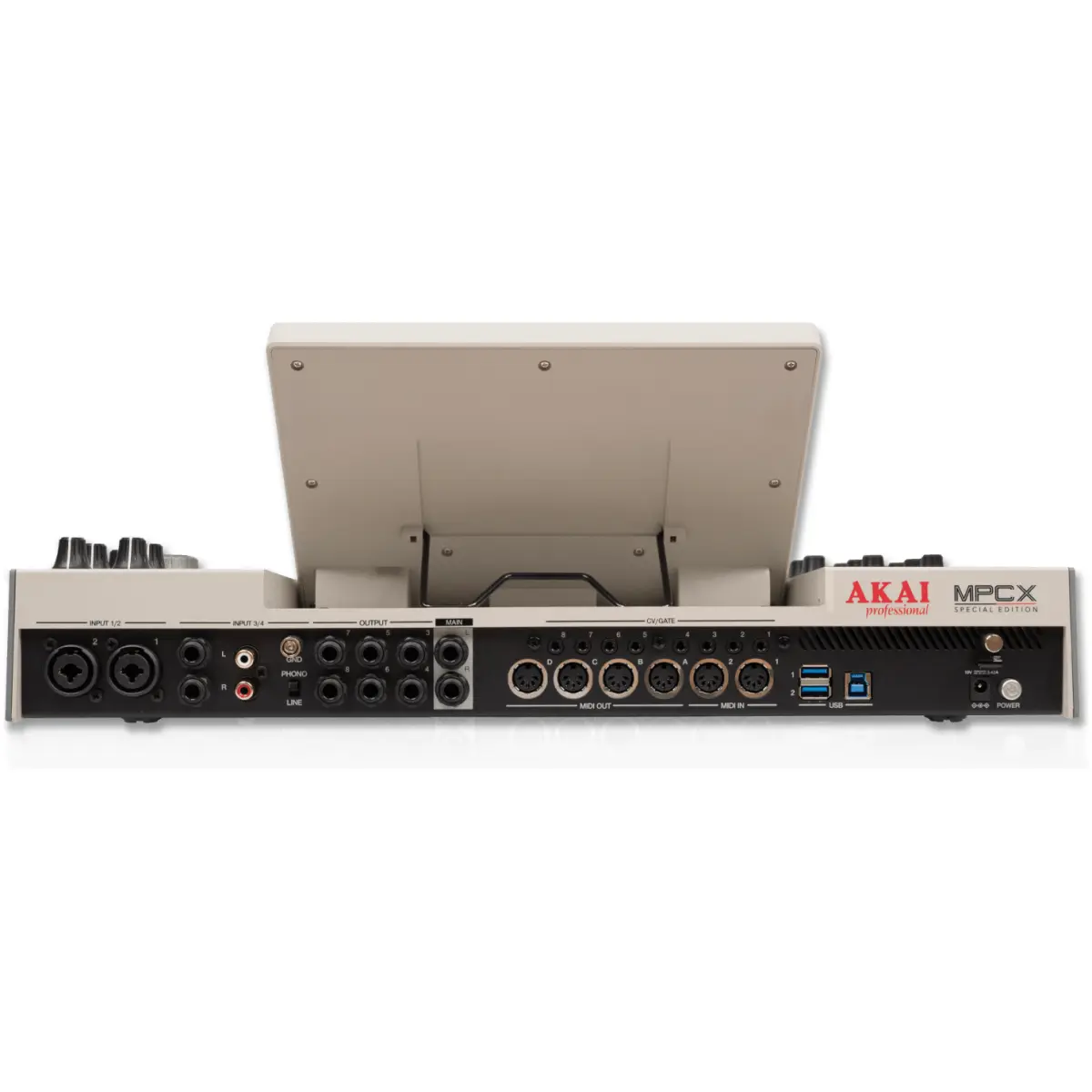

Connections
- (2) XLR+1/4” (6.35 mm) TRS inputs (Input 1/2)
- (2) 1/4” (6.35 mm) TRS inputs (Input 3/4: 1 stereo pair)
- (2) 1/4” (6.35 mm) TS instrument inputs (Inst 1/2)
- (2) RCA inputs (Input 3/4: 1 stereo pair, phono- or line-level)
- (2) 1/4” (6.35 mm) TS footswitch inputs (FS 1/2)
- (2) 5-pin MIDI inputs (8) 1/4” (6.35 mm) TRS outputs (Main L/R, Outputs 3/4–7/8: 4 stereo pairs)
- (4) 5-pin MIDI outputs
- (8) 1/8” (3.5 mm) CV/Gate outputs
- (1) 1/4” (6.35 mm) stereo headphone output
- (1) 1/8” (3.5 mm) stereo headphone output
- (2) USB Type-A ports (1) USB Type-B port
- (1) SD card slot (1) power adapter input
Dimensions (width x depth x height)
- 19.9” x 16.7” x 3.4” / 50.5 x 42.4 x 8.7 cm (display flat)
- 19.9” x 15.3” x 8.4” / 50.5 x 38.8 x 21.4 cm (display upright)
Weight
- 12.57 lbs. 5.66 kg
