Engineered excellence

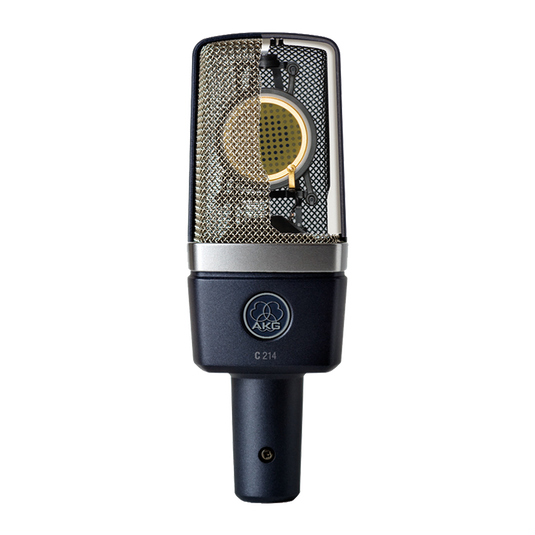

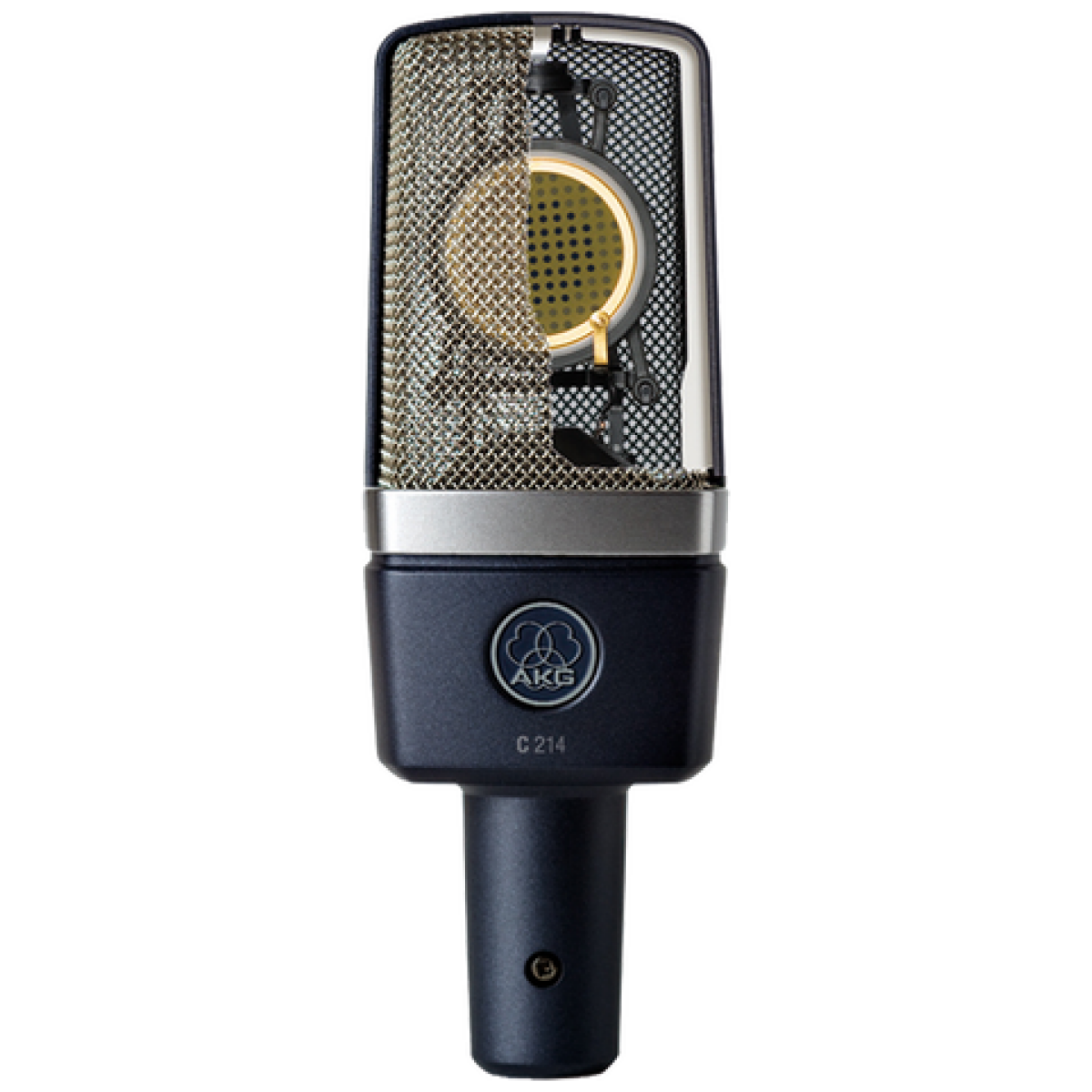

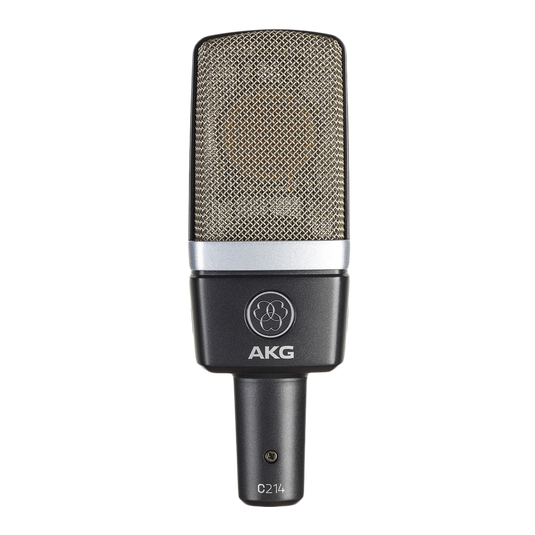

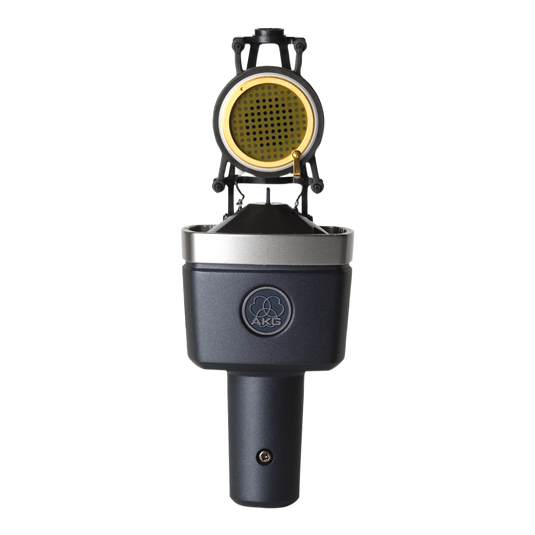

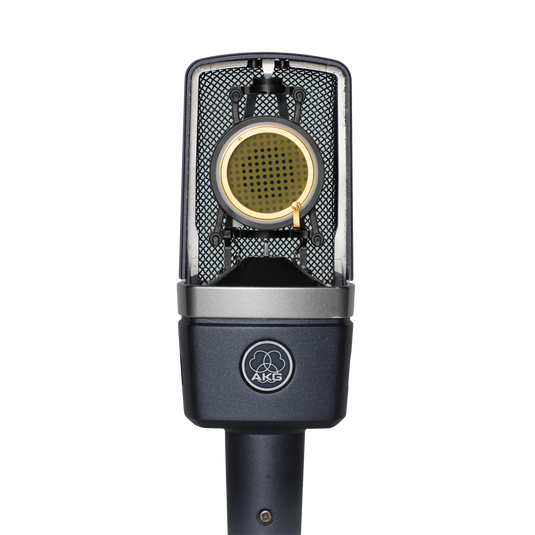

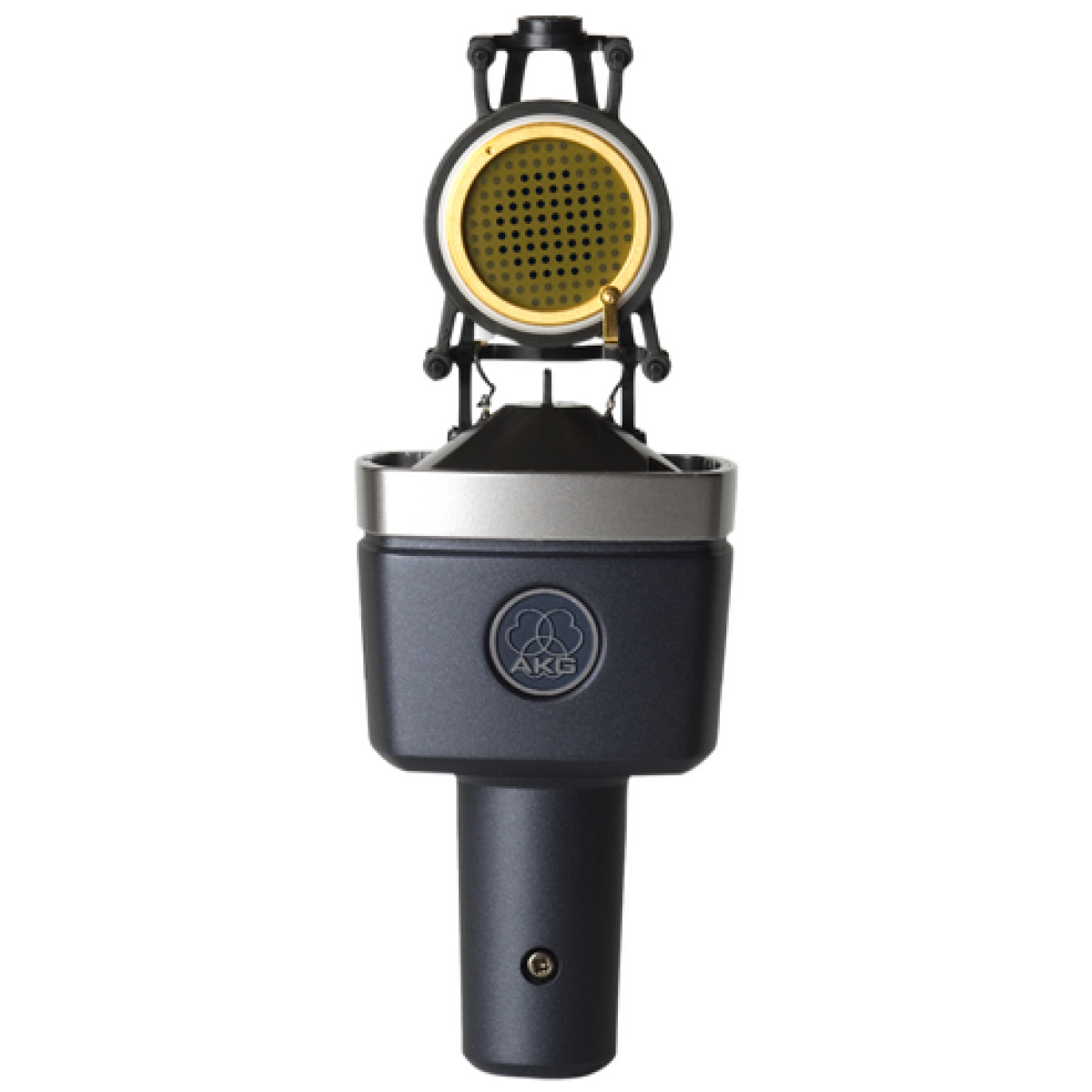

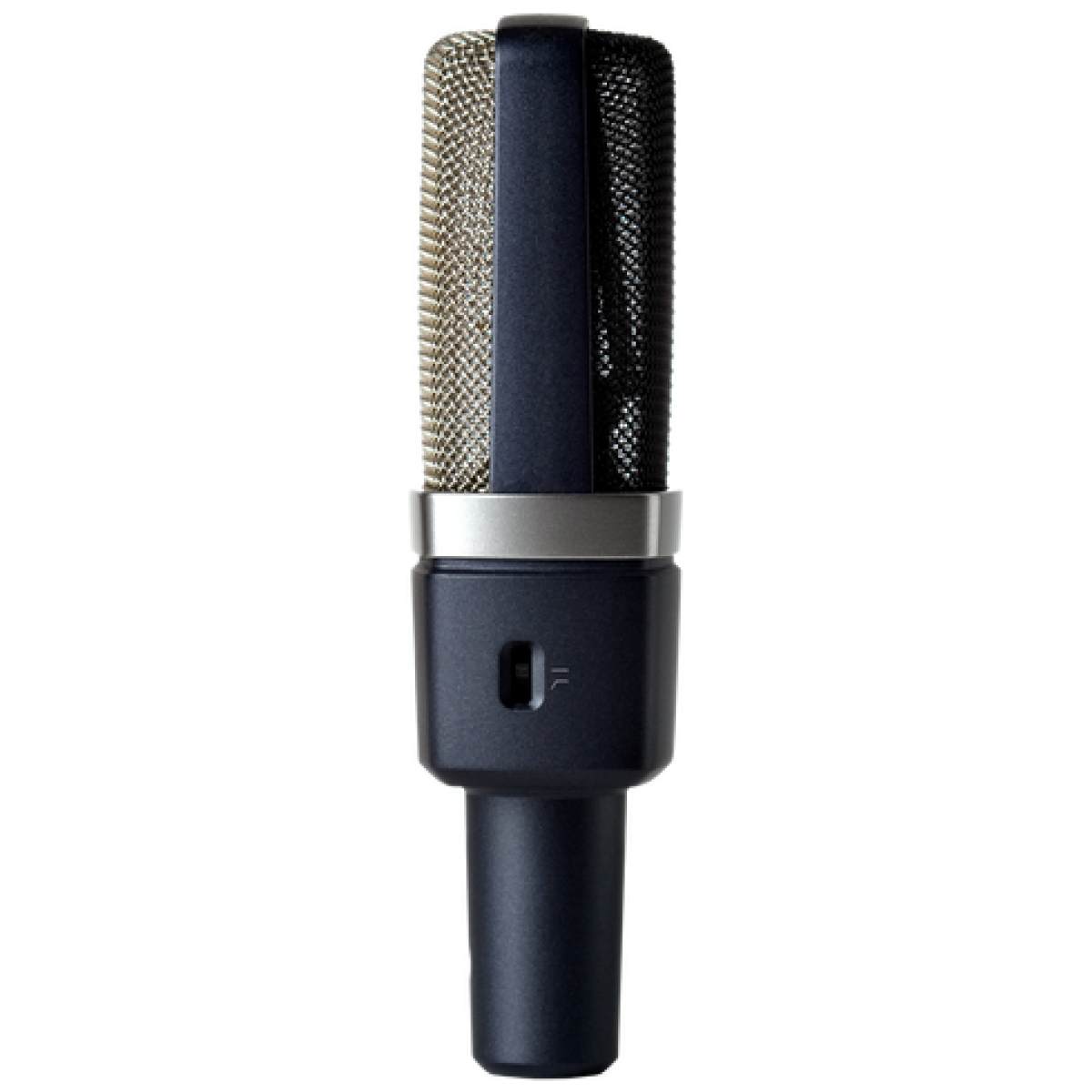

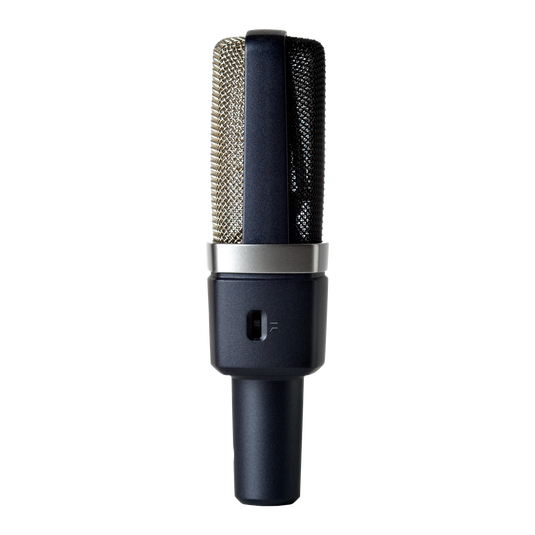

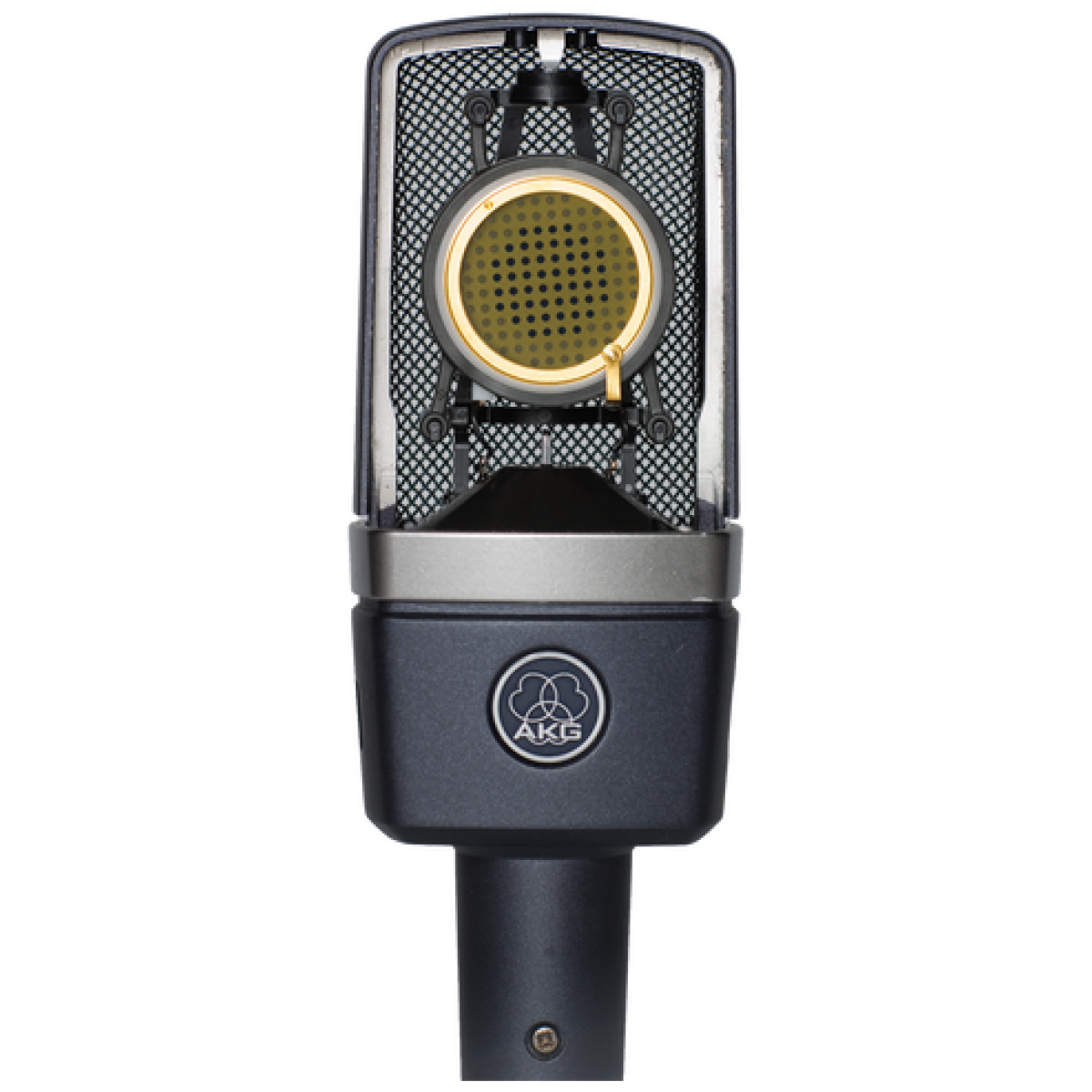

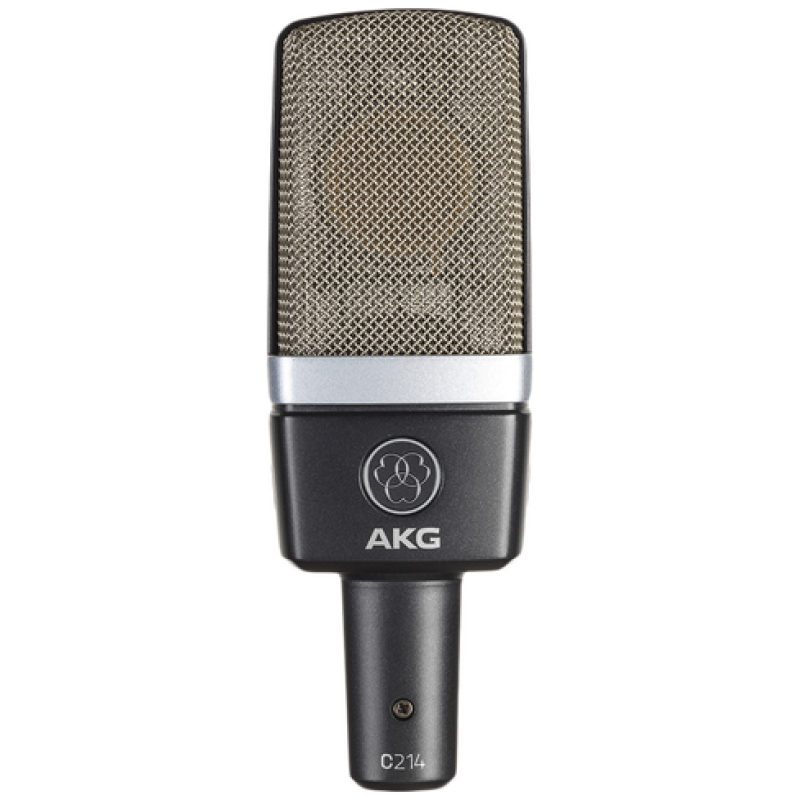

The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect. The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.
General Specifications
- Polar Pattern
- Cardioid
- Audio frequency bandwidth
- 20 – 20000 Hz
- Equivalent noise level
- 13 dB-A
- Sensitivity
- 20 mV/Pa
- Signal to Noise
- 81 dB-A
- Preattenuation Pad
- -20 dB
- Bass cut filter
- 160 Hz
- Electrical impedance
- 200 Ohms
- Recommended load impedance
- 1000 Ohms
Dimensions
- Width
- 56 mm
- Height
- 160 mm
- Net Weight
- 280 g
Design
- Finish
- matte grayish blue
Audio Output
- Type
- Balanced XLR
- Gender
- Male
- Contacts
- 3-pin
Powering Interface
- Voltage
- 9 to 52 V
- Current
- 2 mA
Application
- Pro Studio
Instrument
- Vocals
- Piano / Strings
- Horns / Woodwinds
- Drums / Percussion
