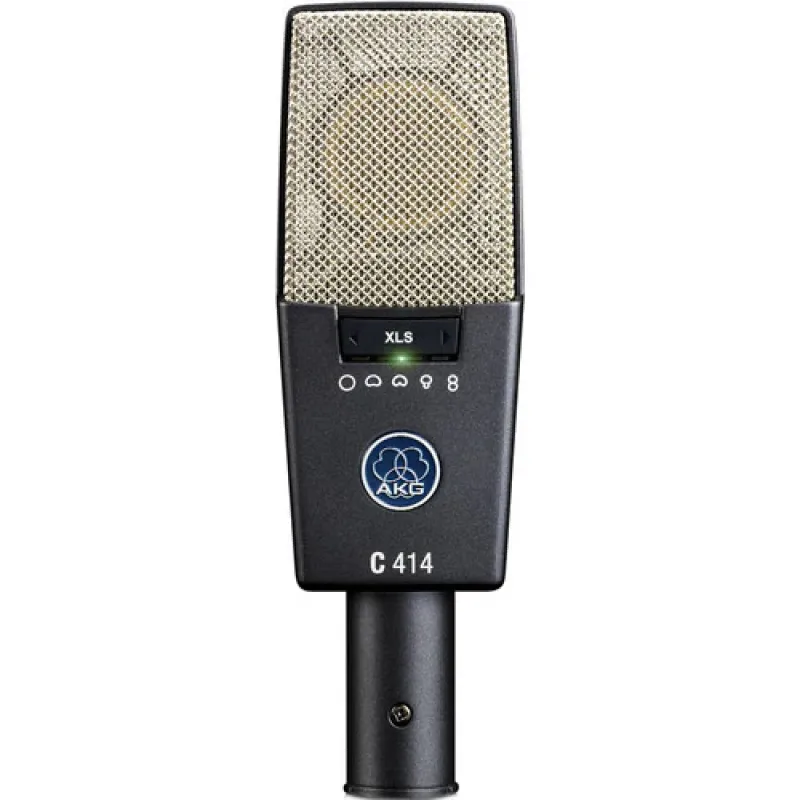

AKG C414 XLS Large Diaphragm Condenser Microphone

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

General Specifications

Audio frequency bandwidth :20 – 20000 Hz

Equivalent noise level :6 dB-A

Sensitivity :23 mV/Pa

Signal to Noise :88 dB-A

Pre-attenuation Pad :-6; -12; -18 dB

Bass cut filter :160; 80; 40 Hz

Electrical impedance :200 Ohms

Recommended load impedance :2200 Ohms

Polar Patterns :Cardioid, Figure of eight, Hypercardioid, Omni-directional, and Wide Cardioid

Audio Output

Type :Balanced XLR

Gender :Male

Contacts :3-pin

Powering Interface

Voltage :44 to 52 V

Current :4.5 mA
