Mighty micro mic

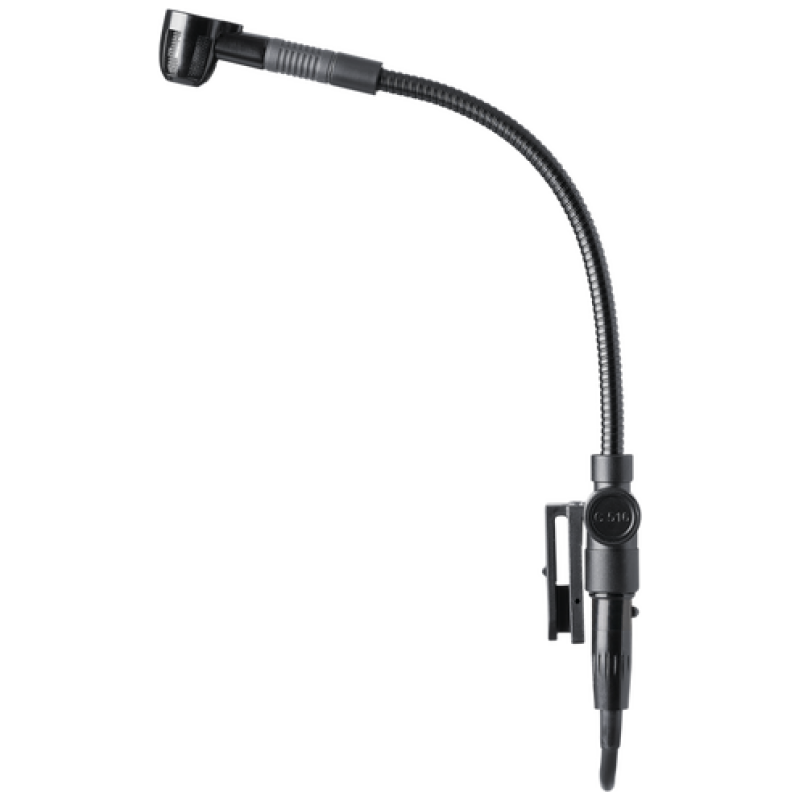

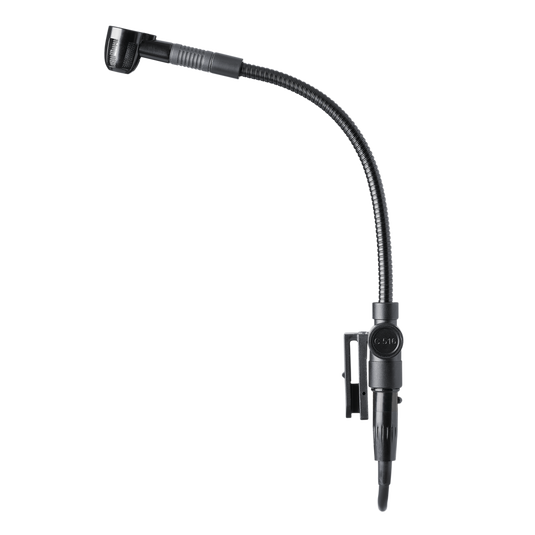

The C516 ML professional miniature instrumental microphone, part of the MicroMics family, is designed for use on accordions, pianos, guitar speakers and keyboard/organ cabinets. The C516 ML comes with a wide variety of mounting materials, such as screws and adhesive pads for easy installation on the instrument or amp, and an A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.
General Specifications
- Type
- Pre-polarized condenser microphone
- Polar Pattern
- Cardioid
- Audio frequency bandwidth
- 60 – 20000 Hz
- Equivalent noise level
- 31 dB-A
- Sensitivity
- 5 mV/Pa
- Signal to Noise
- 63 dB-A
- Electrical impedance
- 200 Ohms
- Recommended load impedance
- 2000 Ohms
- Max. SPL for 1%/3% THD
- 130/132 dB SPL
Dimensions
- Width
- 47 mm
- Height
- 235 mm
- Net Weight
- 46 g
- Cable length
- 1.5 m (5 ft.)
Design
- Body
- metal
- Finish
- matte black
Audio Output
- Type
- Mini XLR
- Gender
- Female
- Contacts
- 3-pin
Powering Interface
- Voltage
- 2 to 12 V
- Current
- 2 mA
Application
- Project Studio
- Live Instrument
Instrument
- Guitar Amps / Bass Amps
- Piano / Strings
