Horn section liberation

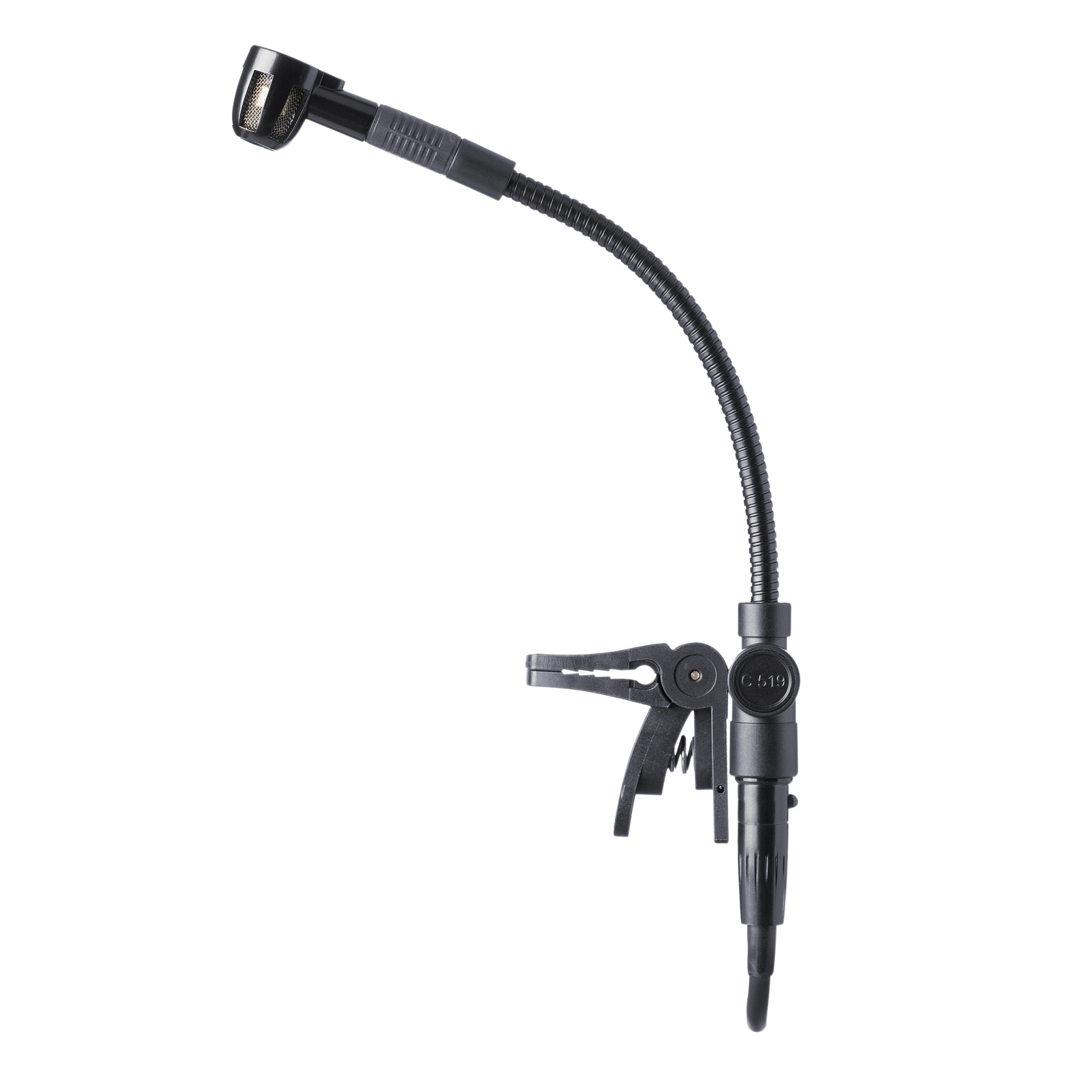

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound. The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.
General Specifications
- Audio frequency bandwidth
- 60 – 20000 Hz
- Equivalent noise level
- 31 dB-A
- Sensitivity
- 5 mV/Pa
- Signal to Noise
- 63 dB-A
- Electrical impedance
- 200 Ohms
- Recommended load impedance
- 2000 Ohms
- Polar Pattern
- Cardioid
Dimensions
- Width
- 47 mm
- Height
- 213 mm
- Net Weight
- 195 g
Design
- Body
- metal
- Finish
- matte black
Audio Output
- Type
- Mini XLR
- Gender
- Female
- Contacts
- 3-pin
Powering Interface
- Voltage
- 9 to 52 V
- Current
- 2 mA
Application
- Project Studio
- Live Instrument
Instrument
- Horns / Woodwinds
