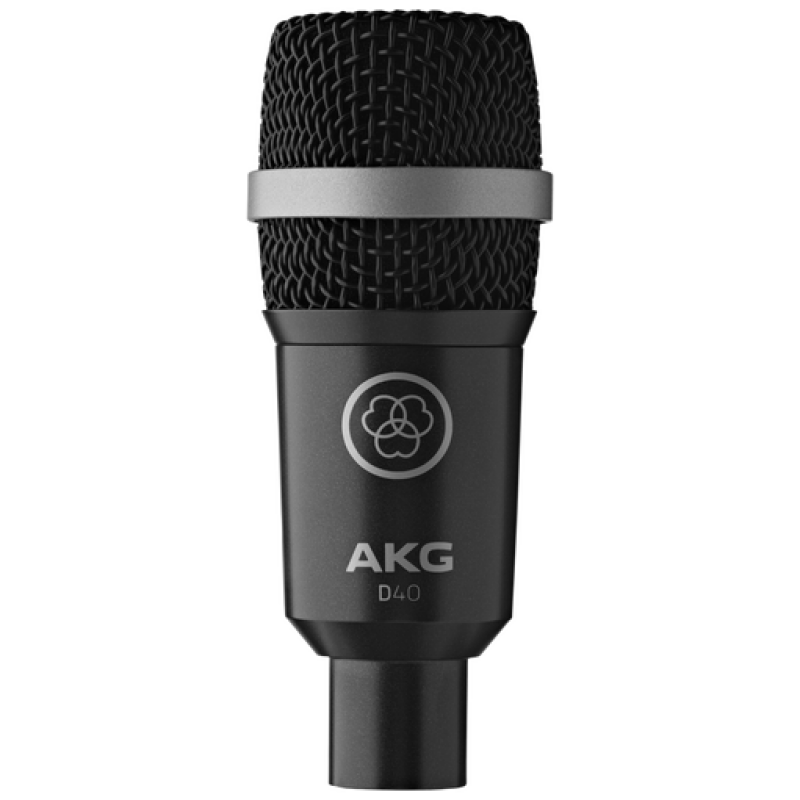

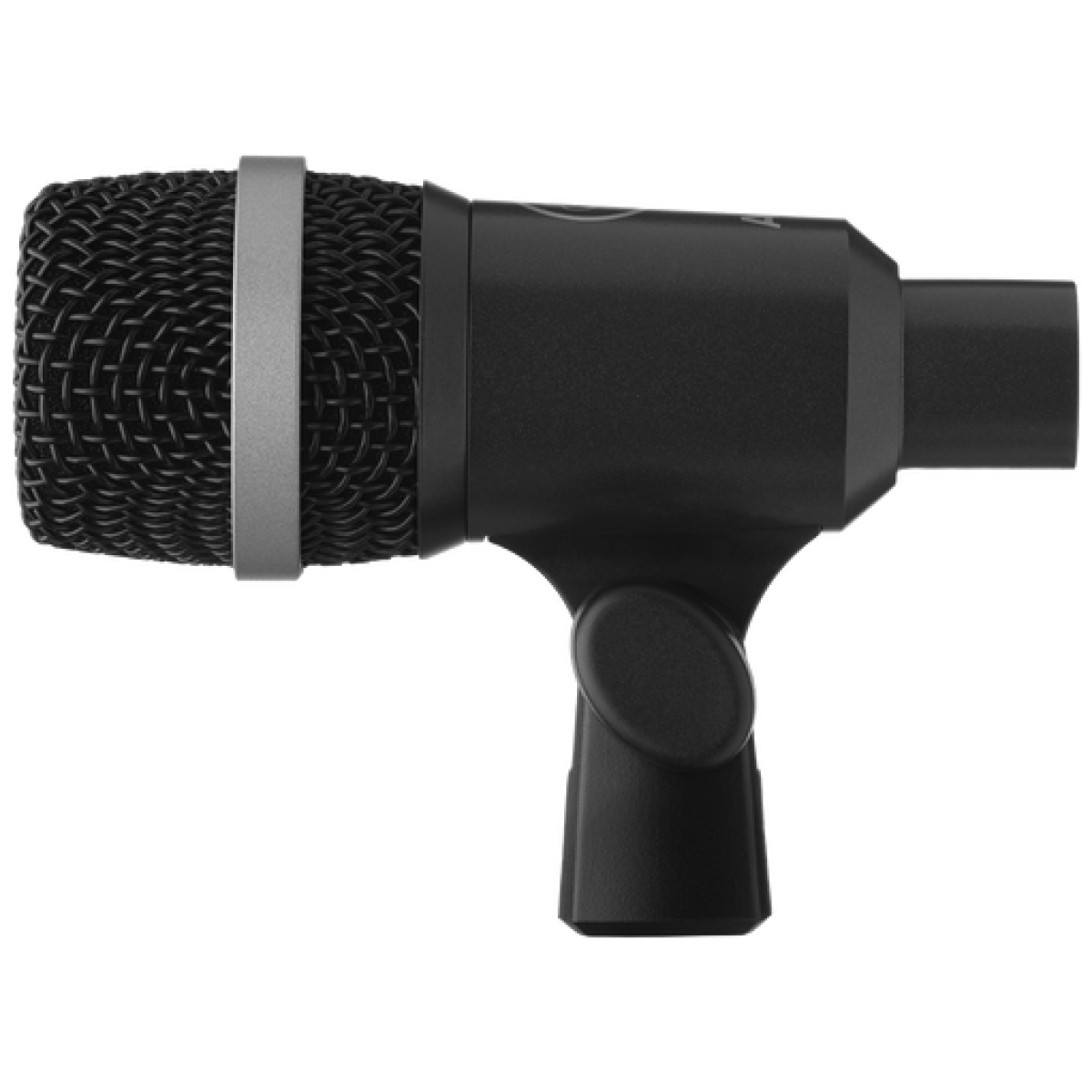

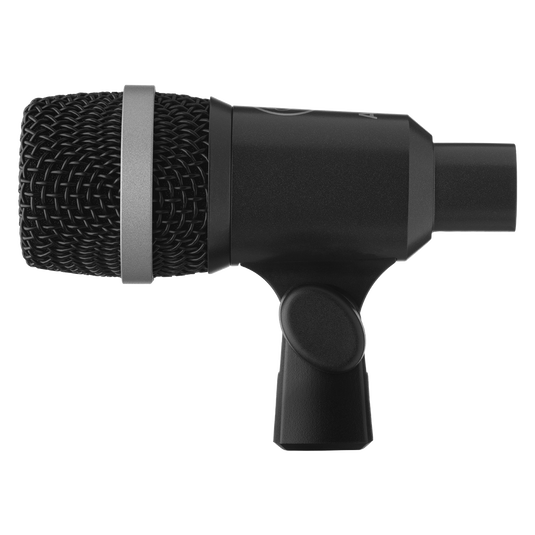

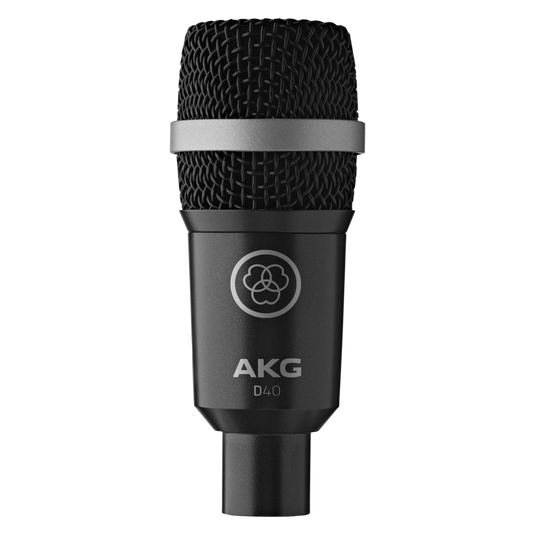

AKG D40 Professional Dynamic Instrument Microphone

Sound in motion

The D40 professional instrumental microphone with its solid all-metal body will stand up to the hardships of night-after-night onstage use with a smile. Its patented Varimotion diaphragm uses a unique laminated material to damp high resonance peaks, leading to a quantum leap in audio performance. The transducer is protected by a sturdy wire-mesh cap and can take extremely high sound pressure levels with ease. An integrated stand adapter in combination with the included H440 mounting bracket makes the D40 a highly versatile tool for use on drums, percussion, wind instruments and guitar amps.

General Specifications

Type

Dynamic pressure gradient microphone

Polar Pattern

Cardioid

Audio frequency bandwidth

50 – 20000 Hz

Sensitivity at 1000 Hz

2.5 mV/Pa (–52 dBV re 1 V/Pa)

Equivalent noise level

18 dB(A) (IEC 60268-4)

Max. SPL for 1 % / 3 % THD

147 dB SPL / 156 dB SPL

Electrical impedance at 1000 Hz

≥ 600 Ohms

Recommended load impedance

≥ 2000 Ohms

Dimensions

Length

104 mm

Height

79 mm

Diameter

44 mm

Net Weight

245 g

Design

Body

metal

Finish

dark stage blue

Audio Output

Type

Balanced XLR

Gender

Male

Contacts

3-pin

Application

Live Instrument

Instrument

Drums / Percussion

Guitar Amps / Bass Amps
