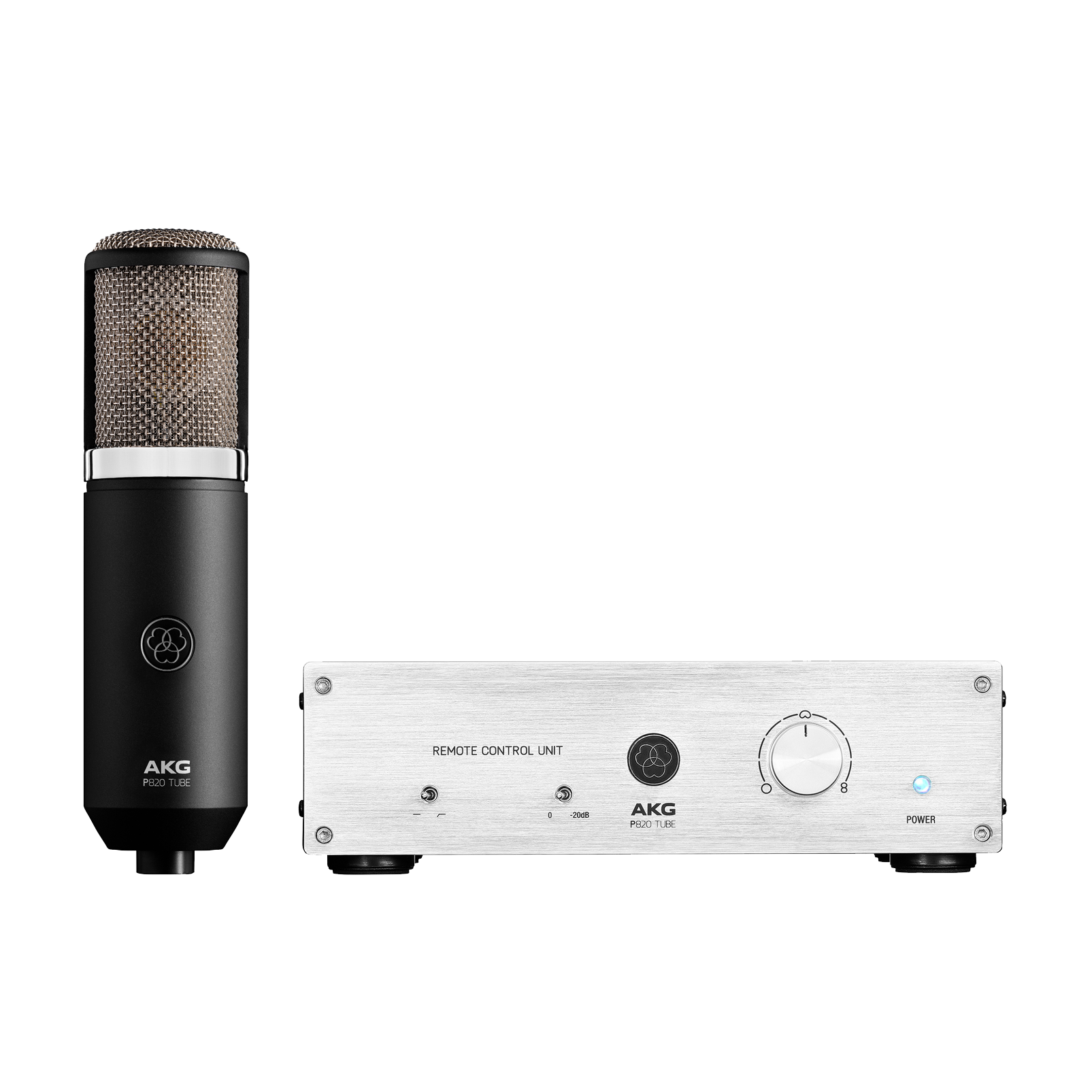

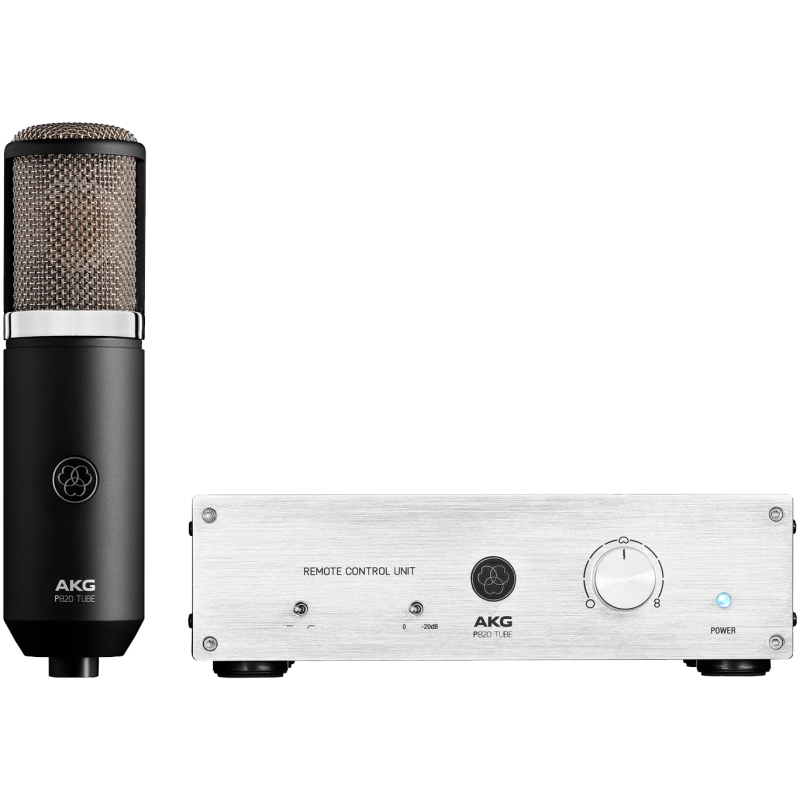

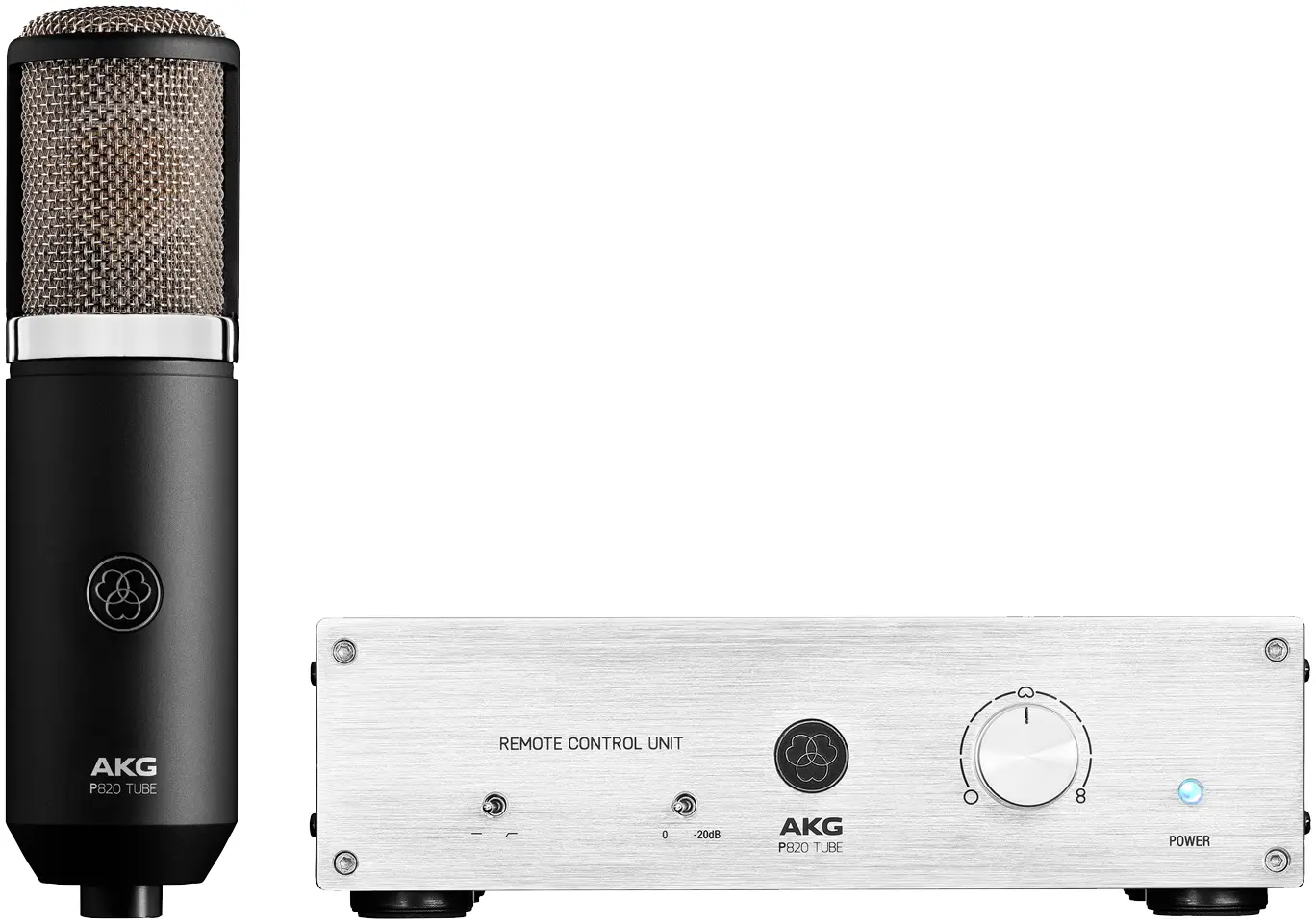

AKG P820 Tube Large-Diaphragm Multi-Pattern Condenser Microphone

Greater in spirit, larger than life

The P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.

General Specifications

Polar Pattern

Cardioid, Omnidirectional, Figure of eight (plus six intermediate patterns)

Audio frequency bandwidth

20 – 20000 Hz

Equivalent noise level

16 dB-A

Sensitivity

20 mV/Pa

Signal to Noise

78 dB-A

Preattenuation Pad

-20 dB

Bass cut filter

80 – 12 dB/octave (selectable on remote control unit)

Electrical impedance

<= 200 Ohms

Recommended load impedance

>= 1000 Ohms

Dimensions

Length

212 mm

Diameter

54 mm

Net Weight

765 g

Audio Output

Type

Balanced XLR

Gender

Male

Contacts

3-pin

Powering Interface

Powering

210-240 VAC or 110-120 VAC (selectable)

Primary Fuse

125 mA/250 V slow-blow

Application

Project Studio

Instrument

Vocals

Horns / Woodwinds
