AKG WMS470 Vocal Set D5 BD70

The AKG WMS470 Vocal Set D5 BD70 is a professional wireless microphone system designed for live vocals, presentations, houses of worship, schools and other demanding sound applications.

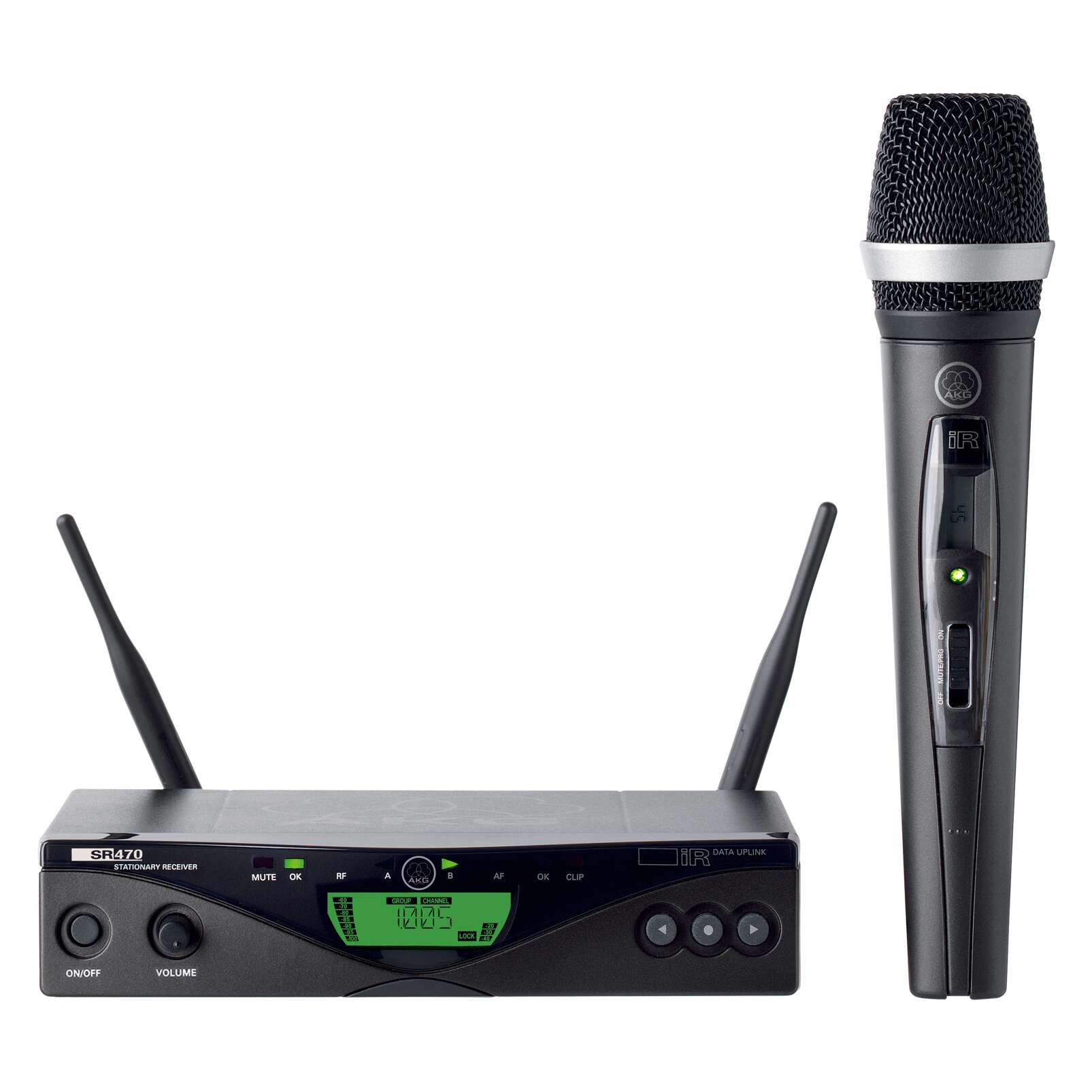

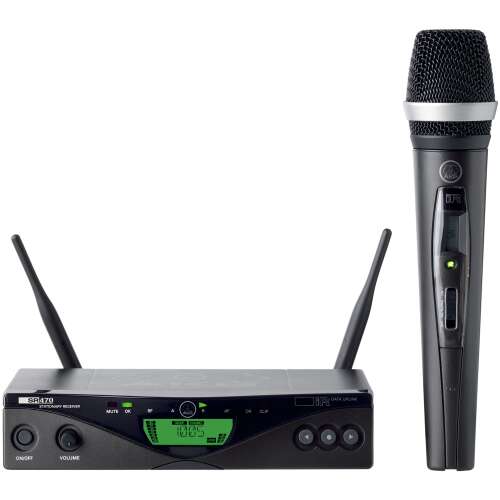

The system combines the SR470 true-diversity receiver with an HT470 handheld transmitter fitted with AKG’s D5 dynamic supercardioid microphone capsule. The supercardioid pickup pattern helps reduce unwanted background sound and feedback while delivering clear, powerful vocal reproduction.

Automatic frequency setup and infrared synchronisation make the system quick and easy to configure. The receiver provides access to up to 1,200 selectable frequencies across its tuning range and supports the operation of multiple wireless systems in larger installations.

Key Features

• Band 7 operating range: 500.1–530.5 MHz

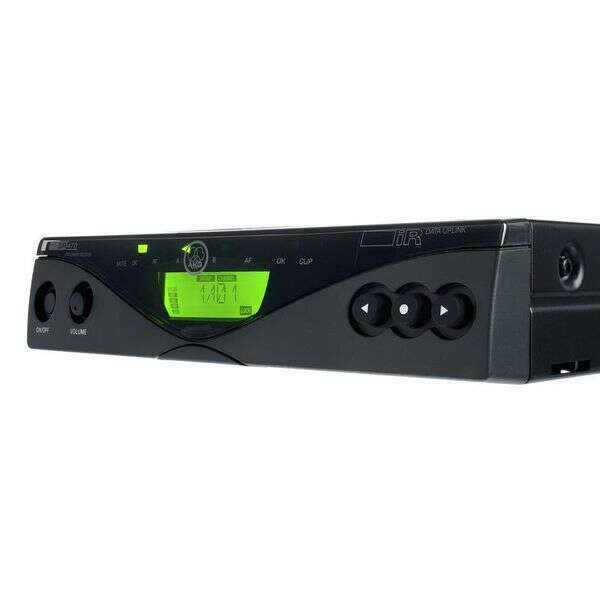

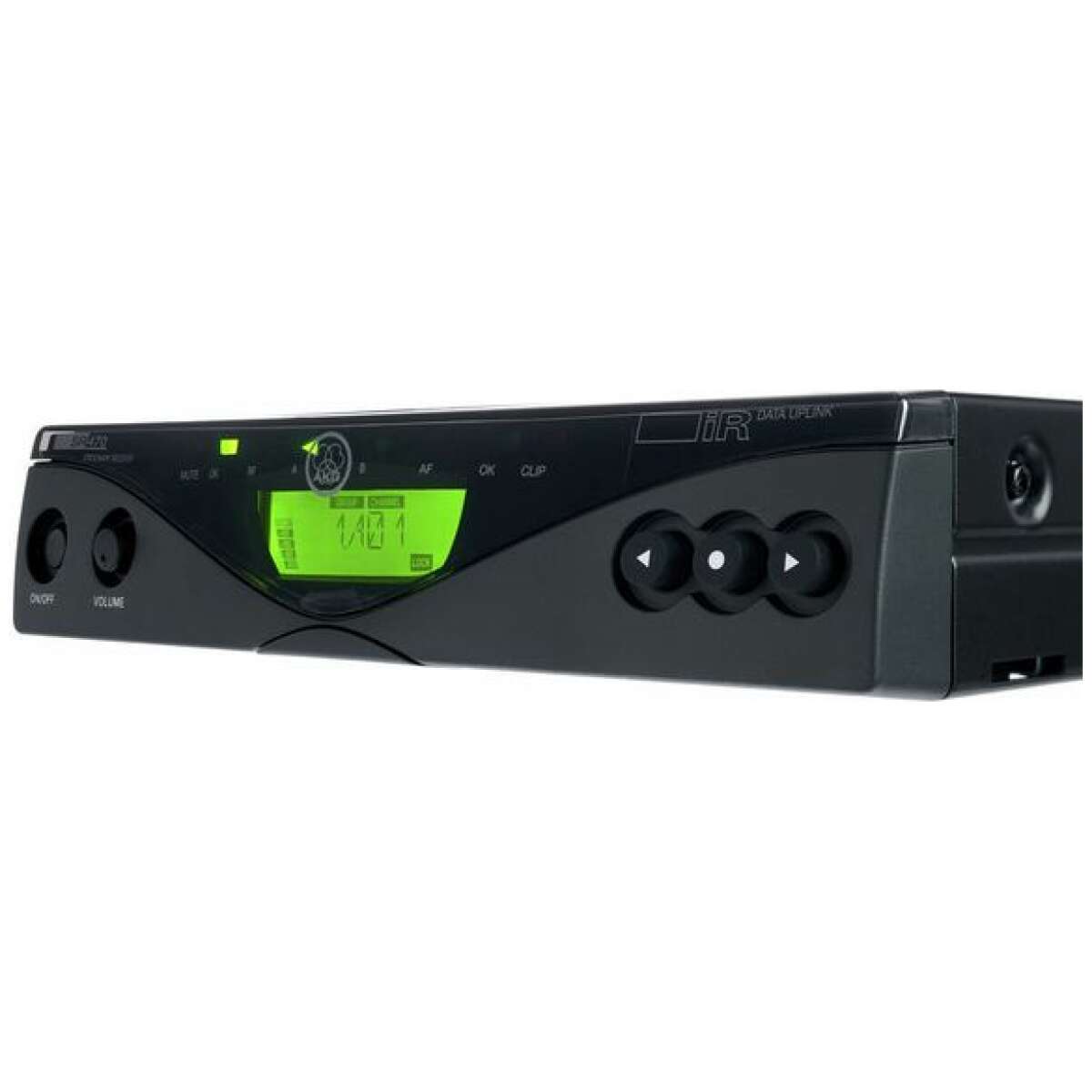

• Professional true-diversity wireless receiver

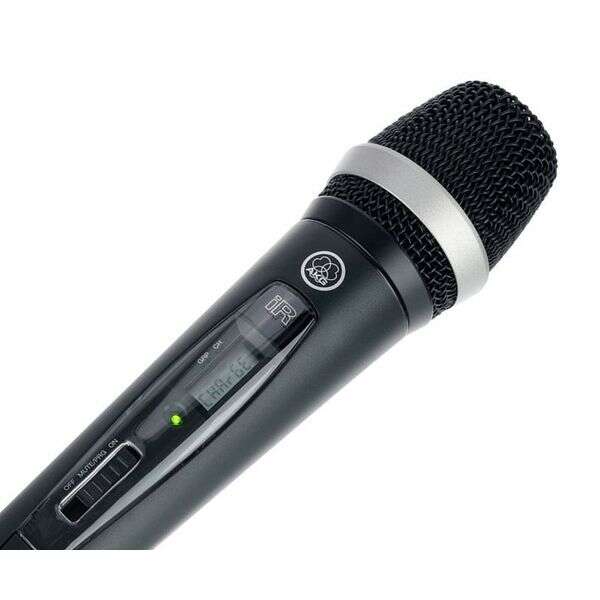

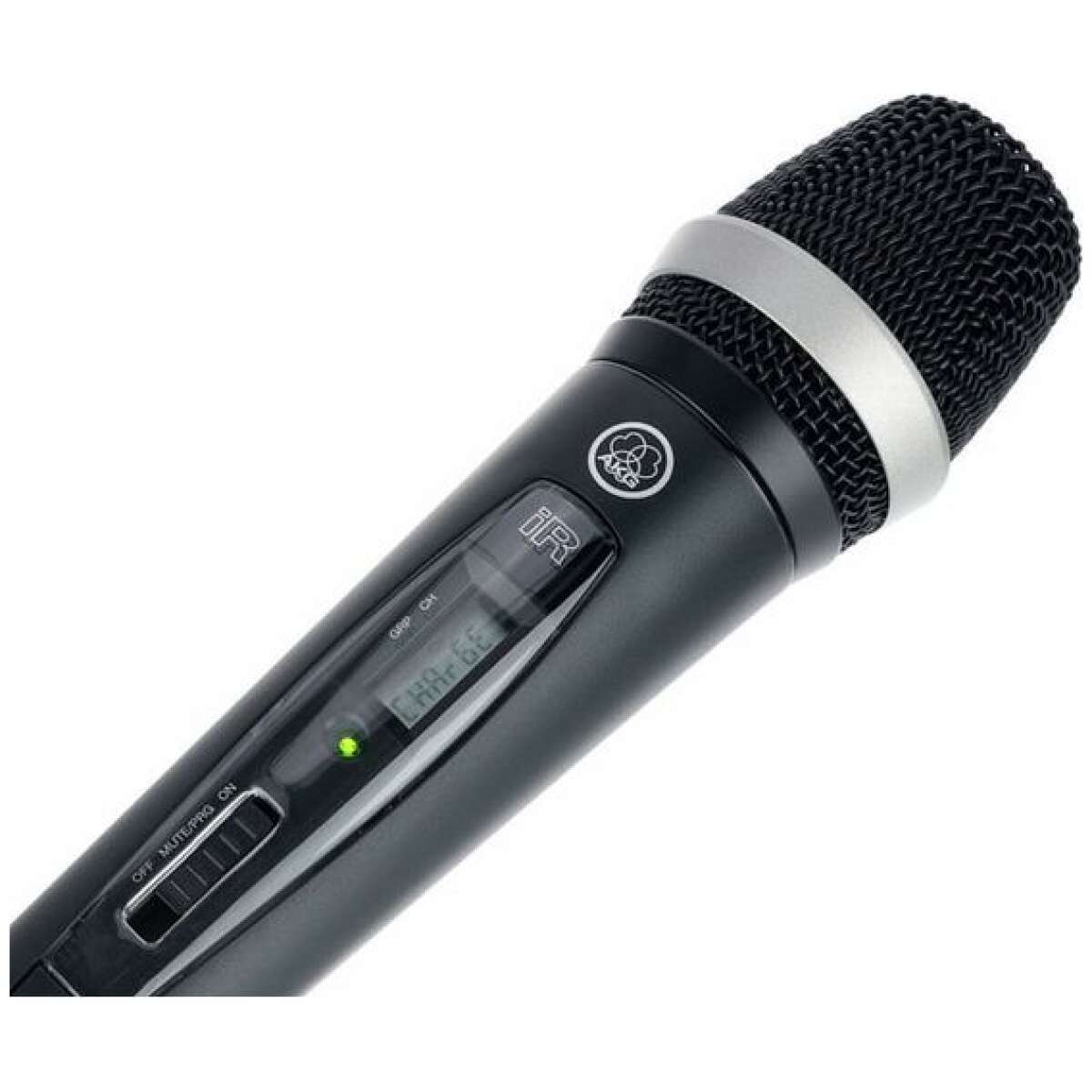

• HT470 handheld wireless transmitter
• AKG D5 dynamic supercardioid microphone capsule
• Up to 1,200 selectable frequencies
• Up to 16 pre-programmed frequencies per group
• Automatic frequency scanning and setup
• Infrared transmitter synchronisation
• Pilot-tone transmission for improved operating reliability
• Transmitter battery-status monitoring

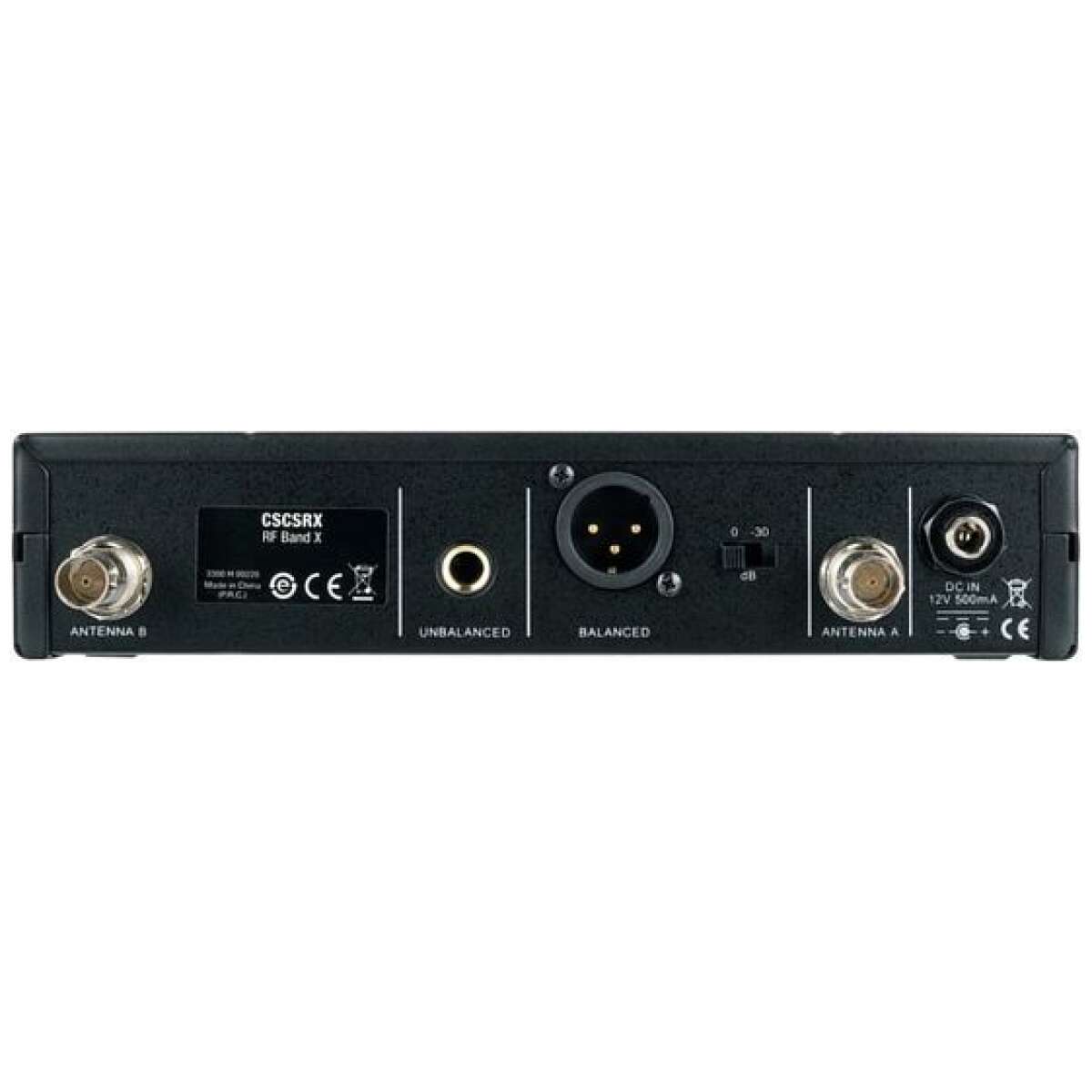

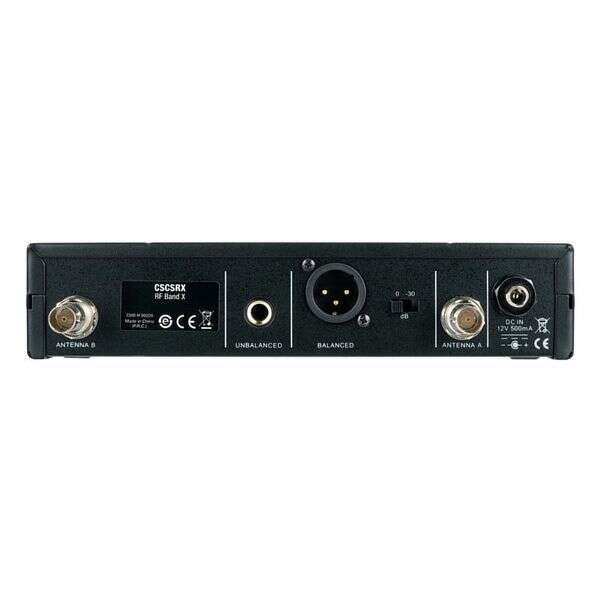

• Balanced XLR and unbalanced 6.3 mm audio outputs
• Rugged, all-metal receiver housing
• Up to 14 hours of operation using a lithium AA battery

Technical Specifications

• Frequency band: 500.1–530.5 MHz
• Switching bandwidth: Up to 30.5 MHz
• Audio frequency response: 35 Hz–20 kHz
• Signal-to-noise ratio: More than 120 dB(A)
• Maximum sound pressure level: 144 dB SPL
• RF output power: Up to 50 mW, depending on local regulations
• Receiver outputs: Balanced XLR and unbalanced 6.3 mm jack
• Transmitter power: 1 × AA battery
• Receiver dimensions: Approximately 202 × 44 × 190 mm
• Handheld transmitter dimensions: Approximately 237 × 51 mm
• Receiver weight: Approximately 972 g
• Handheld transmitter weight: Approximately 240 g without battery
