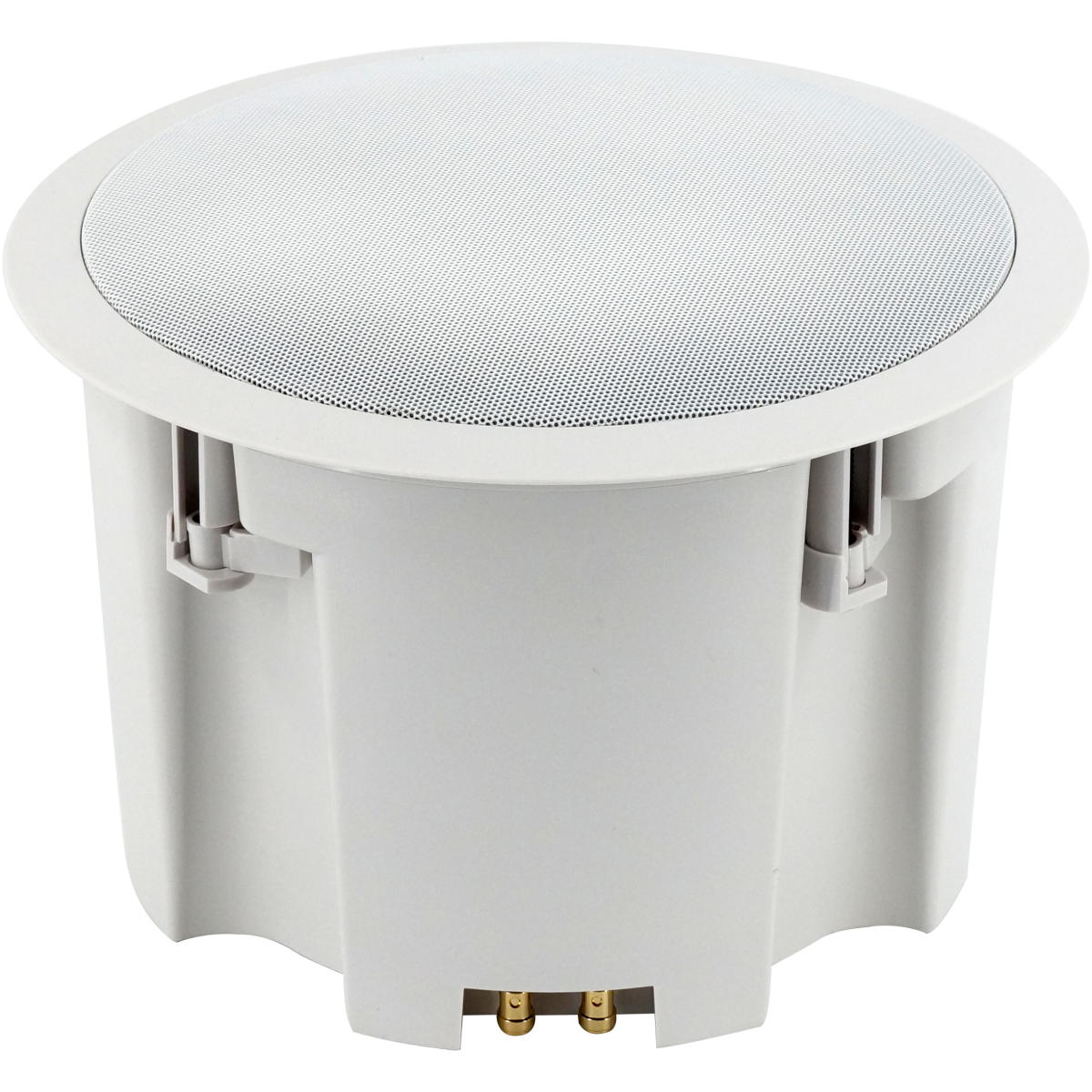

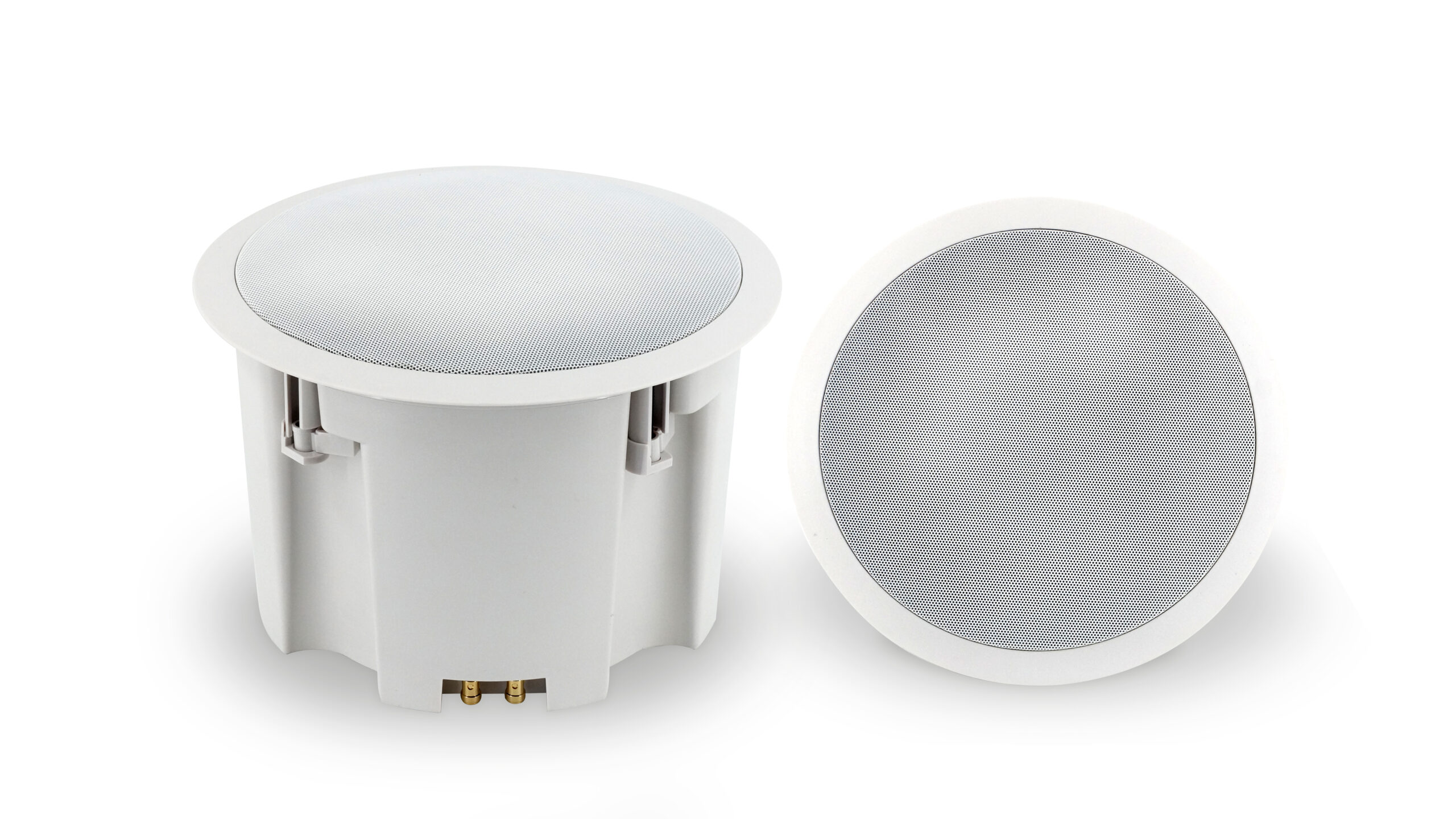

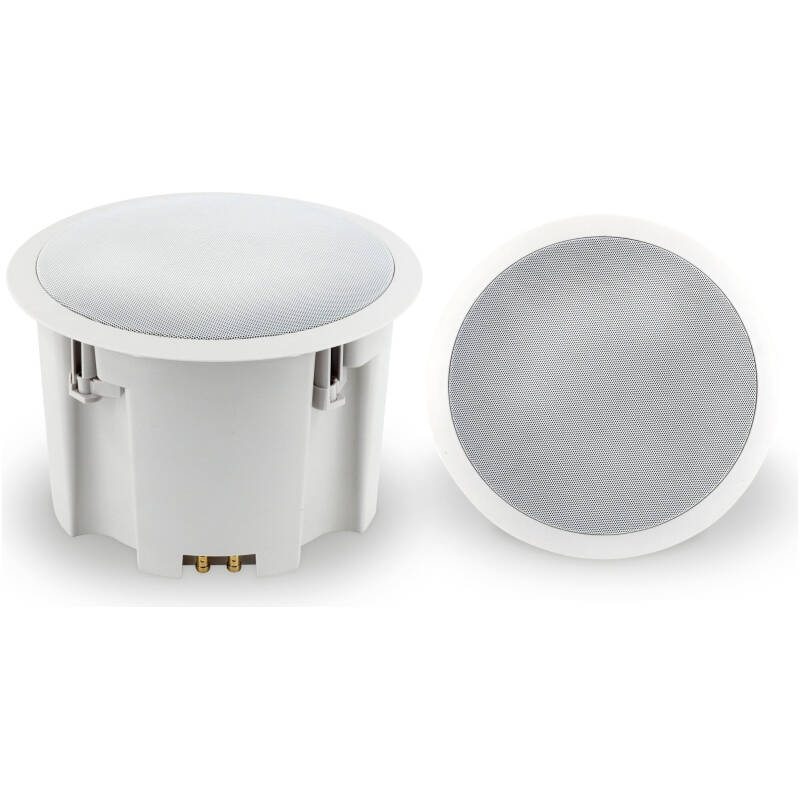

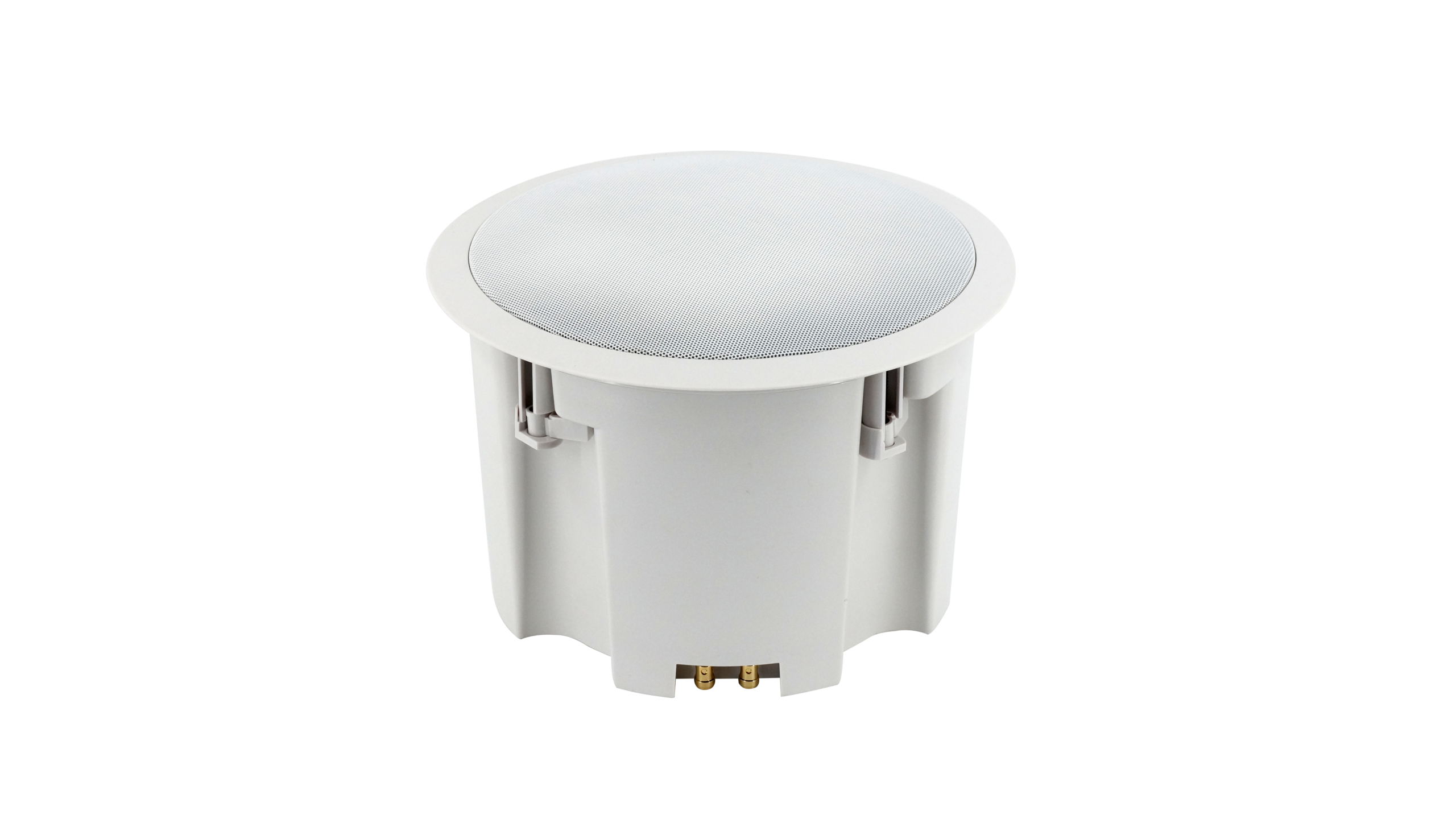

Alfatron ALFC-606 Ceiling Speaker

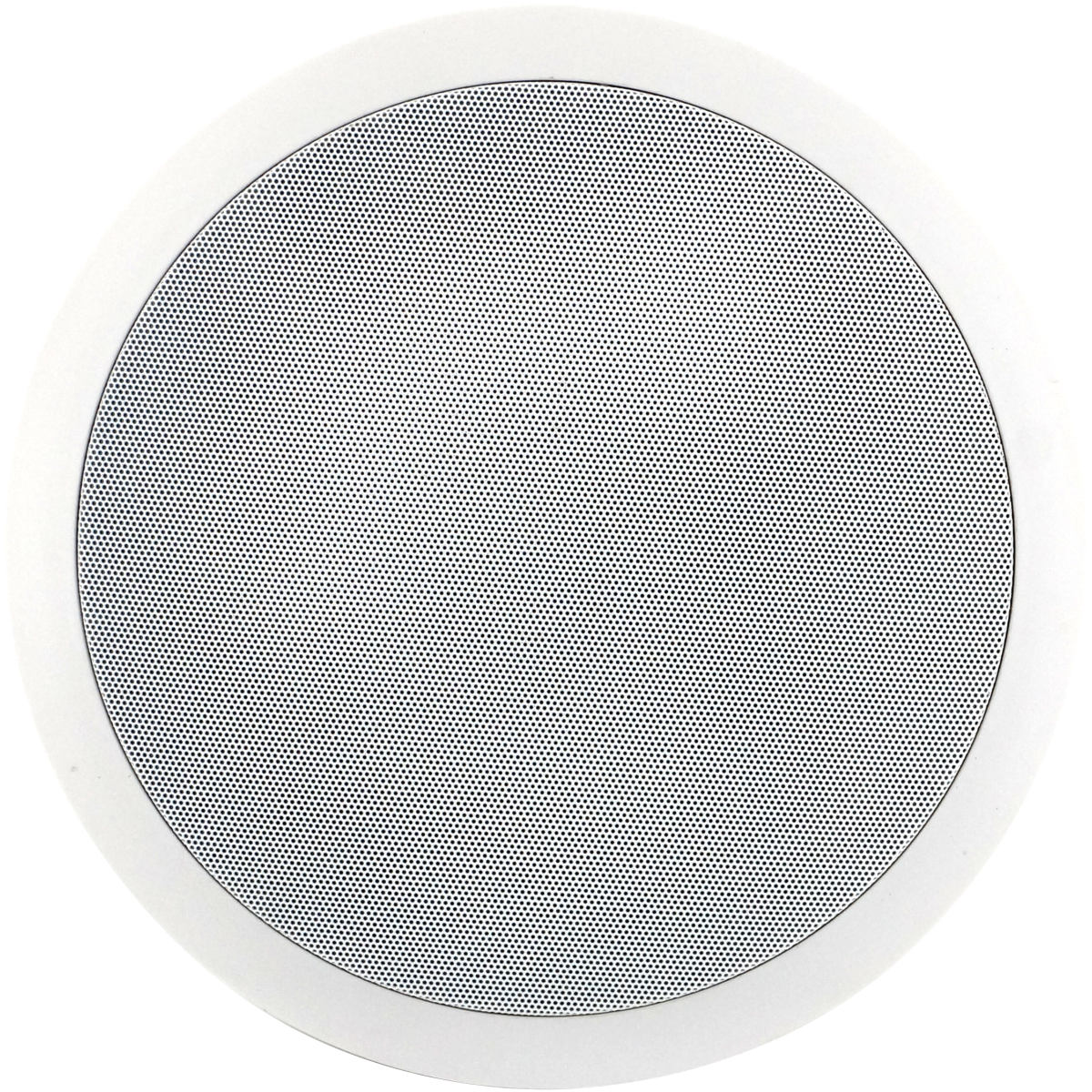

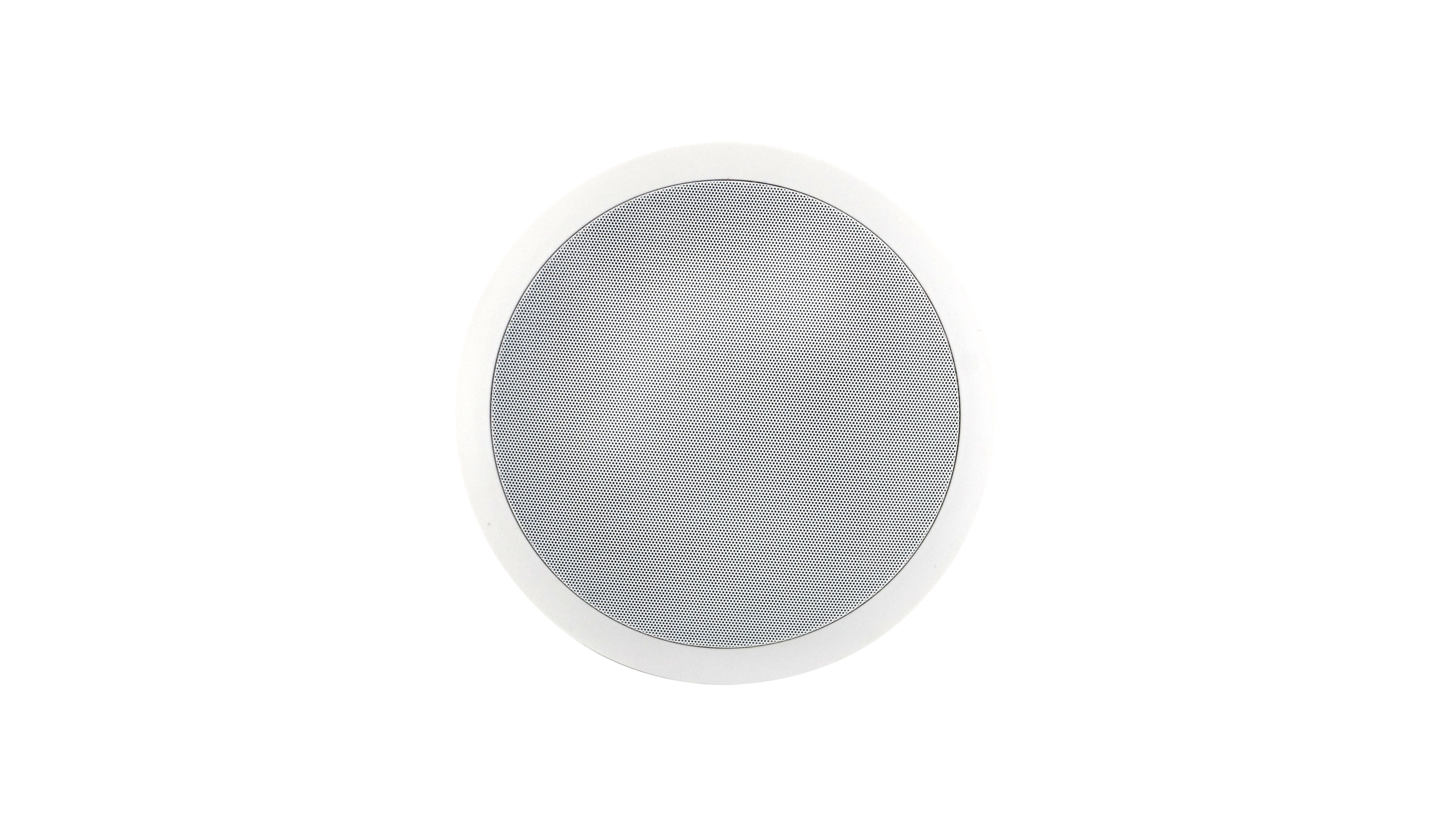

The Alfatron ALFC-606 is a 6-inch in-ceiling installation speaker designed for commercial background music and paging systems. It features a clean, low-profile white grille that blends seamlessly into suspended or drywall ceilings, making it ideal for offices, retail stores, restaurants, schools, and hospitality environments.

Designed for distributed audio installations requiring consistent coverage and clear speech reproduction.

General Specifications

Type: ALFC-606

• Frequency response: 70 ~ 20KHz
• Sensitivity (1M/1W): 90dB
• Power Handling: 30W
• Power Taps: 30W / 15W / 7.5W / 3.8W; 8Ω
• Line input: 100V / 70V; 8Ω
• Hole for Mounting: Ø 250 (Diameter)
• Dimensions (mm): Ø 270 (Diameter) x 180mm

Physical Specifications

• Material (Panel):  ABS
• Material (Cover):  ABS

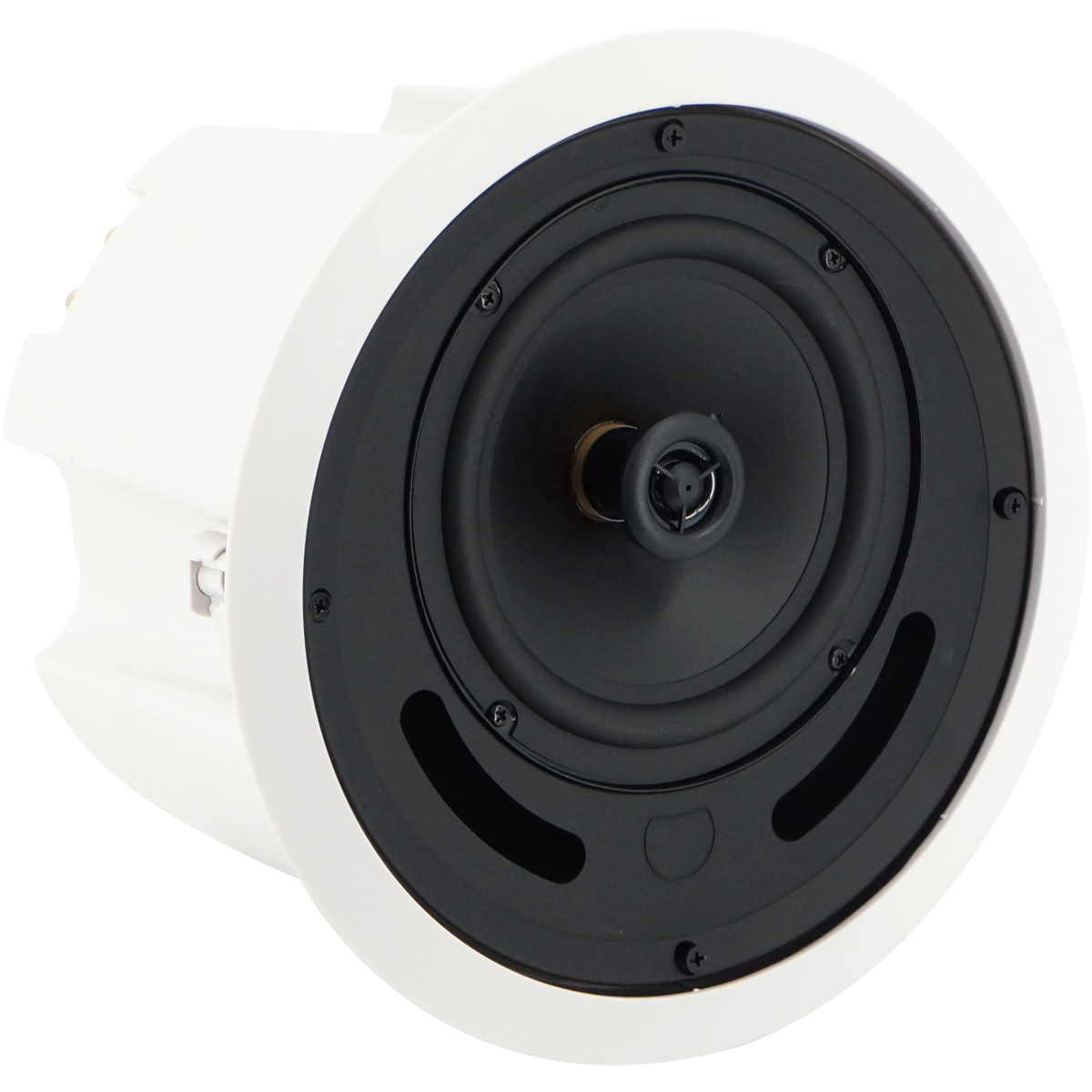

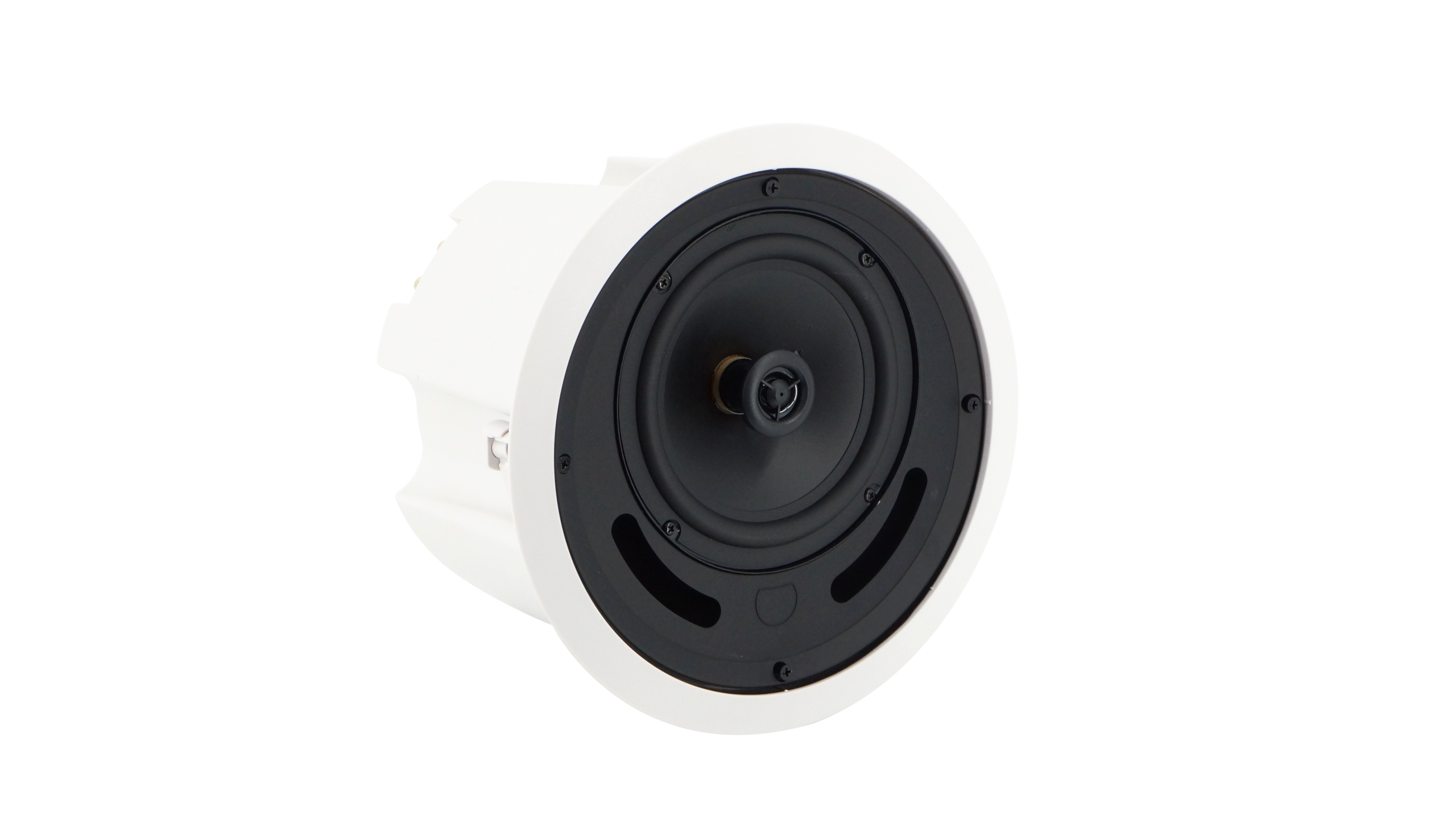

• Grill: Powder coated Iron Mesh Component (L. Speaker): 6” PP Woofer Component (H. Speaker): 1” Mylar
• Finished color: White

Woofer Speaker Specifications

• Voice Coil Size: Ø 25.9 x 0.18 2 Layer
• DC Impedance:  6.8Ω
• Former: ASV
• Magnet: Ferrite ( 388g)
• Ø 90 x Ø32 x 15 (Y30)
• Basket: Iron
• Cone Material: PP
• Spider: Cloth
• Net Weight: 1 Kg
