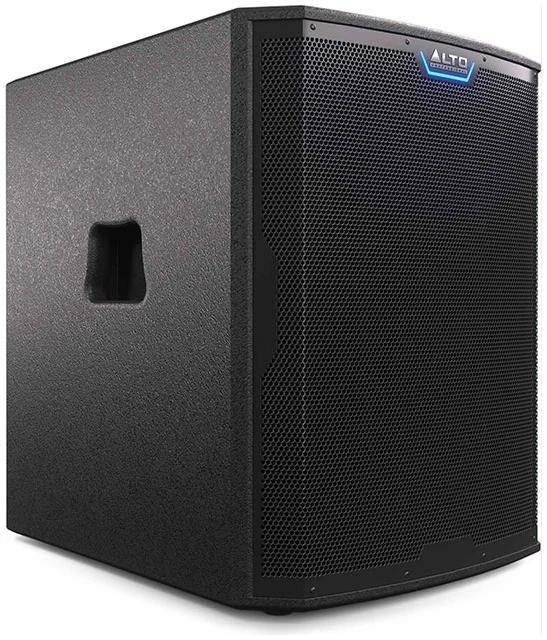

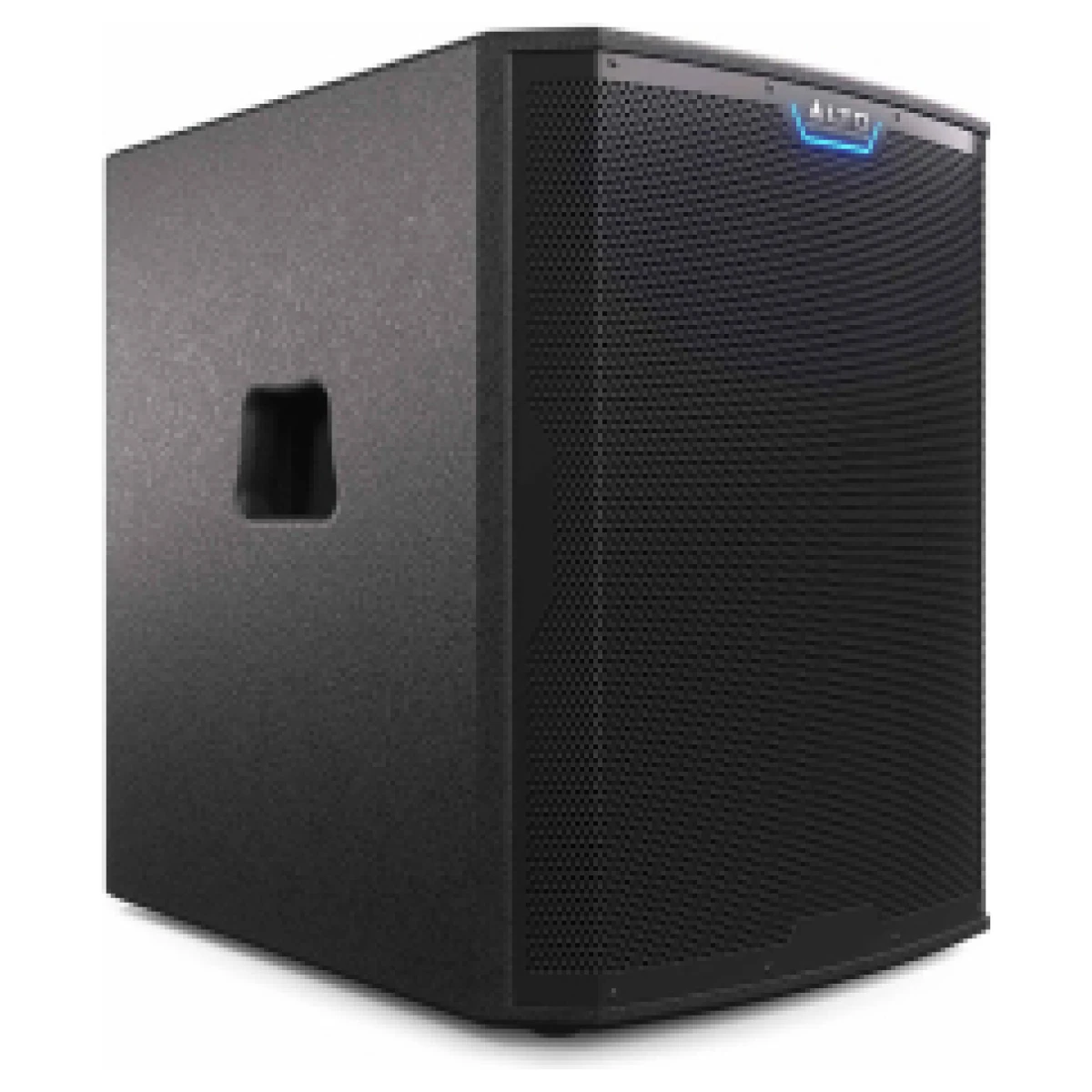

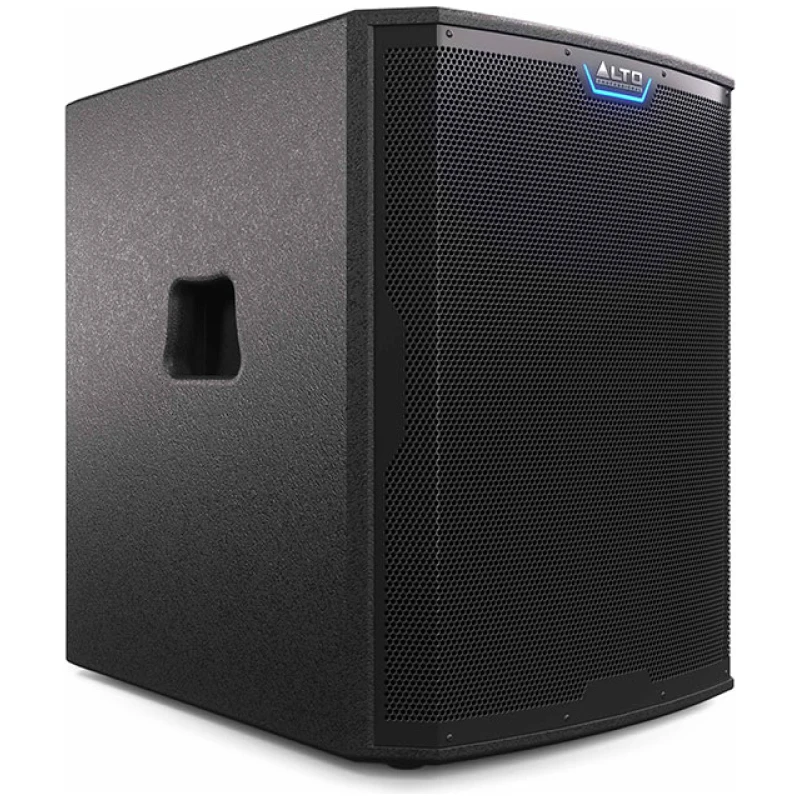

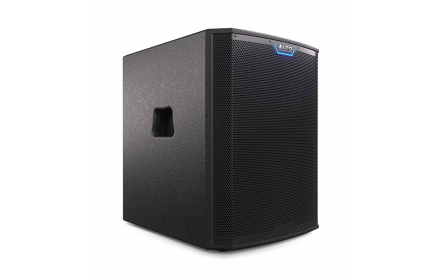

Alto TS18S 18″ 2500W Active Subwoofer

• 2500W peak power output
• High-efficiency Class D amplifier
• Transducer: 18-inch driver with 3-inch high-temperature voice coil
• (2) XLR+1/4-inch combo inputs
• (2) XLR thru outputs for linking
• User-selectable EQ tunings (Off, Live, DJ)
• Phase Alignment selector switch (0°/90°/180°/270°)
• Rugged, internally-braced front-ported MDF cabinet with integrated 36 mm pole socket
• Mark-resistant splatter-spray finish always looks good, even with heavy use
• Electronic clip, thermal and transducer overdrive protection
• Designed and tuned in the USA

TECH INFORMATION

Output Power: 2500W peak@4Ω

Transducer Low: 18” (457 mm) woofer; 3” (76.2 mm) high-temperature voice coil

Frequency Response: 35 Hz–100 Hz (-3 dB)

Frequency Range: 27 Hz–111 Hz (-10dB)

Maximum SPL: 137 dB (@1 m)

Connections: (2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input

External Controls:  Volume control, signal/clip limiter with LED, speaker use button, proximity button, power switch with LED

Electronic Protections: Electronic clip, thermal and transducer overdrive protection

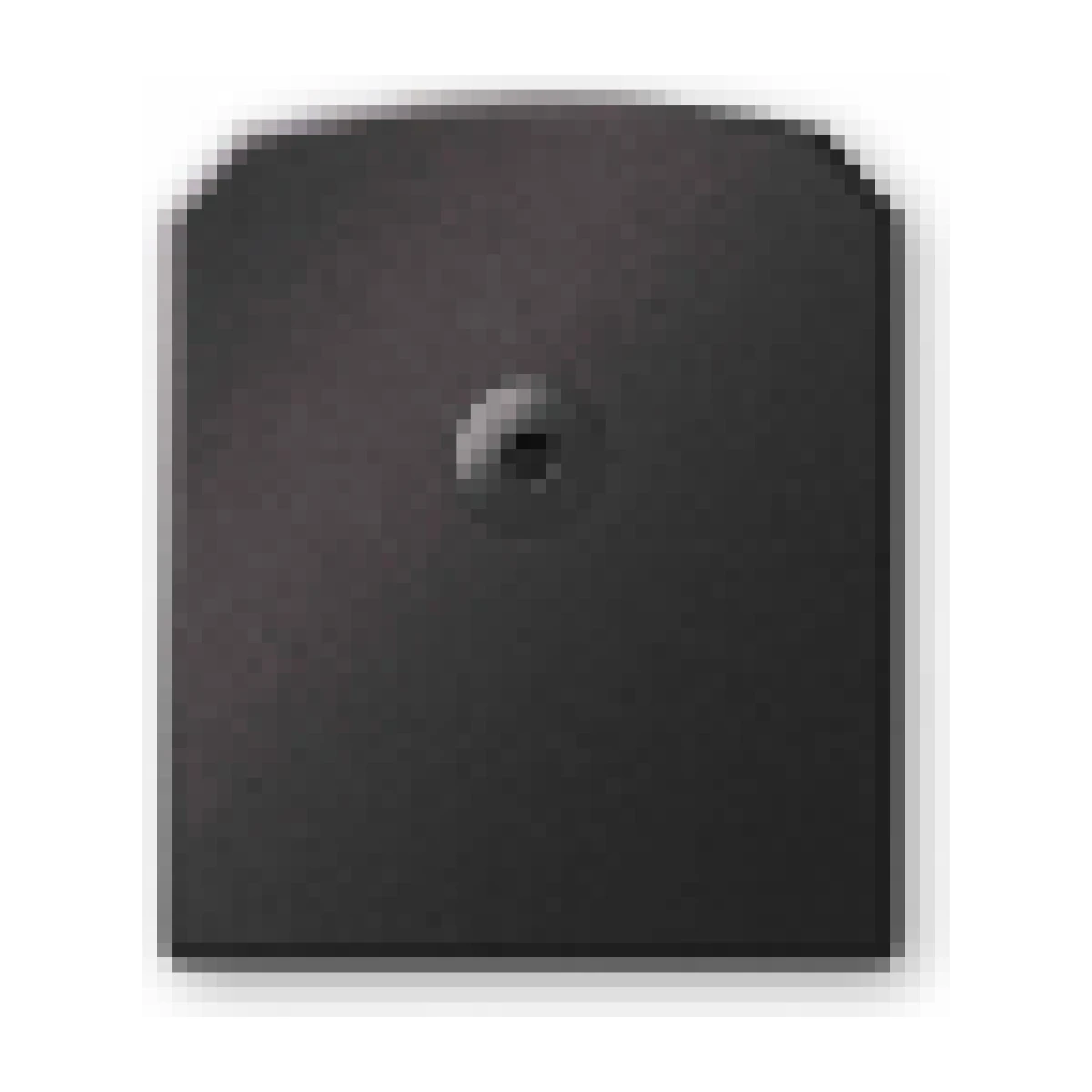

Enclosure: Internally braced MDF cabinet; 36 mm mounting pole socket on top panel. Caster Insert Thread Gauge: M6 x 1.00mm

Power Connection: Standard IEC cable.

Input Voltage: 100-120, 50/60 Hz; 220-240 VAC 50/60 Hz

Consumption: 1600W

Fuse: 100-120V, T15AL AC250V; 220-240V, T8AL AC250V

Dimensions (height x width x depth): 26.7” x 20.9” x 24.7” / 678.2 x 530.9 x 627.4 mm

Weight: 93.0 lbs / 42.2 kg
