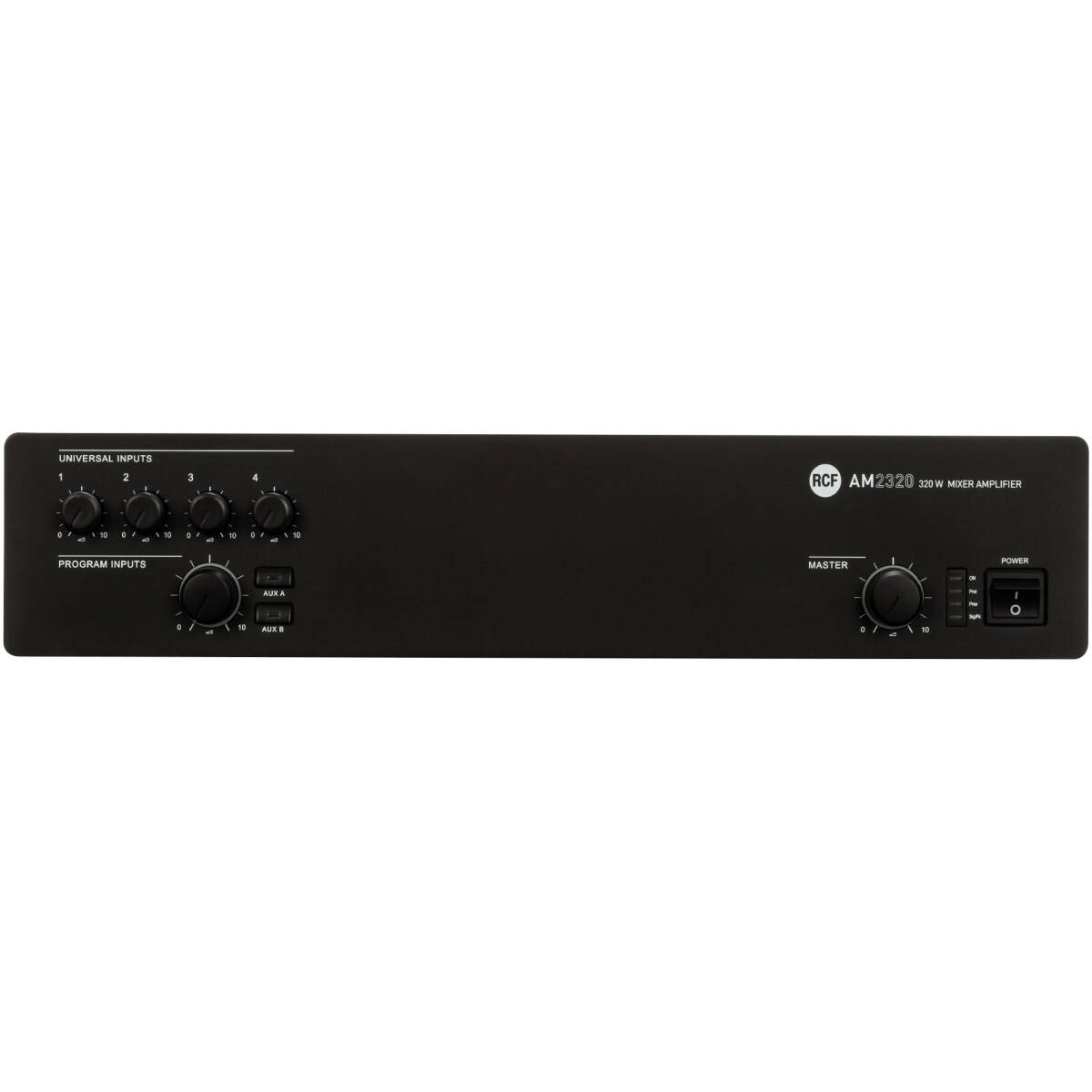

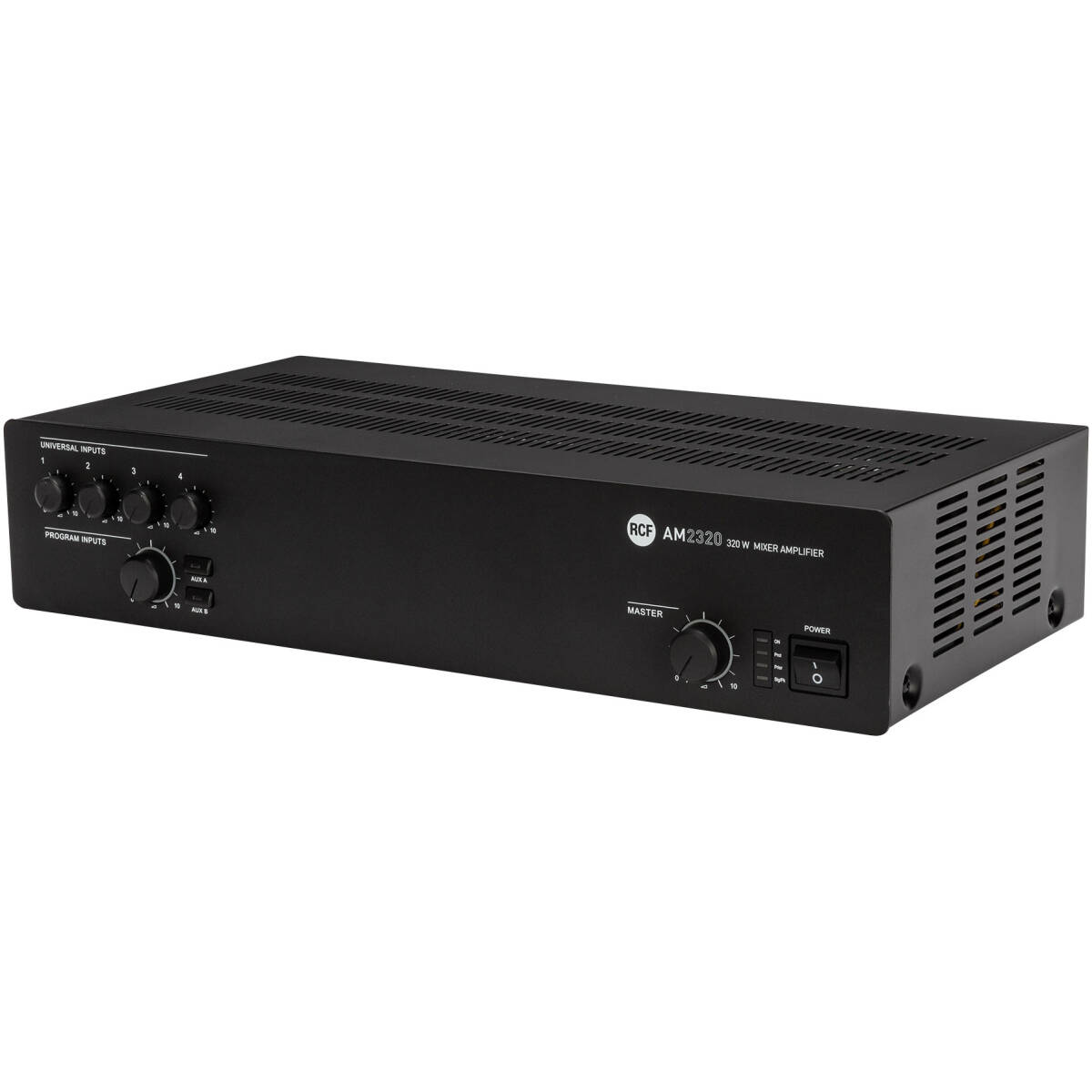

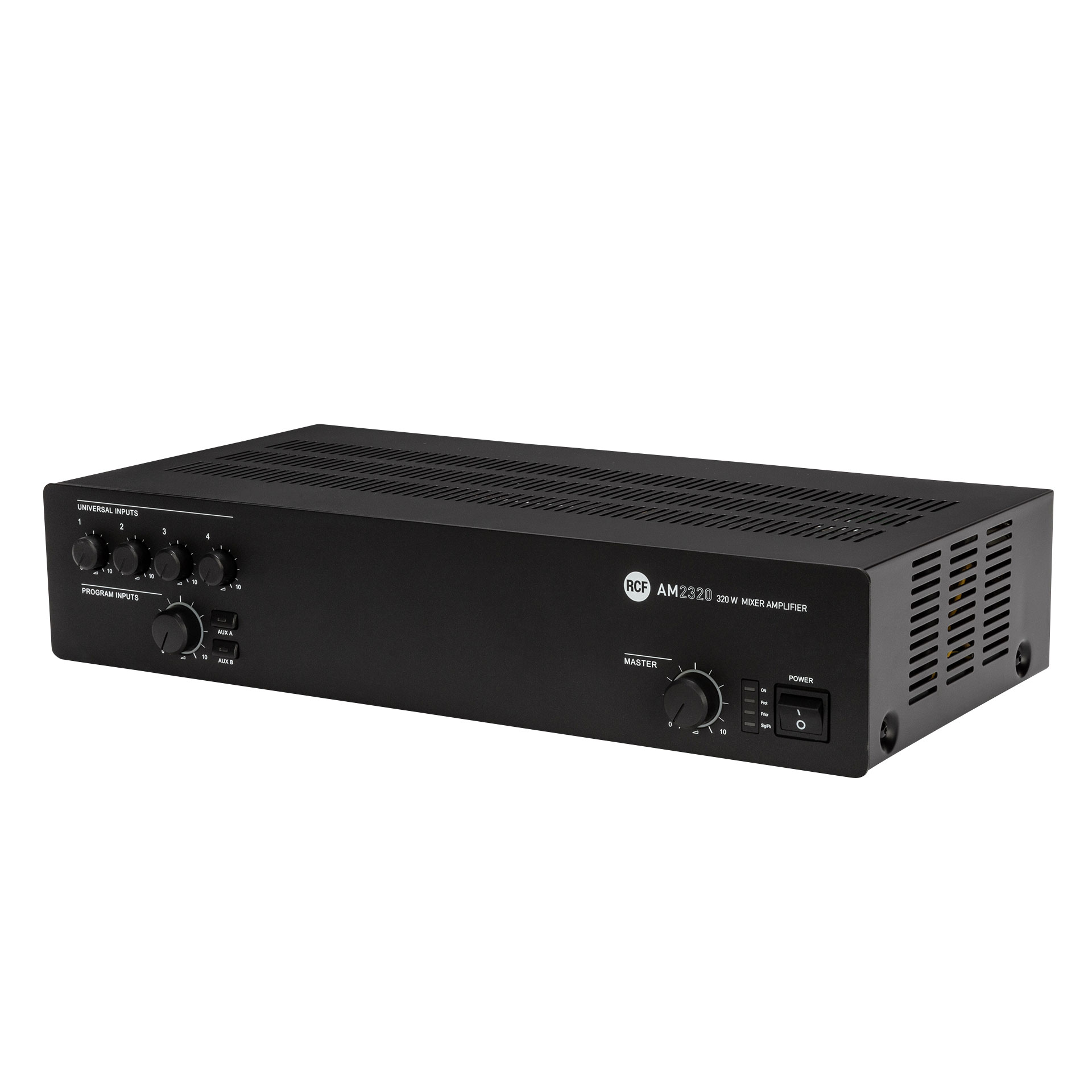

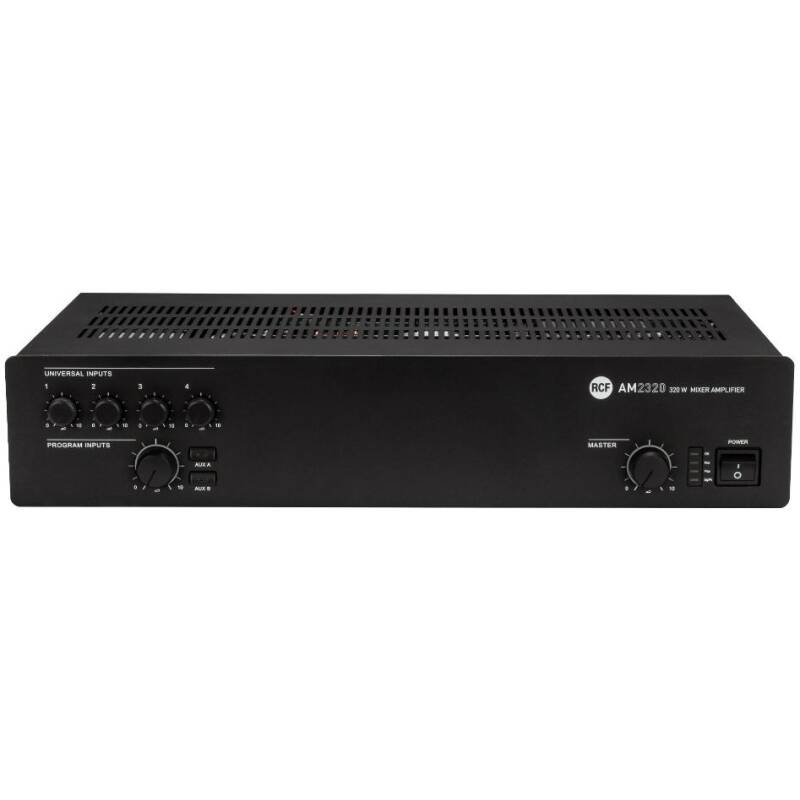

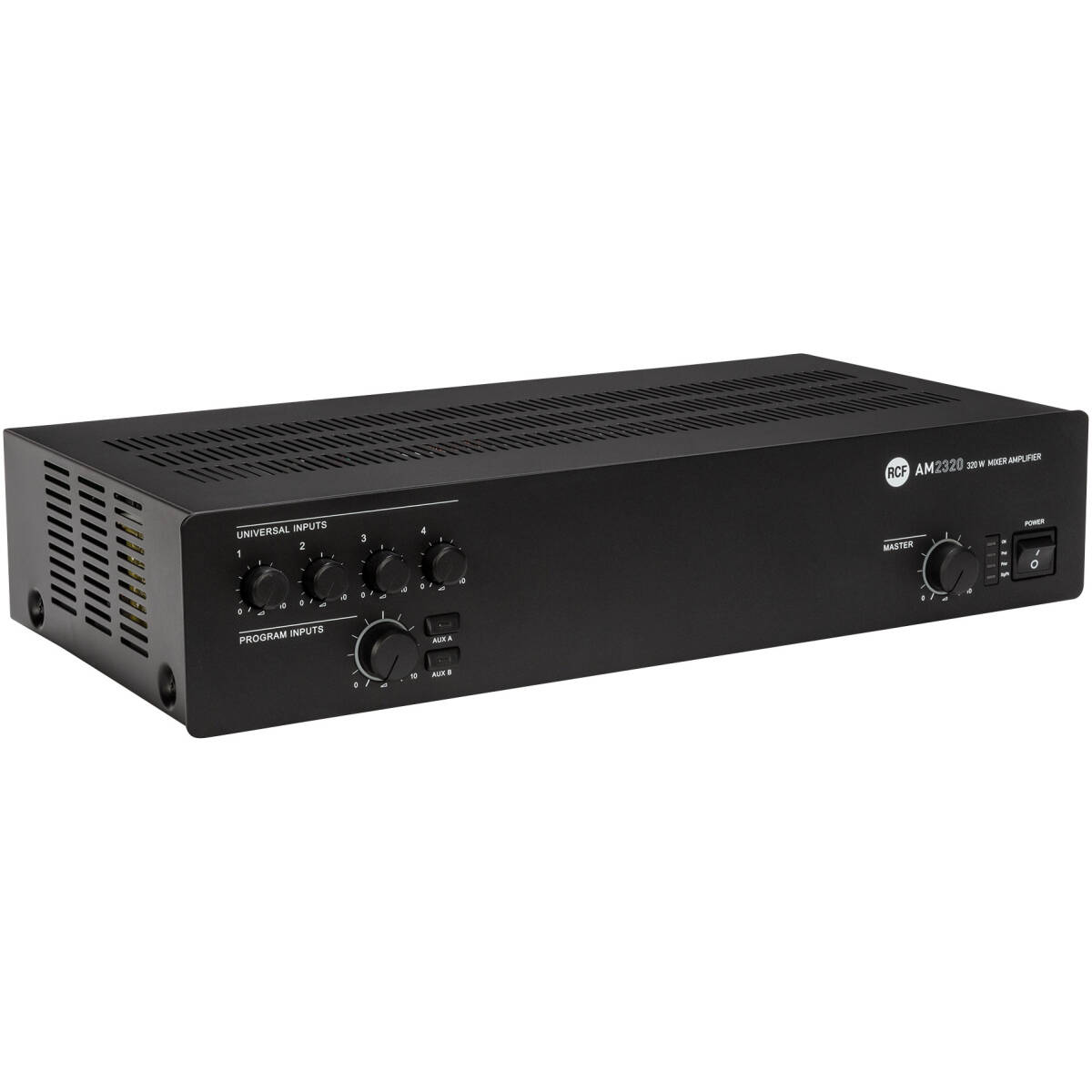

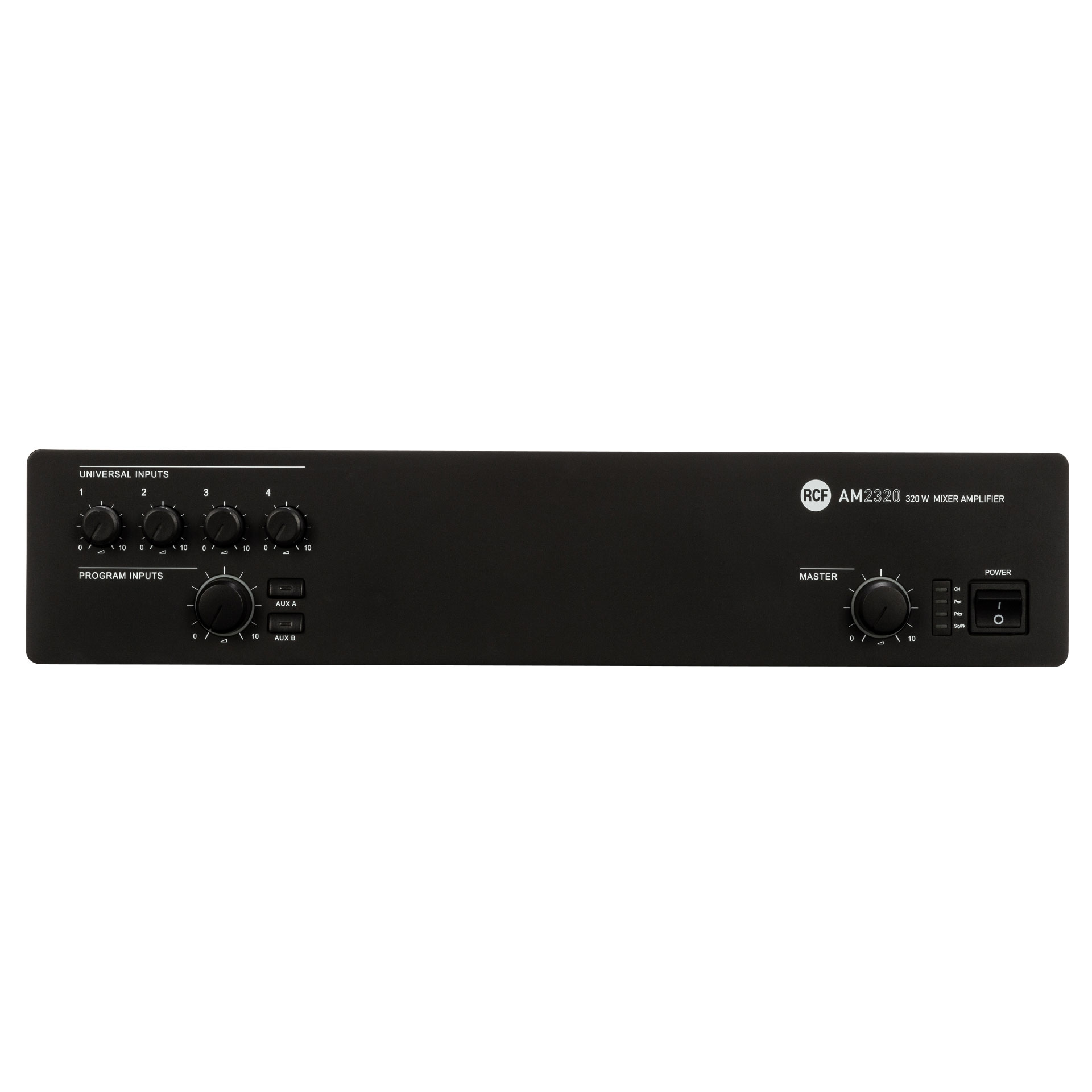

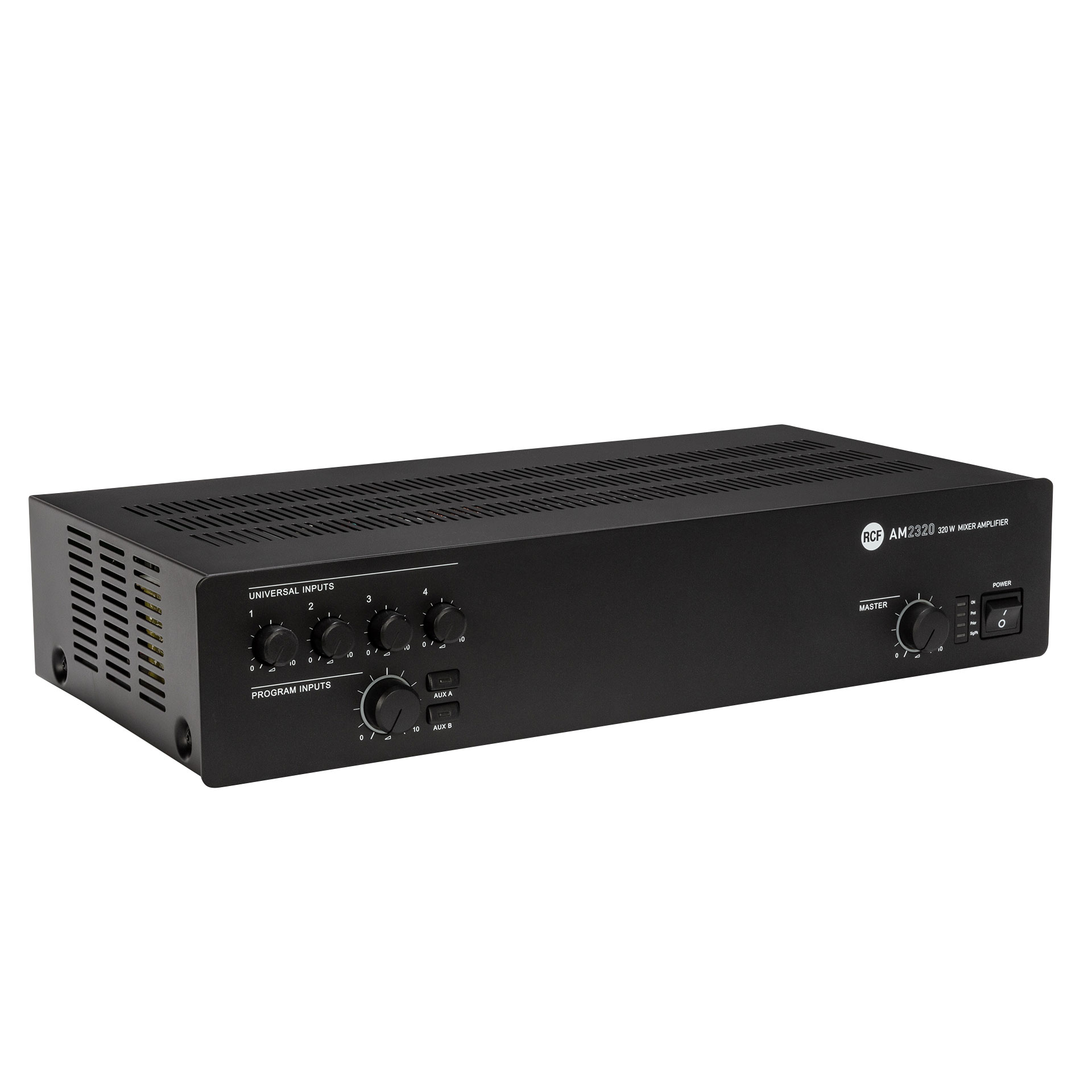

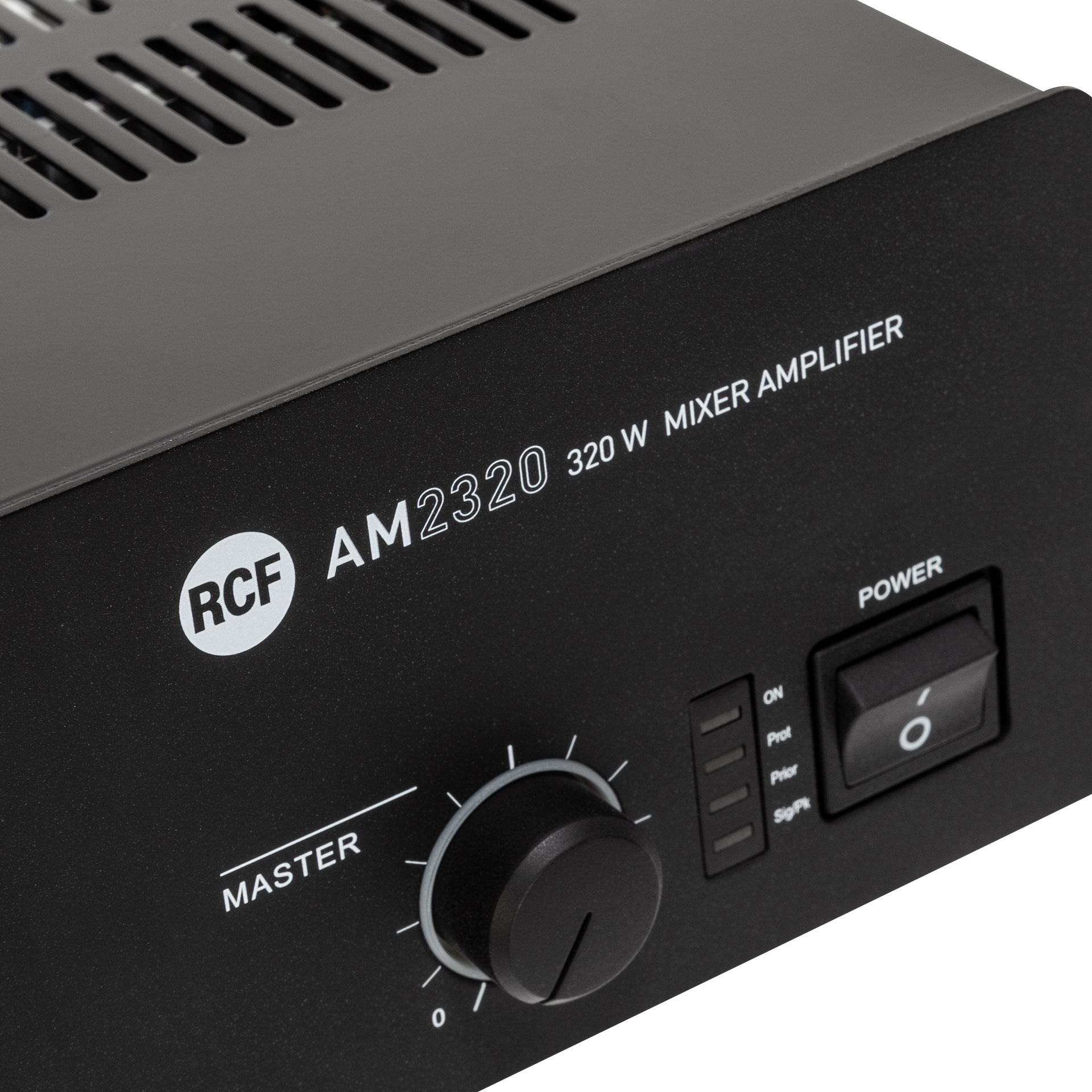

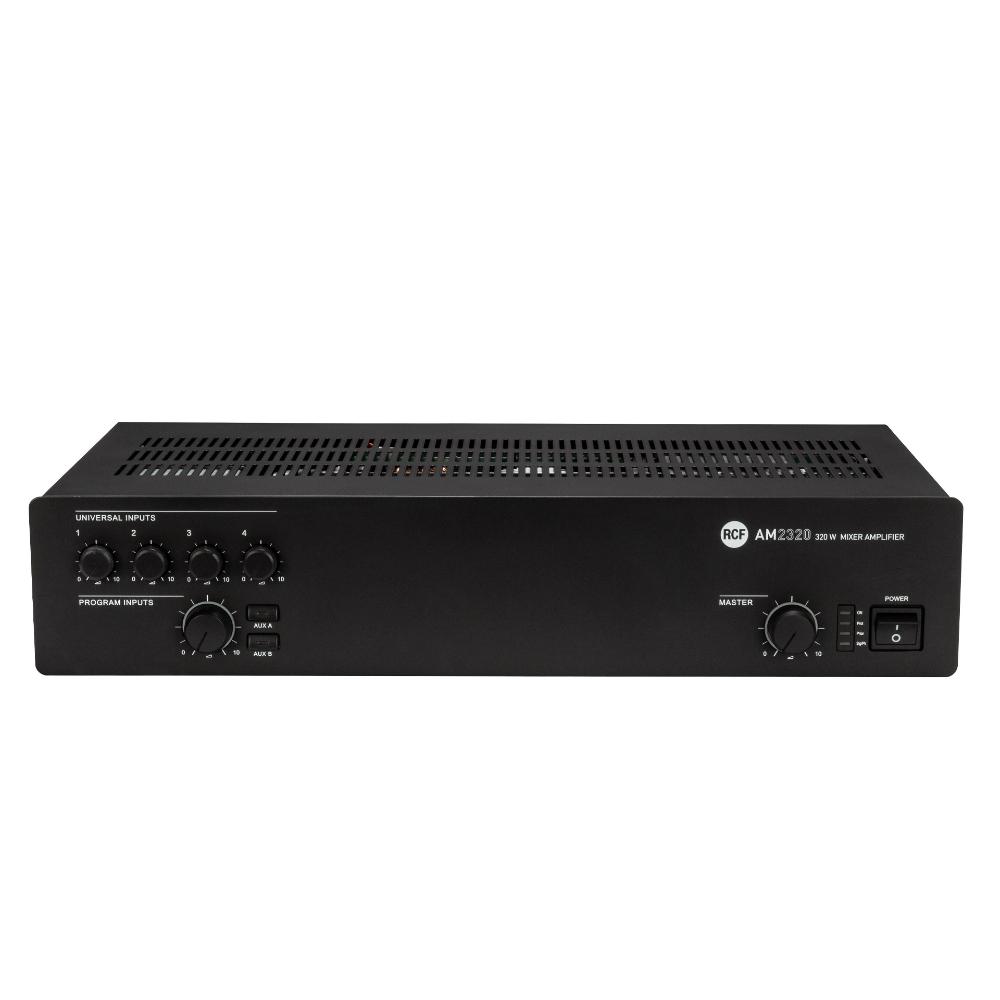

AM 2320, Mixer Amplifier

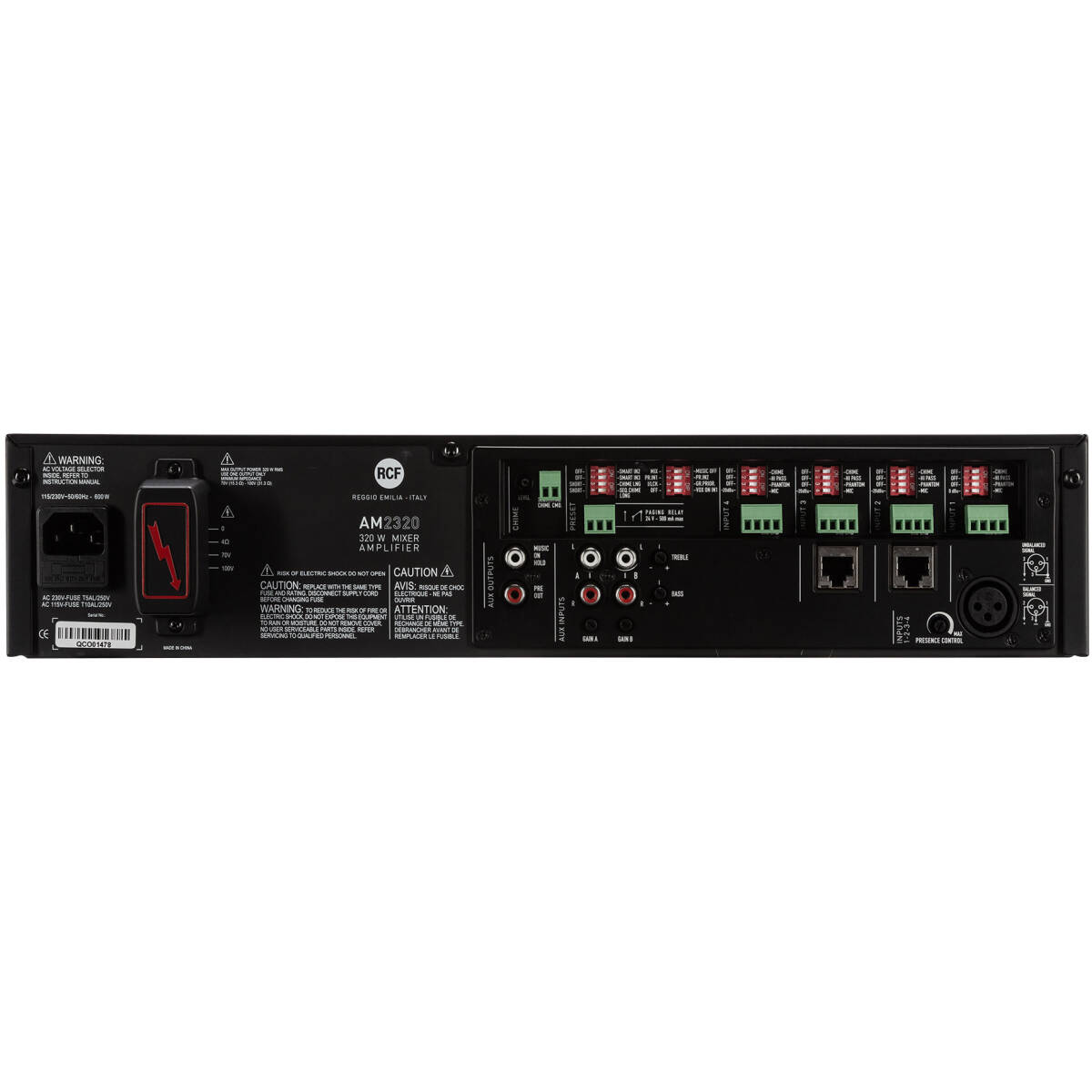

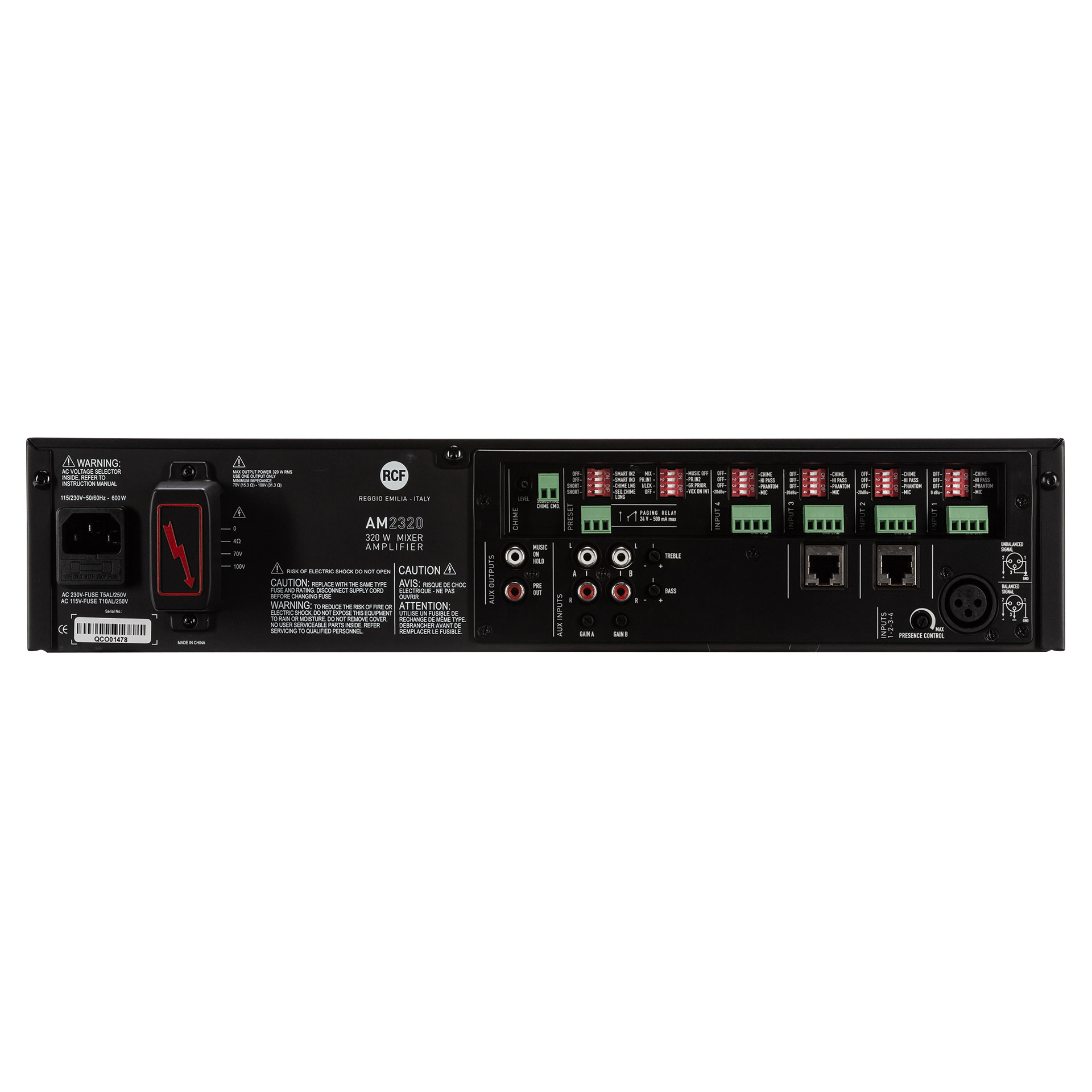

AM 2320 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 320 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line.

FEATURES:

• Full digital technology Mixer Amplifier 320 W RMS
• 100 V – 70 V and 4 Ohm outputs
• 4 universal inputs with phantom facility on screw terminal connections
• Presence Control and per-channel High-Pass filters
• XLR connector on input 1
• RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
• Configurable Priority settings, VOX facility on input 1
• Selectable aux inputs with two keys on the front panel for music source
• Aux inputs with volume and tone controls
• DigMusic On Hold and PRE outputs
