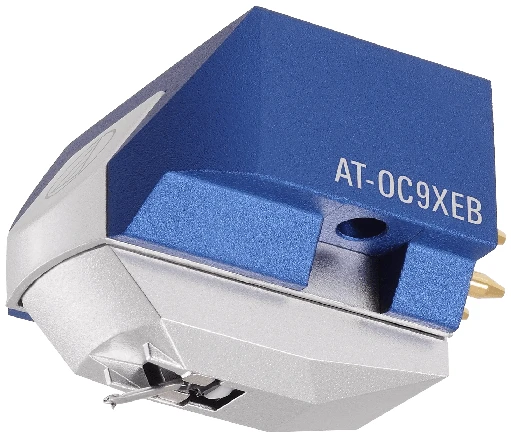

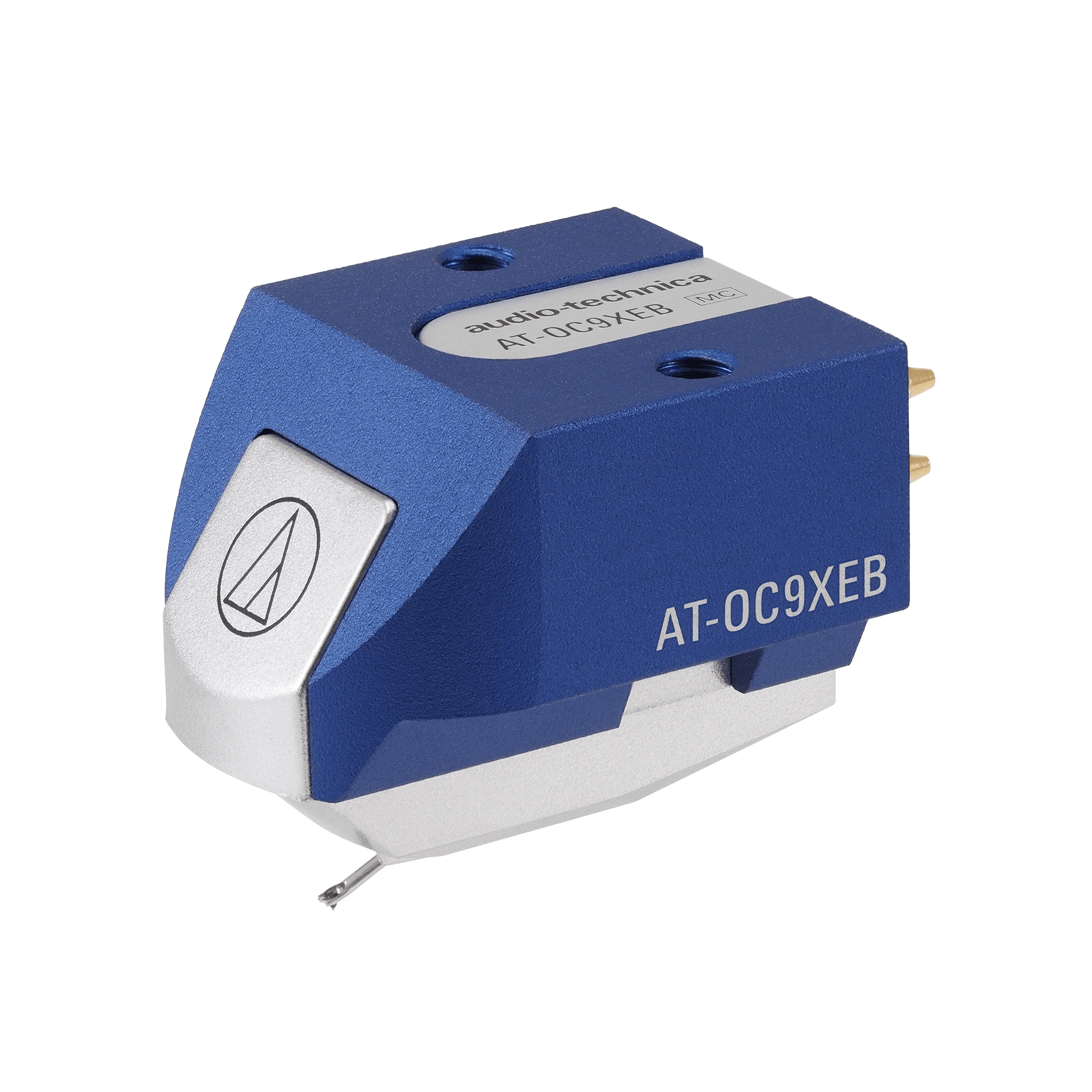

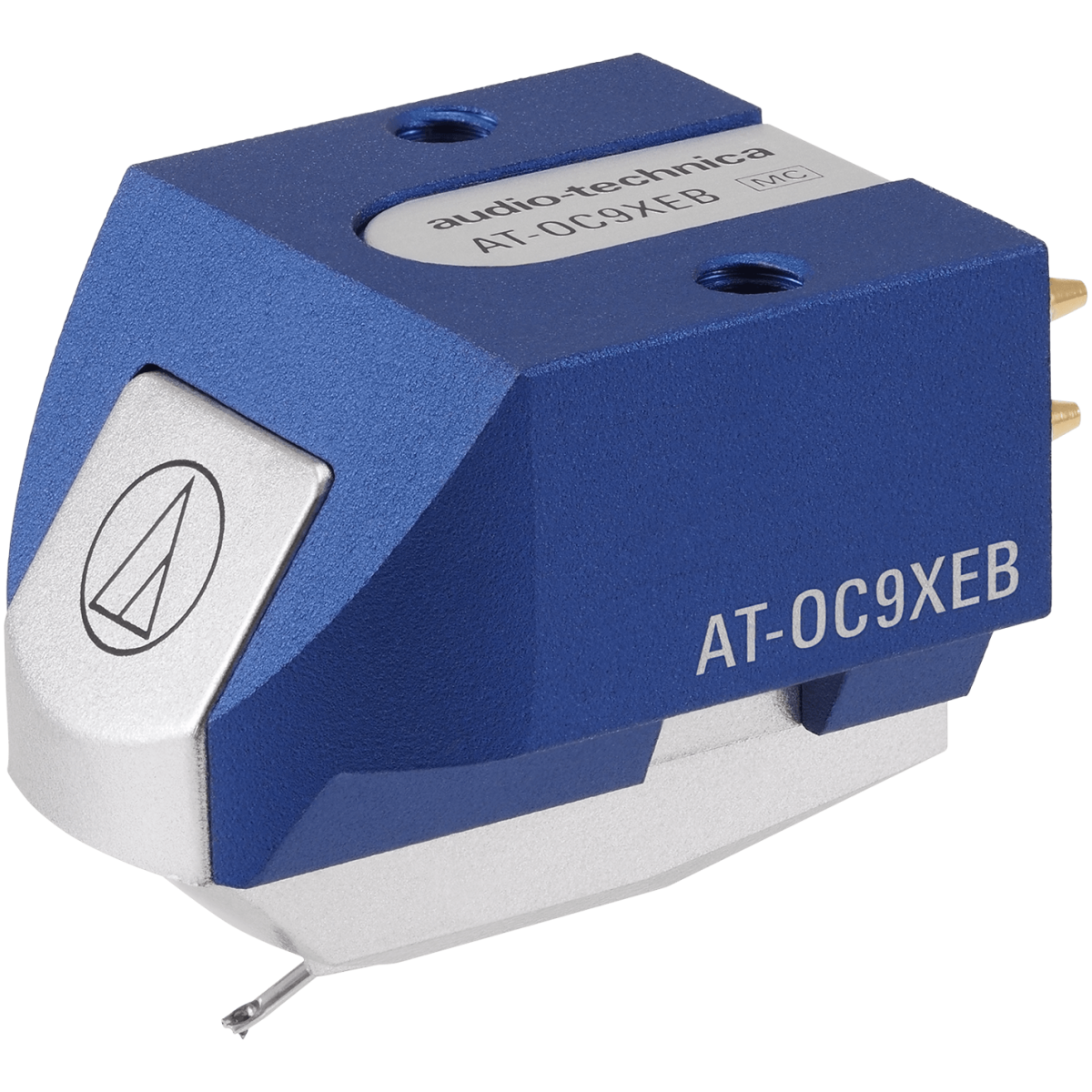

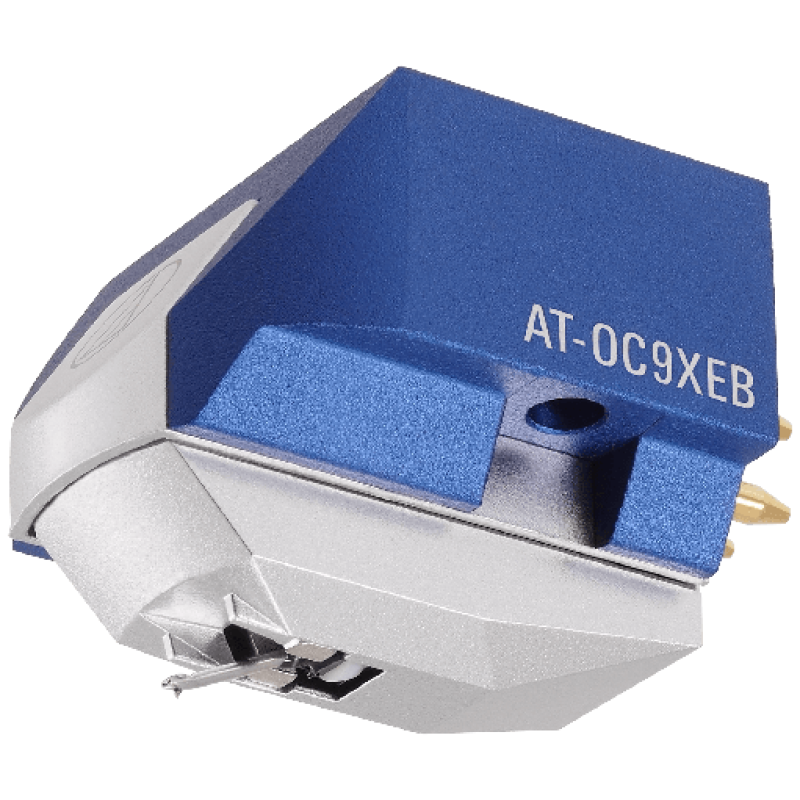

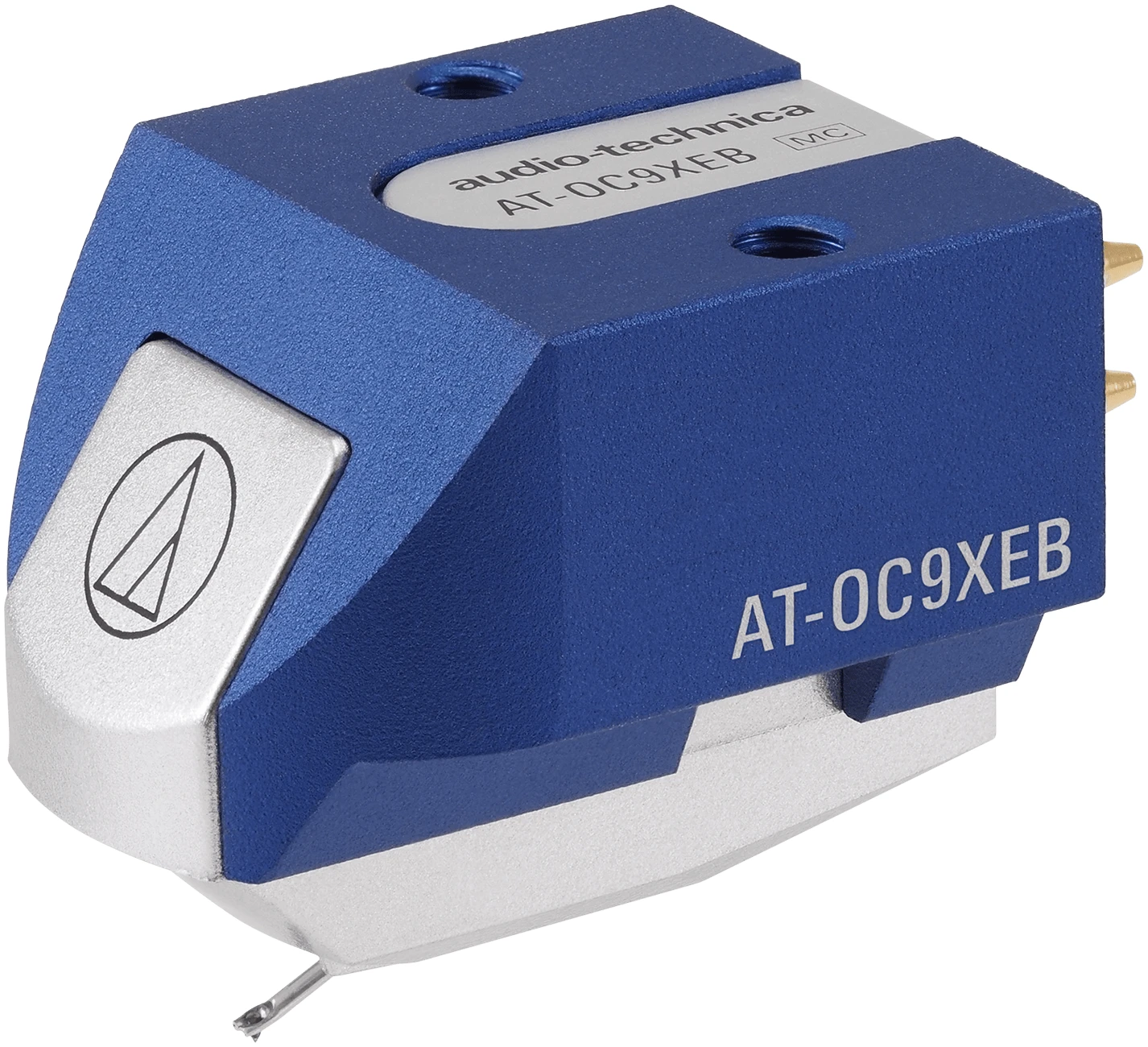

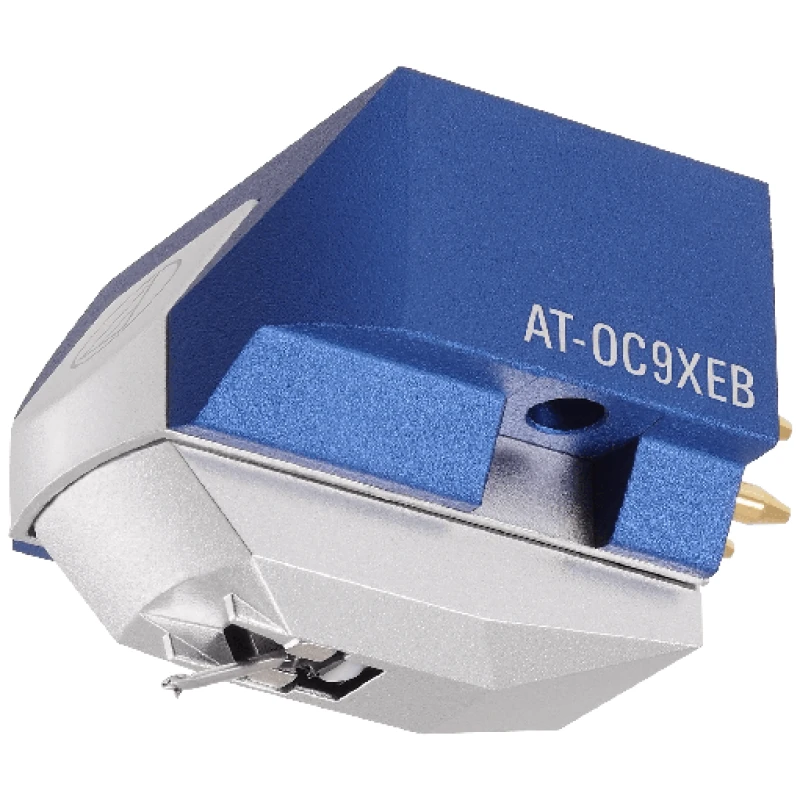

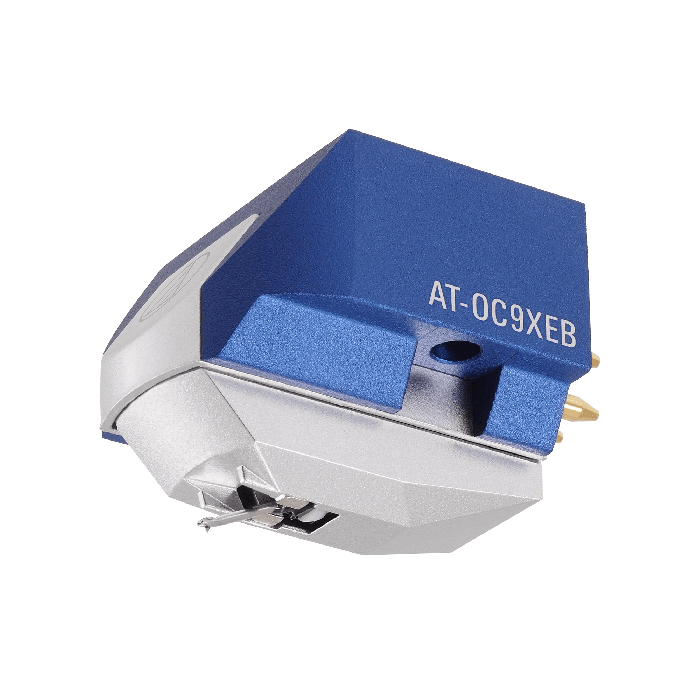

The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-30,000 Hz |
| Channel Separation | 25 dB (1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | Min. 100 ohms (when head amplifier is connected) |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 25 mH (1 kHz) |
| Output Voltage | 0.32 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | Elliptical bonded |
| Cantilever | Aluminum pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 9 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 mm (0.68″) H × 16.8 mm (0.66″) W × 25.7 mm (1.01″) D |
| Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush |
| Body Material | Aluminum |
| Model | AT-OC9XEB |
| Mounting Feature | Half-inch mount |
| Stylus Curvature Radius | 0.3 x 0.7 mil |
| Stylus Size | Bonded round shank |
| Terminal Pins | Brass |
| Type | Dual Moving Coil |
| Weight | 7.6 g (0.3 oz) |
| Wire Used for Coil | PCOCC |
| Notes | Mounting Feature: Threaded body Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
