Atlona AT-OME-EX-TX-WPC Wallplate HDBaseT Transmitter With USB-C Input And USB Hub

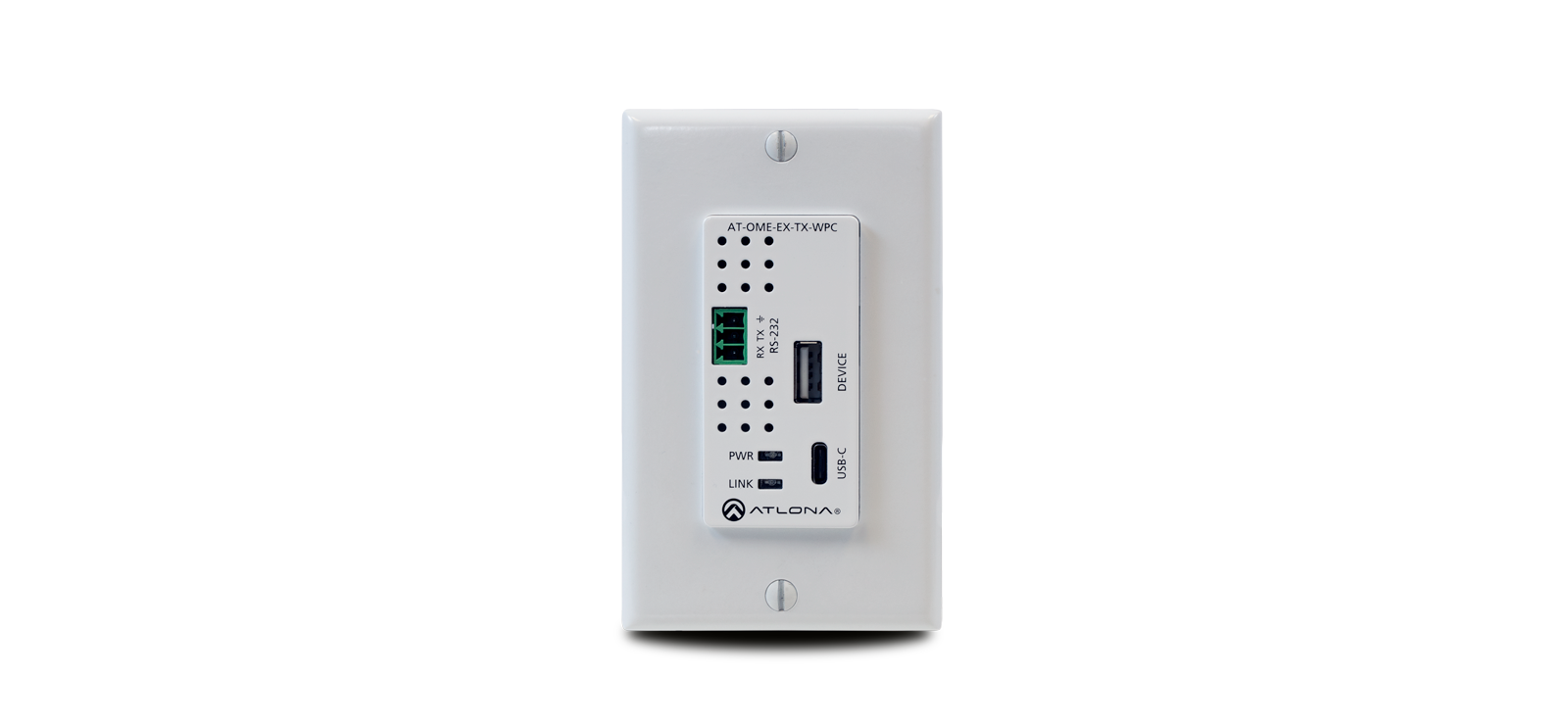

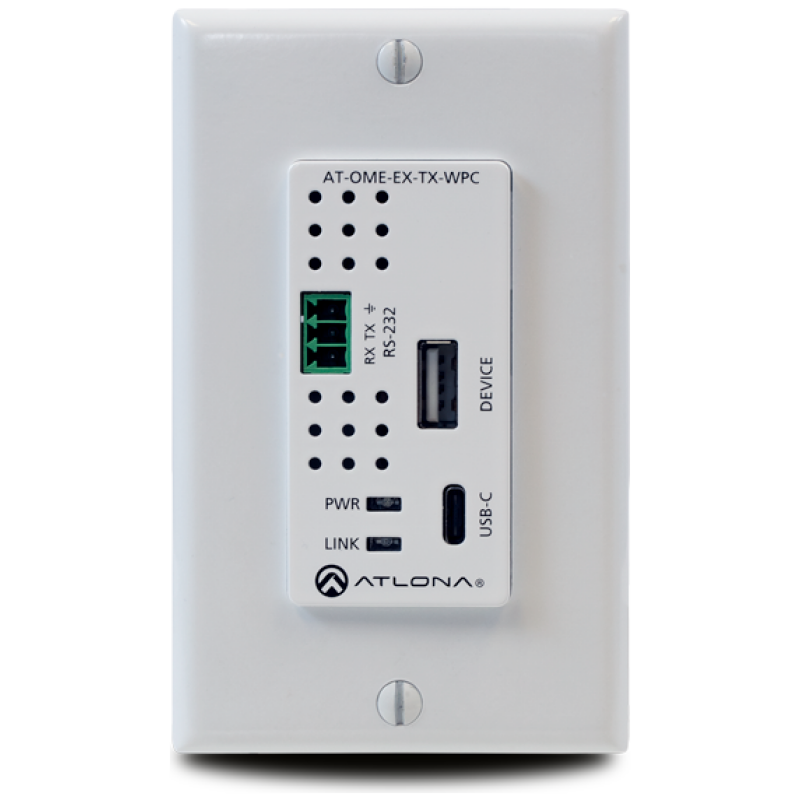

The Atlona AT-OME-EX-TX-WPC is a two-gang wallplate HDBaseT transmitter designed for modern meeting rooms, classrooms, and collaboration spaces. It allows users to connect laptops or media devices through HDMI or USB-C and transmit video, audio, USB data, Ethernet, and control signals over a single category cable to a compatible HDBaseT receiver such as the AT-OME-EX-RX. The integrated USB hub enables connectivity for conferencing peripherals such as cameras, microphones, and touch displays.

Key Features

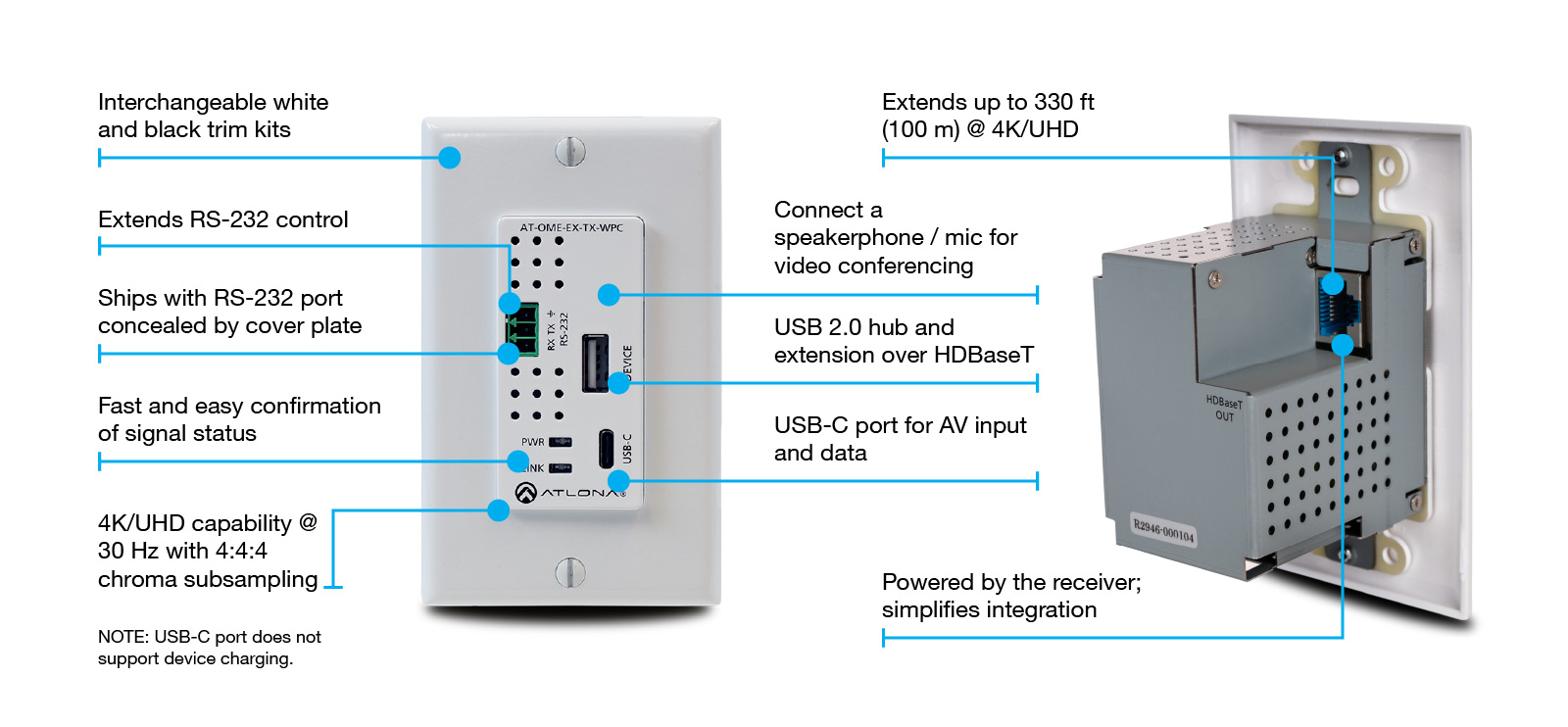

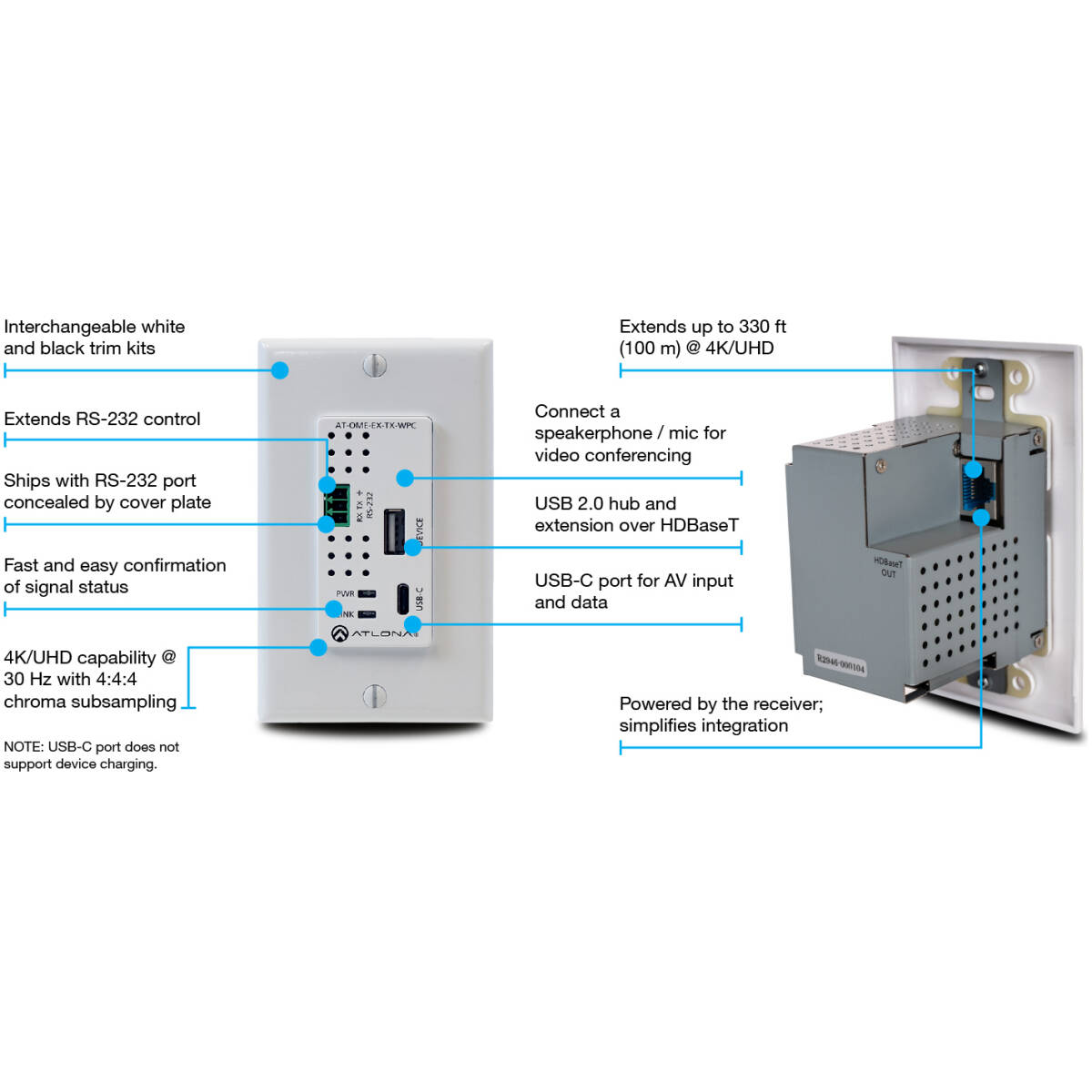

• Two-gang wallplate HDBaseT transmitter for professional AV installations
• HDMI and USB-C input with AV and USB support
• Supports video up to 4K/UHD @ 60 Hz (4:2:0)
• Extends signals up to 100 m over Cat6/6A cable
• Integrated USB 2.0 hub for conferencing peripherals
• Automatic input selection between HDMI and USB-C
• PoE (Power over Ethernet) capable from compatible receiver
• Ethernet pass-through for network connectivity
• Bi-directional RS-232 and IR control
• Ideal for video conferencing, soft-codec systems, and collaborative environments

Technical Specifications

Video Inputs

• 1 × HDMI Type-A
• 1 × USB-C (video and data)

HDBaseT Output

• 1 × RJ45 HDBaseT

USB

• 2 × USB Type-A (peripheral)
• 1 × USB Type-B (host)

Control

• 1 × RS-232
• 1 × IR

Ethernet

• 1 × RJ45 LAN

Maximum Resolution

• Up to 4K/UHD 3840 × 2160 @ 60 Hz (4:2:0)
