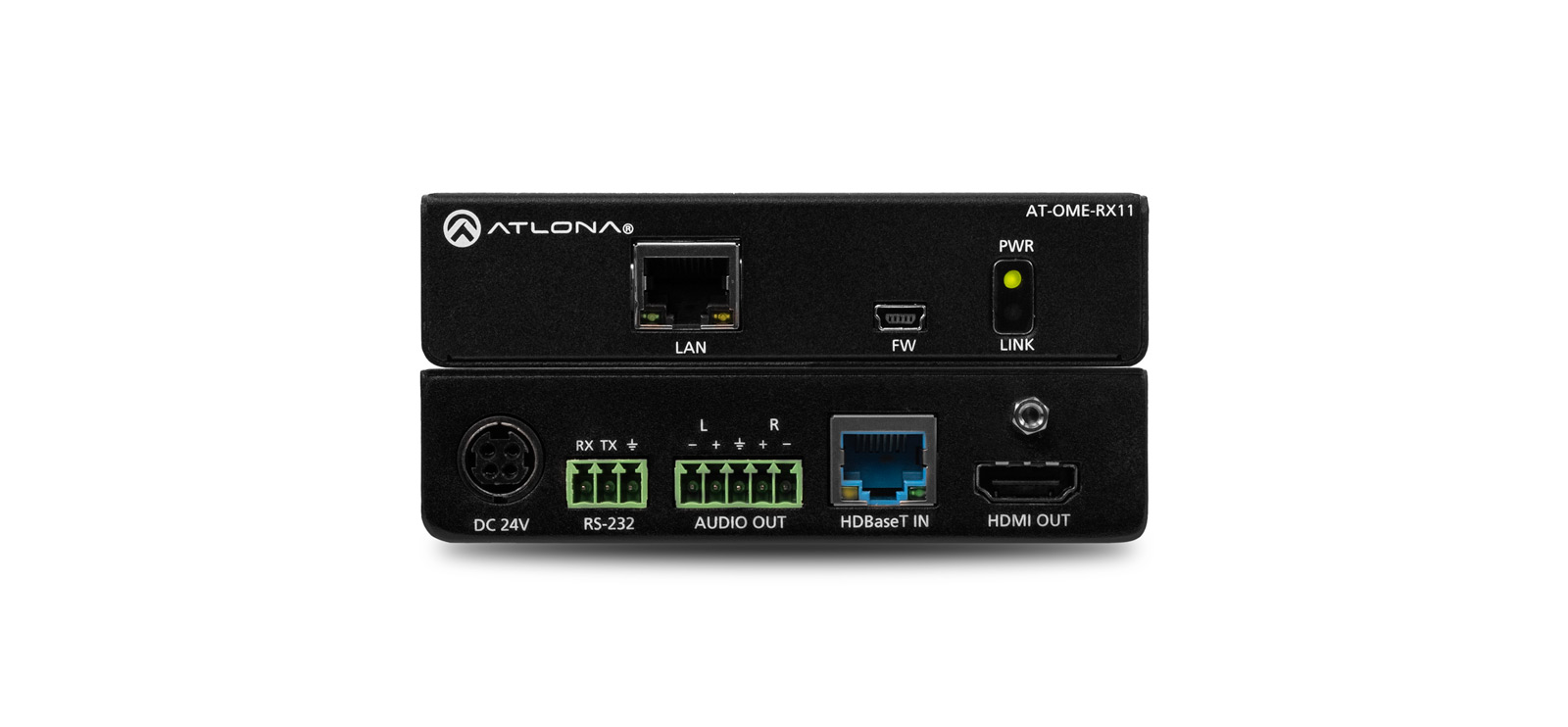

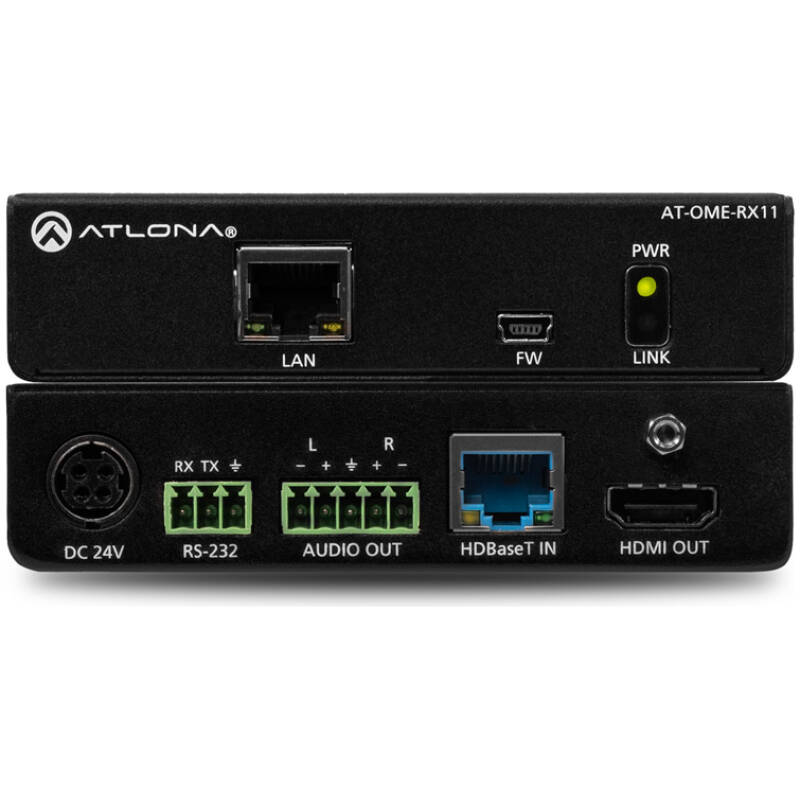

AT-OME-RX11 HDBaseT Receiver With Audio De-Embedding

The Atlona AT-OME-RX11 is a compact HDBaseT receiver designed for Atlona OMEGA Series AV systems. It receives video, audio, and control signals transmitted over a single category cable from a compatible HDBaseT transmitter and outputs them via HDMI to a display.

Supporting 4K/UHD video, HDR formats, and HDCP 2.2, the receiver is ideal for conference rooms, classrooms, and digital signage installations where displays are located away from the AV equipment rack.

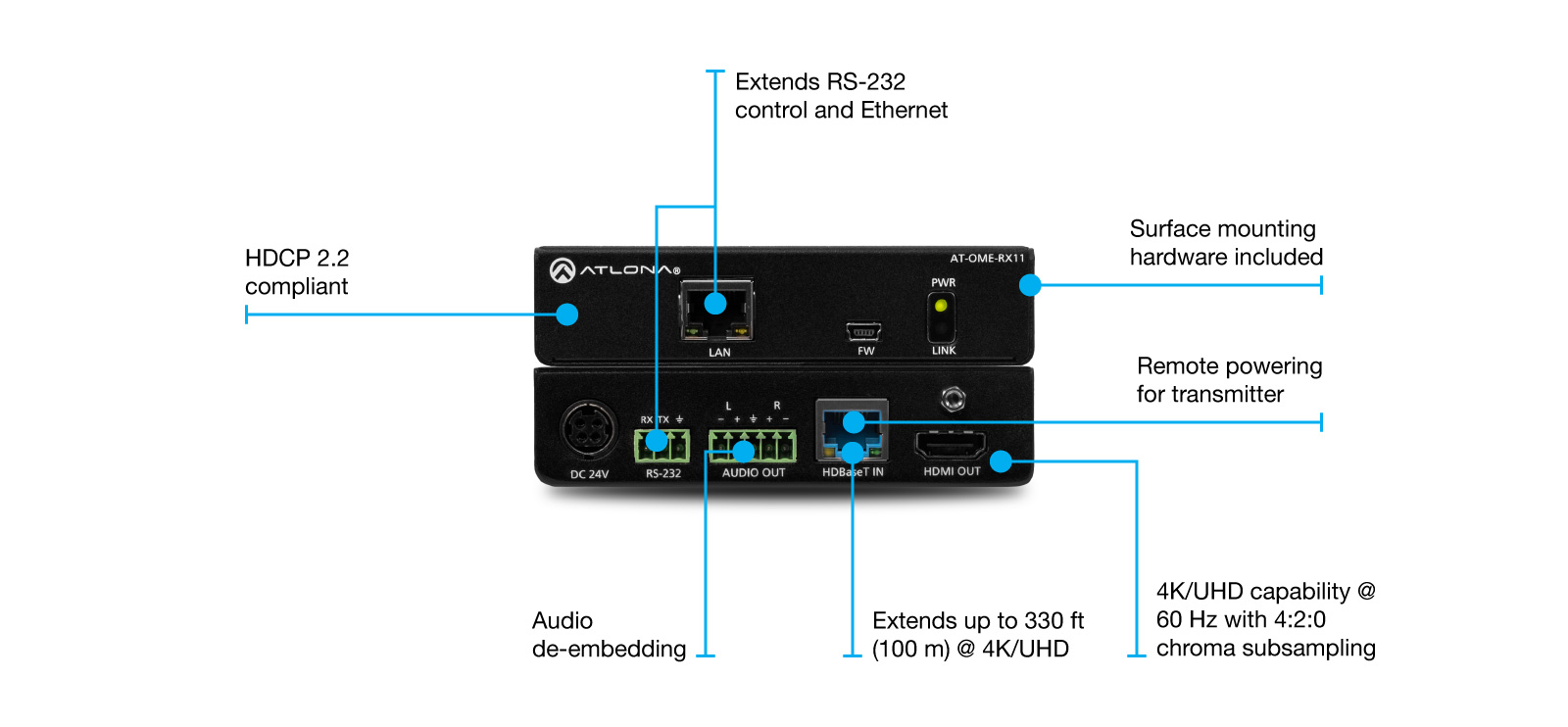

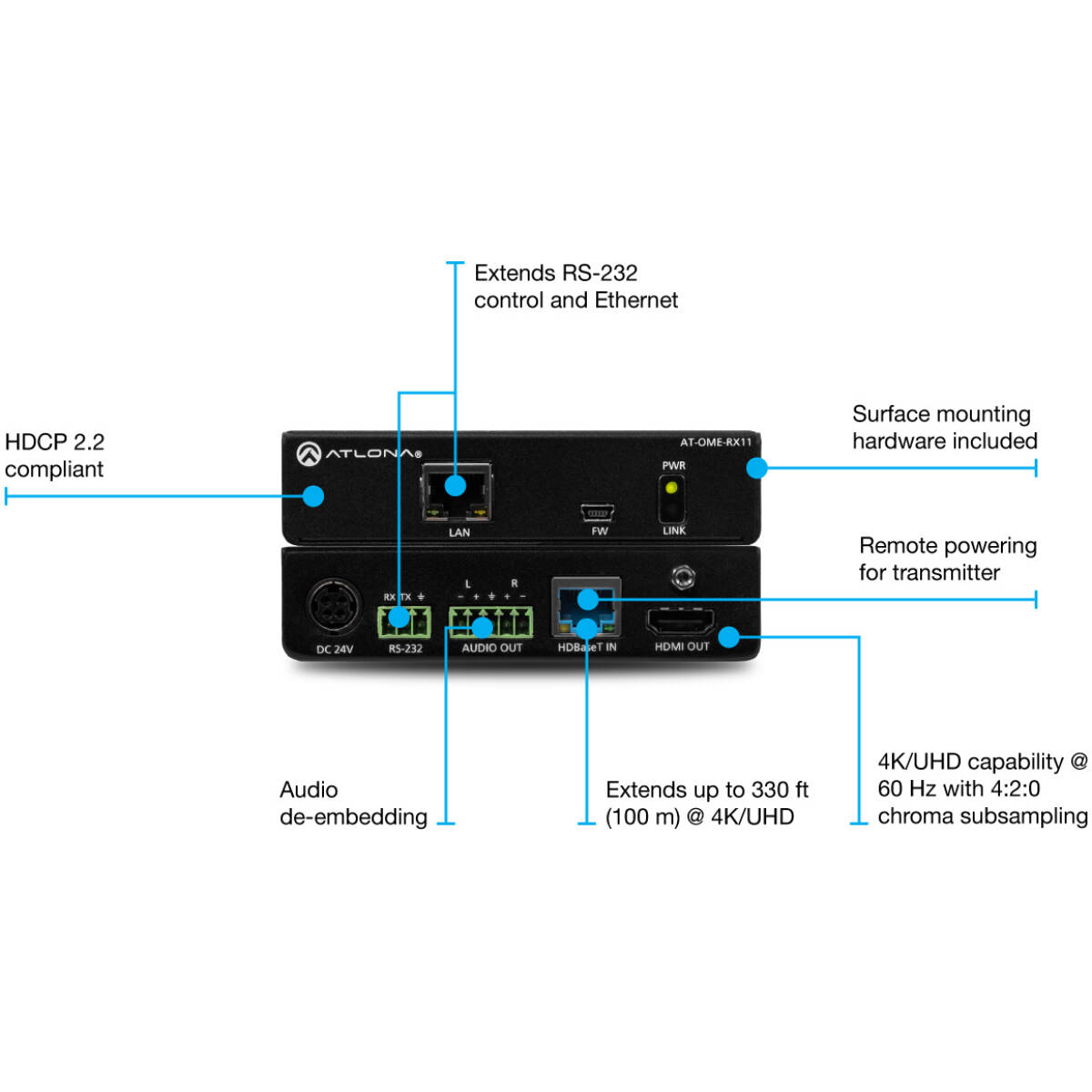

Key Features

• HDBaseT receiver for Atlona OMEGA systems

• Supports 4K/UHD up to 4K/60 4:2:0

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• RS-232 and IR pass-through

• Ethernet extension over HDBaseT

• Compact design for behind-display installation

Technical Specifications

Video

• HDMI Output: 1 × HDMI Type-A

• HDBaseT Input: 1 × RJ45

• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)

• HDR: Supported

• HDCP: HDCP 2.2 compliant

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m (230 ft) for 1080p

  • 40 m (131 ft) for 4K signals

• Cable Type: Cat6a / Cat7

Control

• RS-232 pass-through

• IR pass-through

• Ethernet extension

Power

• Powered via PoE from compatible Atlona transmitter
