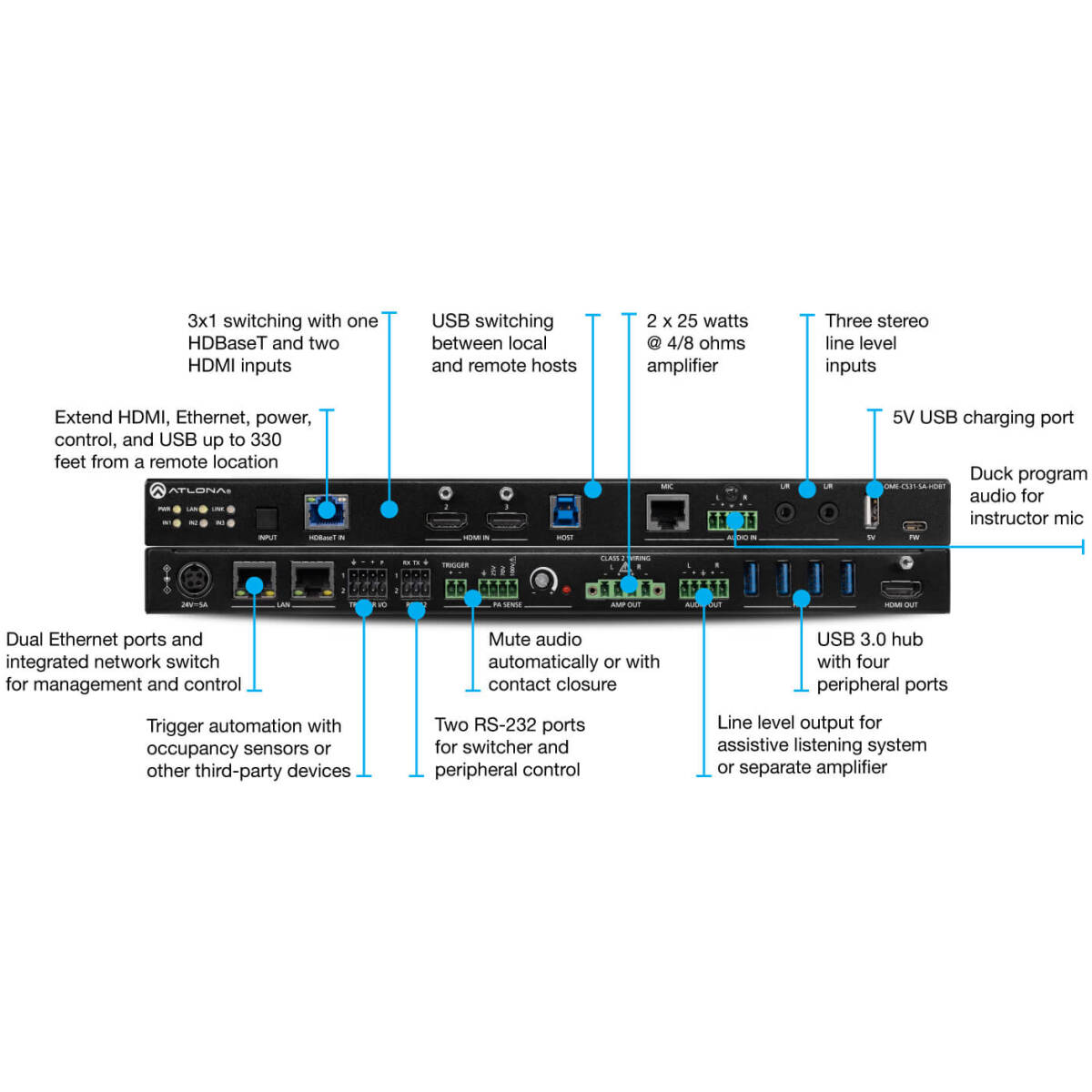

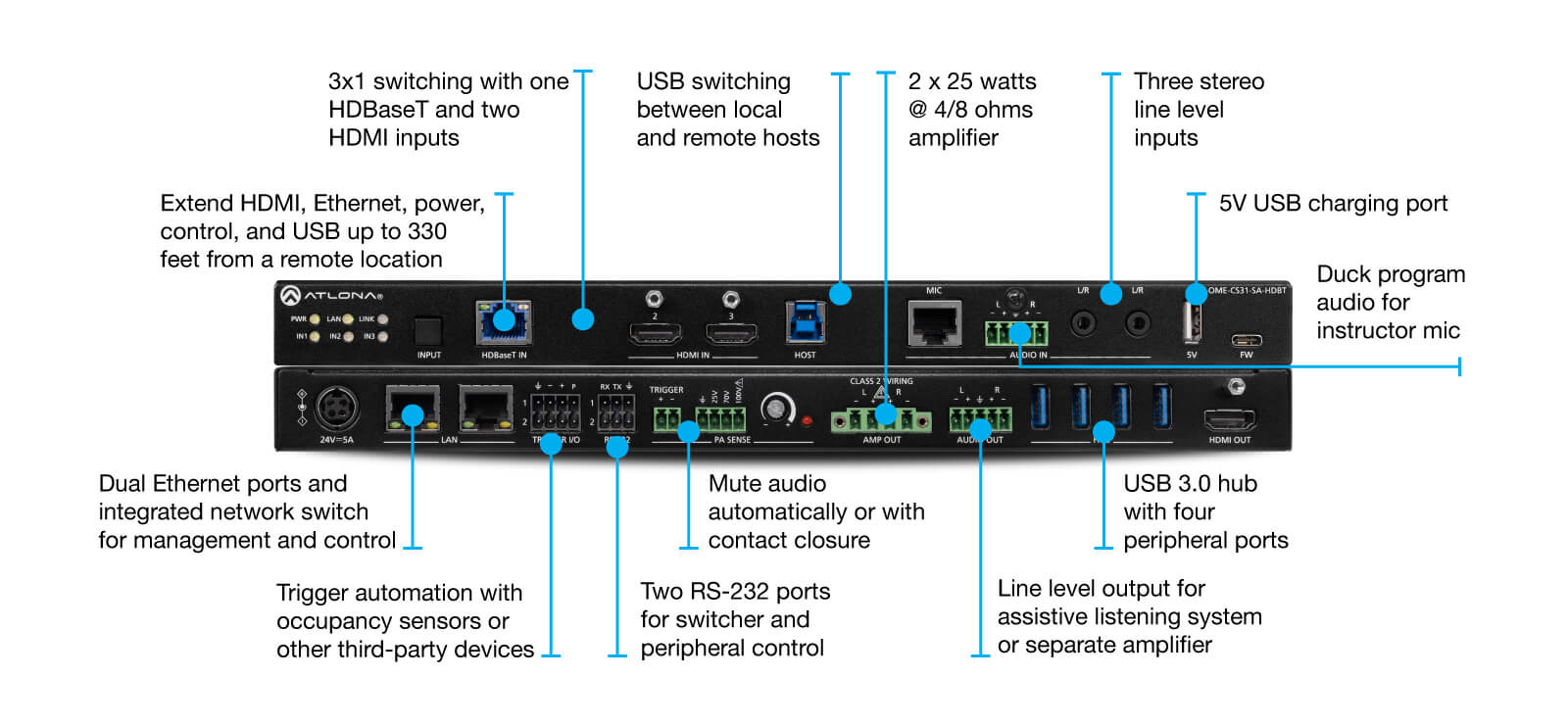

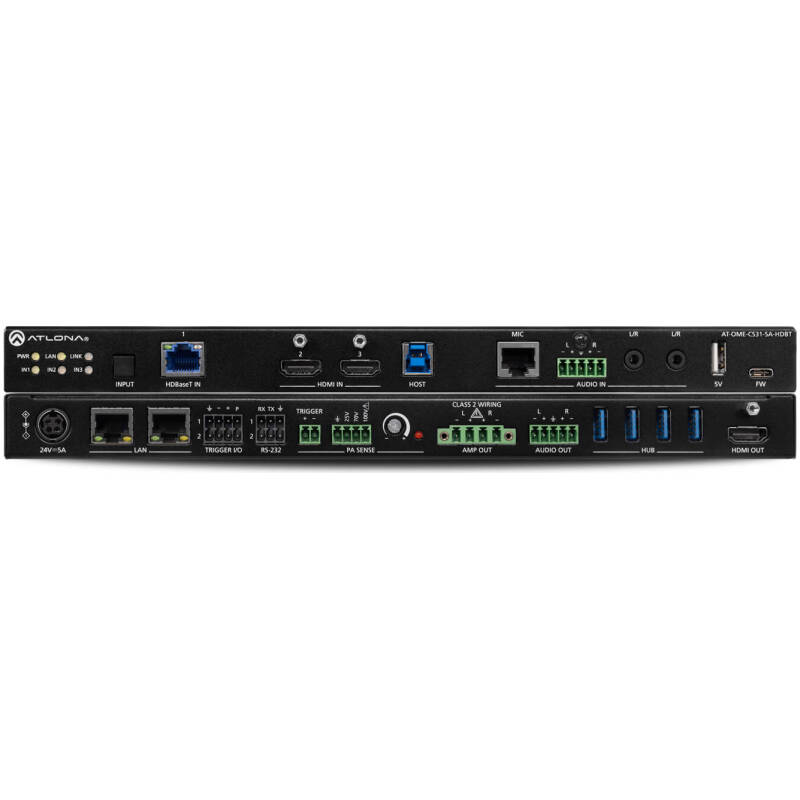

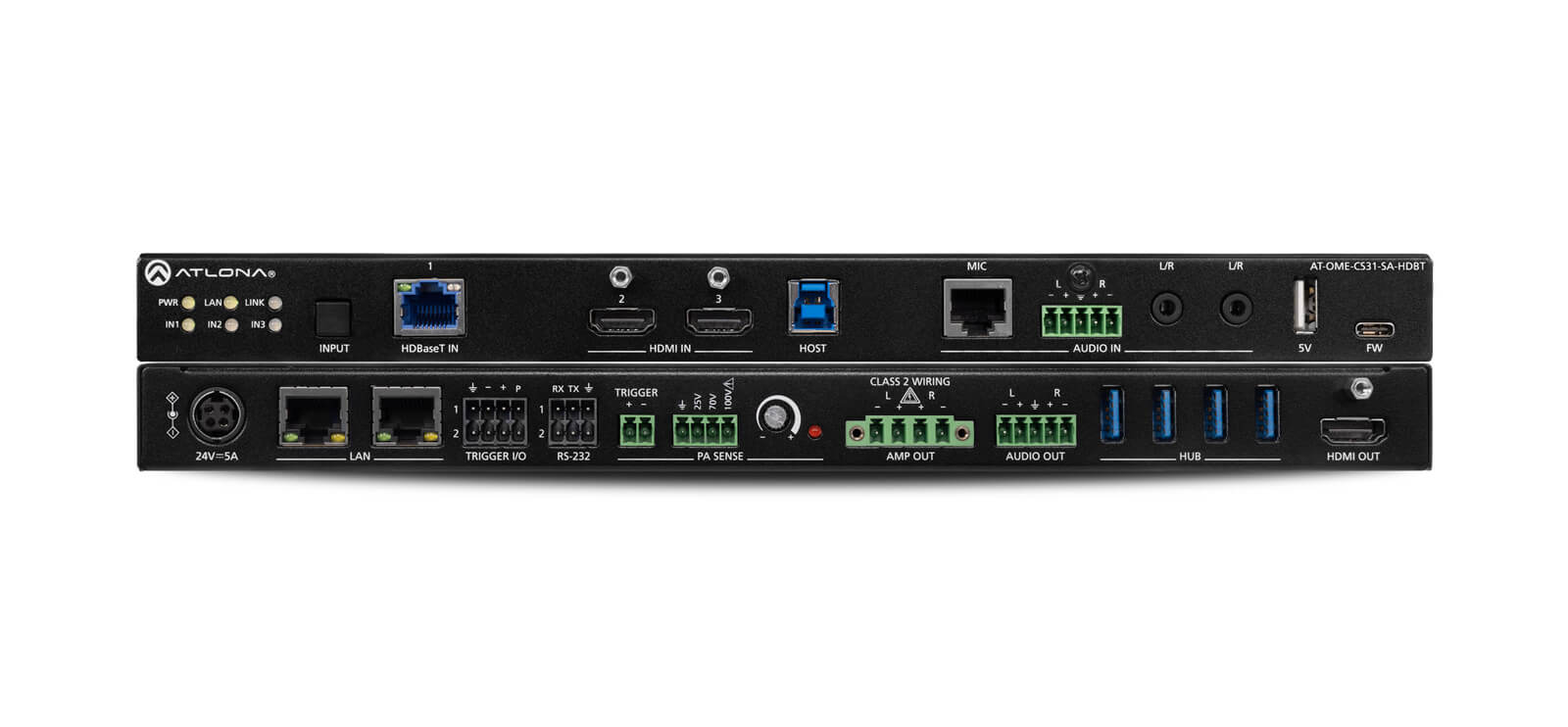

Atlona AT-OME-CS31-SA-HDBT HDBaseT And HDMI Switcher, Mixer Amplifier, And USB Hub

The Atlona AT-OME-CS31-SA-HDBT is a 3-input presentation switcher with HDBaseT output, designed for modern conference rooms, classrooms, and collaboration spaces. It allows users to connect via USB-C, HDMI, or wireless AirPlay, and transmit the signal to a remote display through a single Cat6a/7 cable using HDBaseT technology.

Part of Atlona’s OMEGA Series, this switcher combines AV switching, USB extension, laptop charging, and control integration in a compact unit for professional AV installations.

Key Features

• 3-input presentation switcher
• Inputs: USB-C, HDMI, and AirPlay wireless presentation
• HDBaseT output for long-distance AV transmission
• Supports 4K/UHD up to 4K/60
• Automatic input switching
• USB extension for conferencing peripherals
• USB-C laptop charging
• Ethernet, RS-232, and IR pass-through over HDBaseT
• Compact design for meeting rooms and classrooms

Technical Specifications

Video Inputs

• 1 × USB-C input
• 1 × HDMI input

Wireless AirPlay input

Video Output

• 1 × HDBaseT output (RJ45)

Maximum Resolution

• 4K/UHD @ 60 Hz

Transmission

• Technology: HDBaseT

Maximum Distance:

1. 70 m (230 ft) for 1080p
2. 40 m (131 ft) for 4K signa

Wireless

• Built-in Apple AirPlay wireless presentation

Control

• Ethernet network control
• RS-232 control
• Web-based configuration interface

Power

• External power supply
