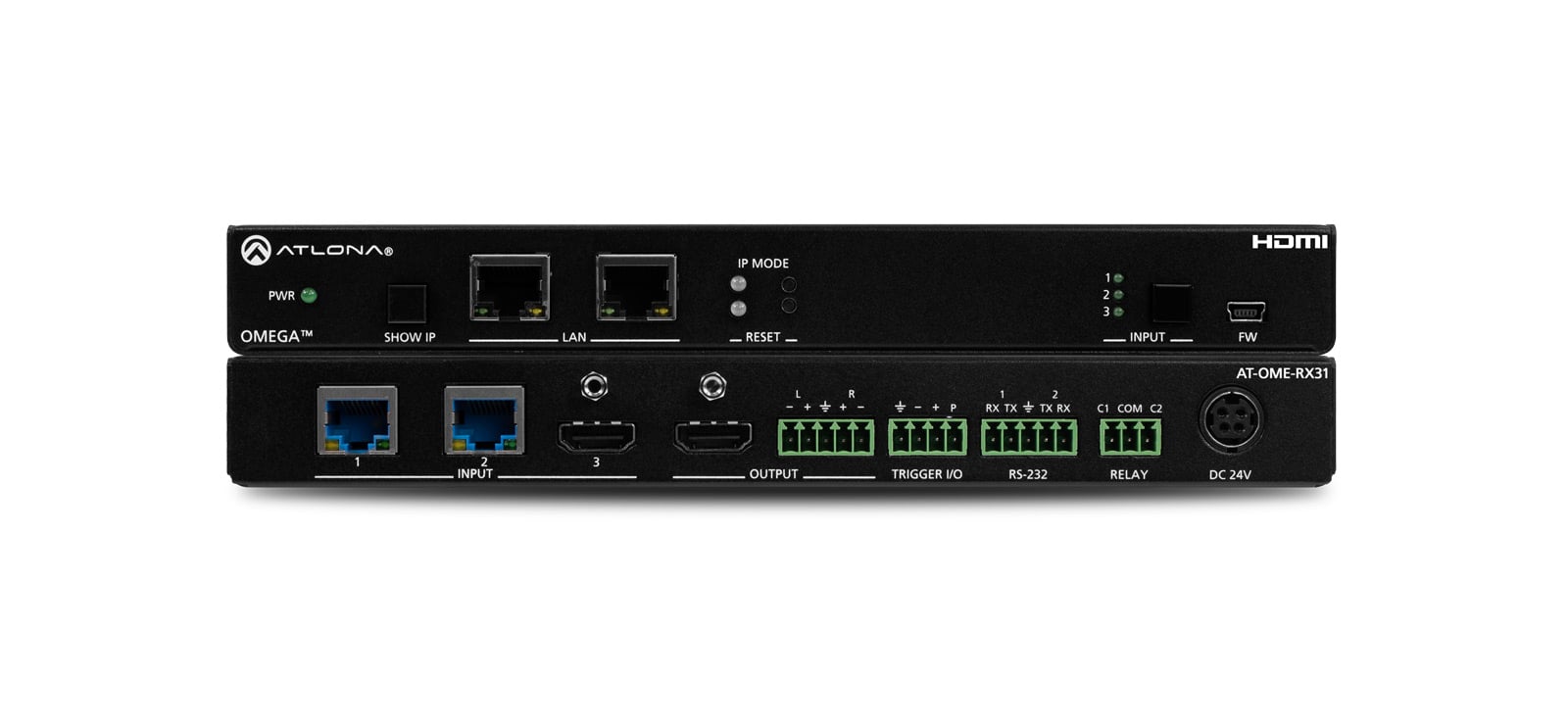

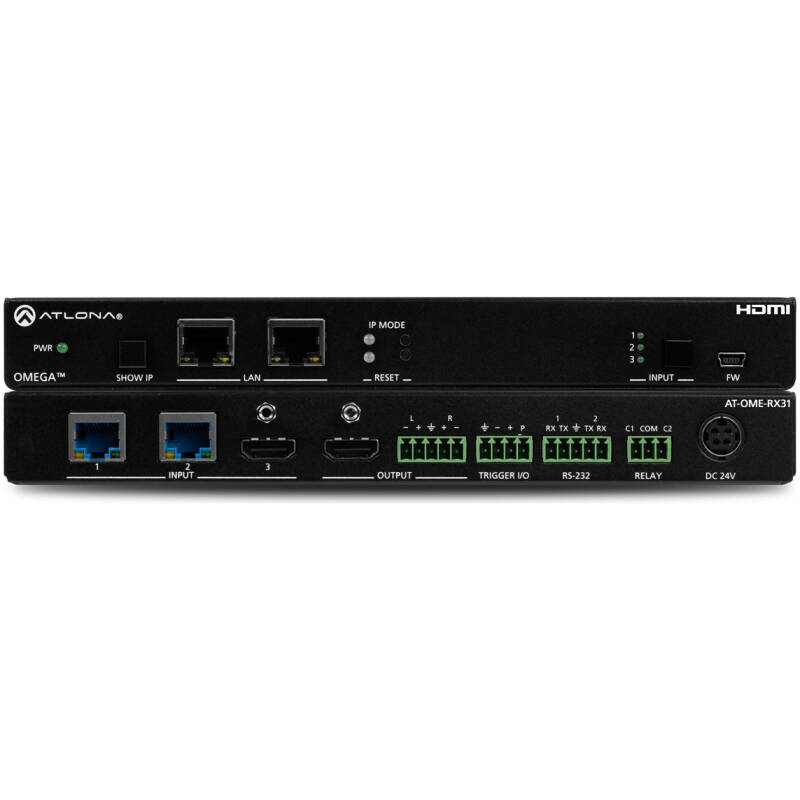

Atlona AT-OME-RX31 OMEGA HDBaseT Receiver With HDMI And Audio Outputs

The Atlona AT-OME-RX31 is a HDBaseT receiver designed for Atlona OMEGA Series AV systems, receiving video, audio, Ethernet, and control signals over a single category cable from a compatible transmitter or presentation switcher.

It supports 4K/UHD video with HDR and HDCP 2.2, and provides both HDMI output and audio de-embedding, making it suitable for conference rooms, classrooms, and professional AV installations where displays and audio systems are located away from the source equipment.

Key Features

• HDBaseT receiver for Atlona OMEGA systems

• Supports 4K/UHD up to 4K/60 4:2:0

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• Audio de-embedding with analog output

• RS-232 and IR pass-through

• Ethernet extension over HDBaseT

• Compact design for behind-display installation

Technical Specifications

Video

• HDBaseT Input: 1 × RJ45

• HDMI Output: 1 × HDMI Type-A

• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)

• HDR Support: Yes

• HDCP: HDCP 2.2 compliant

Audio

• Analog Audio Output: 1 × stereo (5-pin terminal block)

• Supports audio de-embedding

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m for 1080p

  • 40 m for 4K

• Cable Type: Cat6a / Cat7

Control

• RS-232 pass-through

• IR pass-through

• Ethernet extension

Power

• Powered via PoE from compatible Atlona transmitter
