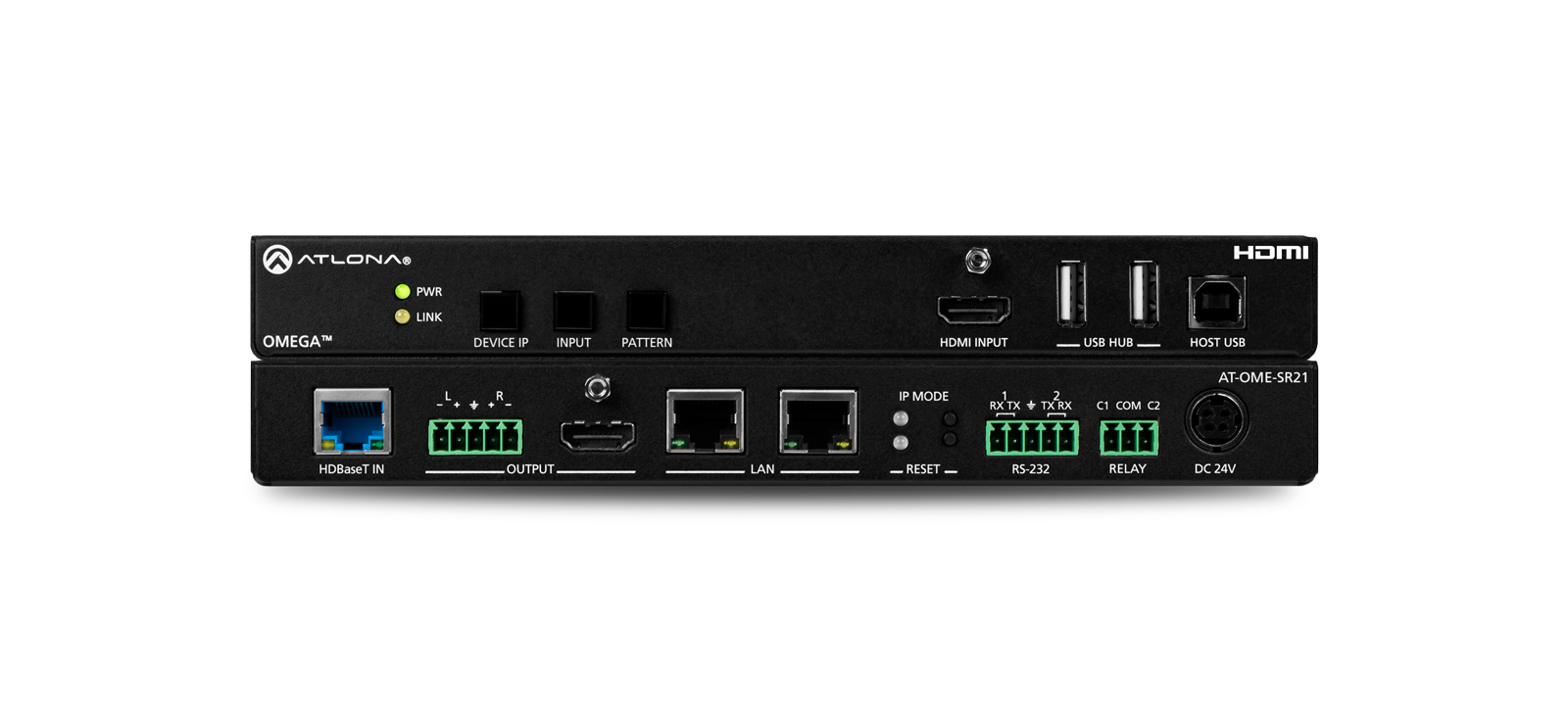

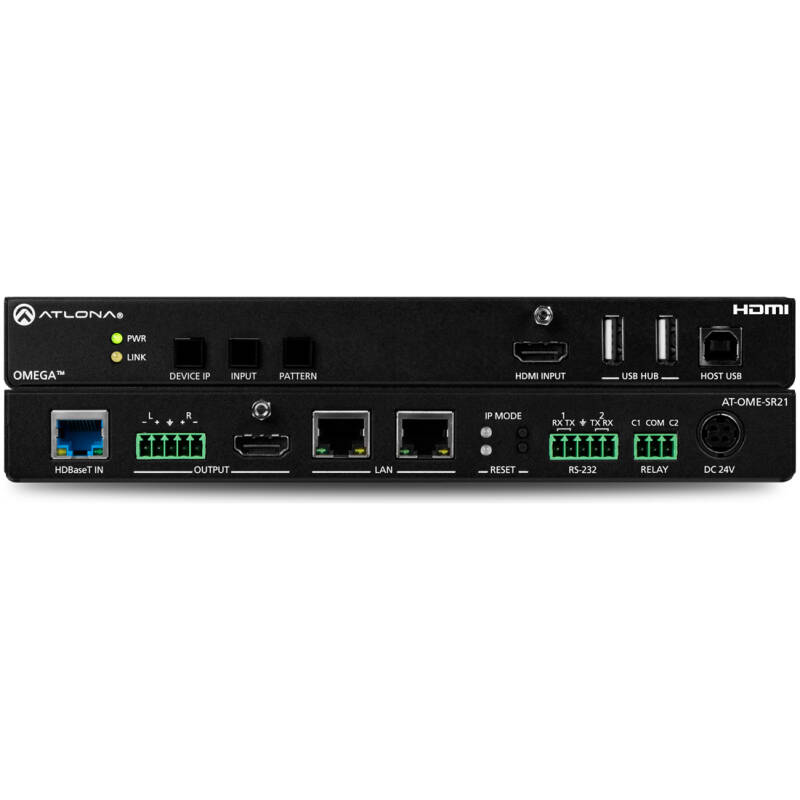

Atlona AT-OME-SR21 2×1 AV Switcher And HDBaseT Receiver

The Atlona AT-OME-SR21 is a HDBaseT transmitter and receiver extender kit from the Atlona OMEGA Series, designed to extend HDMI video, USB data, audio, Ethernet, and control signals over a single category cable.

This extender system is commonly used in conference rooms, collaboration spaces, and classrooms, where USB conferencing devices such as cameras, microphones, and speakerphones need to be connected to a computer located at a distance.

Key Features

• Complete HDBaseT extender kit (transmitter + receiver)

• Supports 4K/UHD up to 4K/60 4:2:0

• USB 2.0 extension for conferencing peripherals

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• RS-232 and IR pass-through

• Ethernet extension over HDBaseT

• Compact design for professional AV installations

Technical Specifications

Video

• HDMI Input: 1 × HDMI Type-A (transmitter)

• HDMI Output: 1 × HDMI Type-A (receiver)

• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)

• HDCP: HDCP 2.2 compliant

USB

• USB Host Port: 1 × USB-B

• USB Device Ports: 2 × USB-A

• Supports USB 2.0 extension

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m for 1080p

  • 40 m for 4K

• Cable Type: Cat6a / Cat7

Control

• RS-232 pass-through

• IR pass-through

• Ethernet extension

Power

• External power supply with PoE support between units
