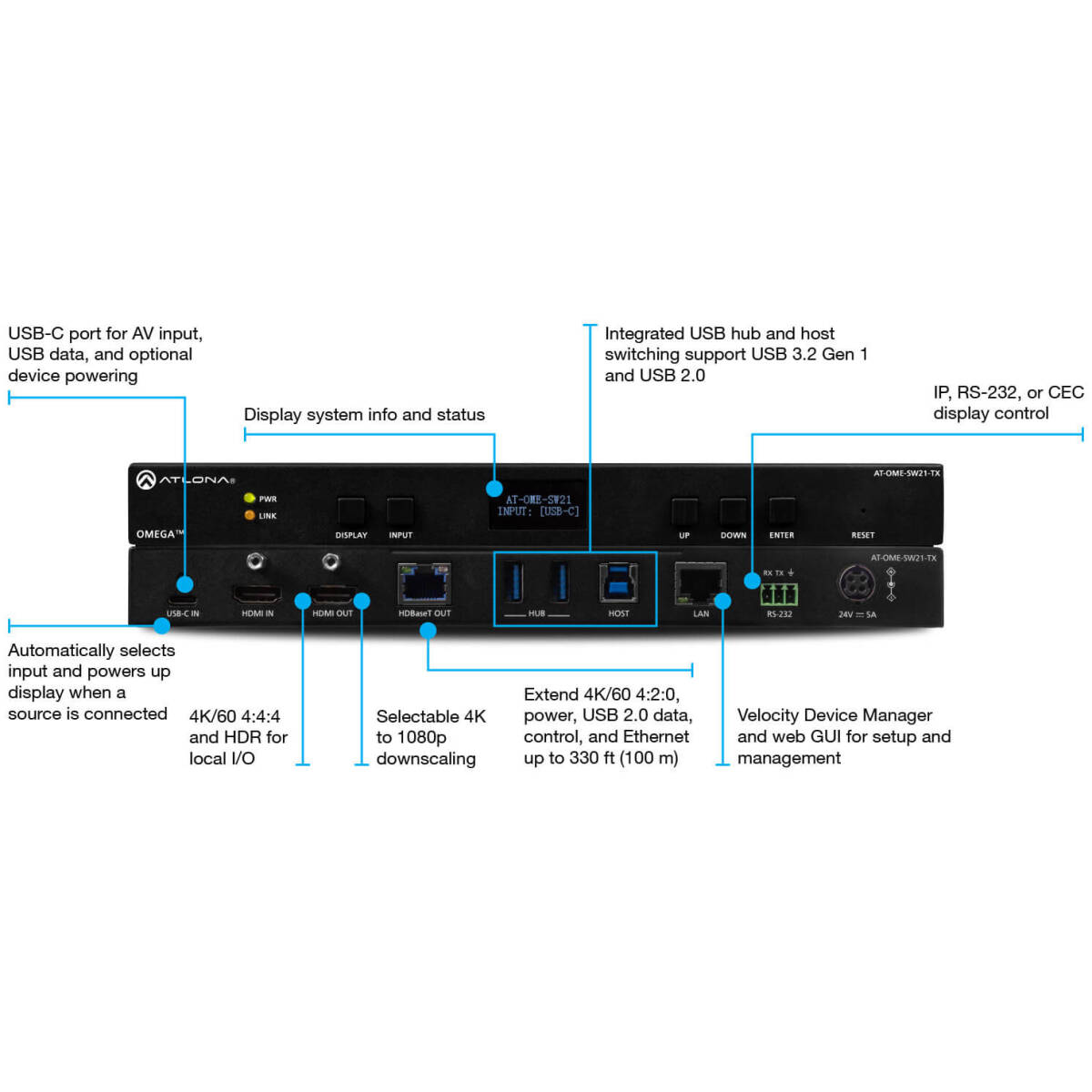

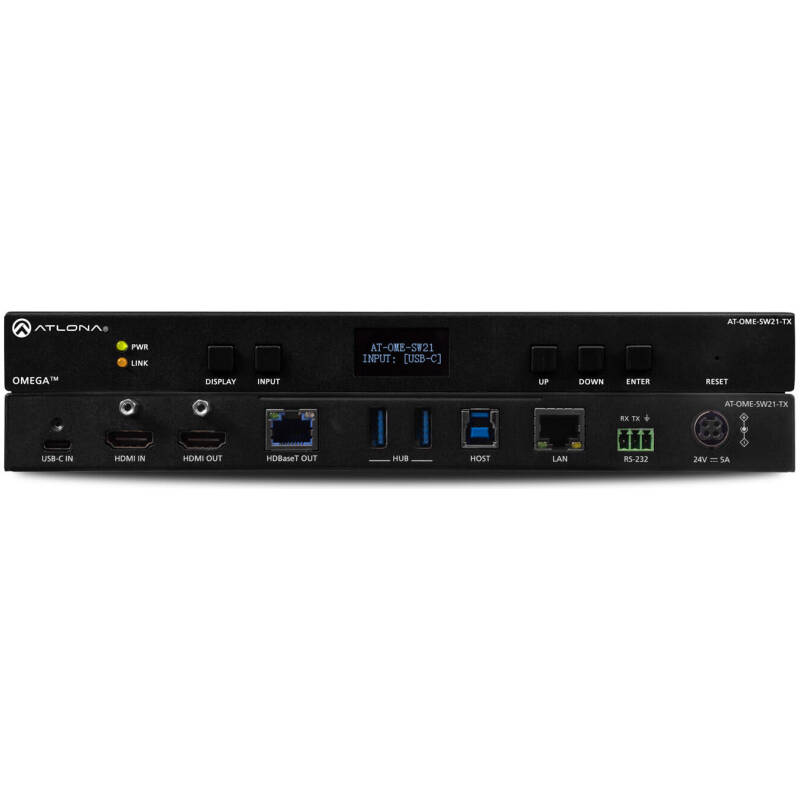

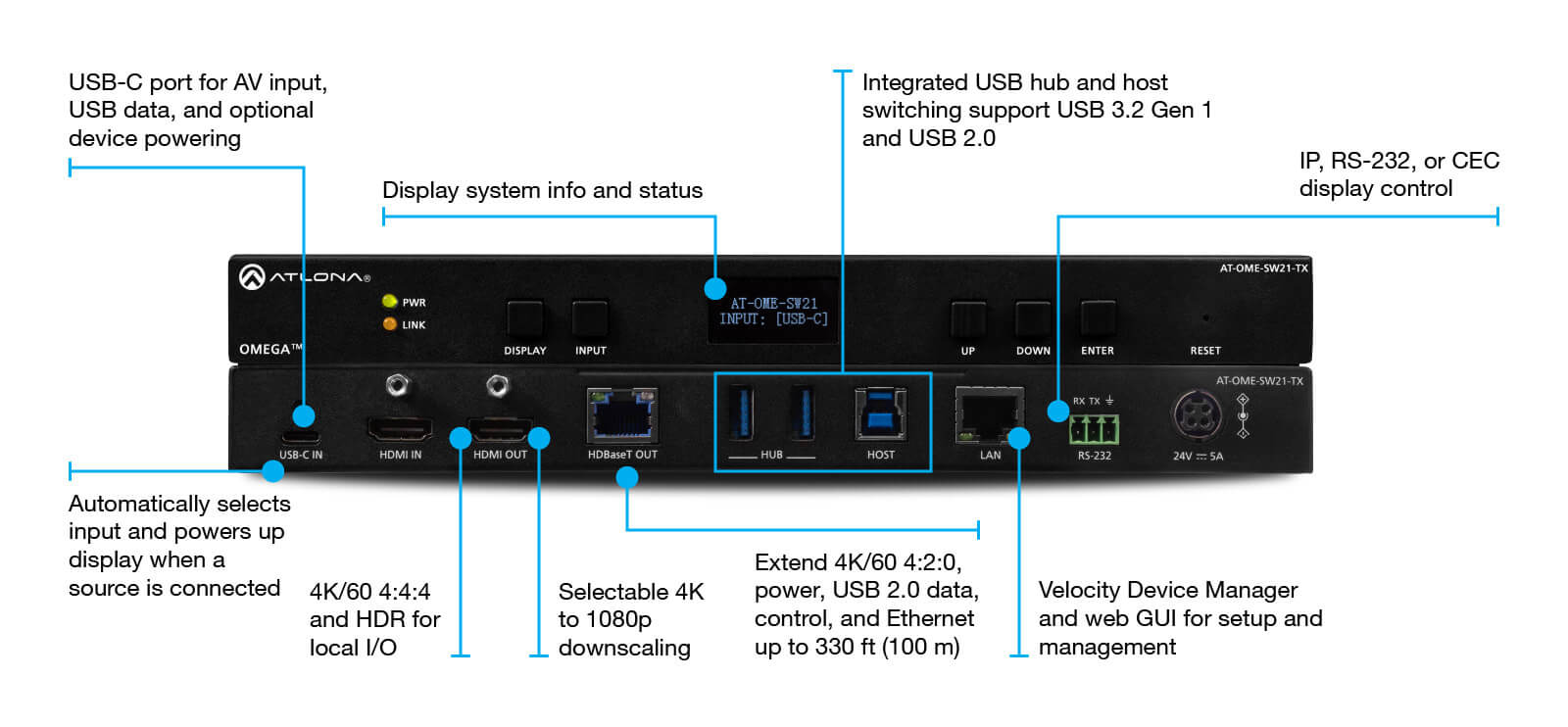

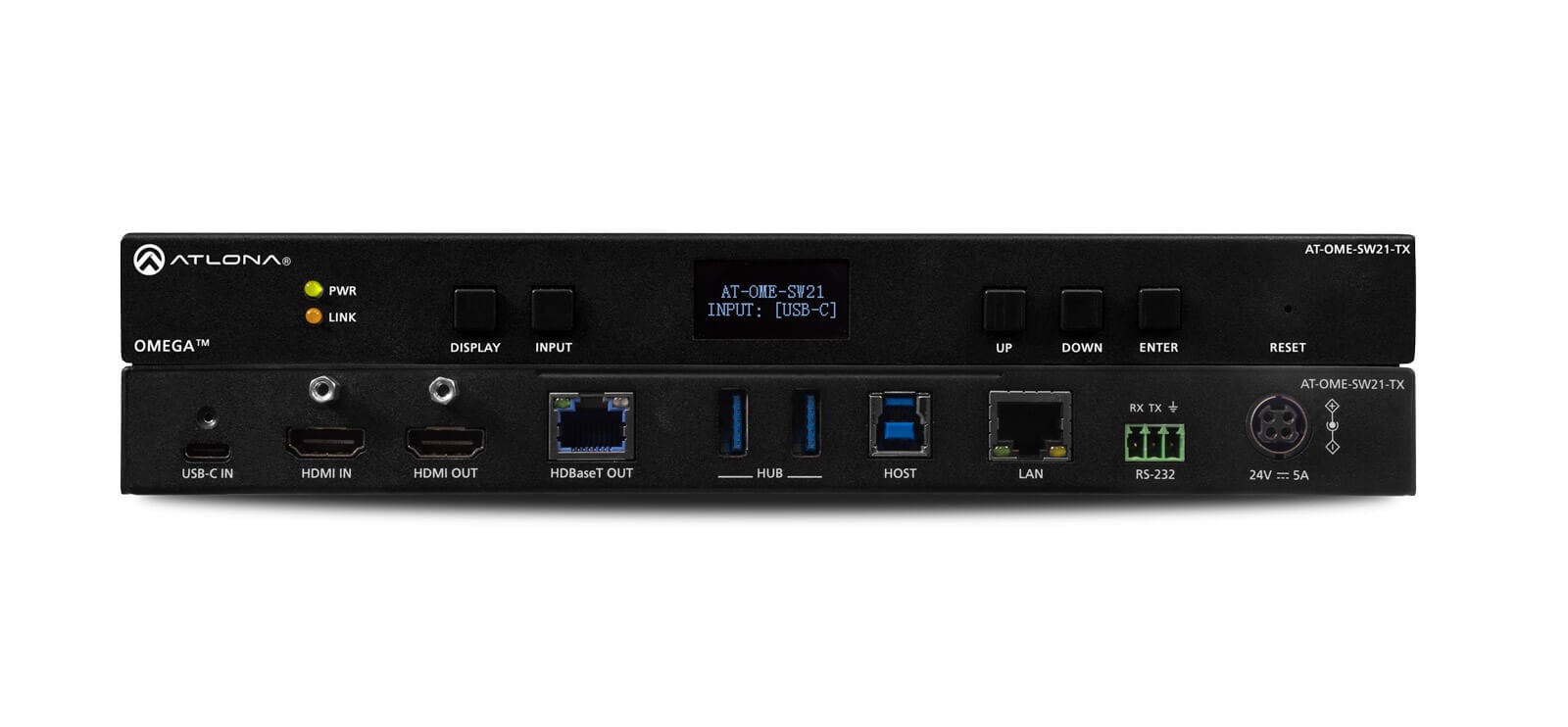

Atlona AT-OME-SW21-TX OMEGA 2×1 HDMI Switcher With HDBaseT Transmitter

The Atlona AT-OME-SW21-TX is a 2×1 HDMI switcher with integrated HDBaseT transmitter, designed for professional AV installations in conference rooms, classrooms, and collaboration spaces. It allows two HDMI sources to be switched and transmitted to a remote display over a single category cable.

As part of the Atlona OMEGA Series, the unit supports 4K/UHD video, HDCP 2.2, and bidirectional control signals, providing a reliable solution for extending AV signals over long distances while simplifying system installations.

Key Features

• 2×1 HDMI switcher with HDBaseT output

• Supports 4K/UHD up to 4K/60 4:2:0

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• Automatic input switching

• RS-232 and IR pass-through

• Ethernet extension over HDBaseT

• Compact design for table, wall, or rack installation

Technical Specifications

Video Inputs

• 2 × HDMI Type-A inputs

Video Output

• 1 × HDBaseT output (RJ45)

Maximum Resolution

• 4K/UHD @ 60 Hz (4:2:0)

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m for 1080p

  • 40 m for 4K

• Cable Type: Cat6a / Cat7

Control

• Automatic input switching

• RS-232 pass-through

• IR pass-through

• Ethernet extension

Power

• External power supply with PoE capability for compatible receiver
