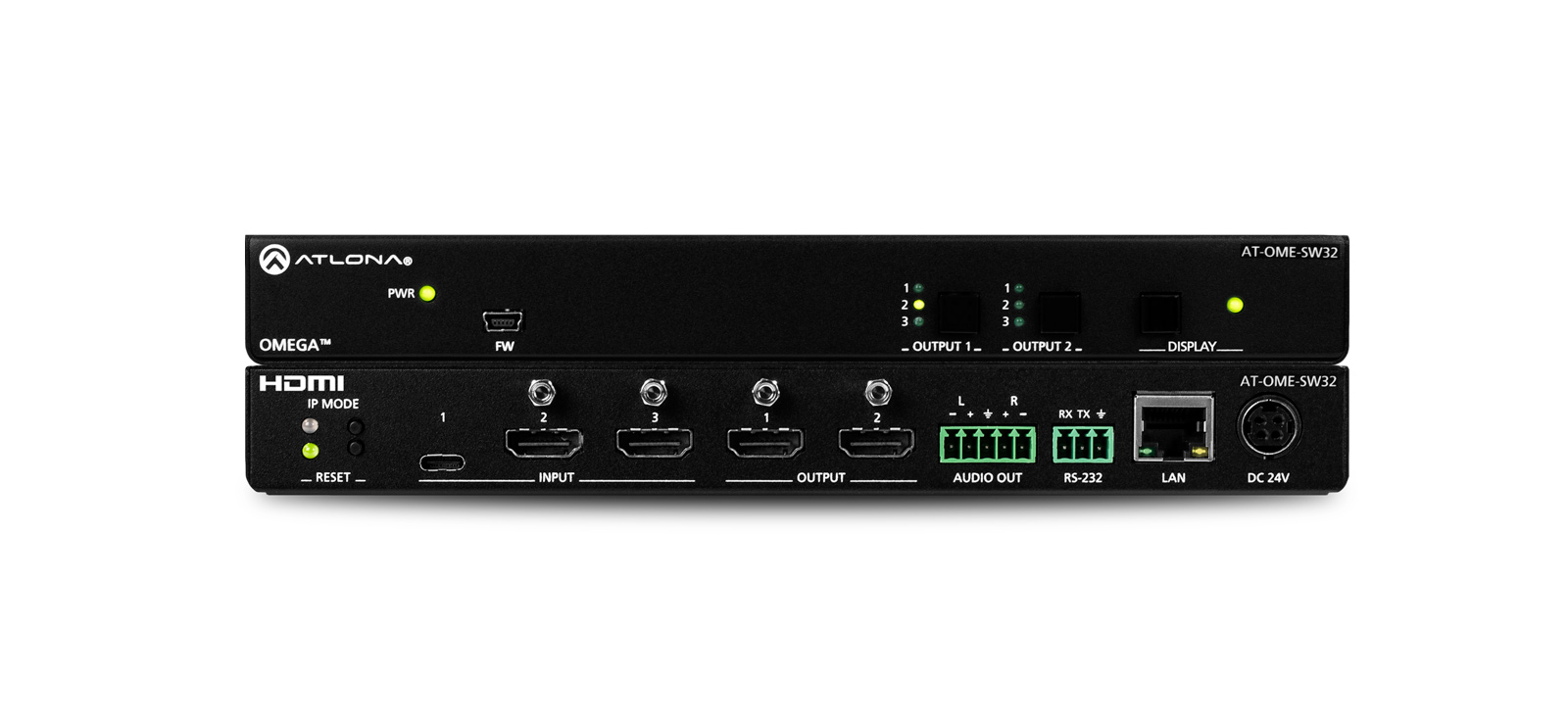

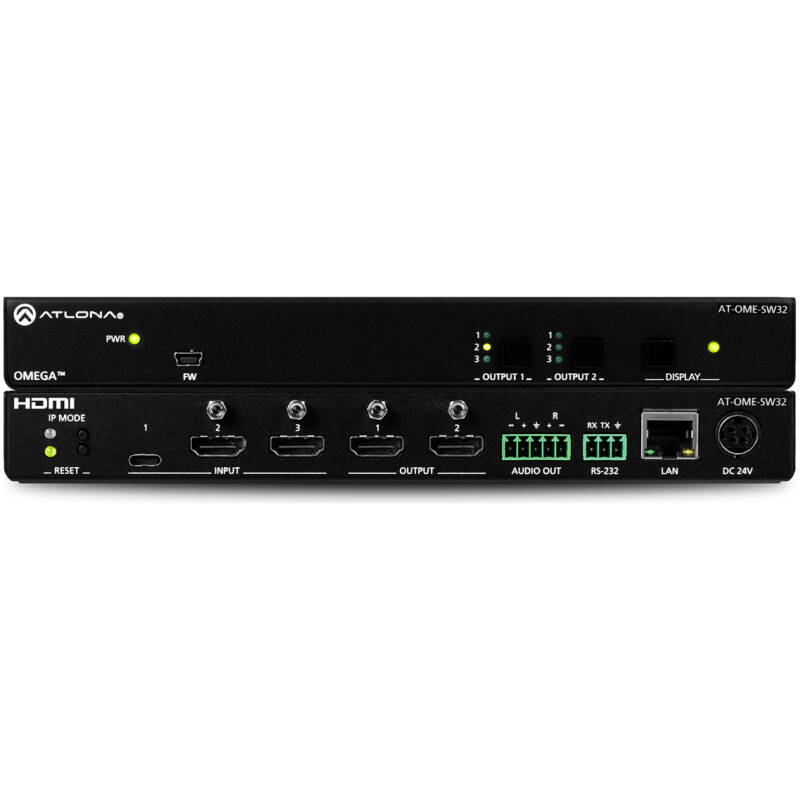

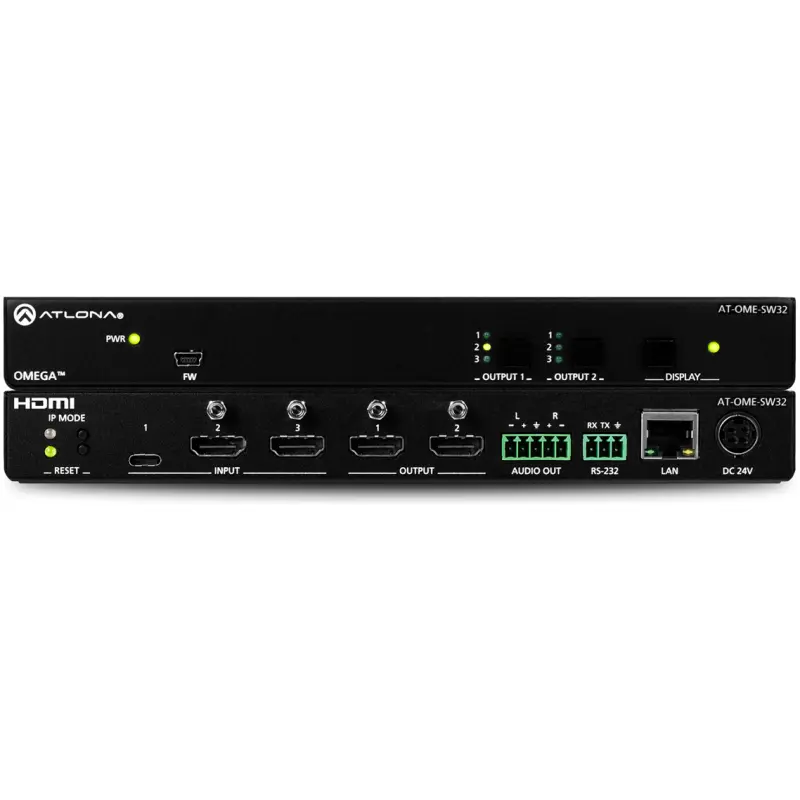

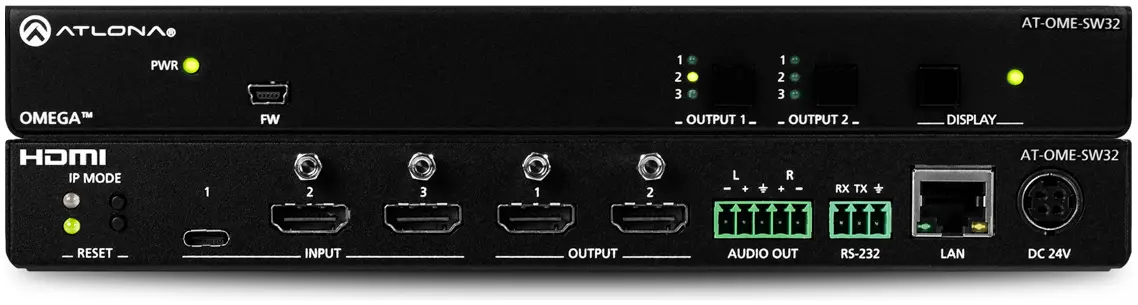

Atlona AT-OME-SW32 OMEGA 3×2 Matrix Switcher With HDBaseT Output

The Atlona AT-OME-SW32 is a 3×2 matrix presentation switcher designed for conference rooms, classrooms, and collaborative meeting spaces. It allows three input sources to be routed independently to two outputs: a local HDMI display and a remote display via HDBaseT.

Part of the Atlona OMEGA Series, the switcher supports 4K/UHD video, automatic input switching, USB extension for conferencing devices, and laptop charging via USB-C, making it a versatile solution for modern AV installations.

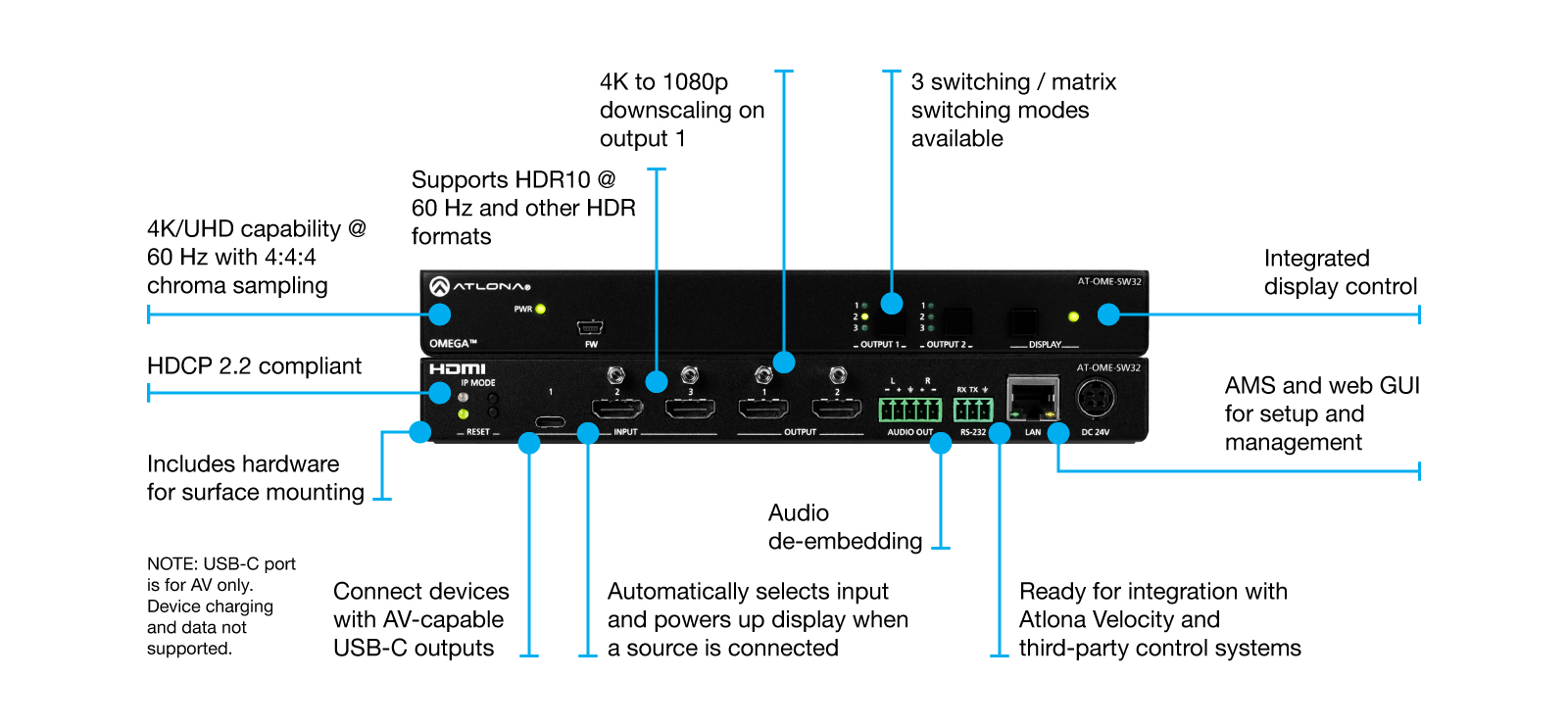

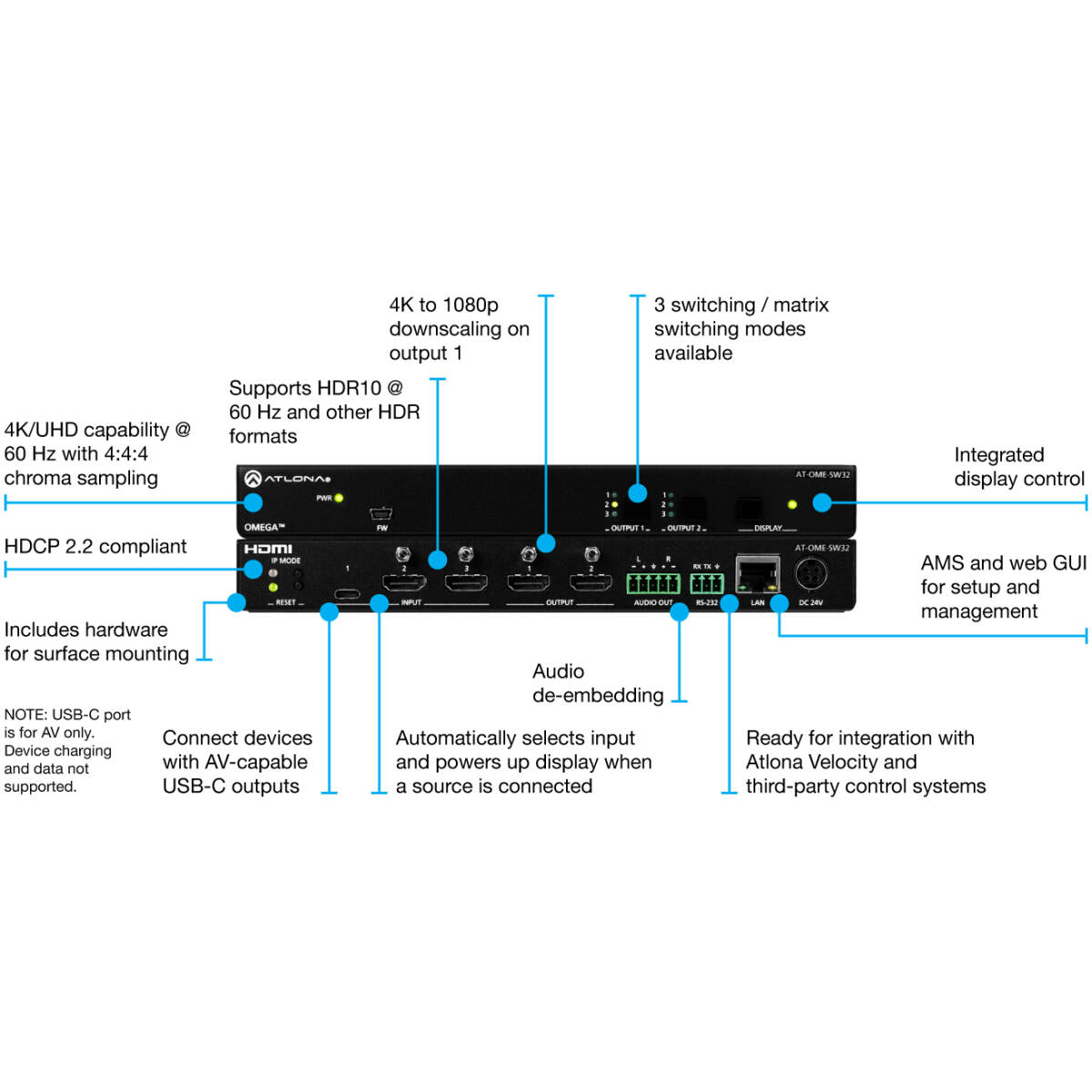

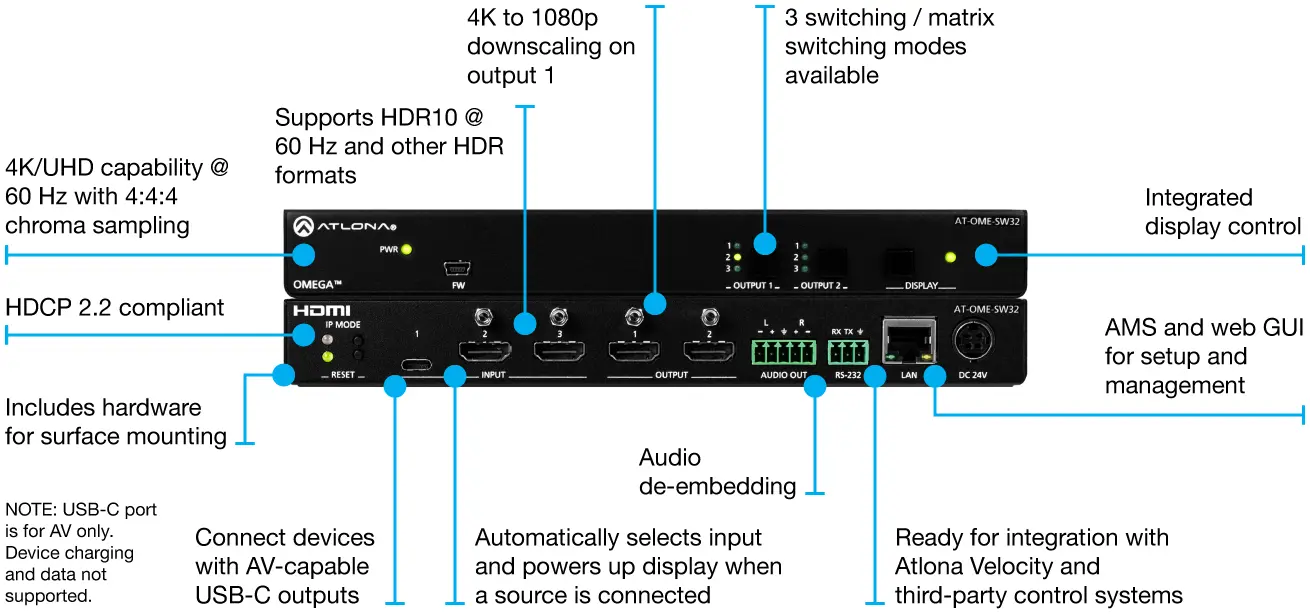

Key Features

• 3×2 presentation matrix switcher
• Inputs: 2 × HDMI and 1 × USB-C
• Outputs: HDMI + HDBaseT
• Supports 4K/UHD up to 4K/60
• Automatic input switching
• USB hub functionality for conferencing devices
• USB-C laptop charging
• Audio de-embedding
• RS-232, IR, and Ethernet control

Technical Specifications

Video Inputs

• 2 × HDMI inputs
• 1 × USB-C input

Video Outputs

• 1 × HDMI output
• 1 × HDBaseT output (RJ45)

Maximum Resolution

• 4K/UHD @ 60 Hz

Transmission

• Technology: HDBaseT

Maximum Distance:

• 70 m for 1080p
• 40 m for 4K
• Cable Type: Cat6a / Cat7
• USB
• Integrated USB hub
• Supports USB cameras, microphones, and speakerphones

Audio

• Analog audio output: stereo (terminal block)

Control

• Front panel control
• RS-232 control
• TCP/IP Ethernet control
• Web-based configuration interface

Power

• External power supply
