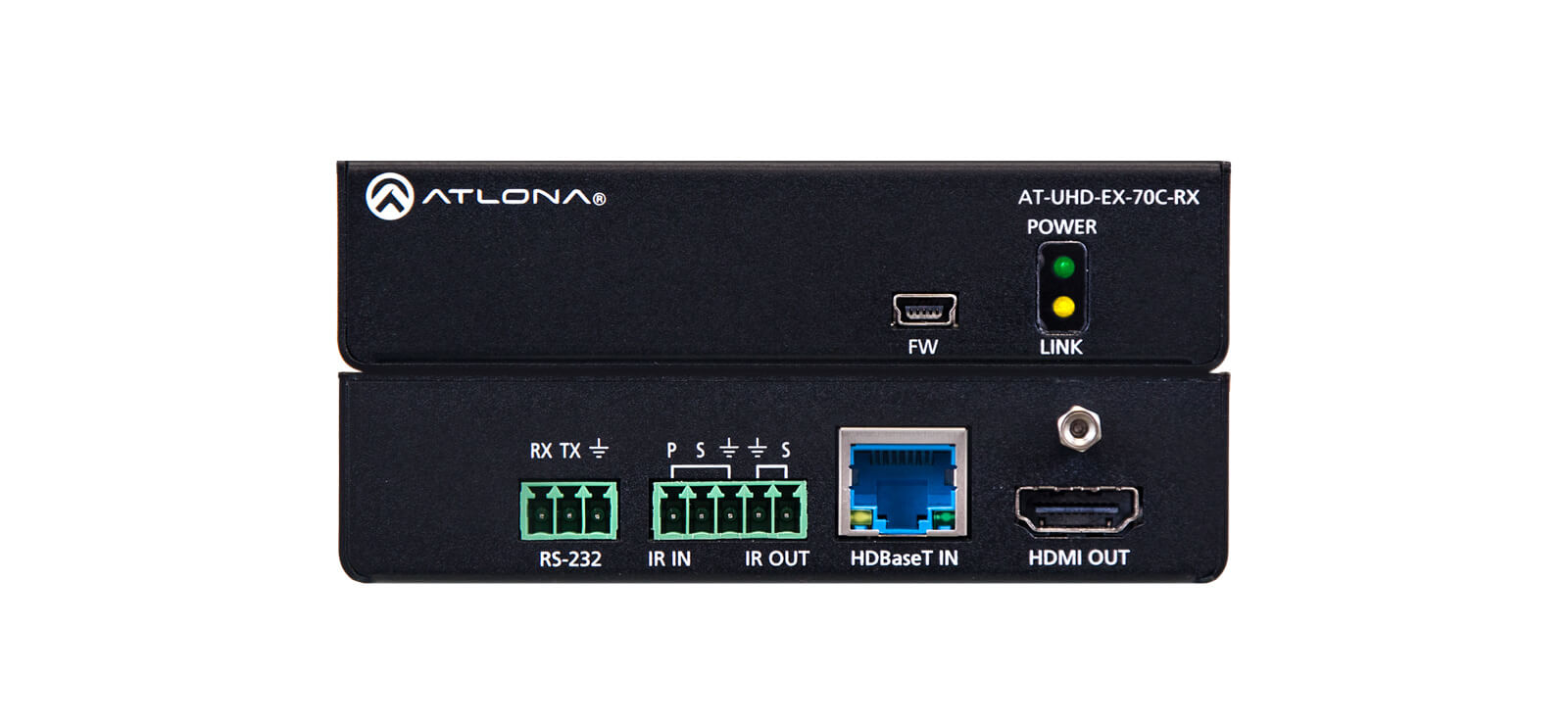

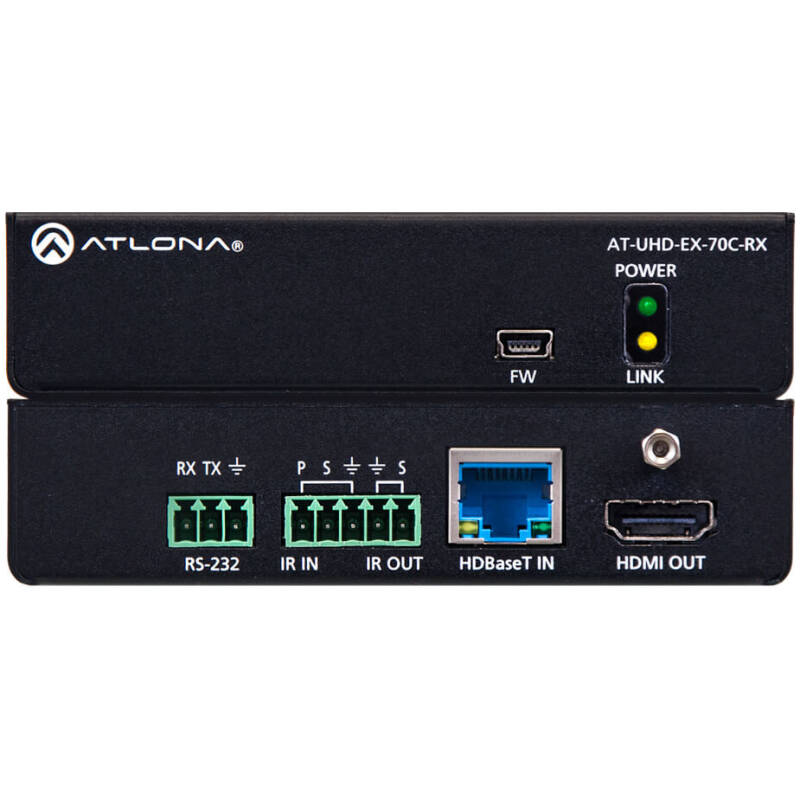

Atlona AT-UHD-EX-70C-RX 4K/UHD HDMI Over HDBaseT Receiver With Control And PoE

The Atlona AT-UHD-EX-70C-RX is a HDBaseT receiver designed to extend 4K/UHD HDMI signals over a single category cable from a compatible transmitter. It supports video, audio, Ethernet, and control signals, making it suitable for professional AV installations.

With Power over Ethernet (PoE) capability, the receiver can be powered directly from a compatible transmitter, reducing the need for additional power supplies and simplifying installation. It is commonly used in conference rooms, classrooms, digital signage systems, and commercial AV environments.

Key Features

• HDBaseT receiver for HDMI signal extension
• Supports 4K/UHD up to 4K/60 4:2:0
• Transmission distance up to 70 m over Cat6a/7 cable
• HDCP 2.2 compliant
• Power over Ethernet (PoE) support
• Bidirectional RS-232 and IR pass-through
• Ethernet extension over HDBaseT
• Compact design for behind-display installation

Technical Specifications

Video

• HDBaseT Input: 1 × RJ45
• HDMI Output: 1 × HDMI Type-A
• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)
• HDR: Supported
• HDCP: HDCP 2.2 compliant

Transmission

• Technology: HDBaseT
• Maximum Distance:
• 70 m for 1080p
• 40 m for 4K
• Cable Type: Cat6a / Cat7

Control

• RS-232 pass-through
• IR pass-through
• Ethernet extension

Power

• Powered via PoE from compatible transmitter
