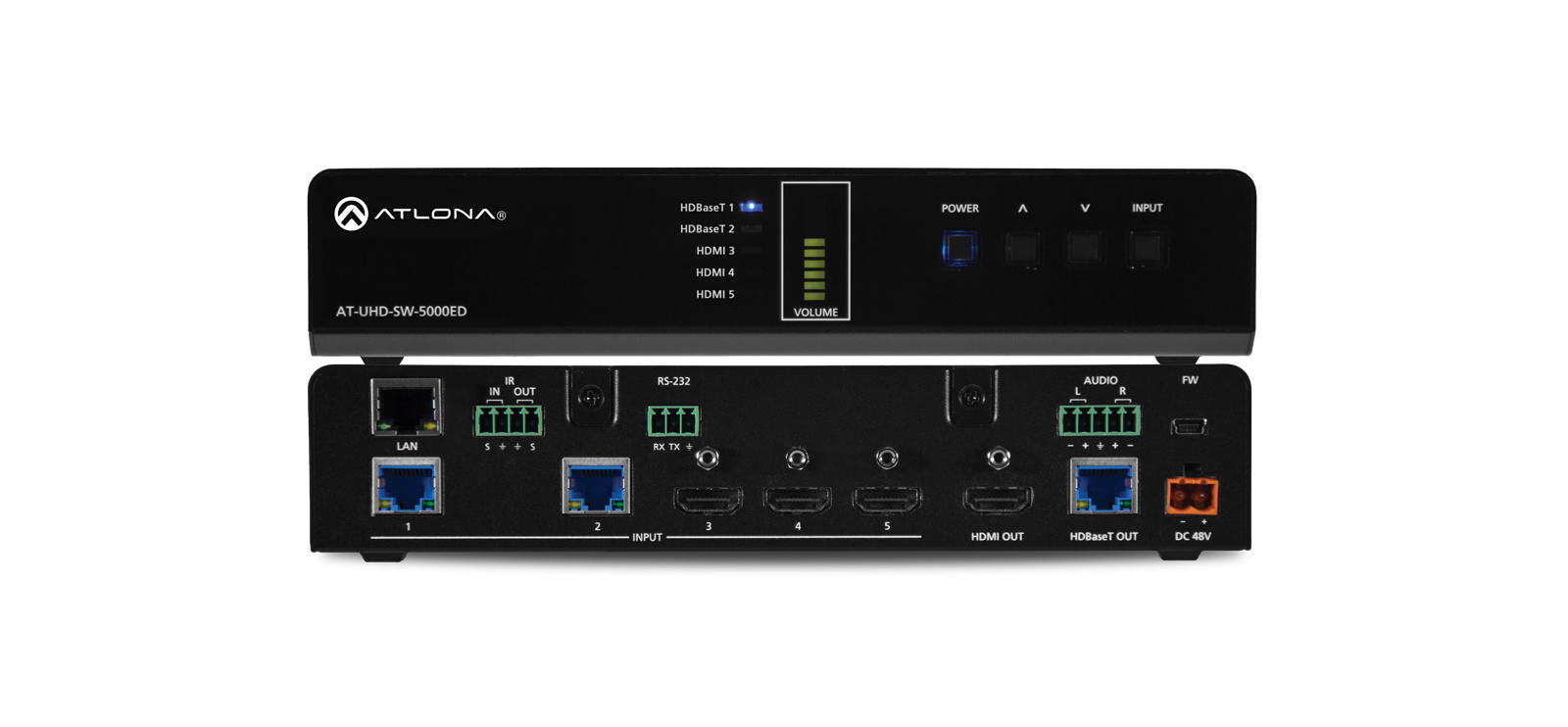

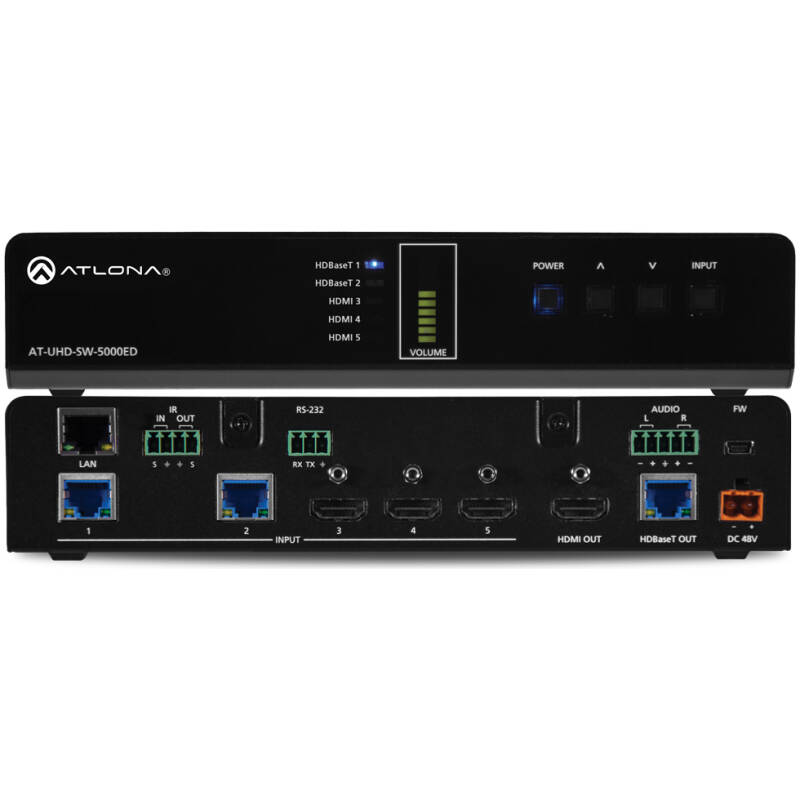

Atlona AT-UHD-SW-5000ED 4K/UHD 5-Input HDMI / HDBaseT Switcher

The Atlona AT-UHD-SW-5000ED is a 5-input presentation switcher designed to route HDMI and HDBaseT sources to both local HDMI displays and remote displays over HDBaseT. It supports 4K/UHD video, HDCP 2.2, and mirrored outputs, enabling the same signal to be delivered simultaneously to local and extended displays.

This switcher is commonly used in conference rooms, classrooms, training facilities, and commercial AV installations where multiple sources need to be easily switched and distributed to displays located both locally and remotely.

Key Features

• 5-input AV switcher
• Inputs: HDMI and HDBaseT
• Mirrored outputs: HDMI + HDBaseT
• Supports 4K/UHD up to 4K/60
• HDCP 2.2 compliant
• Automatic input switching
• Audio de-embedding
• RS-232, IR, and Ethernet control
• EDID management
• Rack-mountable design

Technical Specifications

Video Inputs

• 4 × HDMI inputs
• 1 × HDBaseT input (RJ45)

Video Outputs

• 1 × HDMI output
• 1 × HDBaseT output (RJ45)
  (Mirrored outputs)
• Maximum Resolution
• 4K/UHD @ 60 Hz

Transmission

• Technology: HDBaseT
• Maximum Distance:
• 70 m for 1080p
• 40 m for 4K
• Cable Type: Cat6a / Cat7

Audio

• Analog audio output: stereo (terminal block)
• Supports audio de-embedding

Control

• Front panel control
• RS-232 control
• TCP/IP Ethernet control
• IR remote support
