Atlona ATL-AT-HDR-EX-100CEA-RX : 4K HDR 100 M HDBaseT Receiver

The Atlona AT-HDR-EX-100CEA-RX is an HDBaseT receiver designed to work with compatible Atlona transmitters to extend 4K/UHD HDMI signals with HDR, control, and Ethernet over a single category cable. It supports long-distance signal extension and is ideal for AV installations such as conference rooms, classrooms, control rooms, and digital signage systems.

Using HDBaseT technology, the receiver allows transmission of video, audio, control signals, and power through one cable, simplifying installation while maintaining signal integrity over long distances.

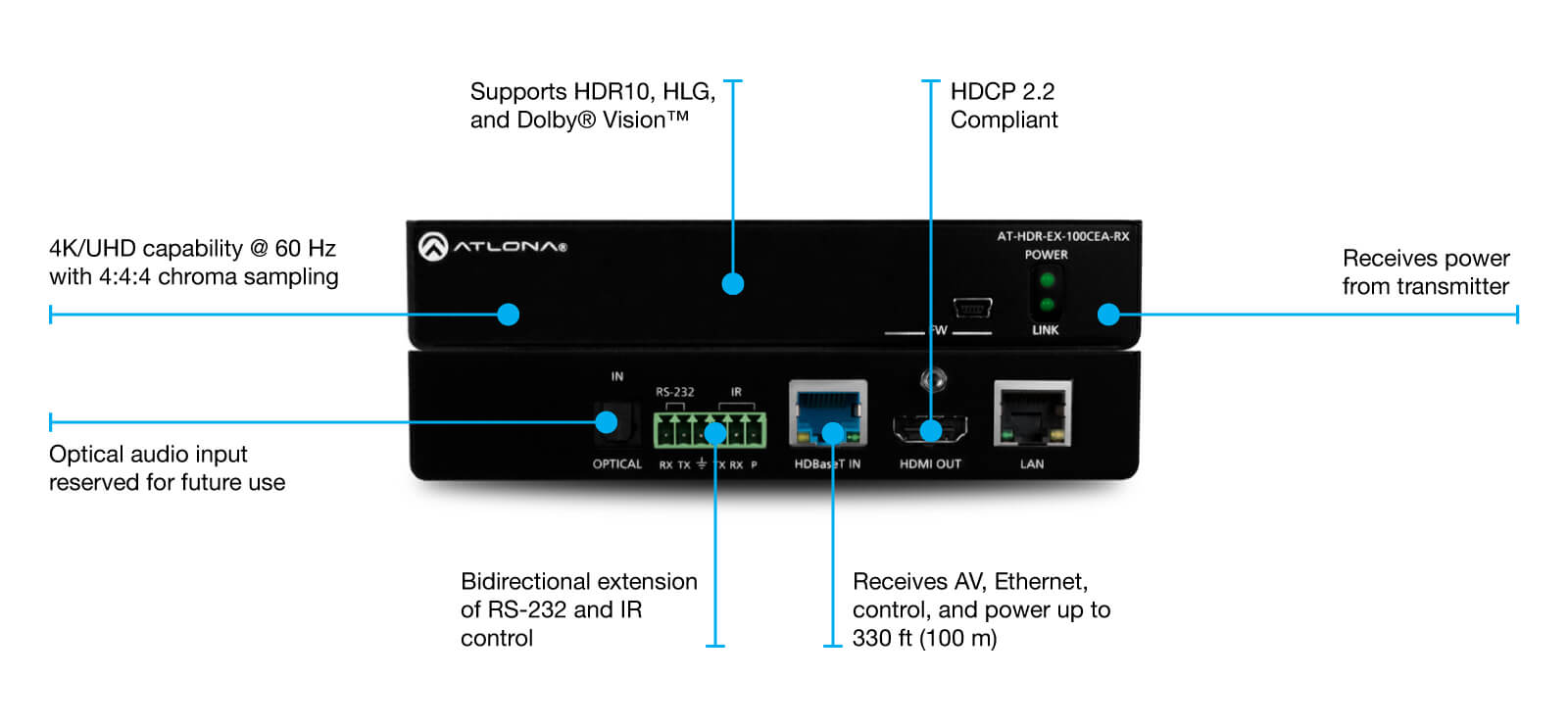

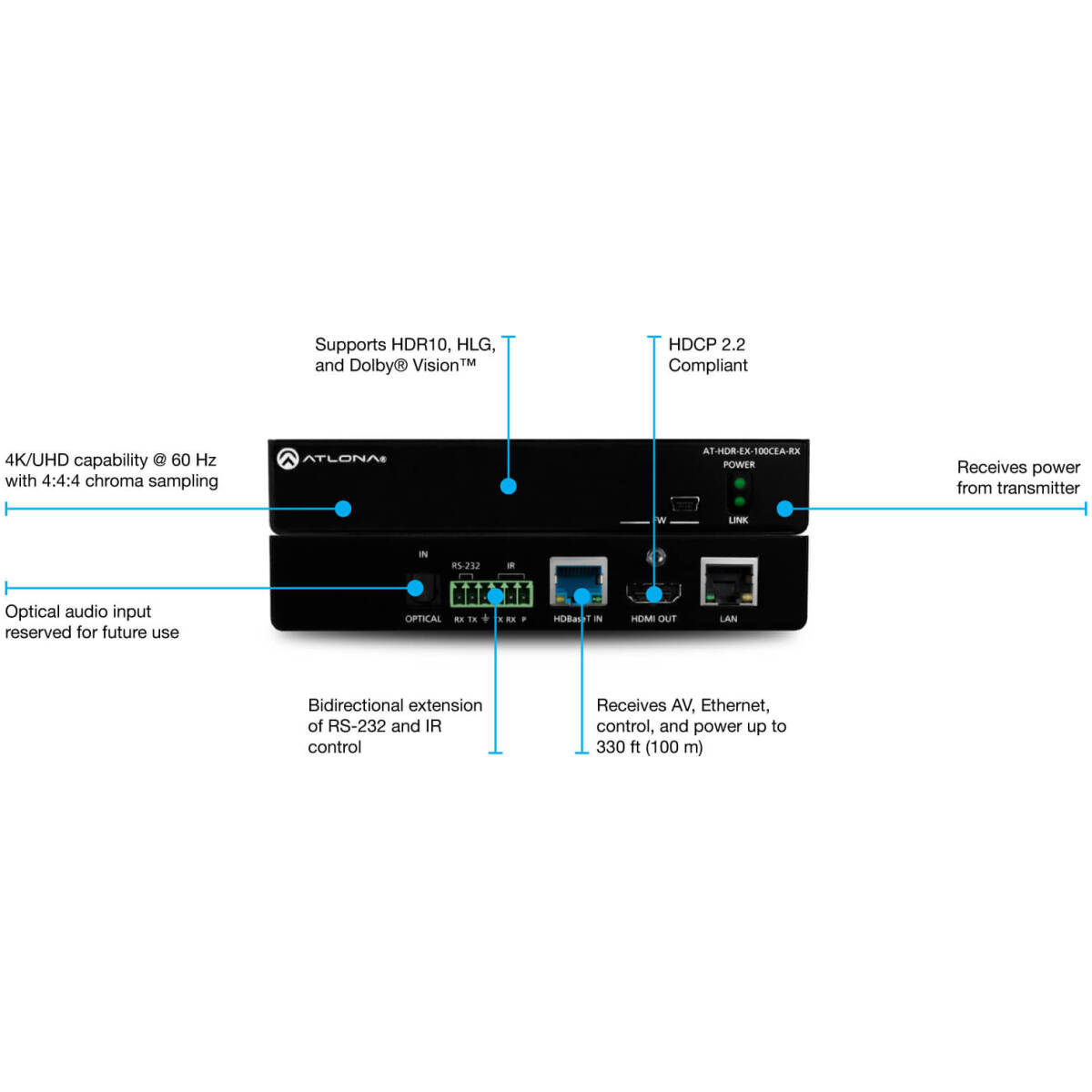

Key Features

• Extends HDMI, Ethernet, RS-232, and IR control over a single CAT cable
• Supports 4K/UHD up to 4K/60 4:2:0 and HDR formats
• Compatible with HDCP 2.2 protected content
• HDBaseT transmission up to 100 m over CAT6A/7 cable
• Bidirectional RS-232 and IR pass-through for remote device control
• Ethernet extension for network connectivity at the display location
• Compact design suitable for rack or surface mounting
• PoE (Power over Ethernet) capable when used with compatible transmitter

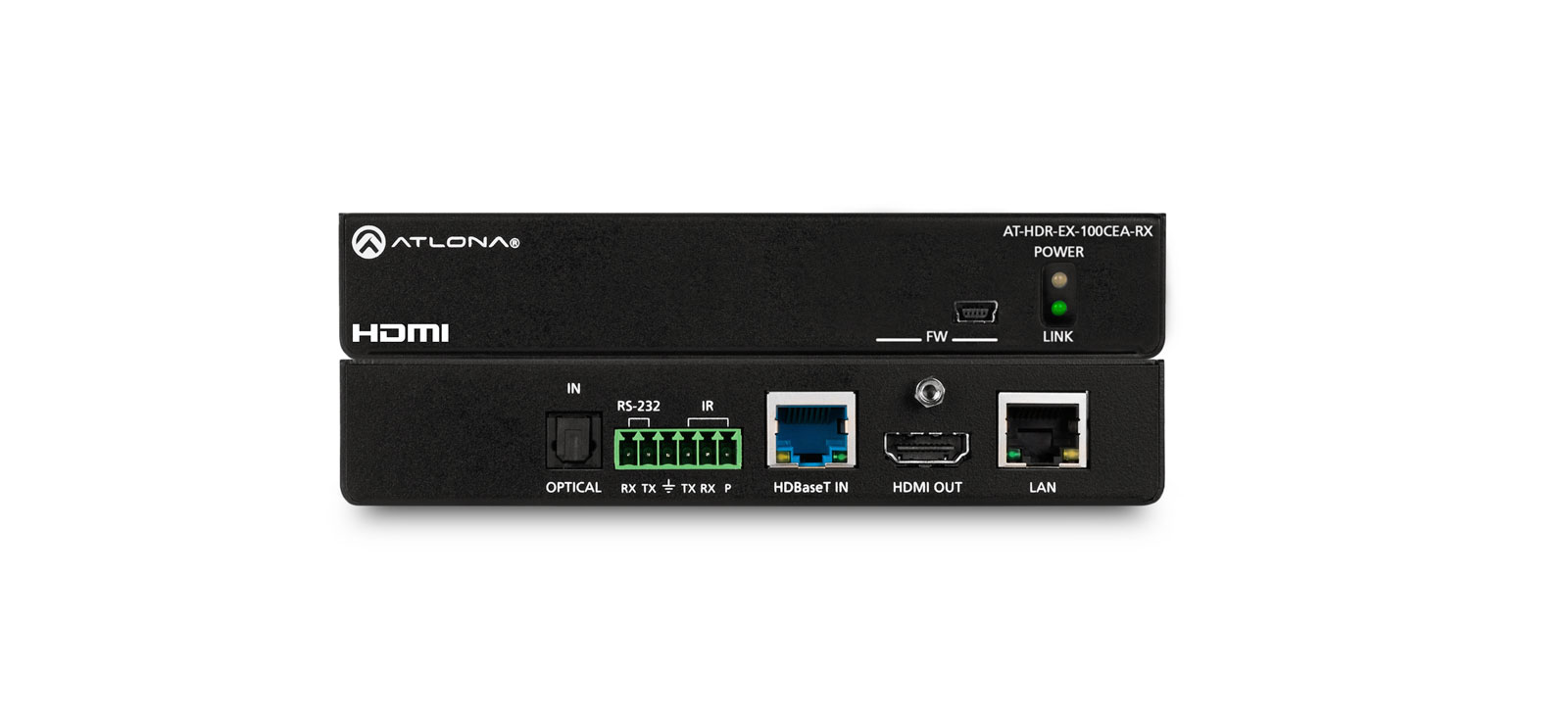

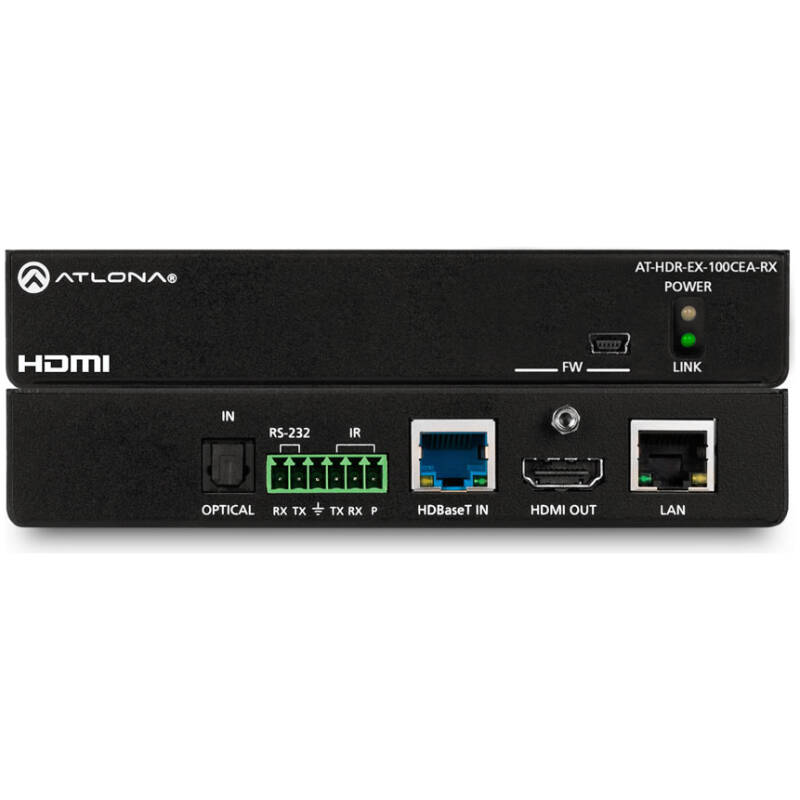

Connectivity

Inputs

• 1 × HDBaseT (RJ45)

Outputs

• 1 × HDMI (Type A)

Control & Data

• 1 × RS-232 (3-pin terminal block)

• 2 × IR ports (IR In / IR Out)

• 1 × Ethernet (RJ45)

Video Specifications

• Maximum Resolution: 4K UHD (3840 × 2160)

• HDR Support: HDR10 / HLG / Dolby Vision pass-through

• HDCP: 1.4 / 2.2 compliant

• Colour Sampling: Up to 4:4:4 at 1080p, 4:2:0 at 4K60

Transmission Distance

• Up to 100 m over CAT6A/7 (4K60 4:2:0)

• Up to 100 m over CAT5e/6 (1080p)
