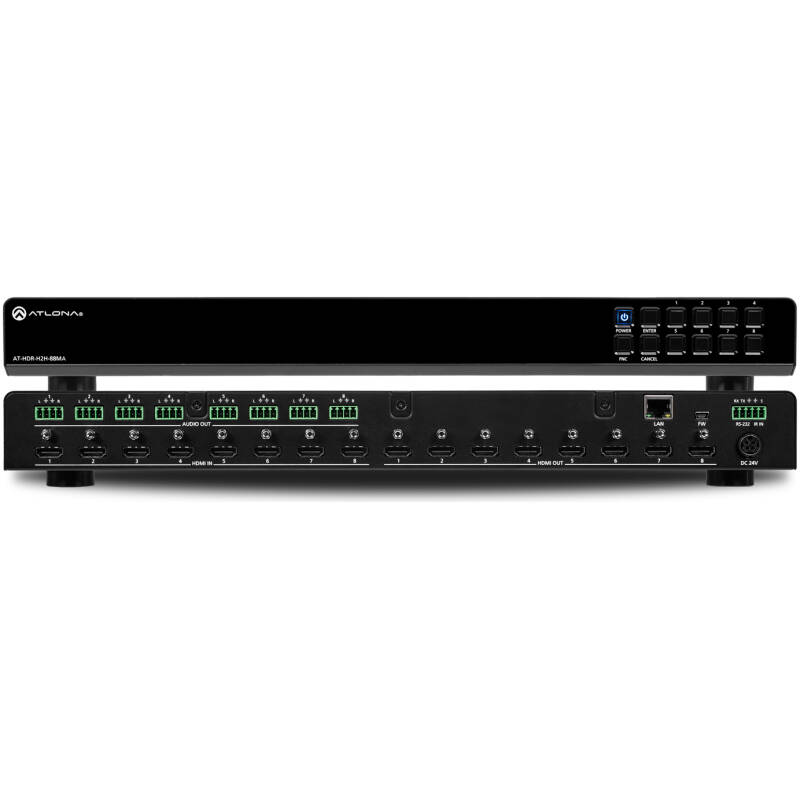

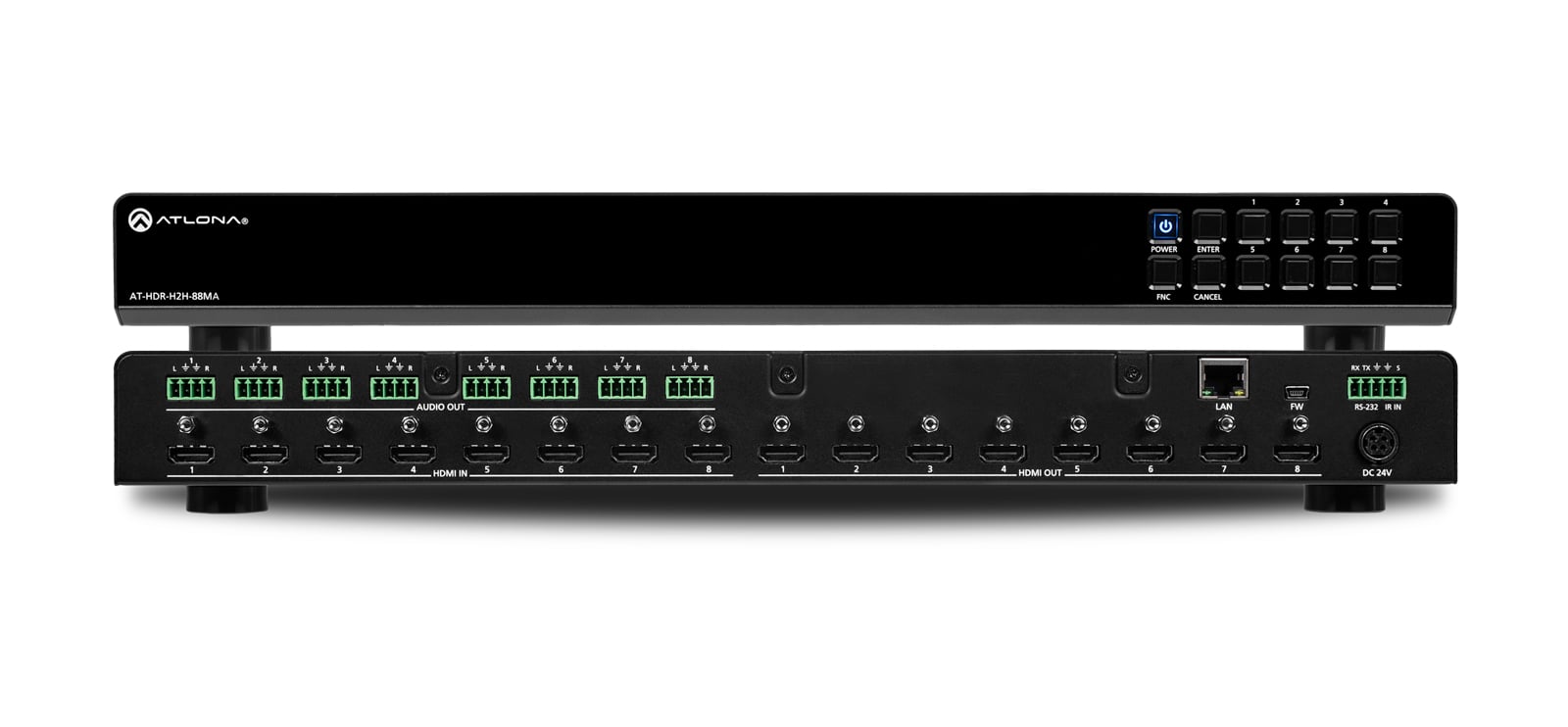

Atlona ATL-AT-HDR-H2H-88MA HDMI Matrix Switcher

The Atlona AT-HDR-H2H-88MA is a professional 8×8 HDMI matrix switcher with independent audio matrix switching designed for complex AV distribution systems. It enables eight HDMI sources to be routed independently to eight HDMI displays, while also providing audio breakaway to analog and digital outputs.

This matrix is ideal for conference centers, control rooms, broadcast facilities, hospitality installations, education environments, and large digital signage systems.

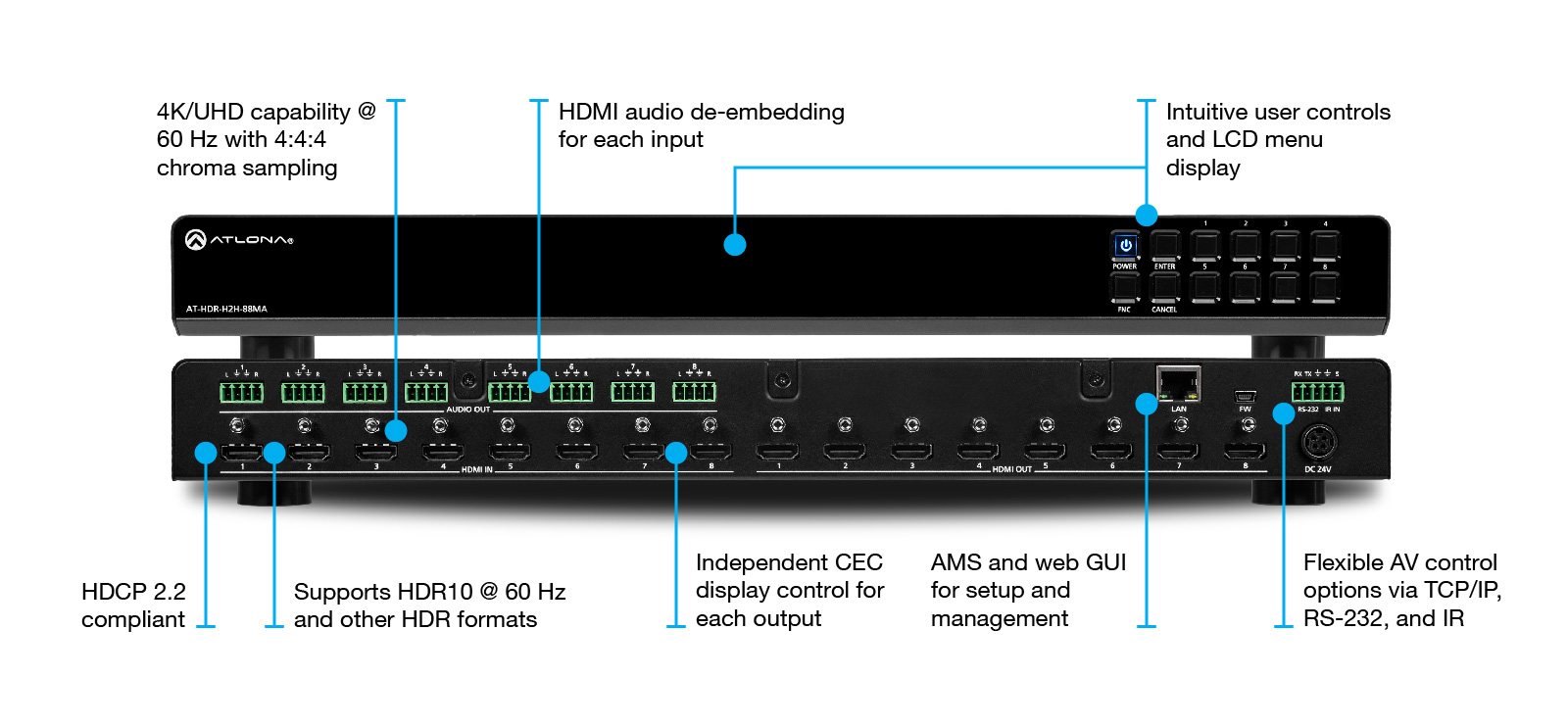

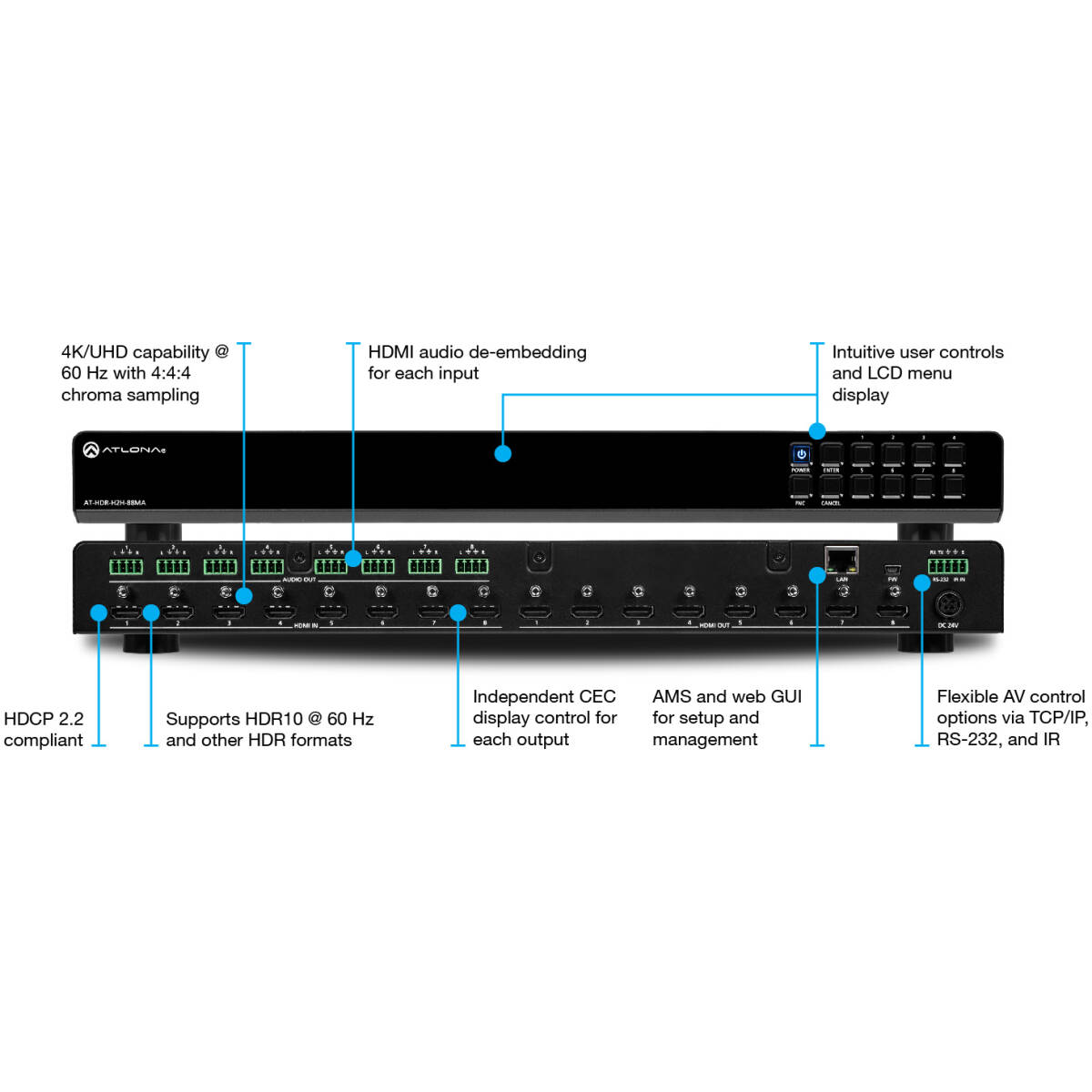

Key Features

• 8×8 HDMI matrix
• switching (8 inputs × 8 outputs)
• Supports 4K/UHD up to 4K/60 4:4:4
• HDR compatible
• HDCP 2.2 compliant
• Independent audio matrix switching
• Analog and digital audio de-embedding
• EDID management
• Front panel, RS-232, TCP/IP, and IR control
• 1U rack-mount design

Technical Specifications

Video

• HDMI Inputs: 8 × HDMI Type-A
• HDMI Outputs: 8 × HDMI Type-A
• Maximum Resolution: 4K/UHD @ 60 Hz (4:4:4)
• Color Depth: Up to 12-bit
• HDR: Supported
• HDCP: HDCP 2.2 compliant

Audio

• Analog Audio Outputs: 8 × Stereo (5-pin terminal block)
• Digital Audio Outputs: 8 × S/PDIF (coaxial)
• Audio Breakaway: Supported

Control

• Front panel with LCD display
• RS-232 control
• TCP/IP Ethernet control
• IR control

Power

External power supply
