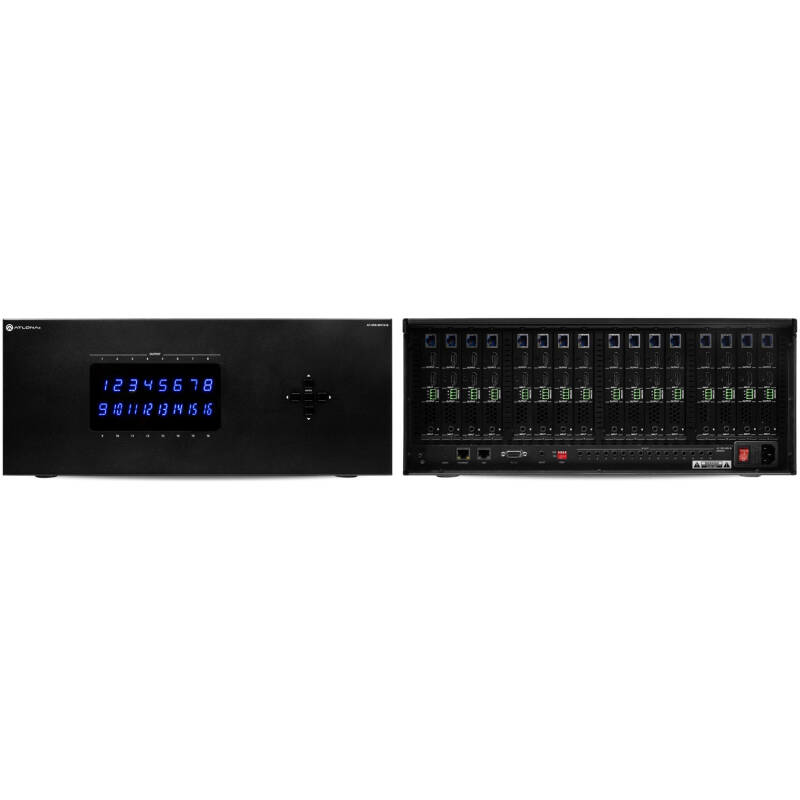

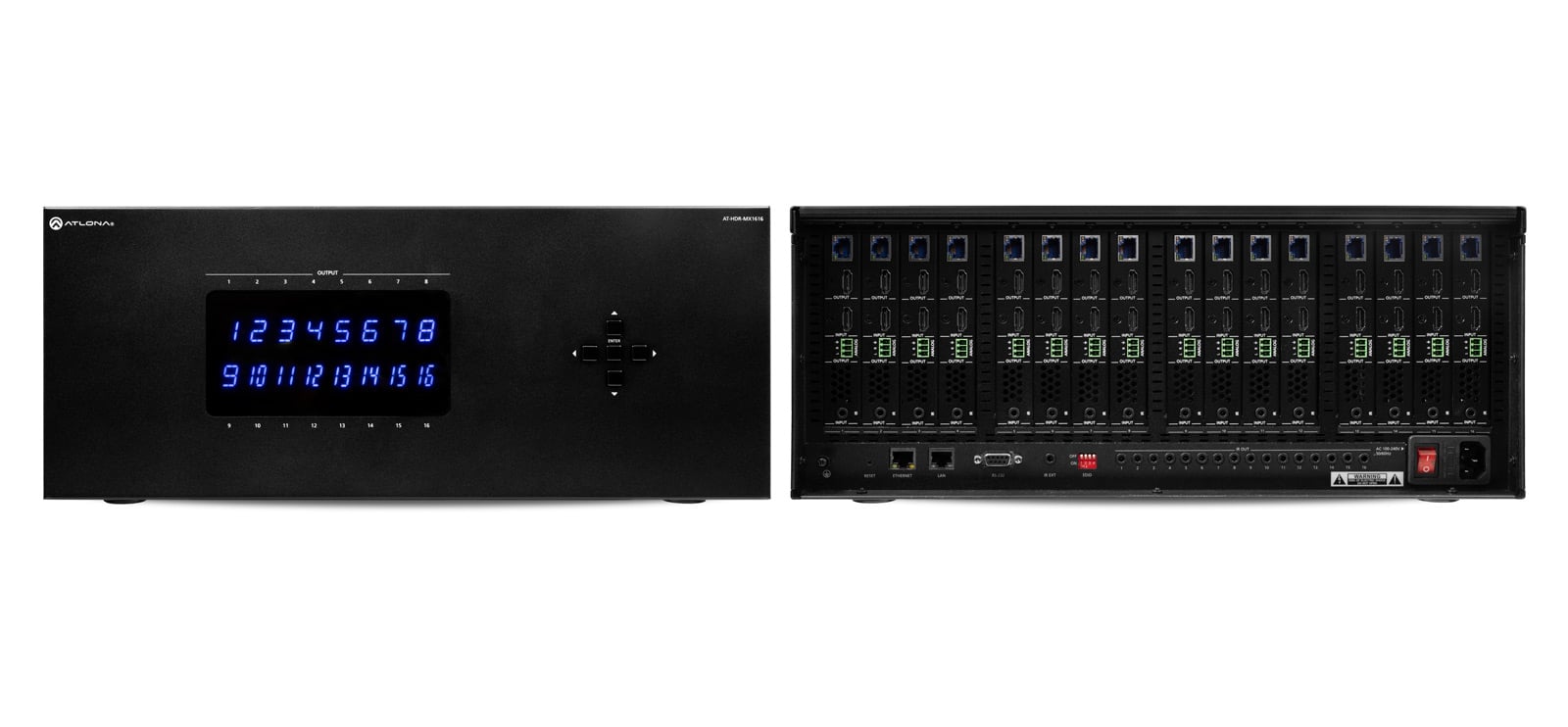

Atlona ATL-AT-HDR-MX1616 4K HDR HDBaseT Matrix Switcher

The Atlona AT-HDR-MX1616 is a professional 16×16 HDMI matrix switcher designed for large-scale AV distribution systems. It allows sixteen HDMI sources to be routed independently to sixteen HDMI displays, making it ideal for environments that require extensive signal distribution.

Supporting 4K/UHD video, HDR formats, and HDCP 2.2, the matrix ensures high-quality signal switching while maintaining compatibility with modern HDMI sources and displays. It is commonly used in corporate AV systems, broadcast facilities, education campuses, command centers, and large digital signage installations.

Key Features

• 16×16 HDMI matrix switching
• Supports 4K/UHD up to 4K/60 4:4:4
• HDR compatible
• HDCP 2.2 compliant
• EDID management
• Front panel LCD with control buttons
• RS-232 and TCP/IP control
• IR remote control support
• Rack-mountable chassis for professional installations

Technical Specifications

Video

• HDMI Inputs: 16 × HDMI Type-A
• HDMI Outputs: 16 × HDMI Type-A
• Maximum Resolution: 4K/UHD @ 60 Hz (4:4:4)
• Color Depth: Up to 12-bit
• HDR Support: Yes
• HDCP: HDCP 2.2 compliant

Control

• Front panel control with LCD display
• RS-232 control port
• TCP/IP Ethernet control
• IR remote control

Power

Internal power supply
