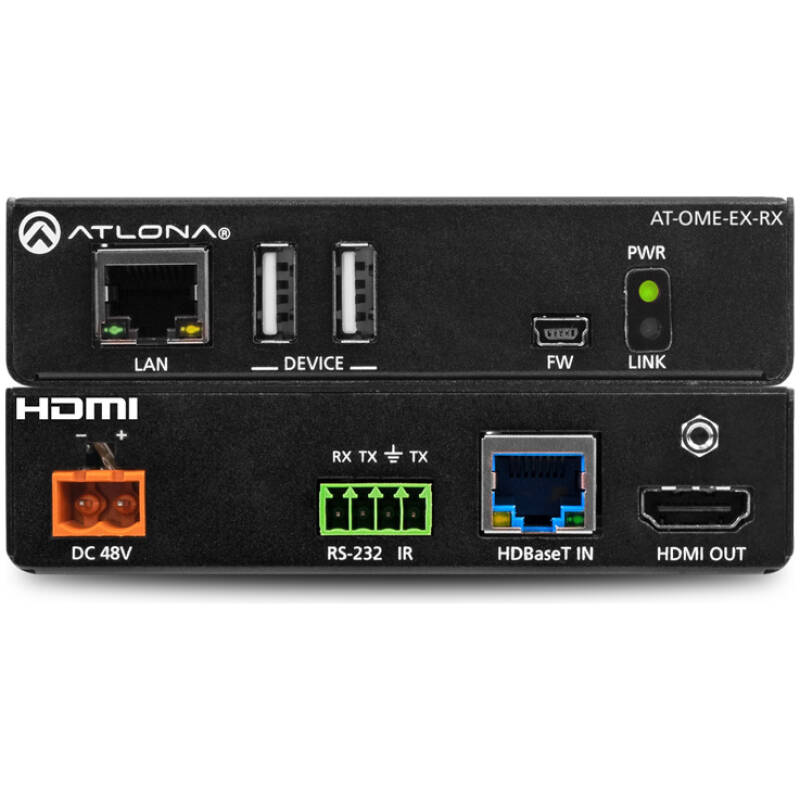

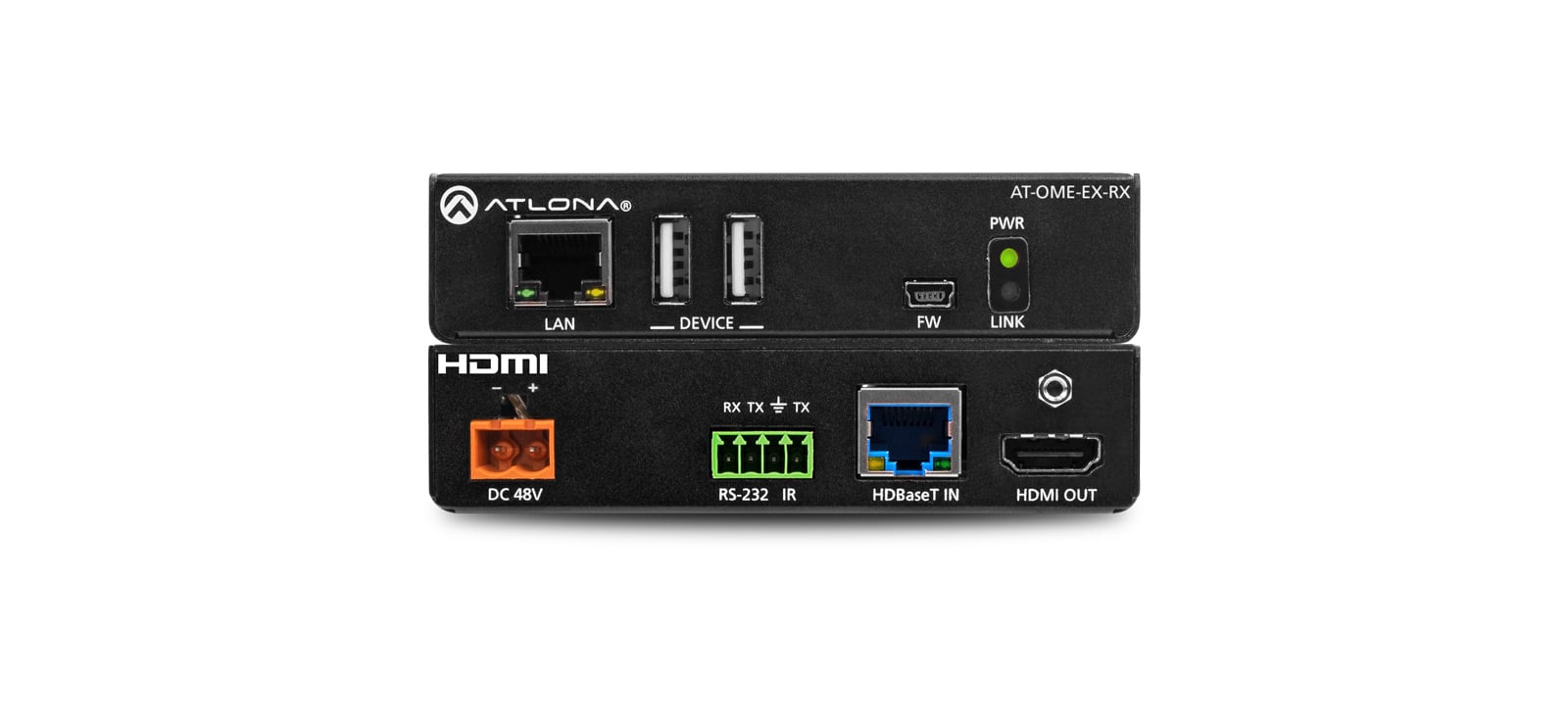

Atlona ATL-AT-OME-EX-RX OMEGA HDBaseT Receiver

The Atlona AT-OME-EX-RX is a HDBaseT receiver designed for use with Atlona OMEGA Series transmitters, enabling long-distance transmission of HDMI video, audio, and control signals over a single category cable. It is commonly paired with transmitters such as the AT-OME-EX-TX or included in extender kits like the AT-OME-EX-KIT-LT.

The receiver supports 4K/UHD video and HDCP 2.2, making it suitable for conference rooms, classrooms, and professional AV installations where HDMI signals must be delivered to displays located far from source equipment.

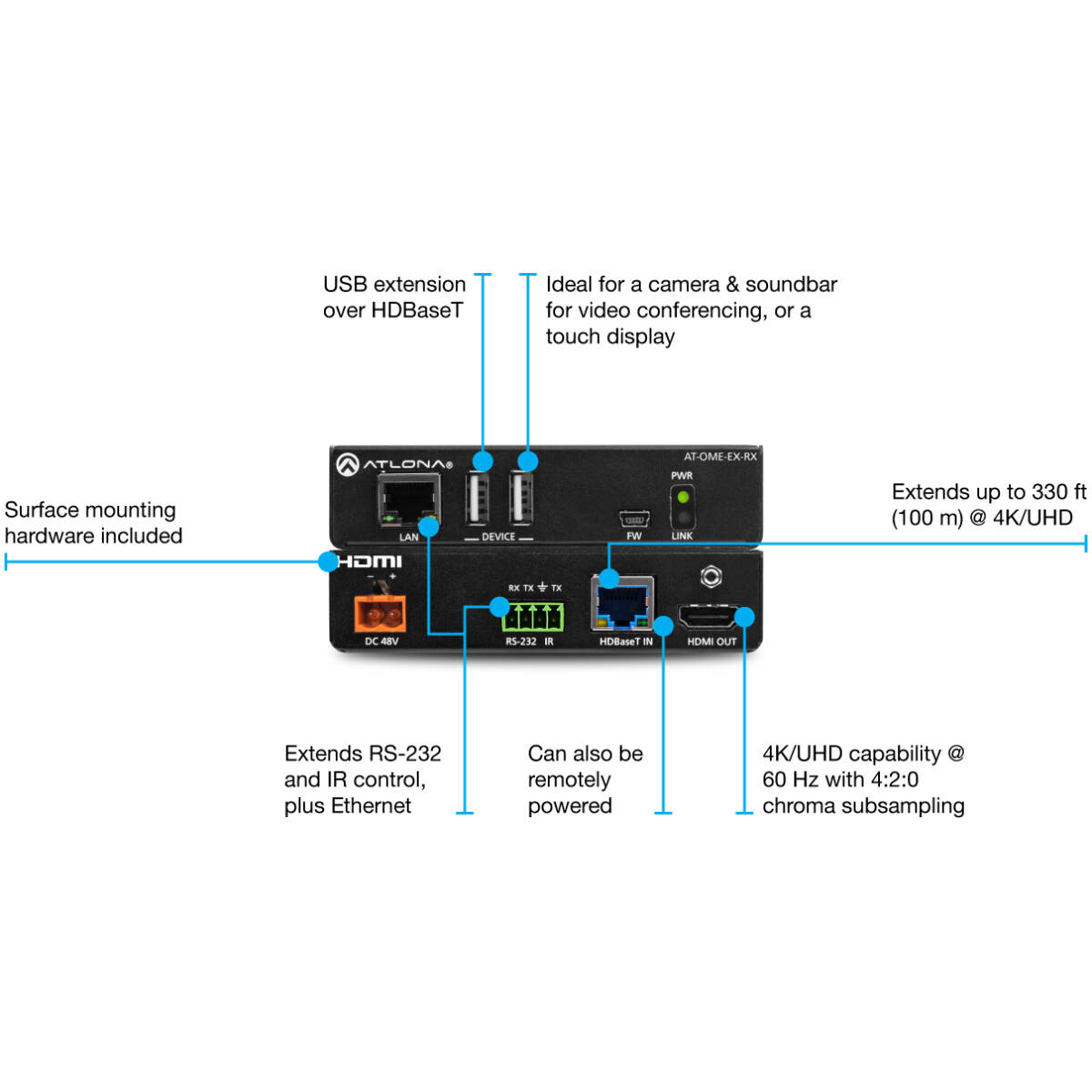

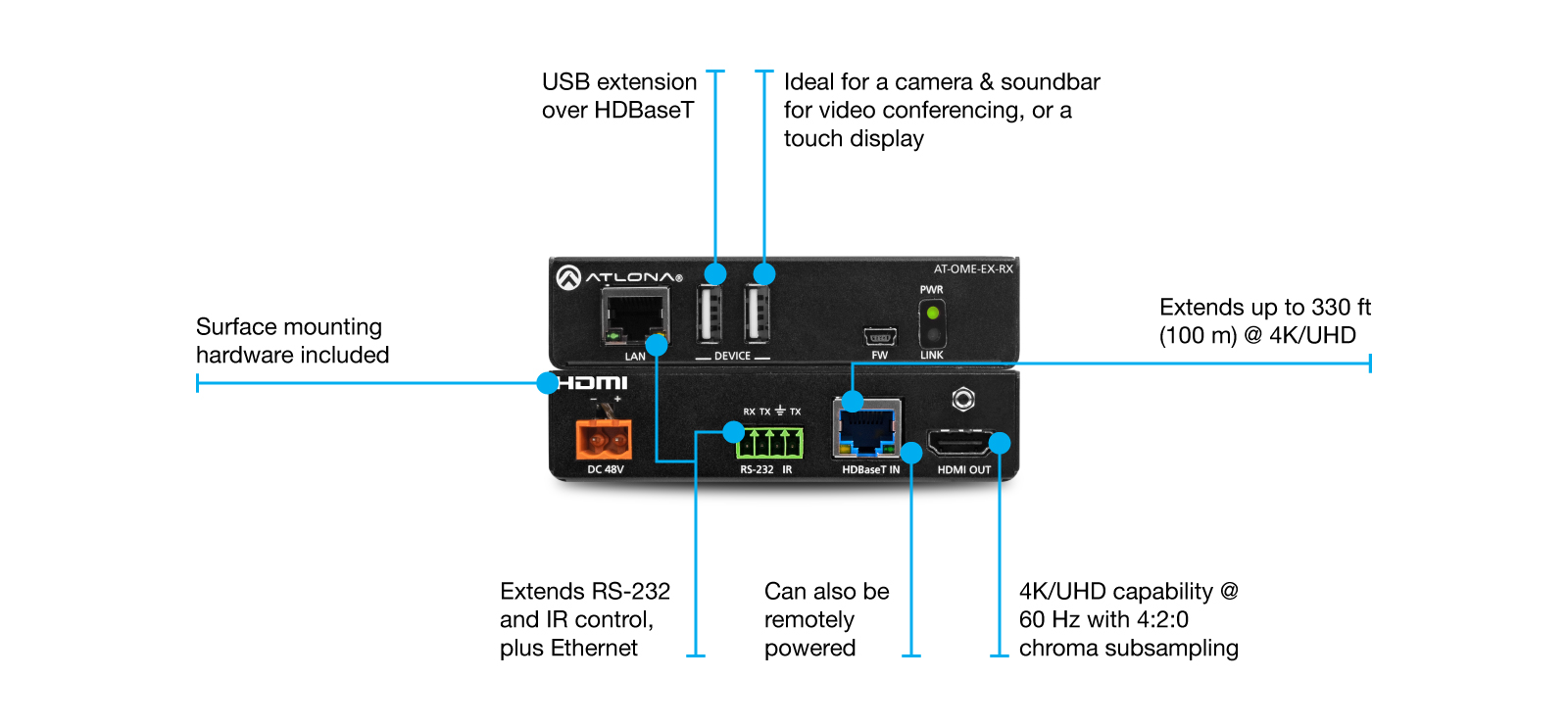

Key Features

• HDBaseT receiver for Atlona OMEGA systems

• Supports 4K/UHD up to 4K/60 4:2:0

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• Bidirectional RS-232 and IR pass-through

• Ethernet extension over HDBaseT

• Compact installation design

Technical Specifications

Video

• HDMI Output: 1 × HDMI Type-A

• HDBaseT Input: 1 × RJ45

• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)

• HDCP: HDCP 2.2 compliant

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m (230 ft) for 1080p

  • 40 m (131 ft) for 4K signals

• Cable Type: Cat6a / Cat7

Control

• Bidirectional RS-232 pass-through

• Bidirectional IR pass-through

• Ethernet extension

Power

• External power supply or PoE from compatible Atlona transmitter
