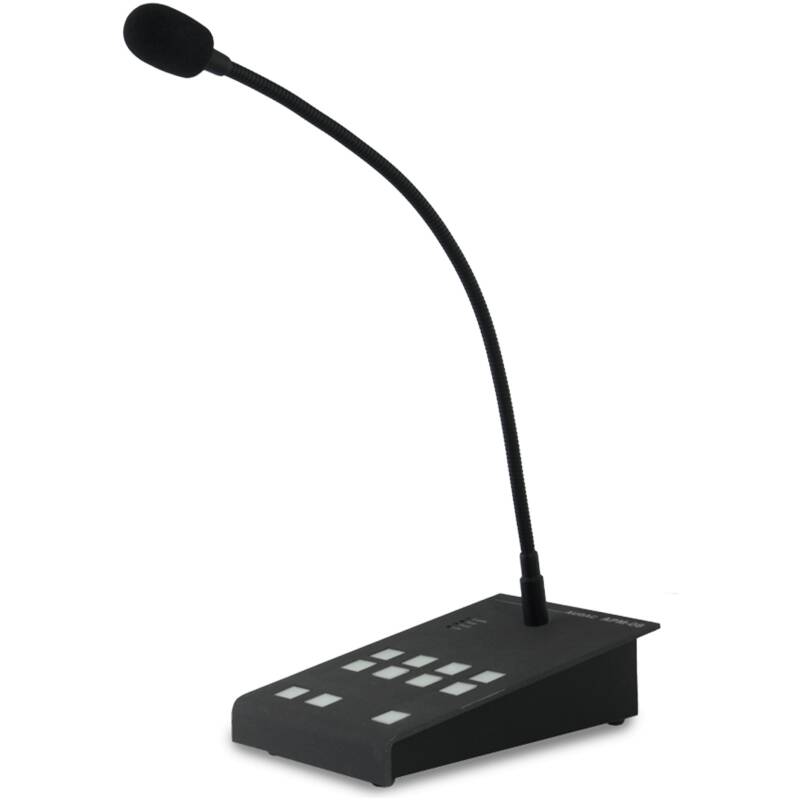

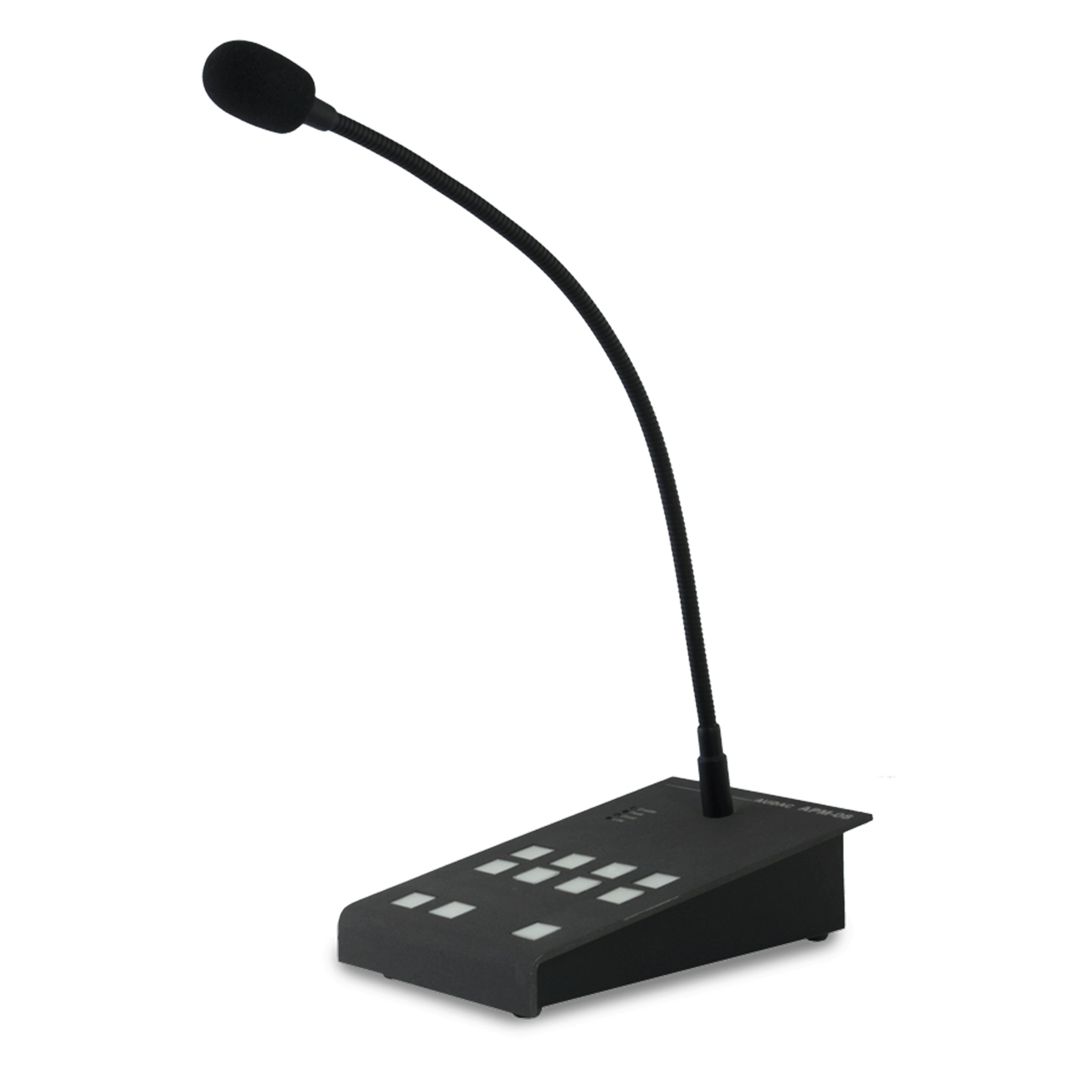

Audac AUA-APM108MK2 Digital Paging Microphone 8 Zones MK2 Version

The Audac APM108MK2 is a professional multi-zone paging microphone console designed for announcements in installed audio systems. It allows paging to specific zones within a distributed audio system, making it ideal for commercial buildings, offices, retail stores, schools, warehouses, and public facilities.

The unit is equipped with a 350 mm gooseneck back electret condenser microphone featuring a cardioid pickup pattern for accurate voice capture while minimizing background noise. The console includes eight programmable zone or function buttons, allowing operators to quickly select the desired paging zone.

Key Features

• Professional multi-zone paging microphone console
• 350 mm gooseneck condenser microphone
• Cardioid (unidirectional) pickup pattern
• Eight programmable zone or function buttons
• Push-to-talk paging control
• Integrated memory for 10 minutes of audio messages
• Status and level indication LEDs
• Communication via RS-485 data protocol

Microphone Specifications

Microphone type: Back electret condenser
Polar pattern: Cardioid (unidirectional)
Frequency response: 100 Hz – 20 kHz (±3 dB)
Sensitivity: −42 dB
Gooseneck length: 350 mm

Controls and Indicators

Eight programmable zone/function buttons
One push-to-talk button
One select and clear all button
Three-colour illuminated push button
LED indicators for level and system status
