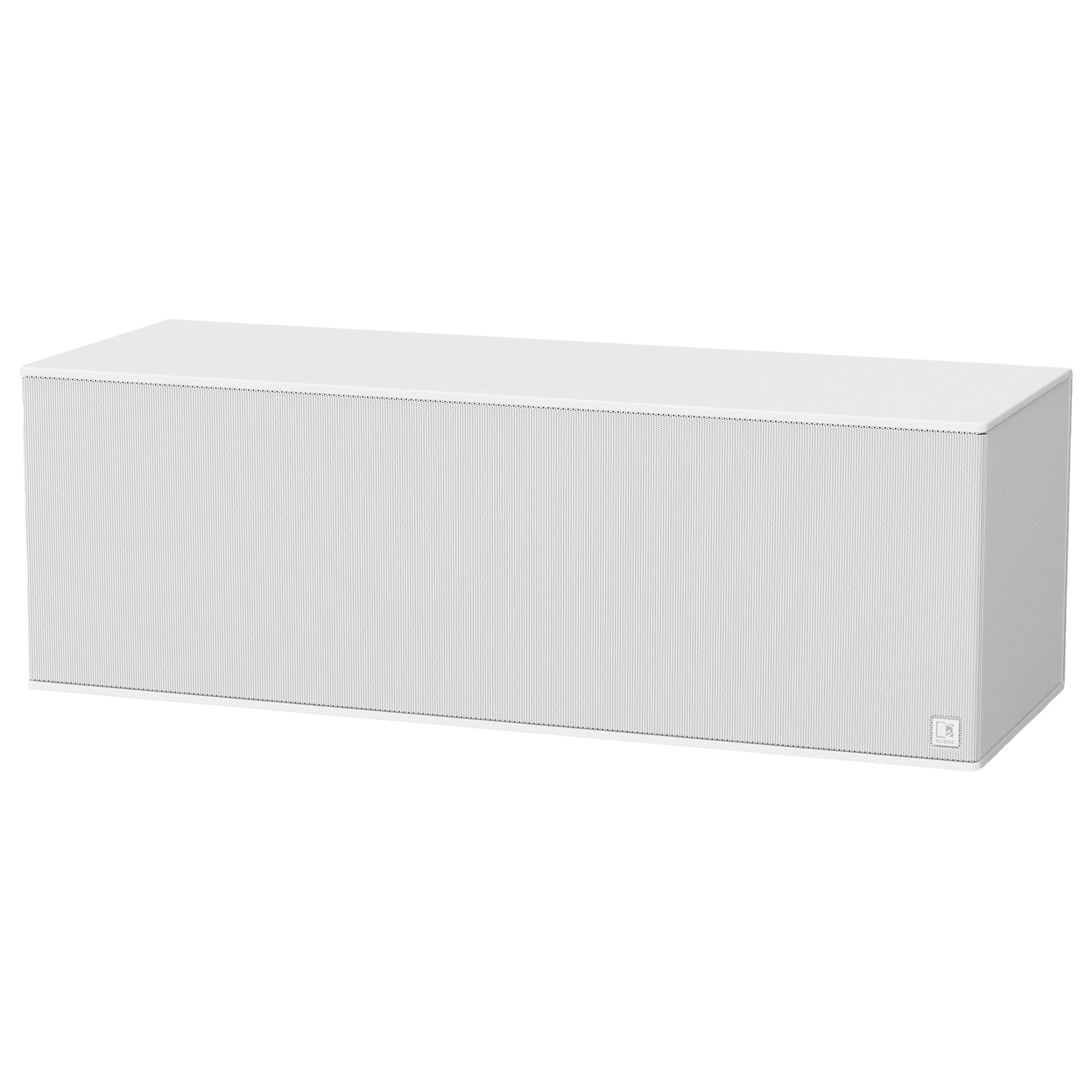

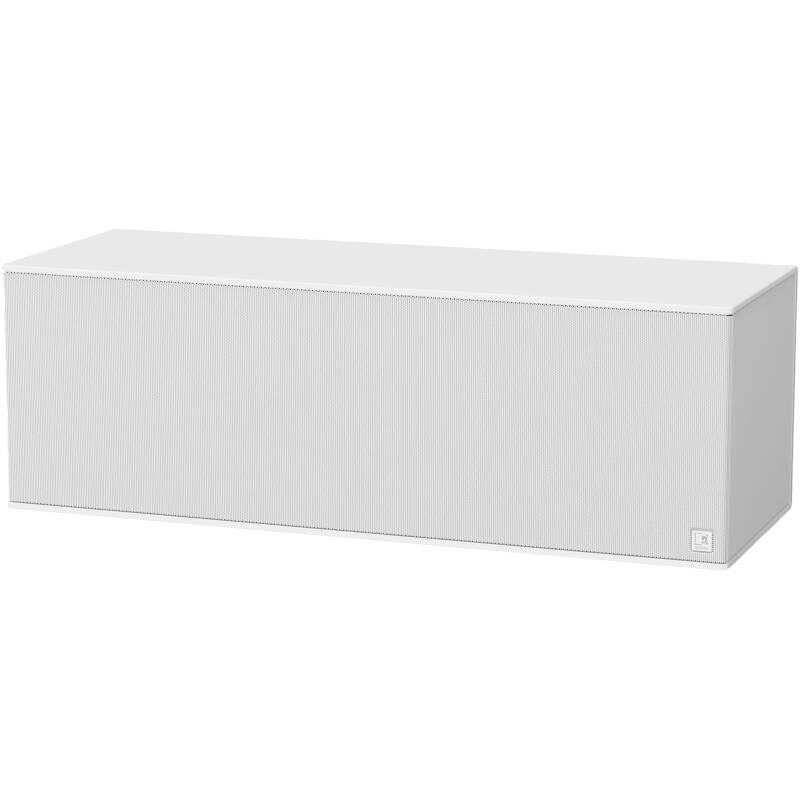

The Audac ARCHI210/W is a high-performance architectural bass reflex subwoofer designed for professional installed audio systems where strong low-frequency reinforcement is required. Its slim cabinet design allows it to integrate neatly into architectural environments while delivering powerful bass for background music and commercial audio installations.
The subwoofer is equipped with two high-efficiency 10-inch ferrite drivers, each featuring a 1.5-inch four-layer wound voice coil and weather-treated paper cone. This configuration provides high output levels while maintaining controlled and accurate bass reproduction.
The ARCHI210/W is typically installed in restaurants, retail spaces, hospitality venues, offices, lounges, and commercial buildings, where it works together with full-range installation speakers to extend the low-frequency performance of the sound system.
Key Features
- Dual 10-inch architectural subwoofer
- Bass reflex cabinet design for improved low-frequency performance
- High-efficiency ferrite drivers with 4-layer voice coils
- Weather-treated paper cone for durability
- Terminal block connector with link-through for easy system integration
- Designed for professional commercial audio installations
System Specifications
Speaker type: Dual 10-inch bass reflex cabinet
Driver configuration: 2 × 10-inch ferrite woofers
Impedance: 4 Ω
Sensitivity (1 W / 1 m): 101 dB
Maximum SPL (continuous): 130 dB
Power Handling
Continuous power (AES / RMS): 450 W
Program power: 900 W
Peak power: 1800 W
Frequency Performance
Frequency response (-3 dB): 59 Hz – 110 Hz
Frequency range (-10 dB): 46 Hz – 200 Hz
Bass port tuning frequency: 48 Hz
Connectivity

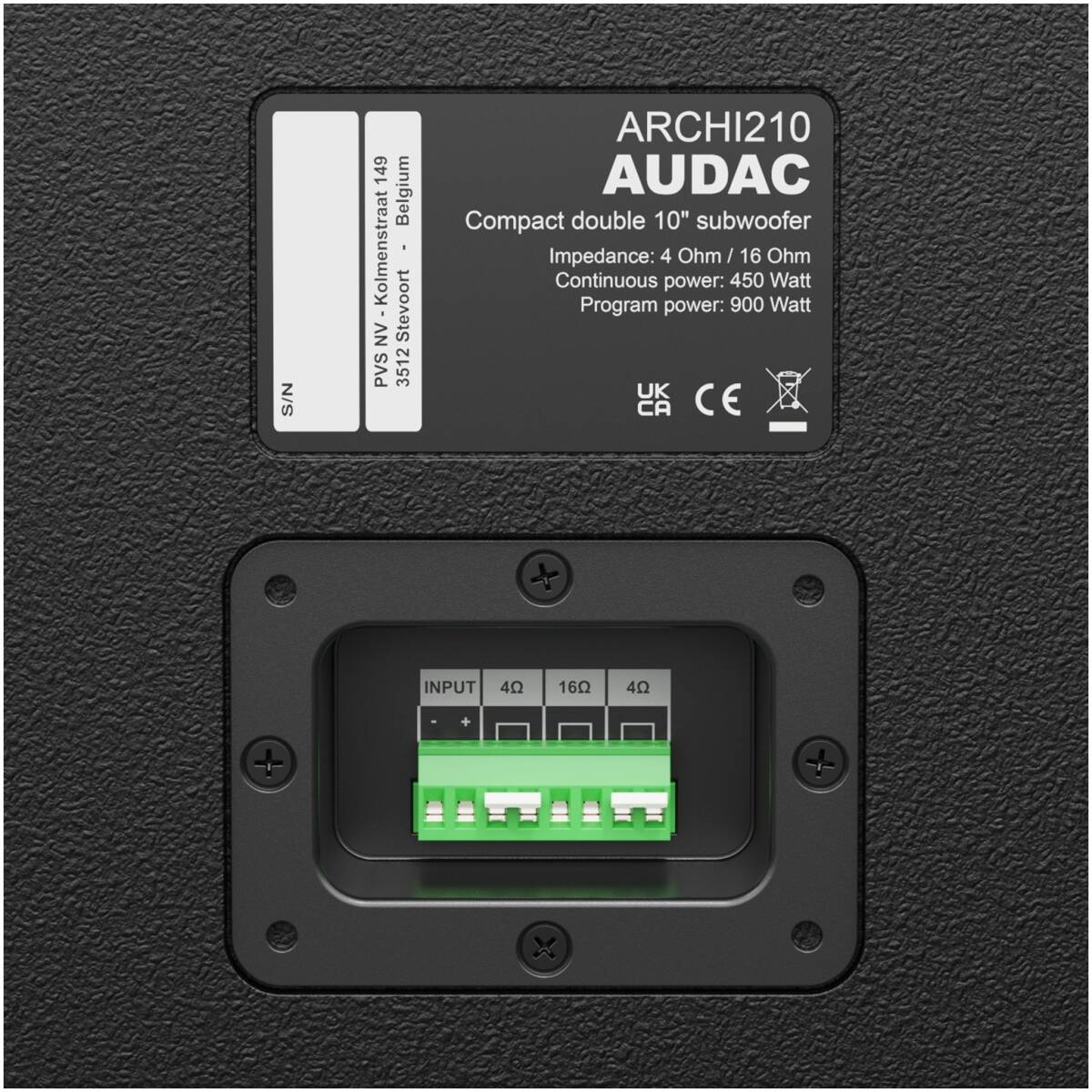

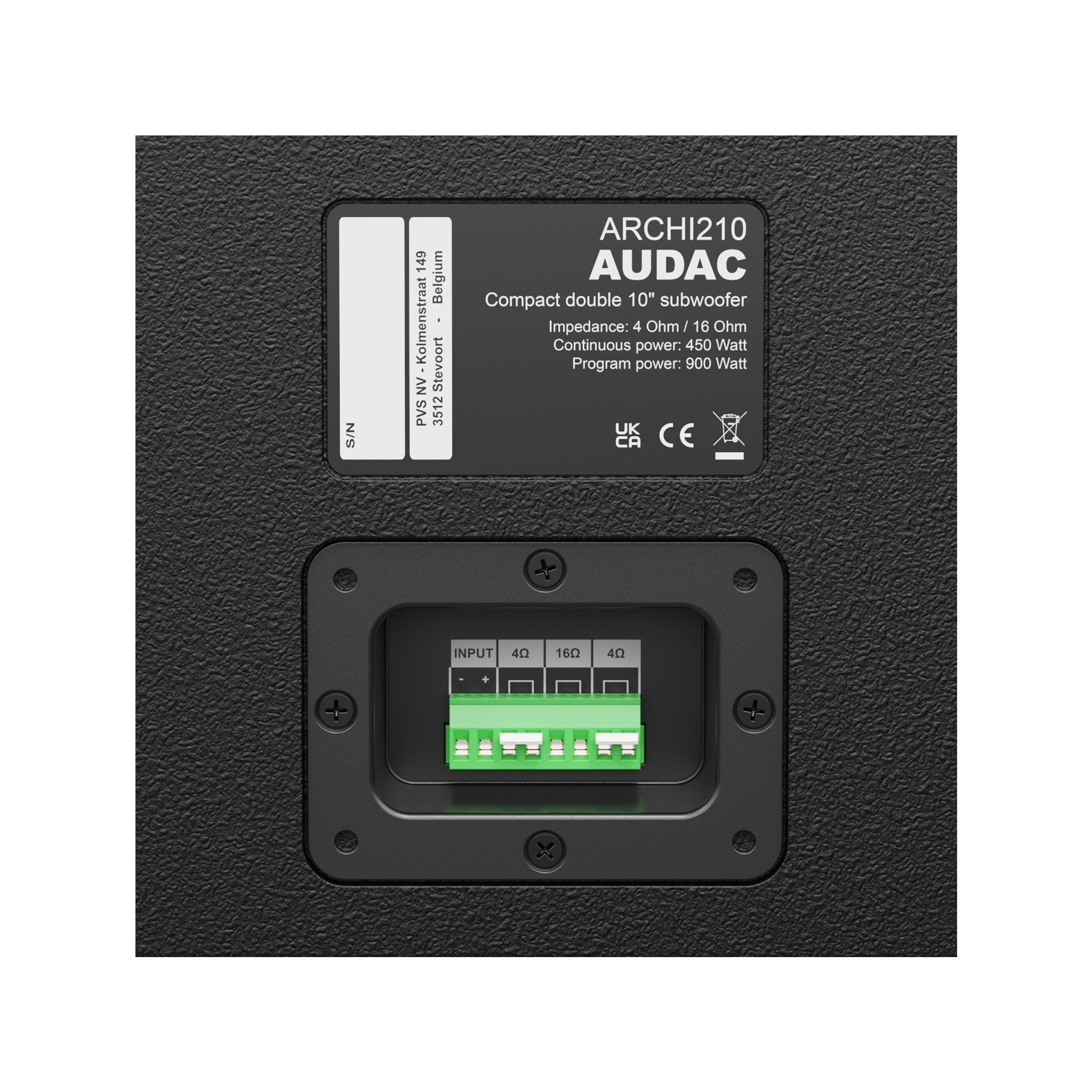

Connection via terminal block with link-through, allowing easy integration into installation audio systems.
Driver Specifications
Driver type: Ferrite woofer
Voice coil: 1.5-inch four-layer wound voice coil
Cone material: Weather-treated paper
Construction
The enclosure is designed for architectural installations and finished in white, allowing it to blend into lighter interior environments.
