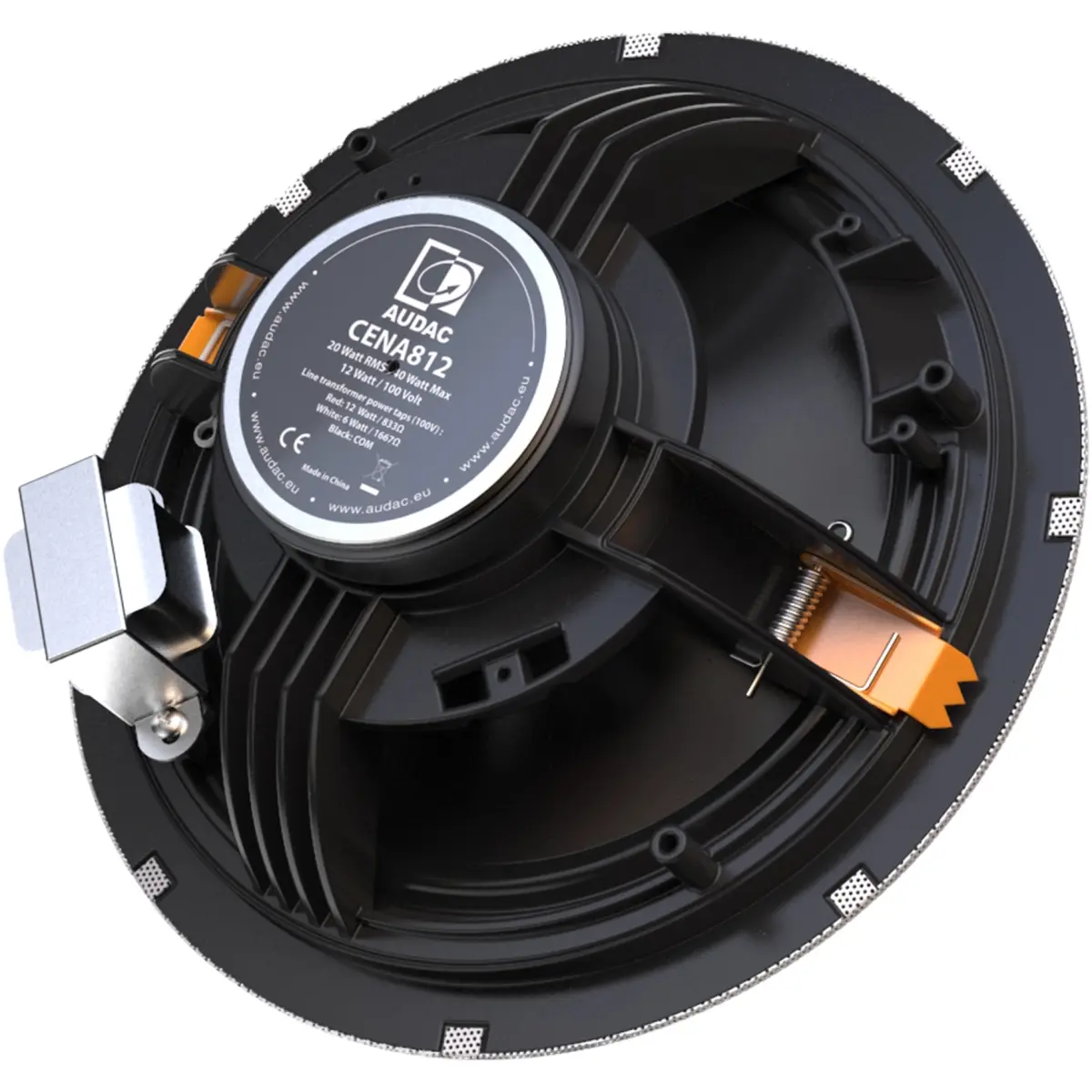

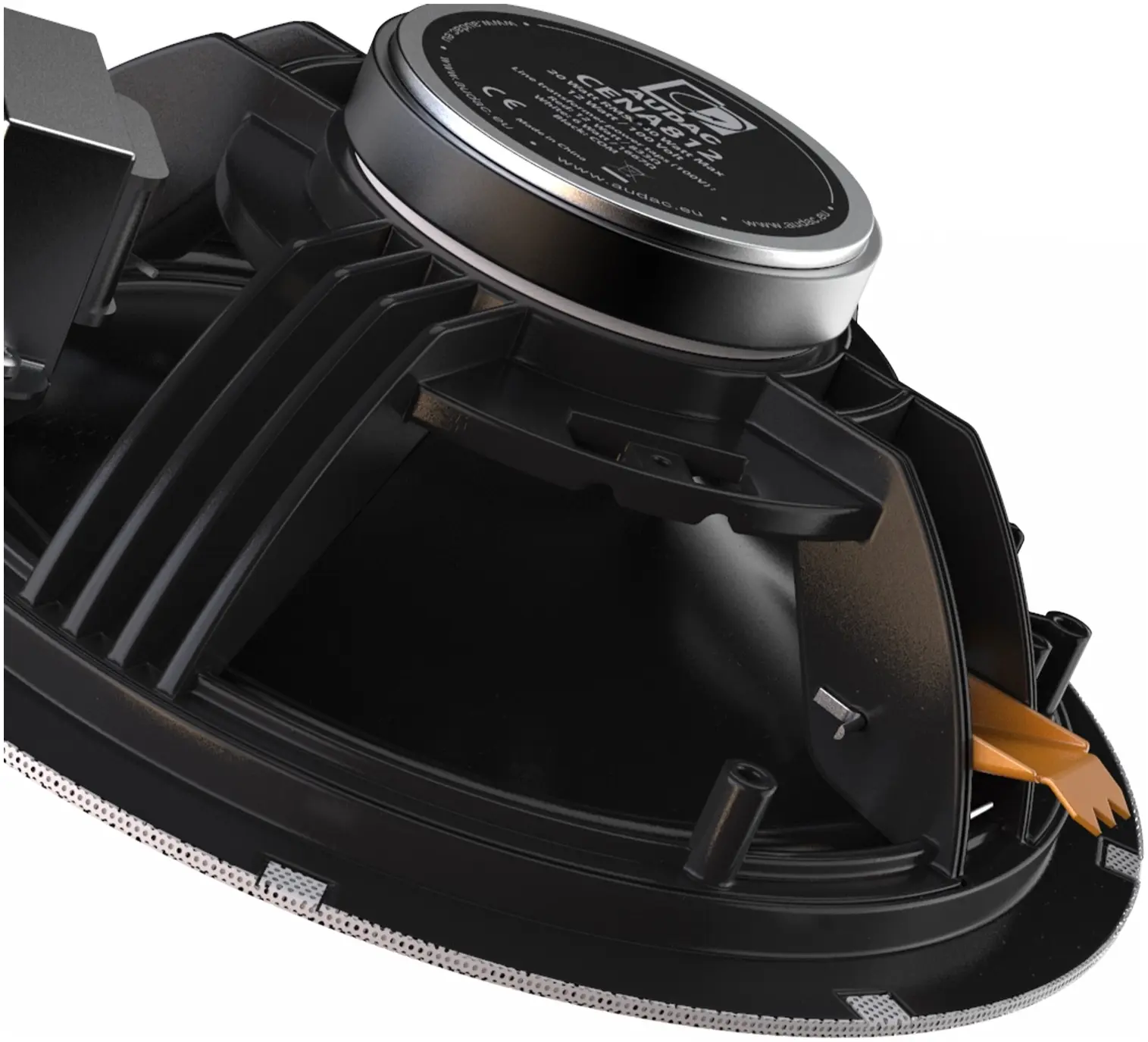

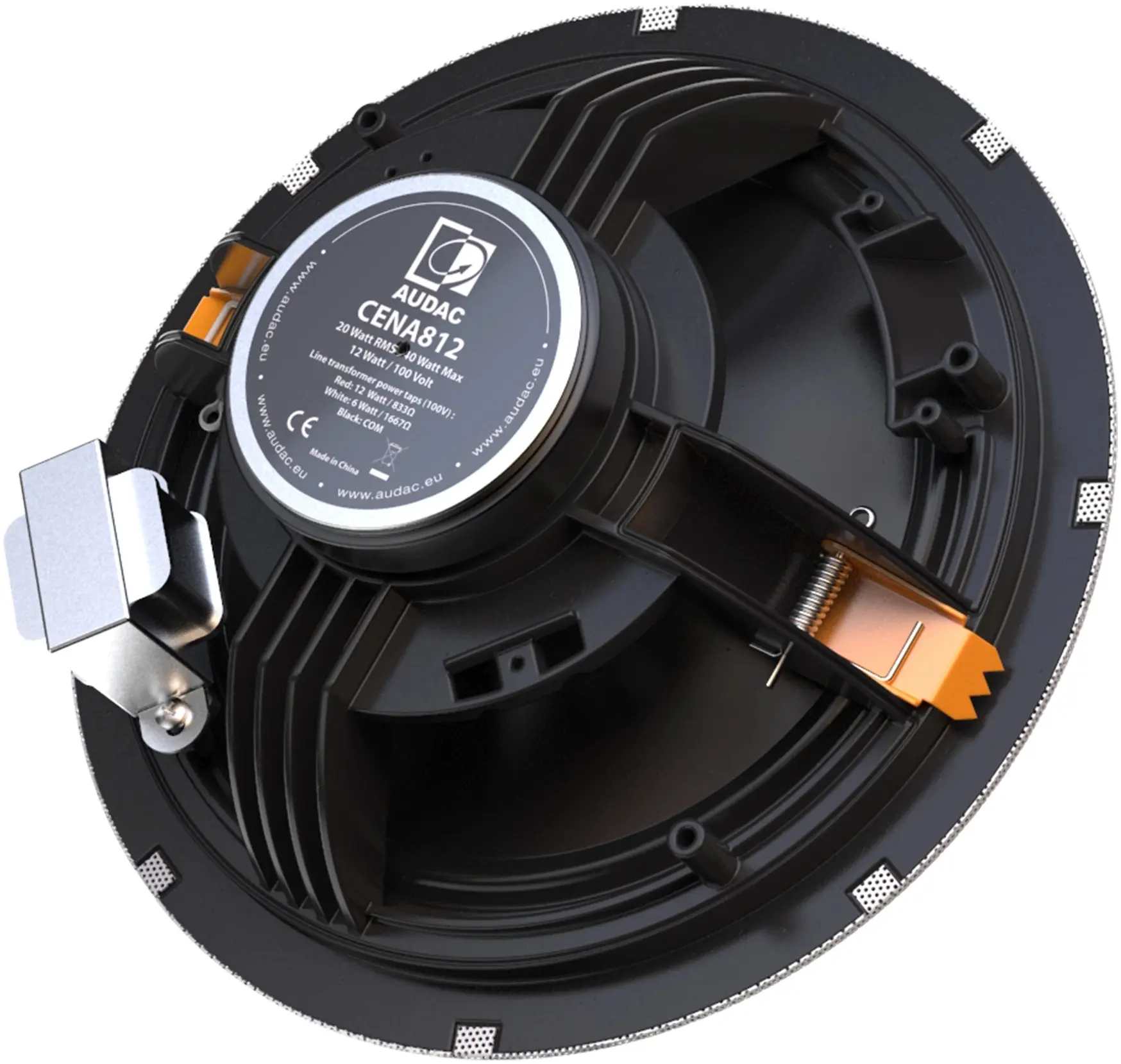

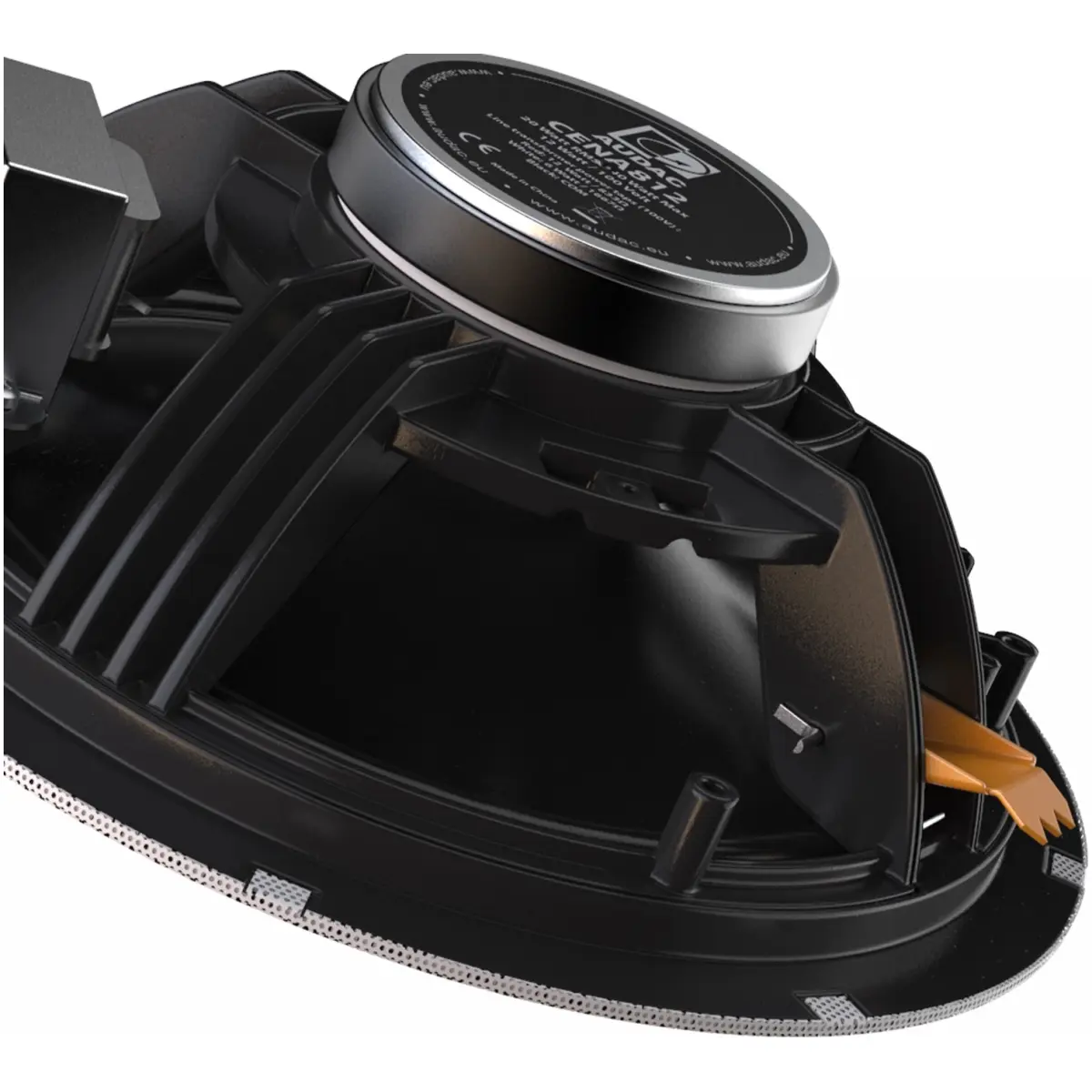

Audac AUA-CENA812/B SpringFit 8 Ceiling Speaker Black Version – 100V

The Audac CENA812/B is an 8-inch two-way ceiling loudspeaker designed for professional distributed audio systems. It provides clear and balanced sound reproduction for both background music and speech in commercial environments while maintaining a clean architectural appearance in ceiling installations.

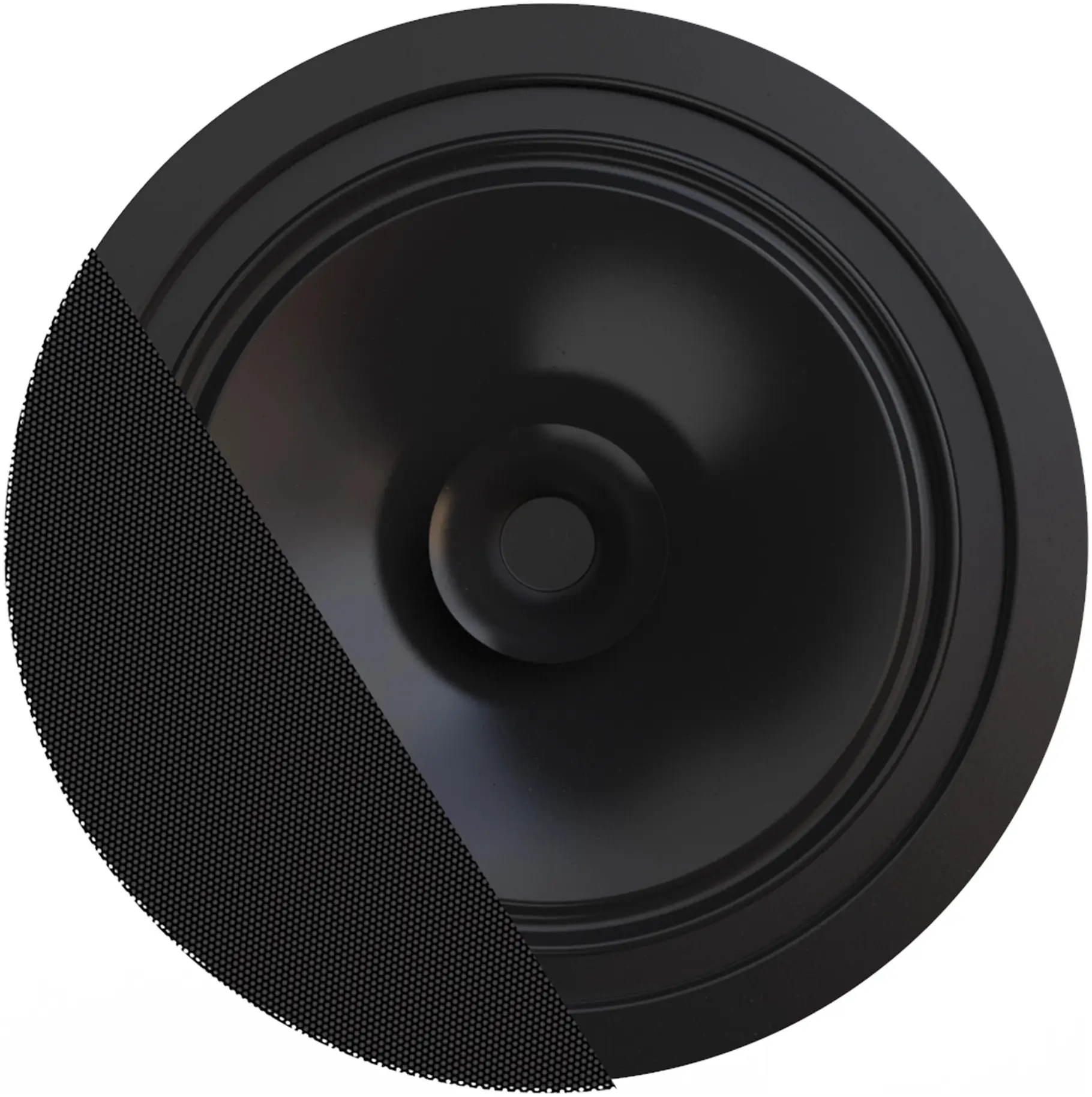

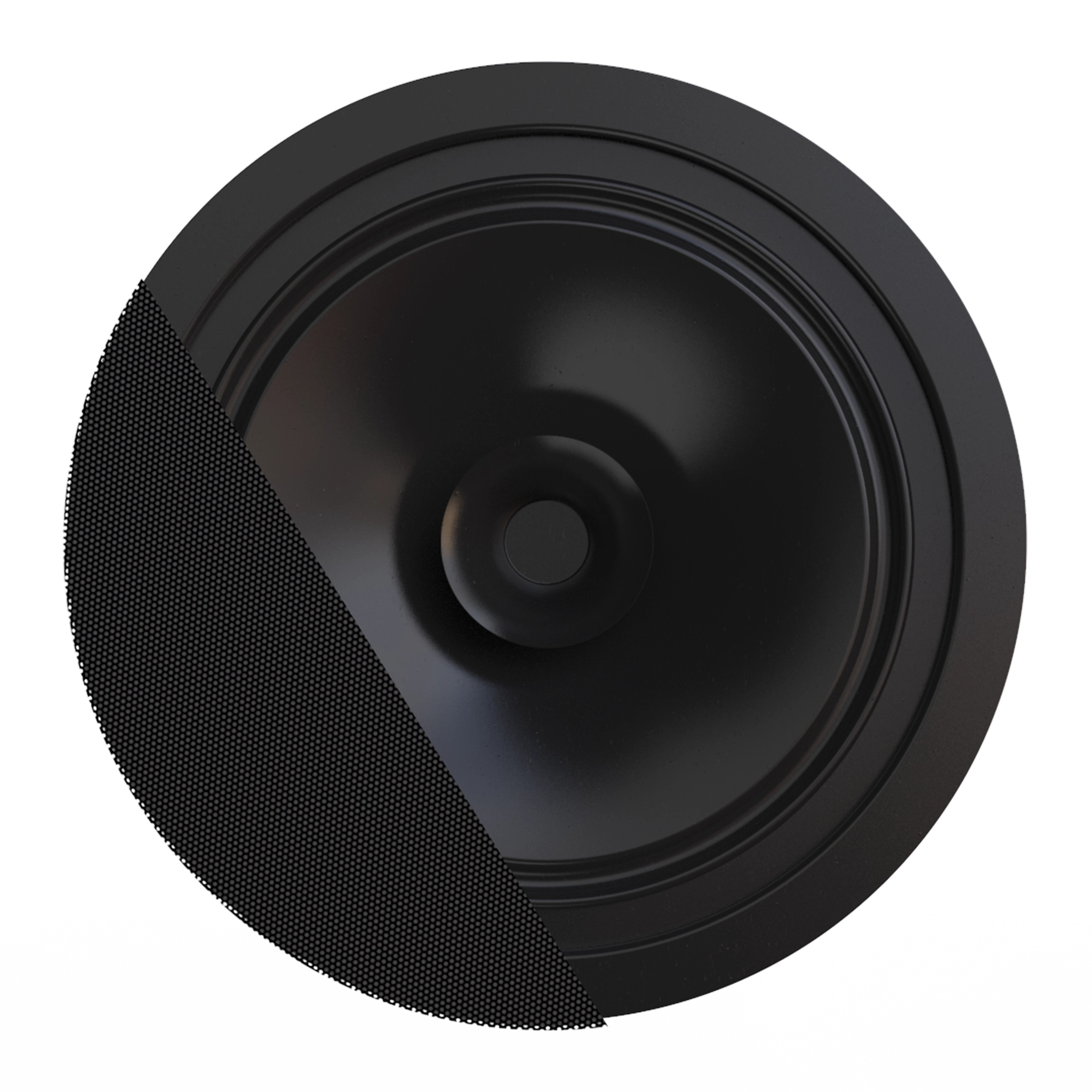

The speaker features an 8-inch polypropylene mid/low-frequency driver combined with a coaxially mounted tweeter, delivering improved clarity, wider frequency response, and consistent sound dispersion across the listening area.

Designed for 100 V line audio systems, the CENA812/B includes selectable transformer taps, making it suitable for installations where multiple speakers are connected to a single amplifier. Typical applications include retail stores, restaurants, offices, hospitality venues, schools, and public buildings.

Key Features

• 8-inch two-way ceiling loudspeaker
• Coaxial tweeter for improved high-frequency clarity
• Designed for 100 V distributed audio systems
• Wide dispersion for even sound coverage
• Durable construction for commercial installations

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 8-inch mid/low driver with coaxial tweeter

Power Handling

Continuous power (AES / RMS): 40 W
Program power: 80 W
Peak power: 160 W

Frequency Performance

Frequency response (±3 dB): 60 Hz – 20 kHz
Frequency range (-10 dB): 50 Hz – 20 kHz

Line Transformer Tappings

100 V line taps: 40 W / 20 W / 10 W / 5 W

Construction

Mounting type: Flush ceiling mount

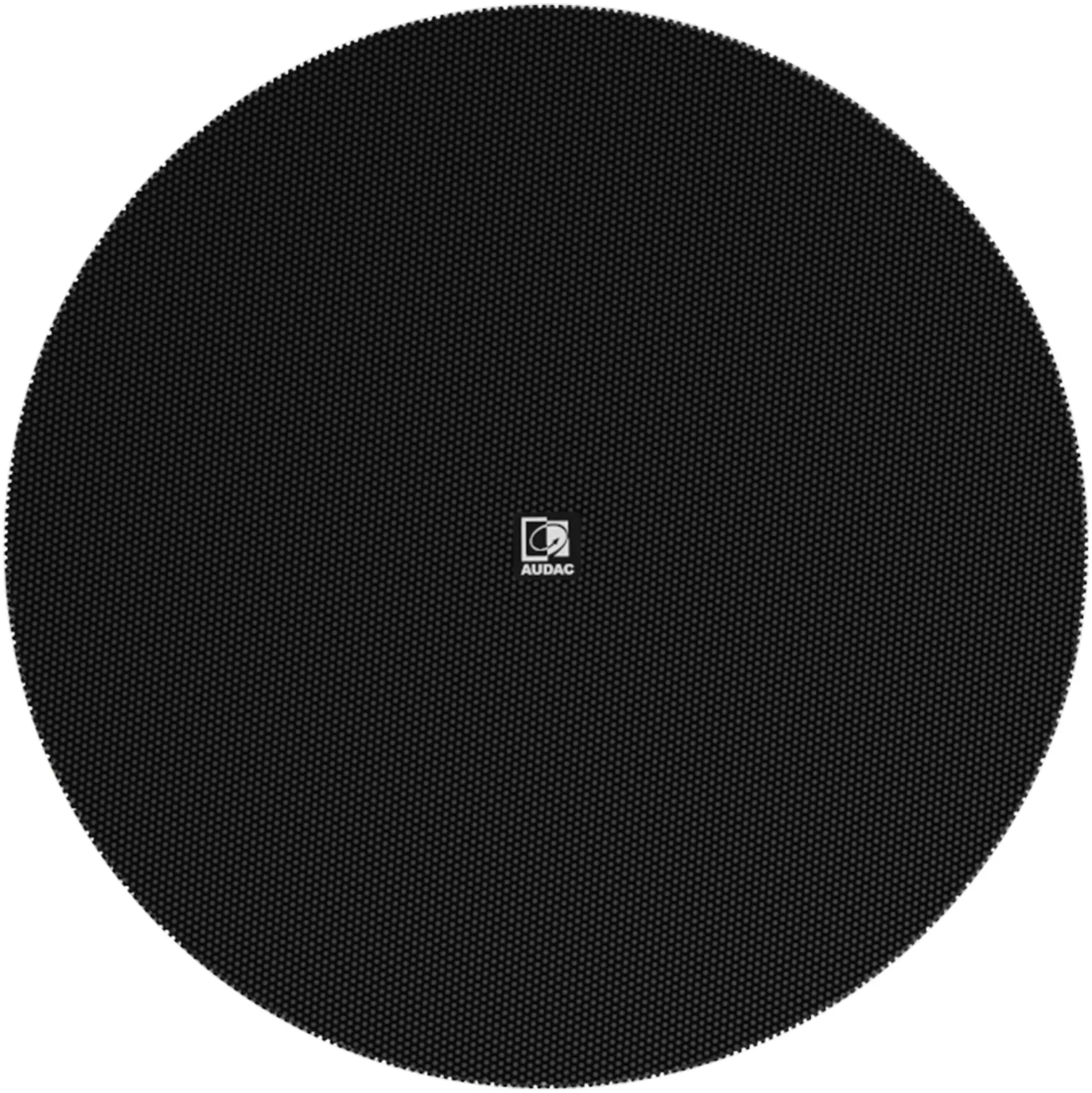

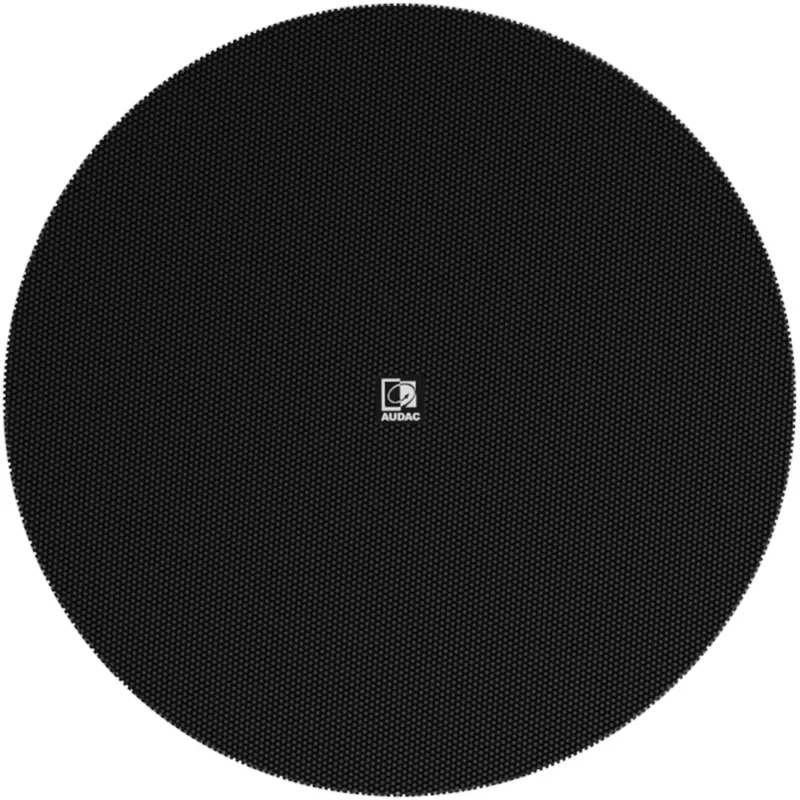

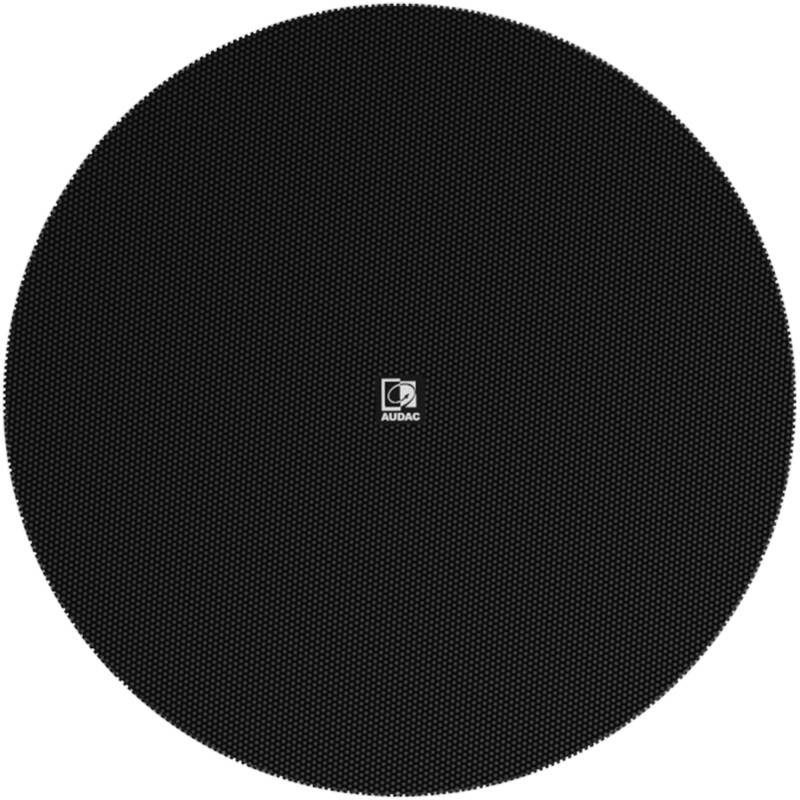

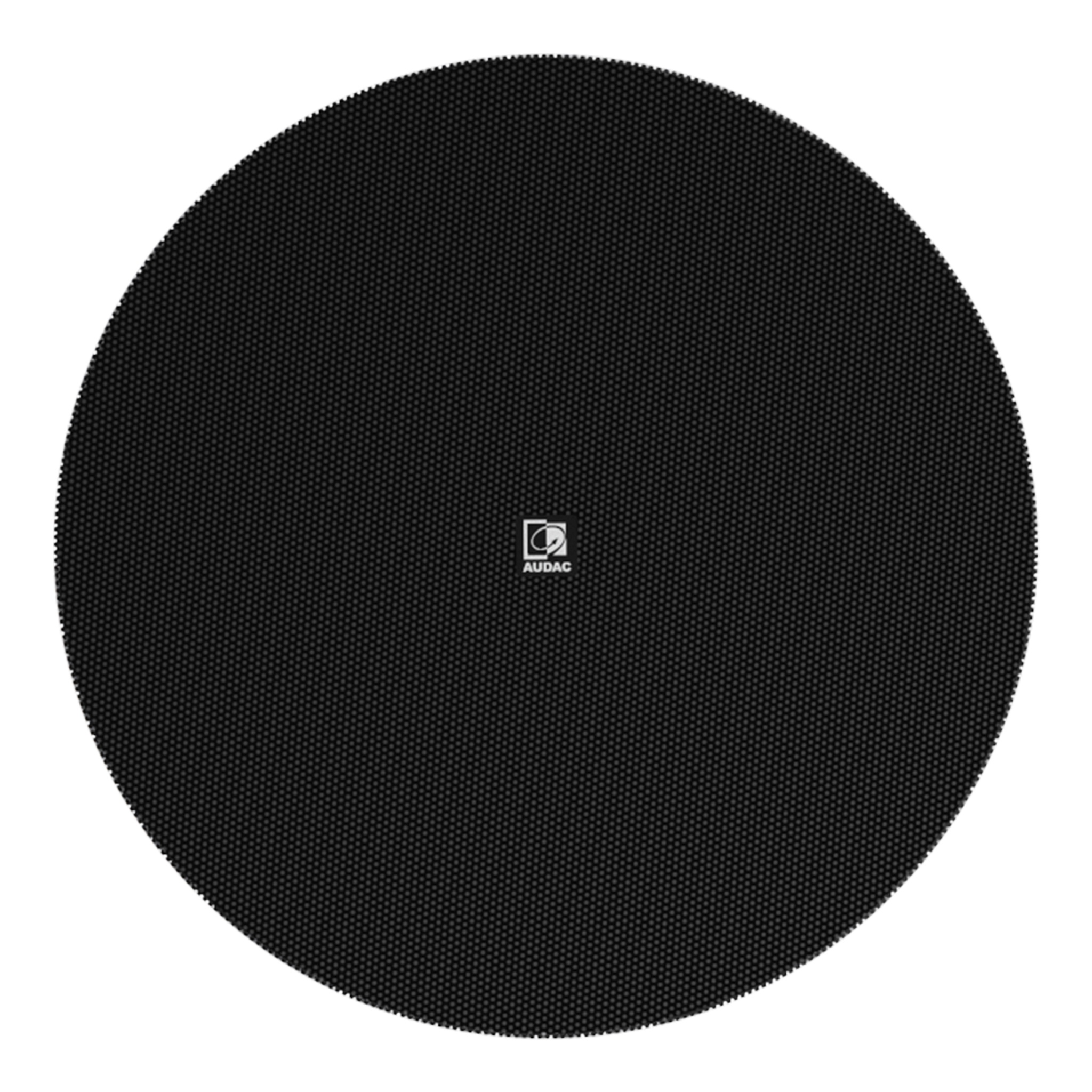

Front finish: Metal grille
Colour: Black
