Audac AUA-CENA820D/W SpringFit 8 Ceiling Speaker White Version – 16Ohm

The Audac CENA820D/W is an 8-inch two-way ceiling loudspeaker designed for high-quality music reproduction and speech intelligibility in professional audio installations. Its clean architectural appearance allows it to blend seamlessly into ceilings while delivering clear and balanced sound.

The speaker is equipped with an 8-inch polypropylene mid/low-frequency driver and a coaxially mounted tweeter, ensuring improved high-frequency detail and wide sound dispersion. The SpringFit mounting system allows quick and secure installation into ceiling panels without requiring complex mounting hardware.

Unlike the 100 V models, the CENA820D/W operates at 16 Ω, making it suitable for low-impedance audio systems where multiple speakers can be connected in parallel to a single amplifier channel.

The CENA820D/W is ideal for retail environments, restaurants, offices, hospitality venues, education facilities, and commercial buildings.

Key Features

• 8-inch two-way ceiling loudspeaker
• 16 Ω low-impedance design
• SpringFit mounting system for quick installation
• Coaxial tweeter for improved high-frequency clarity
• Wide dispersion for even sound coverage
• Clean architectural design for discreet ceiling integration

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 8-inch mid/low driver with coaxial tweeter
Impedance: 16 Ω

Power Handling

Continuous power (AES / RMS): 60 W
Program power: 120 W
Peak power: 240 W

Frequency Performance

Frequency response (±3 dB): 60 Hz – 20 kHz
Frequency range (-10 dB): 50 Hz – 20 kHz

Construction

Mounting type: SpringFit ceiling mount

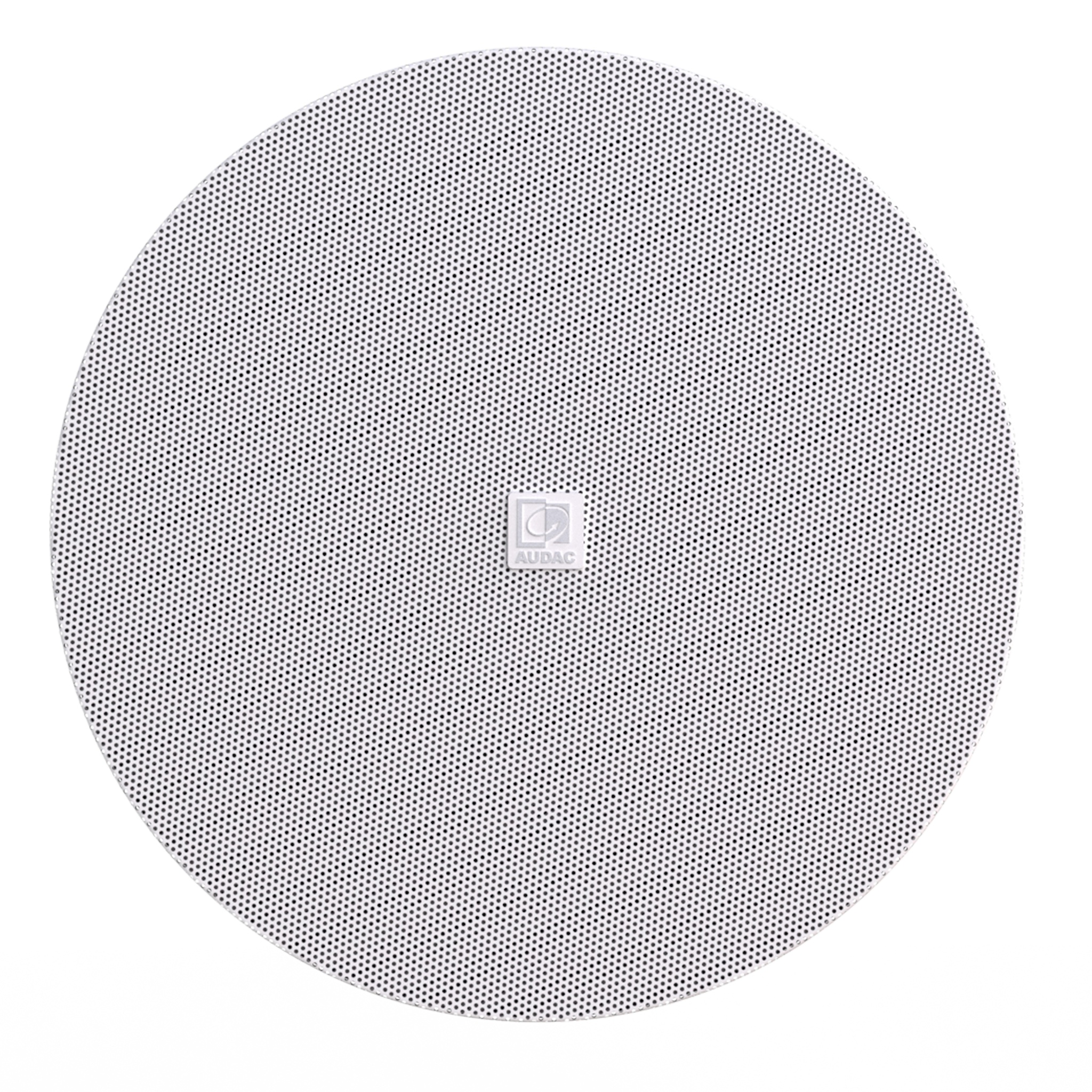

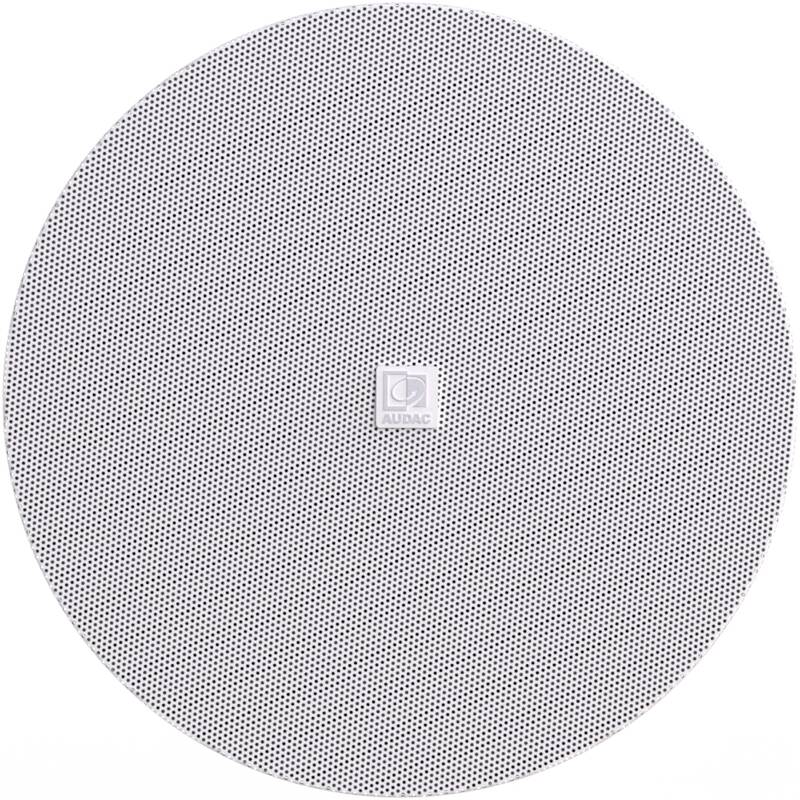

Front finish: Steel grille
Colour: White
