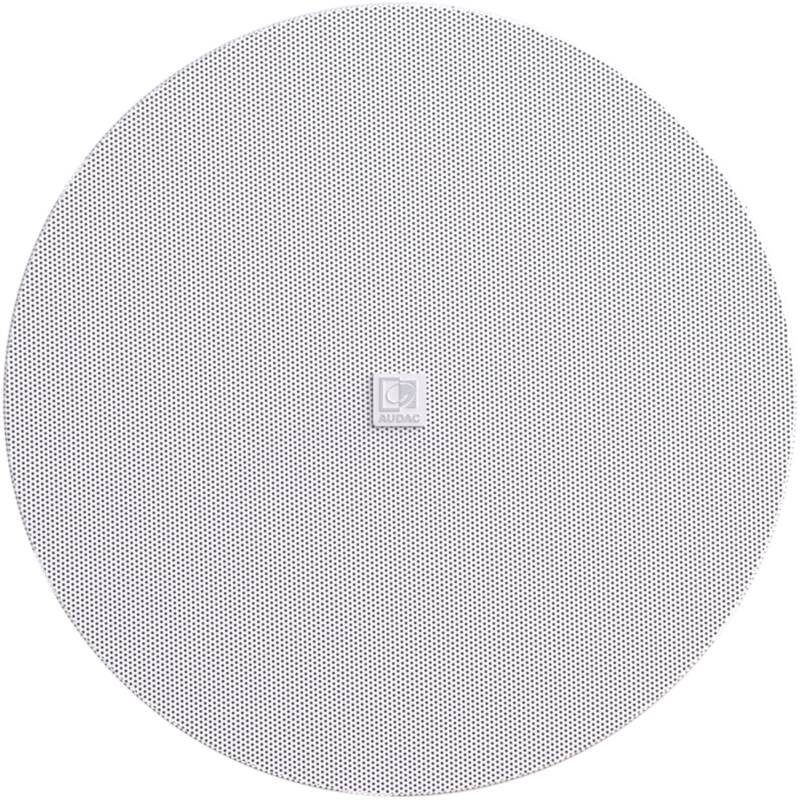

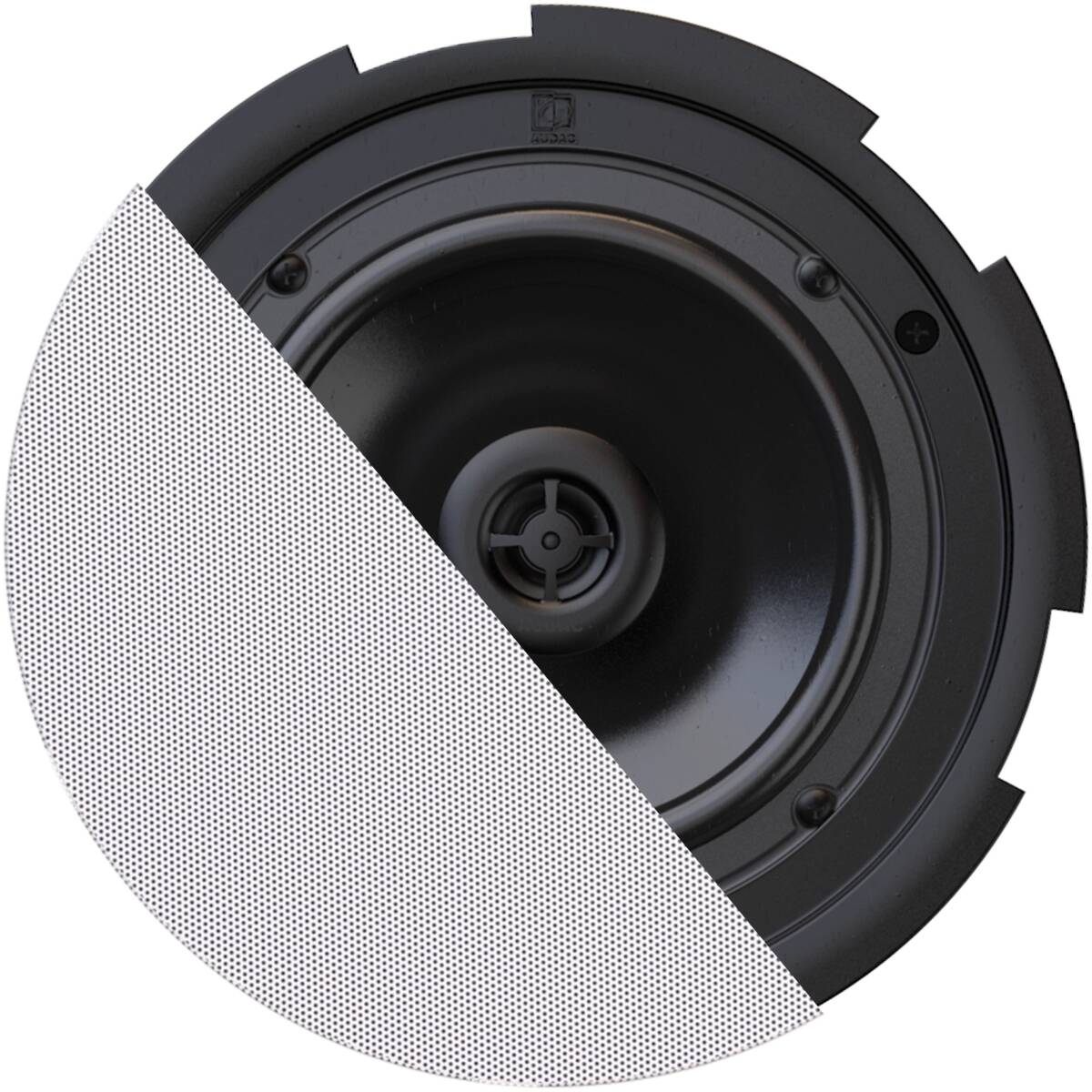

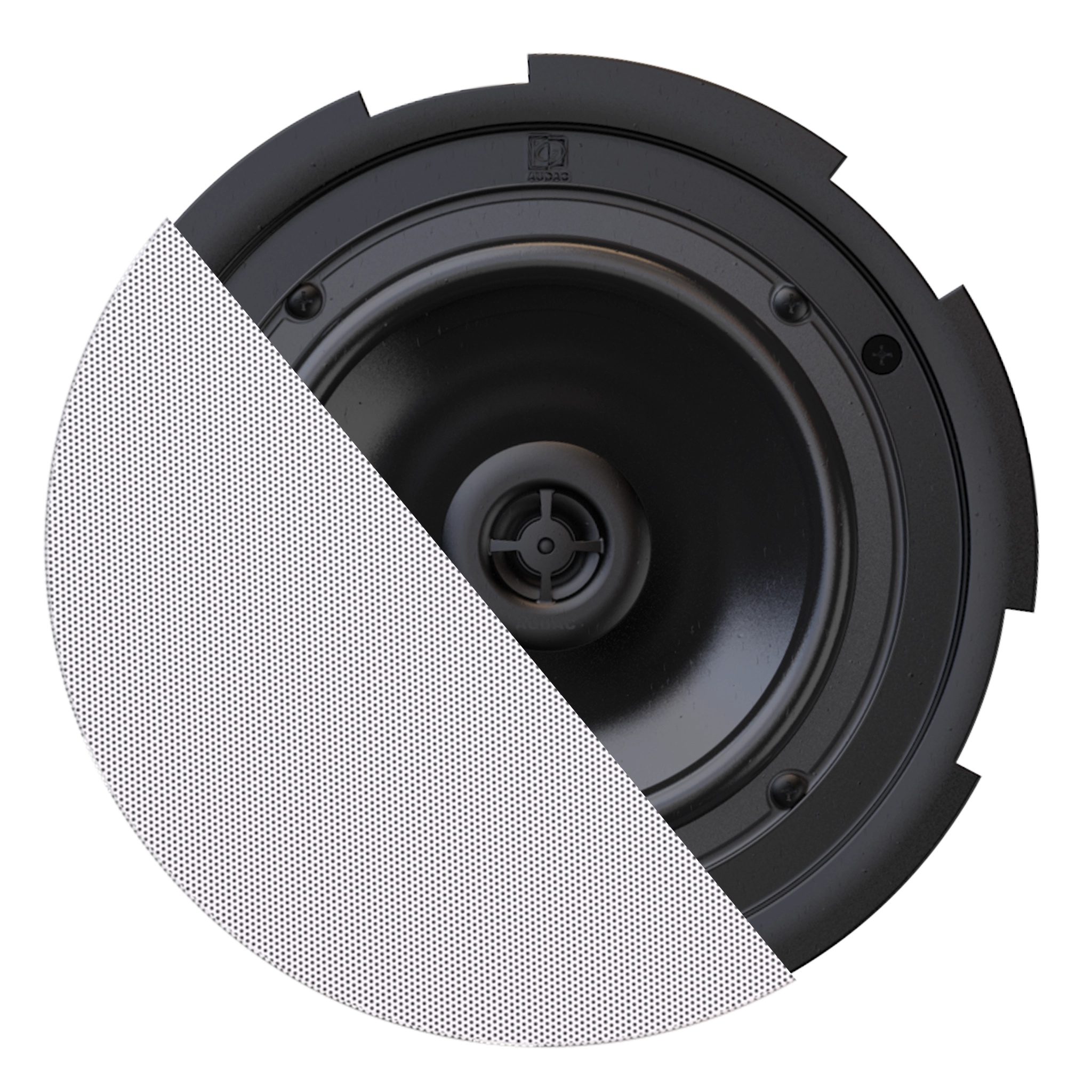

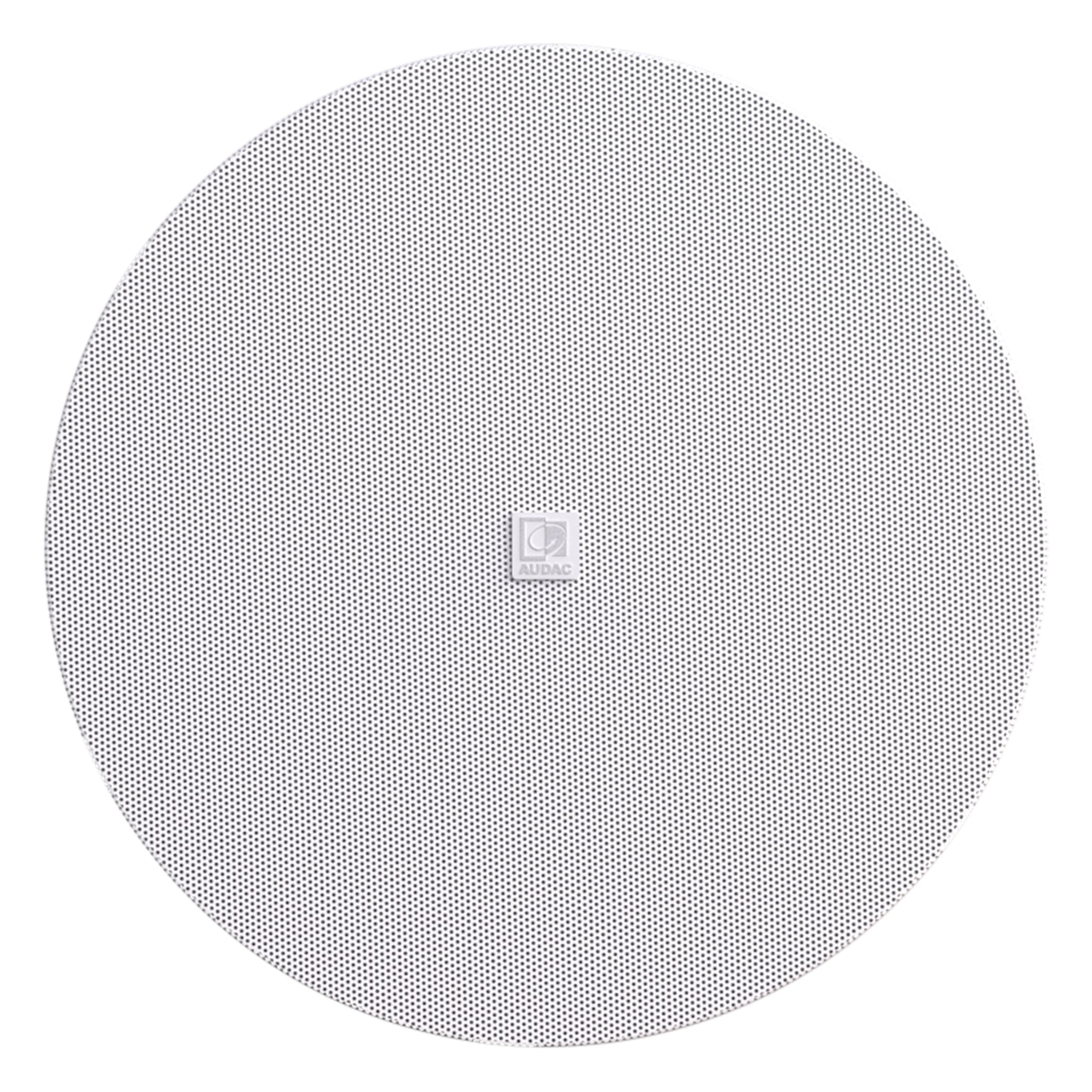

Audac AUA-CIRA840DI/W QuickFit 2-way 8 Ceiling Speaker With TwistFix Grill White Version

The Audac CIRA840DI/W is an 8-inch dual voice coil ceiling loudspeaker designed for distributed audio installations where stereo audio playback is required from a single speaker location. Its clean architectural design allows discreet integration into ceilings while providing balanced and detailed sound reproduction.

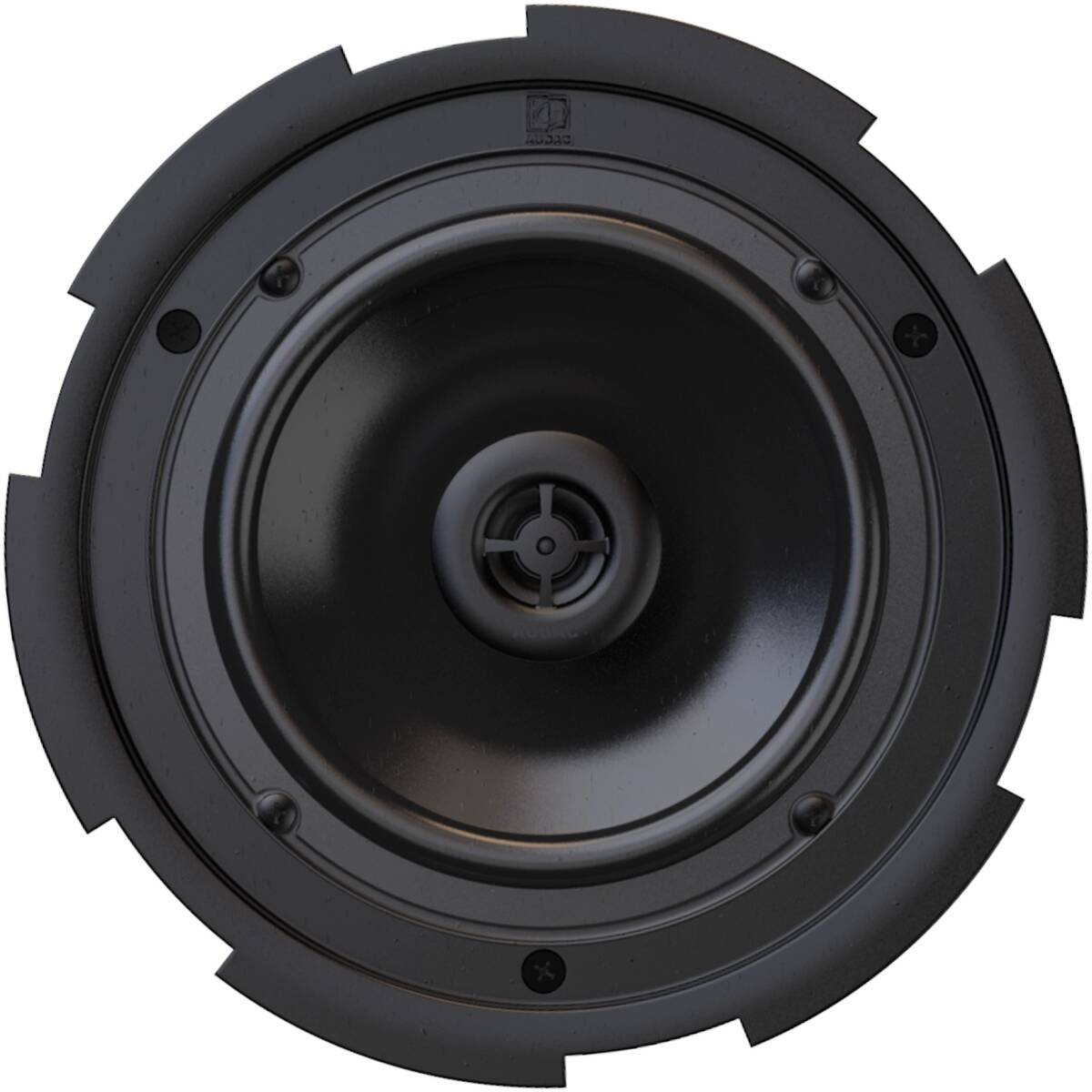

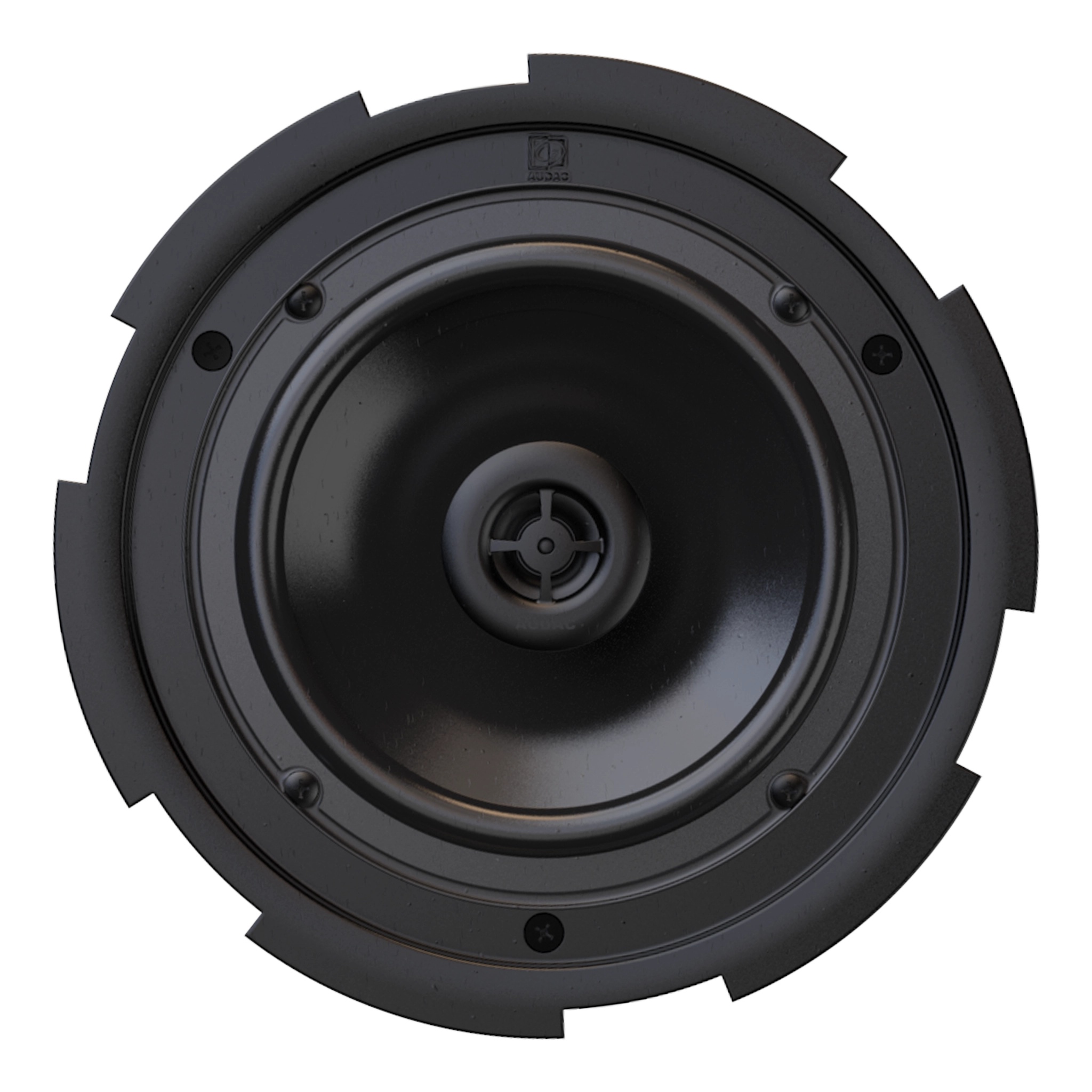

The speaker features an 8-inch polypropylene mid/low-frequency driver with a coaxially mounted tweeter, combined with a dual voice coil configuration that allows both left and right audio channels to be reproduced from a single speaker. This makes it ideal for areas where installing two separate speakers is not practical.

The integrated transformer allows operation in 70 V and 100 V distributed audio systems, while the QuickFit mounting system ensures fast and secure installation in ceiling panels.

The CIRA840DI/W is ideal for retail environments, restaurants, offices, hospitality venues, meeting rooms, and residential multi-room audio systems where stereo sound is required from a single installation point.

Key Features

• 8-inch dual voice coil ceiling loudspeaker
• Provides stereo audio from a single speaker

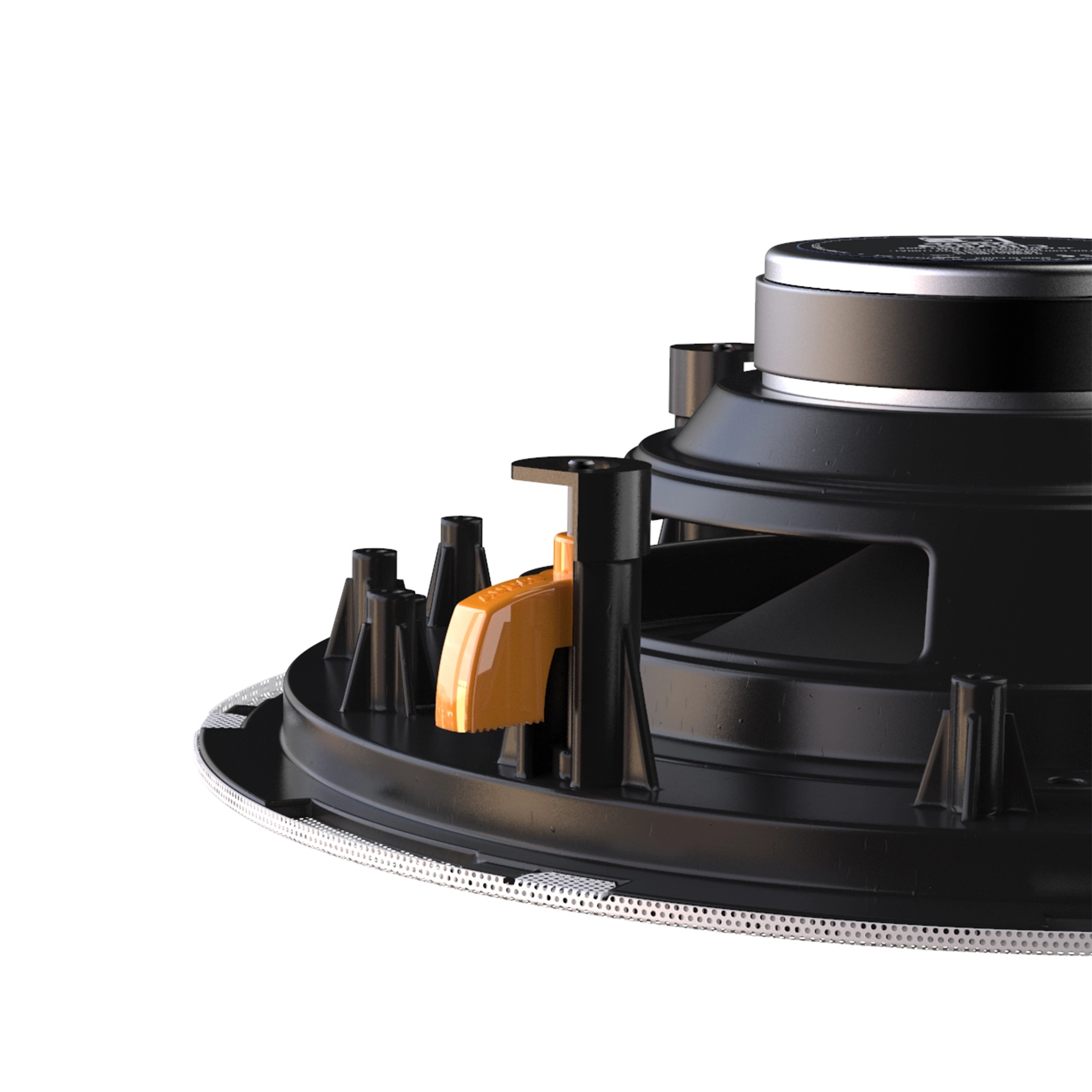

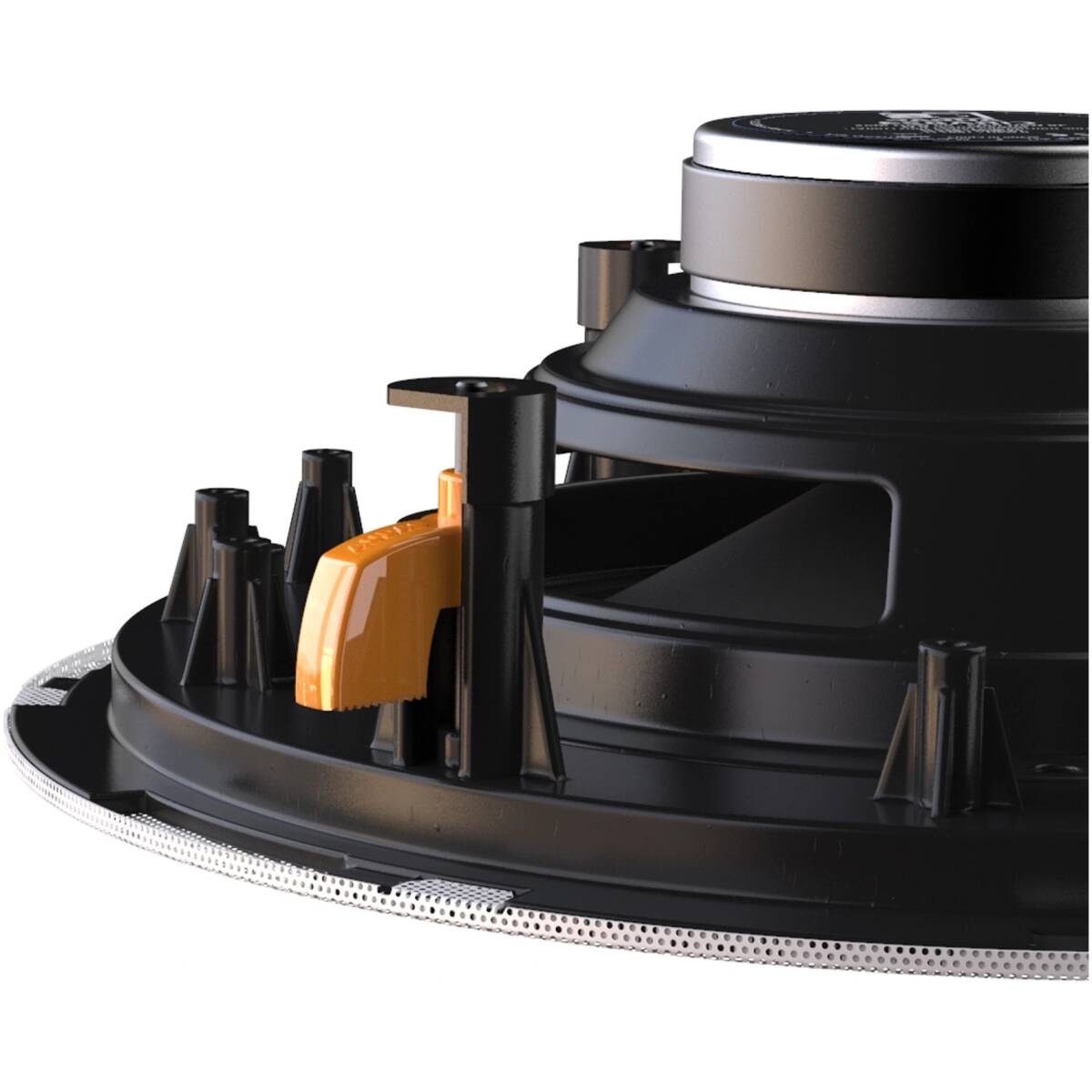

• QuickFit mounting system for fast installation
• Compatible with 70 V / 100 V distributed audio systems
• Coaxial tweeter for improved high-frequency clarity
• Wide dispersion for consistent sound coverage

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 8-inch mid/low driver with coaxial tweeter
Voice coil configuration: Dual voice coil

Power Handling

Continuous power (AES / RMS): 2 × 40 W
Program power: 2 × 80 W
Peak power: 2 × 160 W

Frequency Performance

Frequency response (±3 dB): 60 Hz – 20 kHz
Frequency range (-10 dB): 50 Hz – 20 kHz

Line Transformer Tappings

100 V taps: 40 W / 20 W / 10 W / 5 W
70 V taps: 20 W / 10 W / 5 W / 2.5 W

Construction

Mounting type: QuickFit ceiling mount
Front finish: Steel grille
Colour: White
