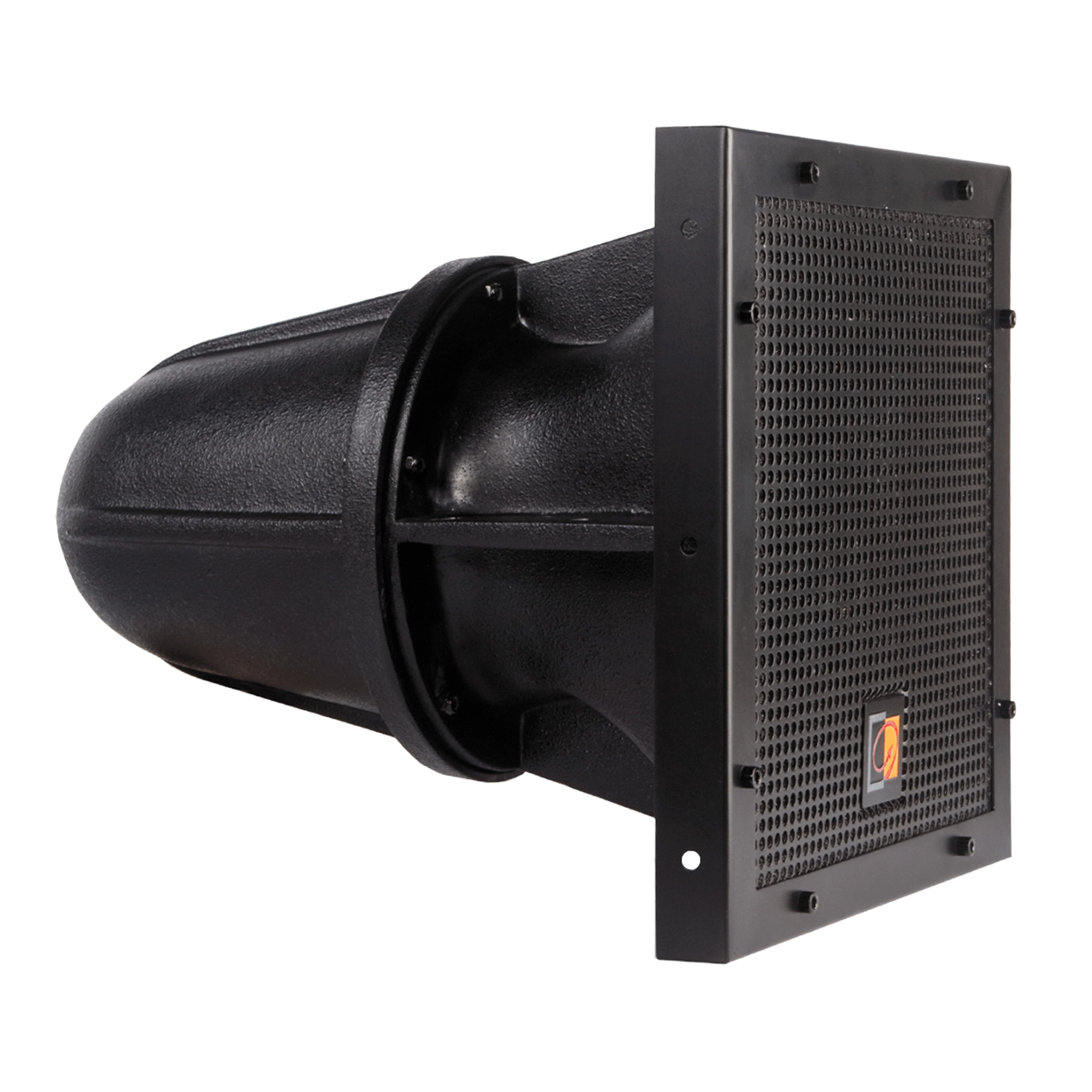

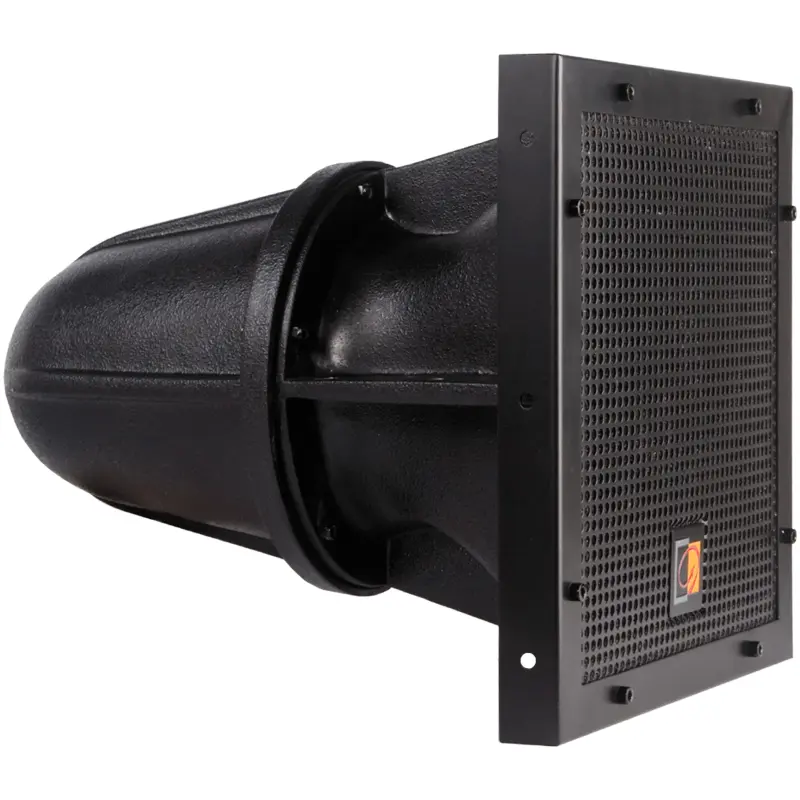

Audac HS208 8” Full Range Horn Speaker

Brand:

R19 770,00

Out of stock

Out of stock

16 People watching this product now!

Description

The AUDAC HS208 is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS208 features a 1,3” HF driver with an 8” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The construction of the HS208 is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there is an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 54, this speaker is suitable for any environment where humidity or moisture are present. When an even higher Ingress Protection rating such as IP65 is needed we advise to use the HS208T. For connecting, two speaker connectors are provided. The second connector can be used for linking through the signal to other speaker cabinets. Mounting brackets: – MBK208Z

Technical specifications

Available models
HS208MK2 Full range horn speaker 8″
System specifications
Speaker type 2-way horn speaker
Peak power handling 600 W
Program power handling 300 W
Continuous power (AES) 150 W
Inputs Connector -pin Euro Terminal block (Balanced)
Impedance 8 Ω
Sensitivity (1W/1m) 97 dB
Sound Pressure (Max. W/1m) 123 dB
Frequency Response (± 3 dB) 100 Hz – 18 kHz
Range (-10 dB) 70 Hz – 20 kHz
Crossover Frequency 1.5 kHz
Type Passive built-in
Dispersion Horizontal 40°
Vertical 40°
Ingress Protection rating IP54
Temperature Operating -20 – +50 °C
Connection 2 x heavy-duty SpeakON NLT4MPBAG (linkthrough)
Drivers HF 1.3” Compression driver
MF 8”
Product Features
Dimensions 360 x 360 x 482 mm (W x H x D)
Weight 11.600 kg
Construction Multi-Layer glass composite material with textured EPDM black coating
Front finish Powder coated aluminium with lining
Mounting & handling Mounting bracket fixing holes
Accessories Optional MBK208MK2 Wall mounting bracket
