Audac HS212T 12” Full Range Horn Speaker

Brand:

R42 230,00

×

Beat The Price Request

Got a lower price elsewhere? Share the link or an official quote with us, and we'll do our best to match or beat it!

16 People watching this product now!

Description

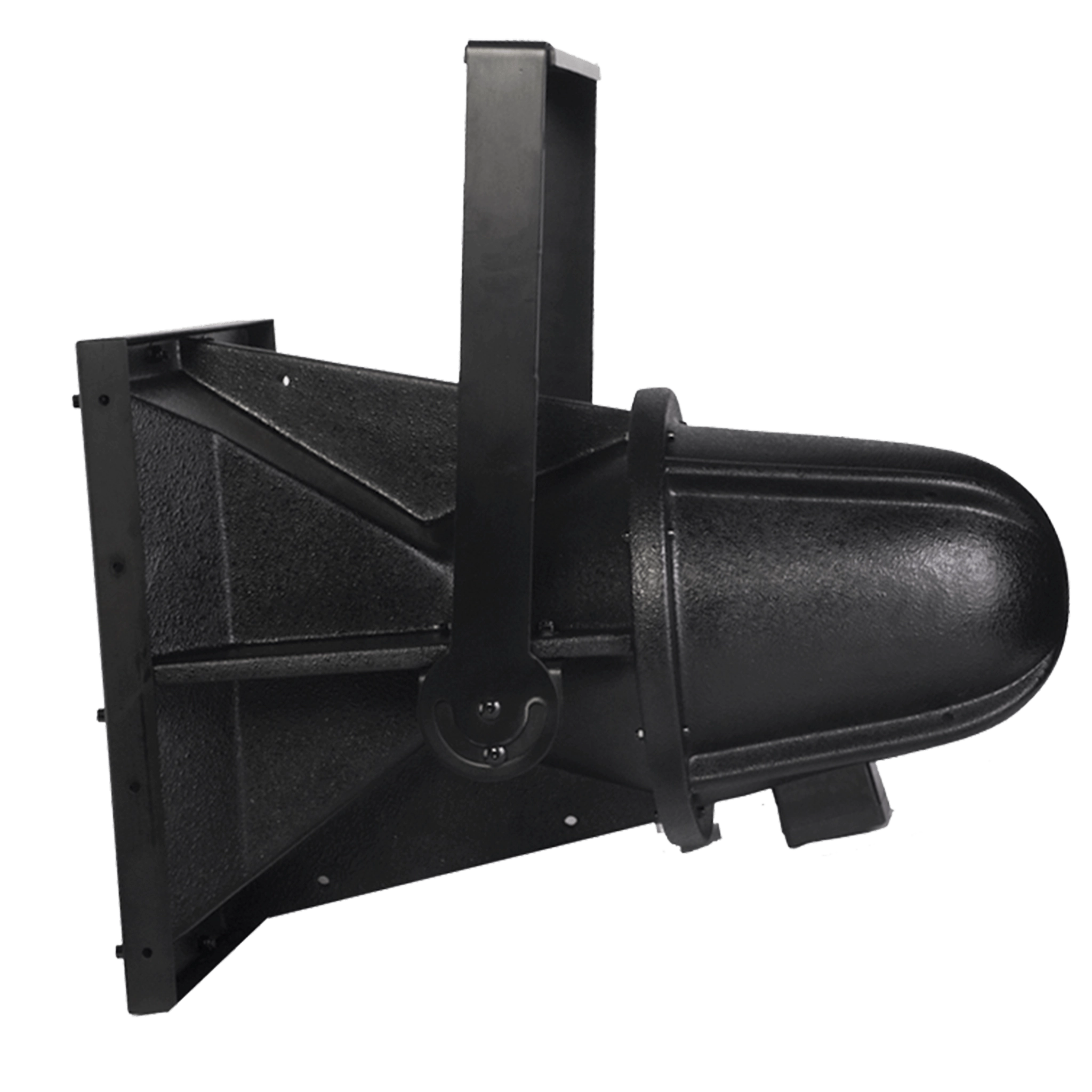

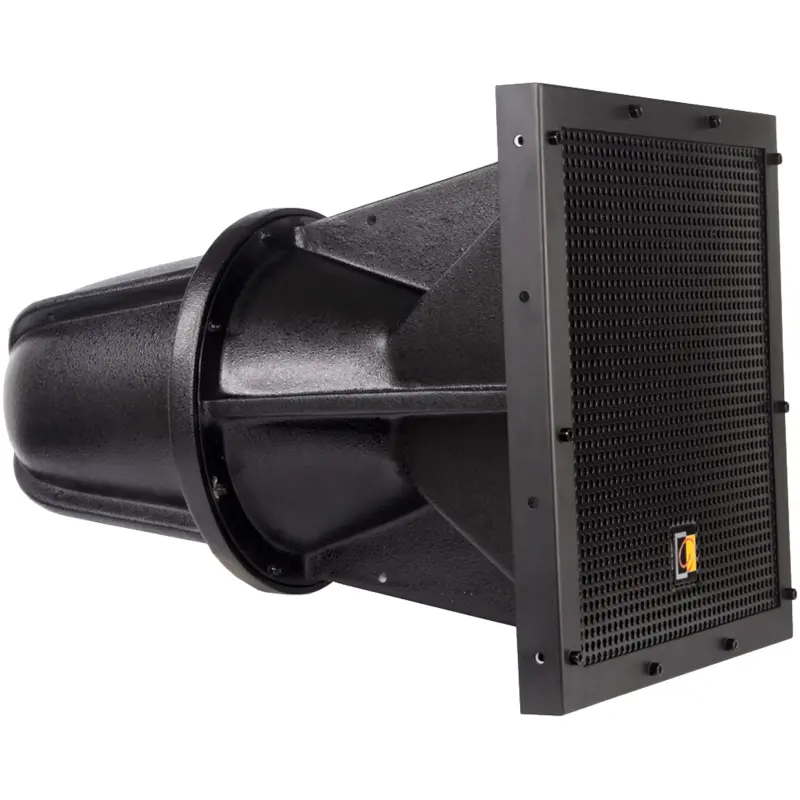

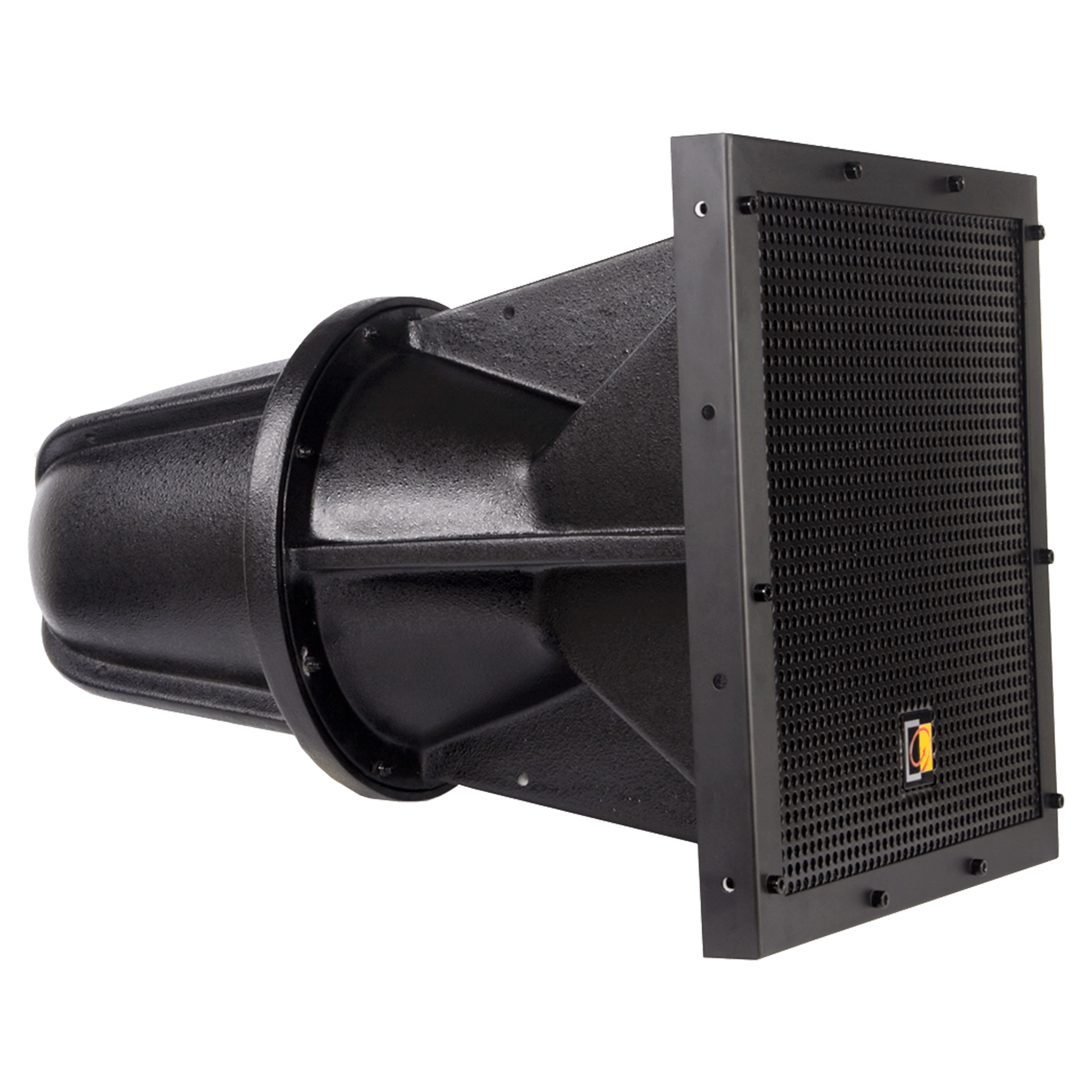

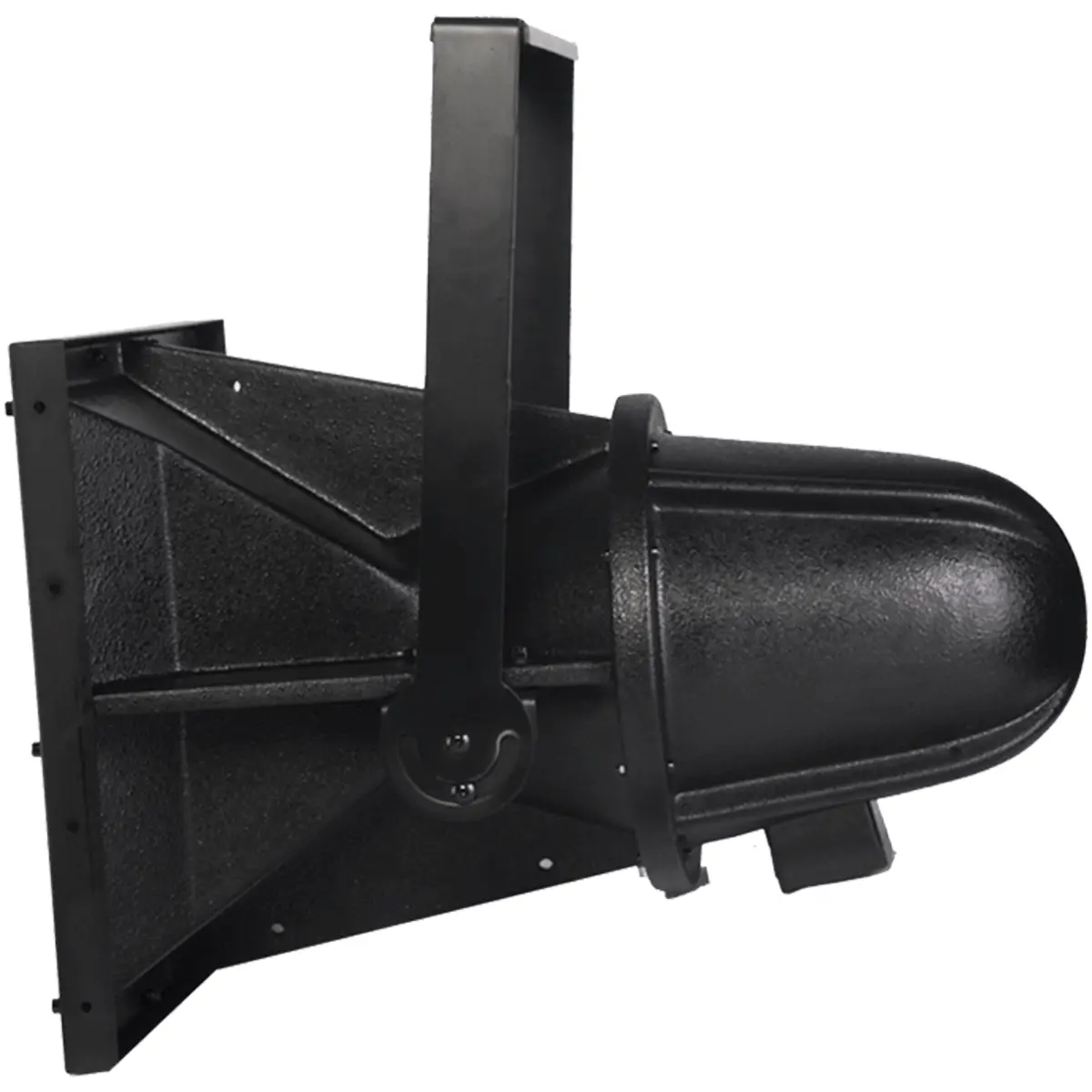

The AUDAC HS212T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1,8” HF driver with an 12” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The HS212T contains the possibility to choose from power tapping for: – 240 Watt, 120 Watt, 60 Watt @ 100V – 8 Ohm impedance. The construction of the HS212T is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 65, this speaker is suitable for any environment where humidity or moisture are present. At the rear, you’ll find cable clamps to select the line transformator as desired. The cable clamps are shielded to obstruct moisture and humidity. Mounting brackets: – MBK212Z (Stainless Steel)

Technical specifications

Available models
HS212TMK2  Black version – 8Ω and 100V
System specifications
Speaker type 2-way horn speaker
Peak power handling 1400 W
Program power handling 700 W
Continuous power (AES) 350 W
Inputs Connector -pin Euro Terminal block (Balanced)
Impedance 8 Ω
Line Transformer Tappings 1 240 W / 42 Ω
2 120 W / 83 Ω
3 60 W / 167 Ω
Sensitivity (1W/1m) 95 dB
Sound Pressure (Max. W/1m) 125 dB
Frequency Response (± 3 dB) 80 Hz – 18 kHz
Range (-10 dB) 65 Hz – 20 kHz
Crossover Frequency 1.5 kHz
Type Passive built-in
Dispersion Horizontal 40°
Vertical 40°
Ingress Protection rating IP65
Temperature Operating -20 – +50 °C
Connectors Barrier terminal block in waterproof connection box
Drivers HF 1.8” Neodymium compression driver
MF 12”
Product Features
Dimensions 508 x 508 x 732 mm (W x H x D)
Weight 34.500 kg
Construction Multi-Layer glass composite material with textured EPDM black coating
Front finish Powder coated aluminium with lining
Mounting & handling Mounting bracket fixing holes
Colours Black
Accessories Optional MBK212Z Wall mounting bracket
MBK212MK2 Mounting bracket
