The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 120 Watt and the beamwidth of 174° x 9° (-6 dB avg 1 kHz – 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues
A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 40W, 20W and 10W and/or low impedance (12Ω) systems.**

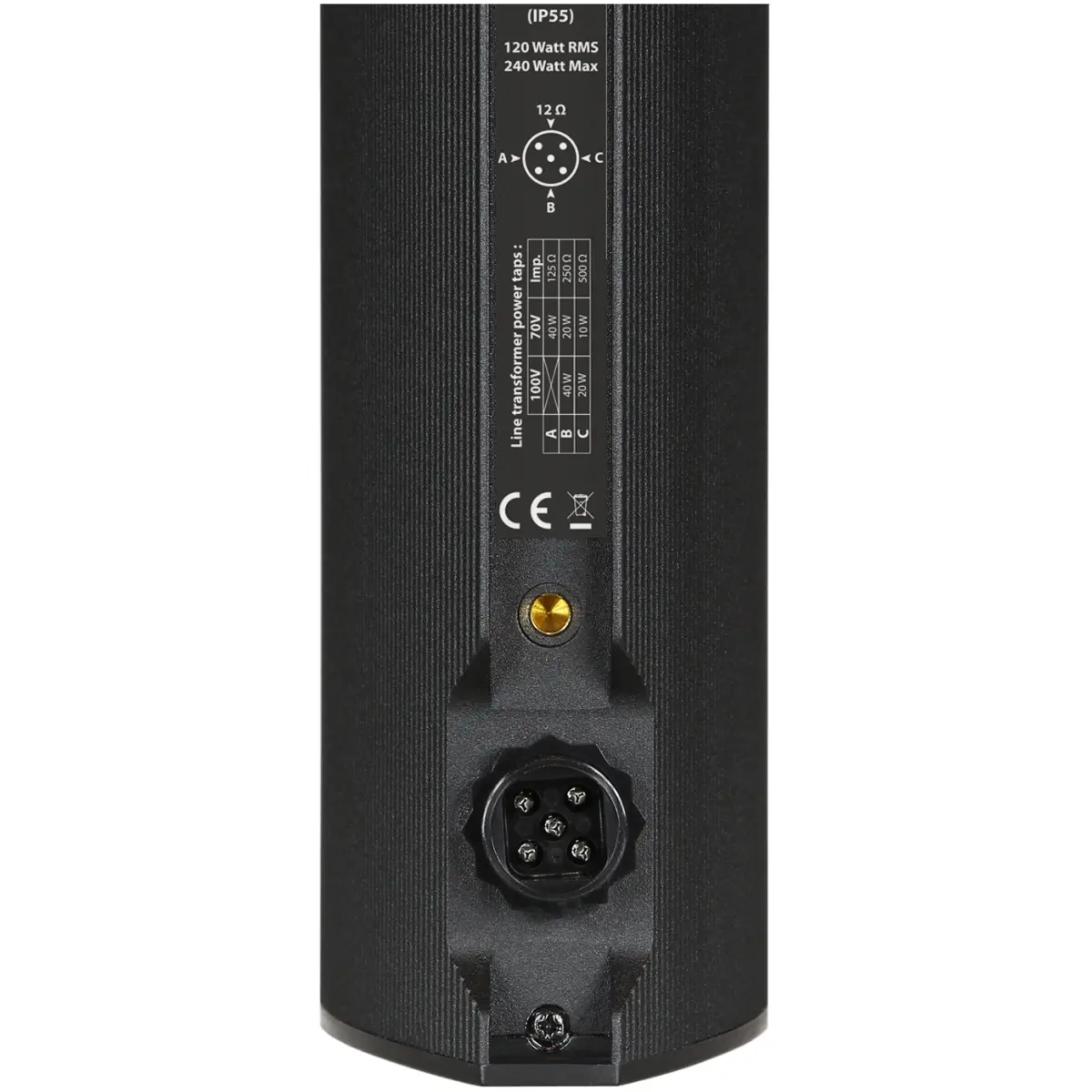

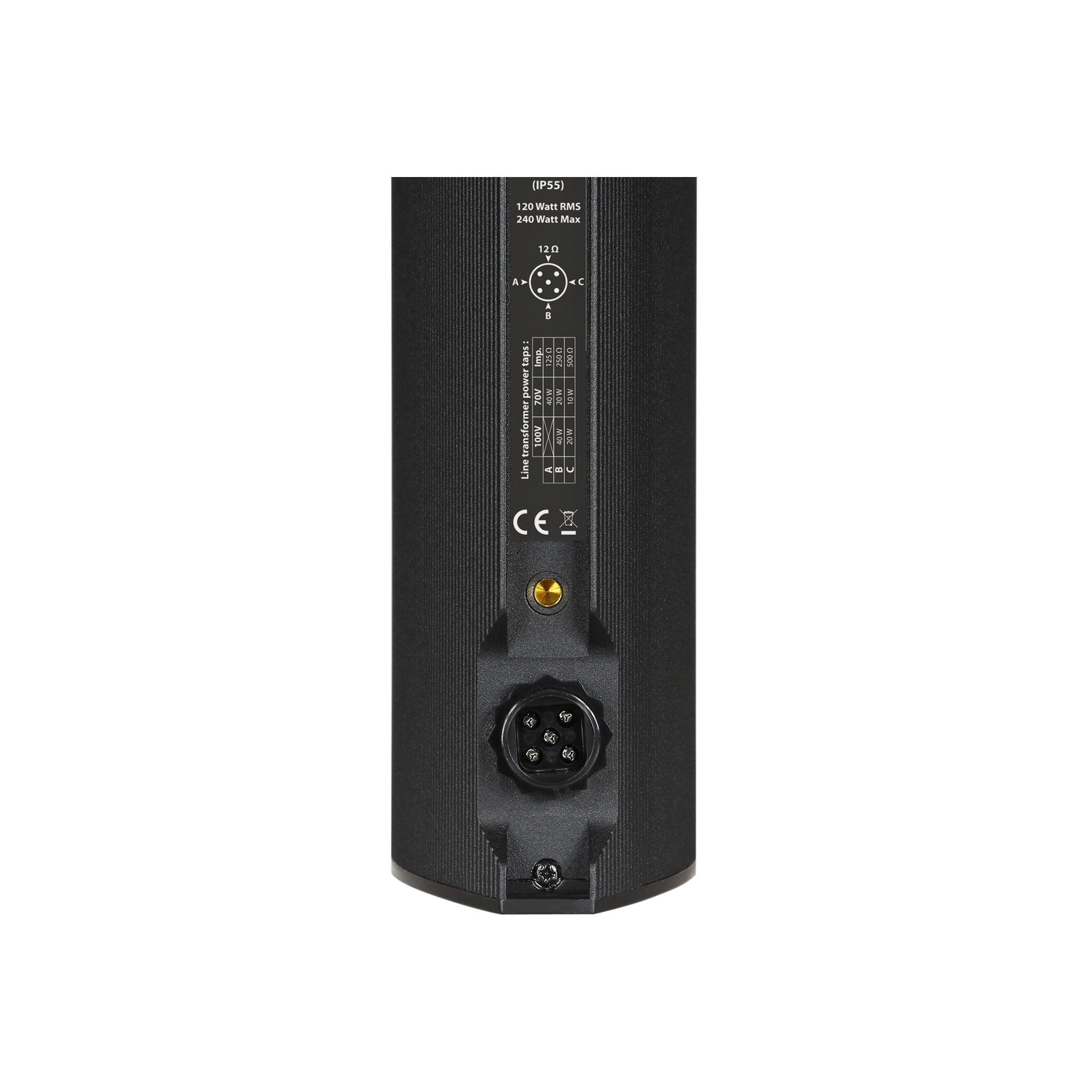

To guarantee the optimal performance and long term reliability in outdoor circumstances, various specific features are provided. The connection of the loudspeaker is performed using a waterproof rotatable AWX-5 connector whereby the desired power tap can be selected depending on the rotation of the connector. Secondly, the 12 drivers receive a special coating to protect them from the elements while an acoustically transparent and water-repellent cloth driver keeps penetrating water at a safe distance.
Further added reliability is achieved by using an aluminum front grill and a stainless steel mounting bracket. Together, these improvements result in a weatherproof IP55 column speaker of exceptional quality and design!
Technical specifications
Available models
| KYRA12/OB | Outdoor black version |
| KYRA12/OW | Outdoor white version |
System specifications
| Speaker type | Broadband column | |
| Peak power handling | 480 W | |
| Program power handling | 240 W | |
| Continuous power (AES) | 120 W | |
| Impedance | 12 Ω | |
| Sensitivity (1W/1m) | 92 dB | |
| Sound Pressure (Max. W/1m) | 113 dB | |
| Frequency | Range (-10 dB) | 120 Hz – 20 kHz |
| Drivers | 12 x 2” | |
| Line Transformer Tappings | 1 | 40 W – 125 Ω (70V) |
| 2 | 250 Ω – 100 V / 40 W – 70 V / 20 W | |
| 3 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| Ingress Protection rating | IP55 | |
| Temperature | Operating | -20 – +50 °C |
| Connectors | Waterproof AWX-5 connector | |
| Dispersion | Horizontal | 174° (-6 dB avg 1 kHz – 4 kHz) |
| Vertical | 9° (-6 dB avg 1 kHz – 4 kHz) | |
| Incline angle | Bottom | 13° |
| Left | 42° | |
| Right | 42° | |
Product Features
| Front finish | Aluminium grill | |
| Construction | Aluminium with plastic side covers | |
| Dimensions | 70 x 1006 x 101 mm (W x H x D) | |
| Colours | Black (KYRA12/OB – RAL9005) | |
| White (KYRA12/OW – RAL9003) | ||
| Accessories | Included | 2-way Revolving mounting bracket |
| 5-pin AWX5 connection cable | ||
