The LUNA-F is the next-generation audio matrix processor, offering highly flexible and scalable system solutions for audio distribution from medium-sized to the largest enterprise solutions. The internal structure provides unseen flexibility and a vast number of possibilities for an audio distribution system. The powerful DSP’s (dual SHARC) combined with 32-bit ADC and DAC converters allow the most extensive signal processing with superb audio quality.
It includes 8 Mic/Line Inputs, 8 flex channels that can be switched between 8 Mic/Line Inputs or Line level output, and 8 Line level outputs. Additionally, up to 64×64 Dante™/AES67 I/O Channels are available with primary and secondary ethernet ports, allowing the integration of the system with any Dante™/AES67 compatible audio over IP I/O units with redundancy.
The flexible architecture allows fully flexible mapping of the signal path to any of the 32 mono or 16 stereo zones, while the powerful DSP resources provide unique processing features on all input channels, output channels, and zones. Dante-enabled paging microphones and smart wall panels make the complete system solution even more flexible and unique.
The internal Linux core provides the entire control of the LUNA series while also accommodating messaging, event scheduling, and implementation possibilities for future Linux-based functions. In addition to full network control, RS-232 and RS-485 interfaces are available for receiving third-party serial communication. For your system solution, you can easily incorporate the control of the entire system and compatible devices into your user interface by using our simplified design and system control platform, AUDAC Touch™.
FEATURES:
- 8 Mic/line inputs, 8 flex inputs/outputs and 8 outputs
- 24 fully flexible GPIO in- or outputs
- Up to 64 x 64 x Dante/ AES67 channels (16 x 16 included)
- Acoustic Echo Cancellation (4 channels) – Optional add-on
- Event Handler (trigger & timed event scheduling)
- Auto-update (OTA) feature
- WaveTune™ & WavePreset™ audio processing
- Superior sound quality & low latency
- Compatible with all AUDAC network control devices (incl 3 party equipment)
- 16 Stereo or up to 32 mono flexible zones (all combinations possible)
Flexible network audio matrix processor
- 8 Mic/line inputs, 8 flex inputs/outputs and 8 outputs
- 24 fully flexible GPIO in- or outputs
- Up to 64 x 64 x Dante/ AES67 channels (16 x 16 included)
- Acoustic Echo Cancellation (4 channels) – Optional add-on
- Event Handler (trigger & timed event scheduling)
- Auto-update (OTA) feature
- WaveTune™ & WavePreset™ audio processing
- Superior sound quality & low latency
- Compatible with all AUDAC network control devices (incl 3 party equipment)
- 16 Stereo or up to 32 mono flexible zones (all combinations possible)
Technical specifications
System specifications
| Inputs | Mic / Line inputs | 8 |
| Flex inputs / outputs | 8 | |
| GPIO Inputs | 24 (flex) | |
| USB Inputs (Type C) | Front (file transfer) | |
| Rear (file transfer) | ||
| Mass storage for messages | ||
| Outputs | Line outputs | 8 |
| GPIO Outputs | 24 (flex) | |
| Fault | NO & NC relay contact | |
| Network audio I/O | 16×16 Dante™/AES67 I/O Channels (Up to 64×64 Channels with SL-NAC8) | |
| Zones | 32 Mono | |
| 16 Stereo | ||
| Configurable settings | ALC (Automatic Gain control) | Yes |
| AEC (Acoustic Echo cancellation) | Yes (optional) | |
| Integrated event scheduler | Yes | |
| Phantom power on inputs | +48 V DC | |
| WaveTune (input & zone) | 7-band EQ | |
| WavePreset (output) | 12xBiquad +LP+HP | |
| Delay (output) | 2000 ms | |
| Mono / stereo zones (configurable) | Yes | |
| Mixing | Yes | |
| Talkover | Yes | |
| Paging | Yes | |
| Priorities | 4 each zone | |
| Integrated generator | Sine or Pnoise or Wnoise | |
| Output Volume offset | Yes | |
| Others | Antiphase, bass & treble, input volume, … | |
| DSP Processor | Dual core SHARC | |
| ARM Linux core | ||
| 2 Dedicated co-DSP | ||
| Configuration | Audac Touch™ | |

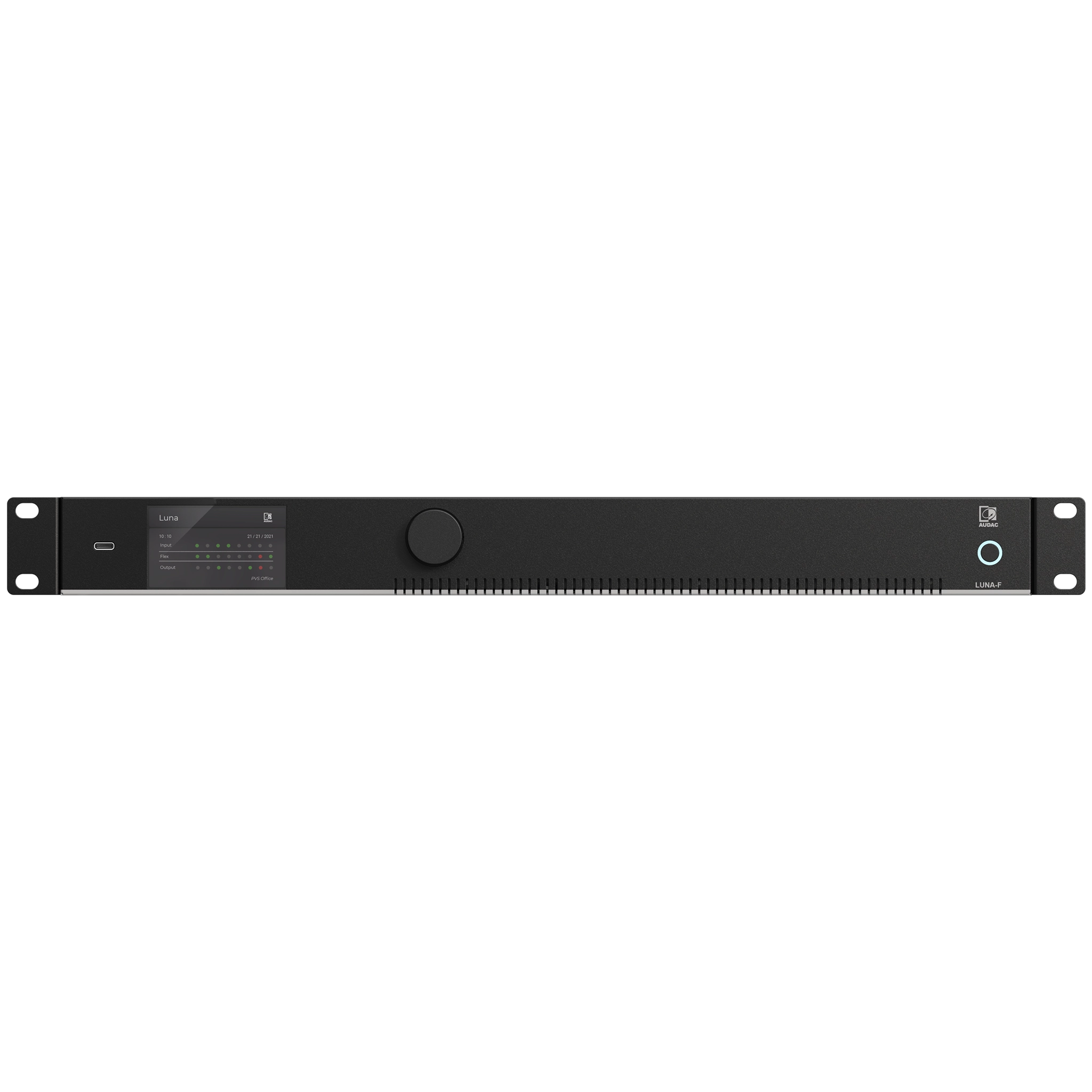

| Controls & indicators | Front panel | 2.8” LCD Display with rotary encoder |

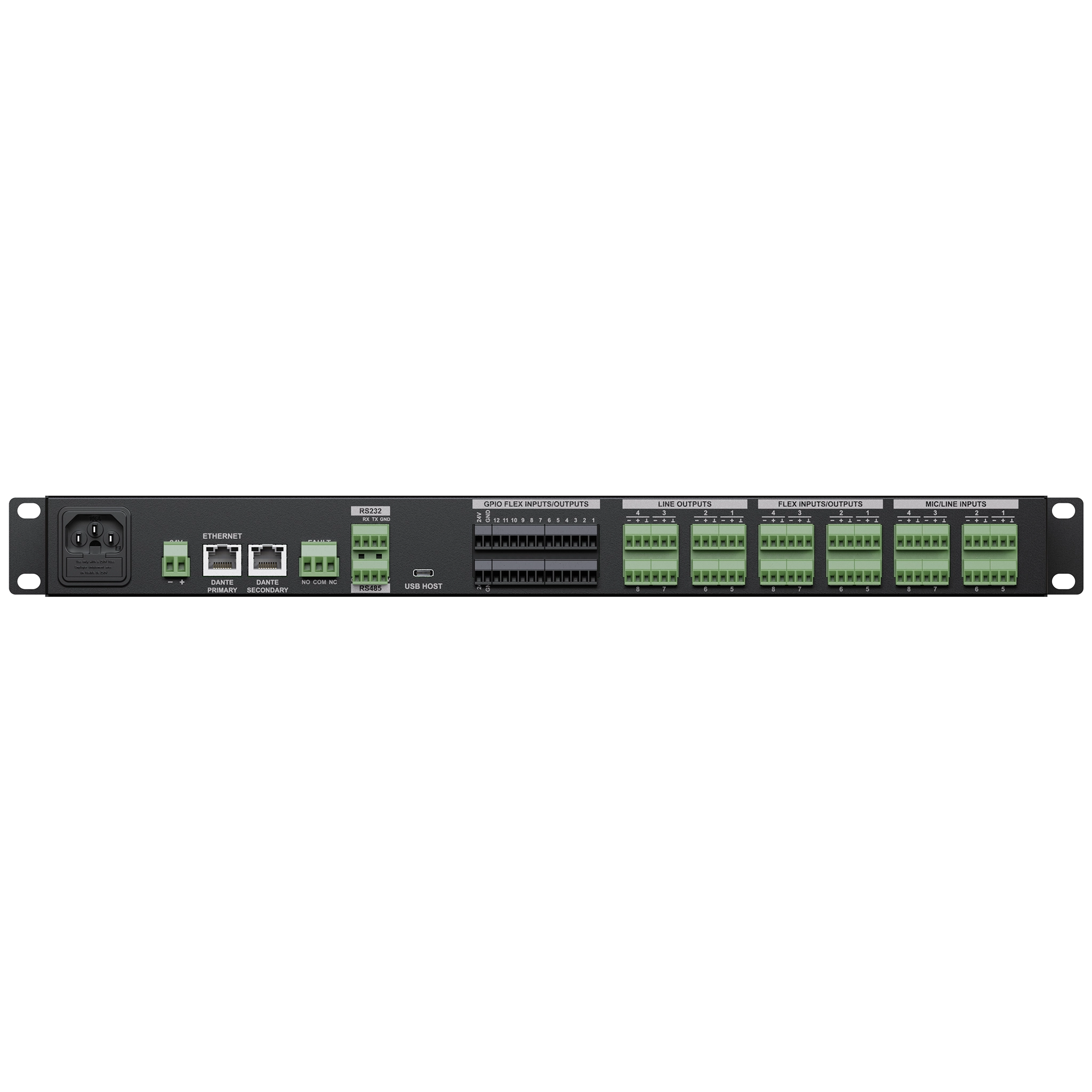

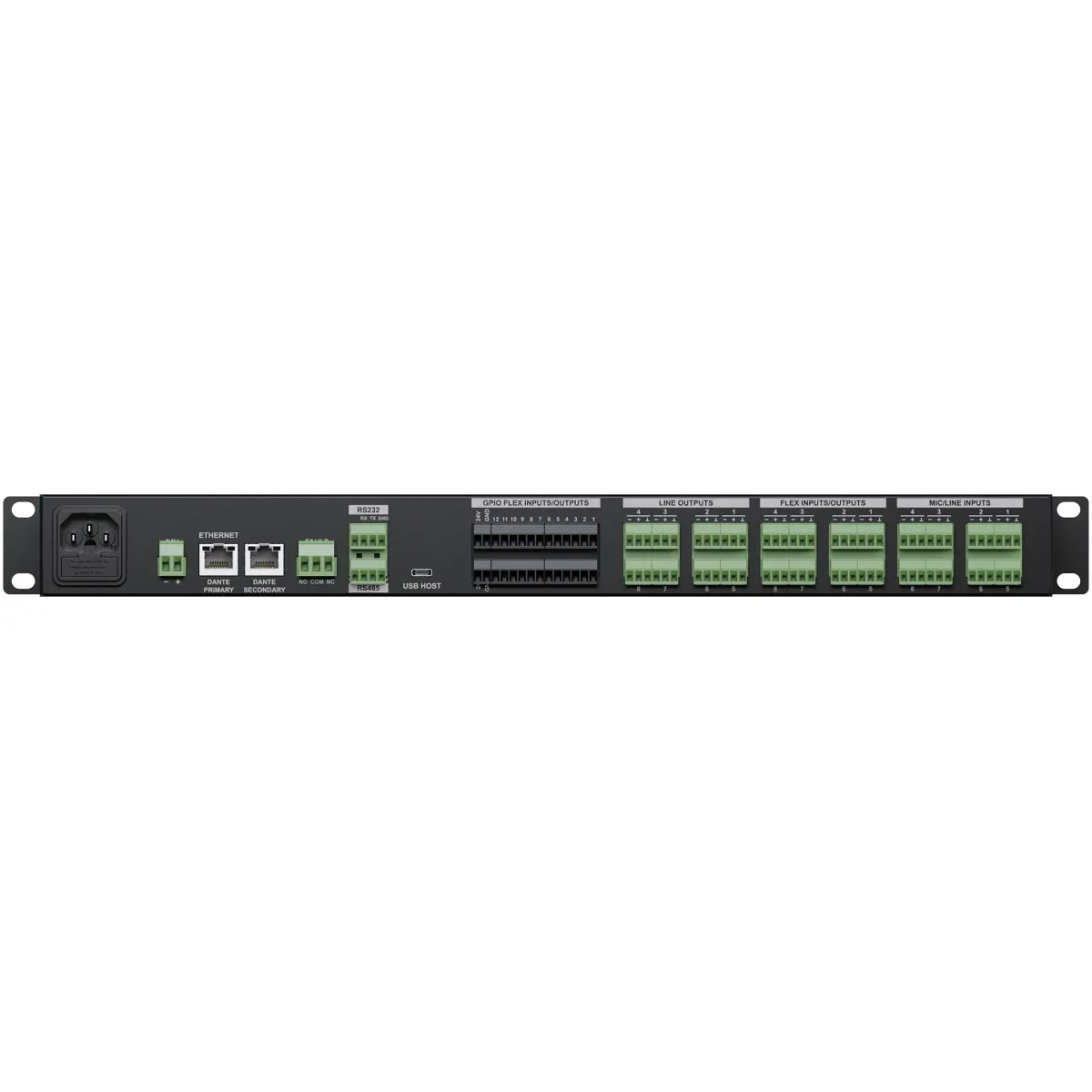

| Interface ports | RS-232 | |
| RS-485 | ||
| 2 x Gigabit Ethernet (RJ45 primary & secondary) | ||
| Power | Supply | 100 ~ 240 V AC / 50 ~ 60 Hz |
| 24 V DC | ||
Product Features
| Dimensions | 482 x 44 x 335 mm (W x H x D) |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black (RAL9005) |
