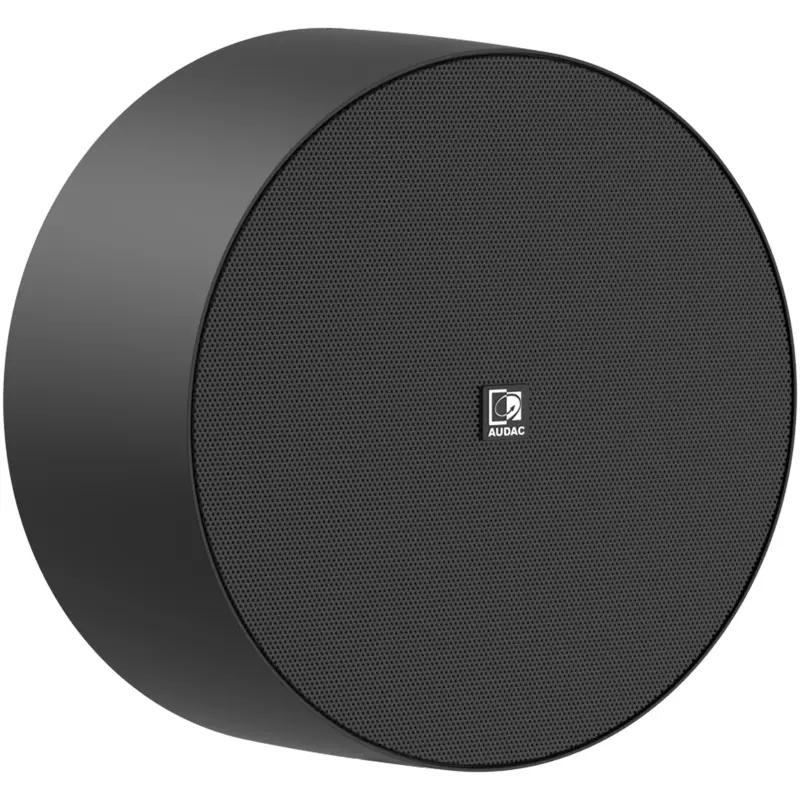

Audac NELO706 Black Surface Mount Speaker

The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colours (Black /B & White /W) to blend in with any residential, commercial or industrial environment.

FEATURES:

• Minimalistics and elegant housing
• With or without volume controller
• High intelligibility and sound accuracy
• Connection through SnapConnect™ terminals
• Diverse mounting possibilities
• Optional suspension kit (CSK100)

Technical specifications
Available models

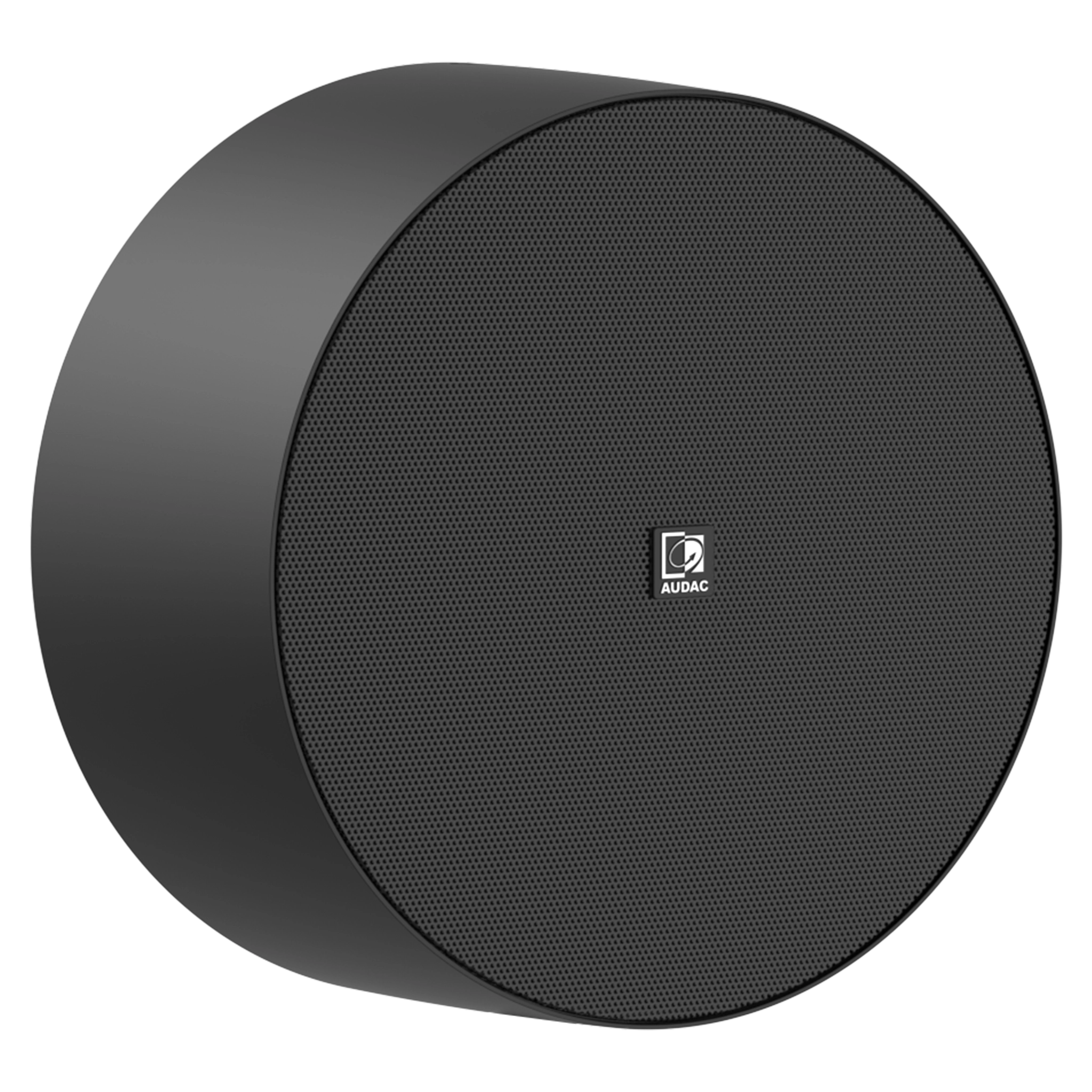

NELO706/B Black version without volume controller
NELO706I/W White version (RAL9016) without volume controller

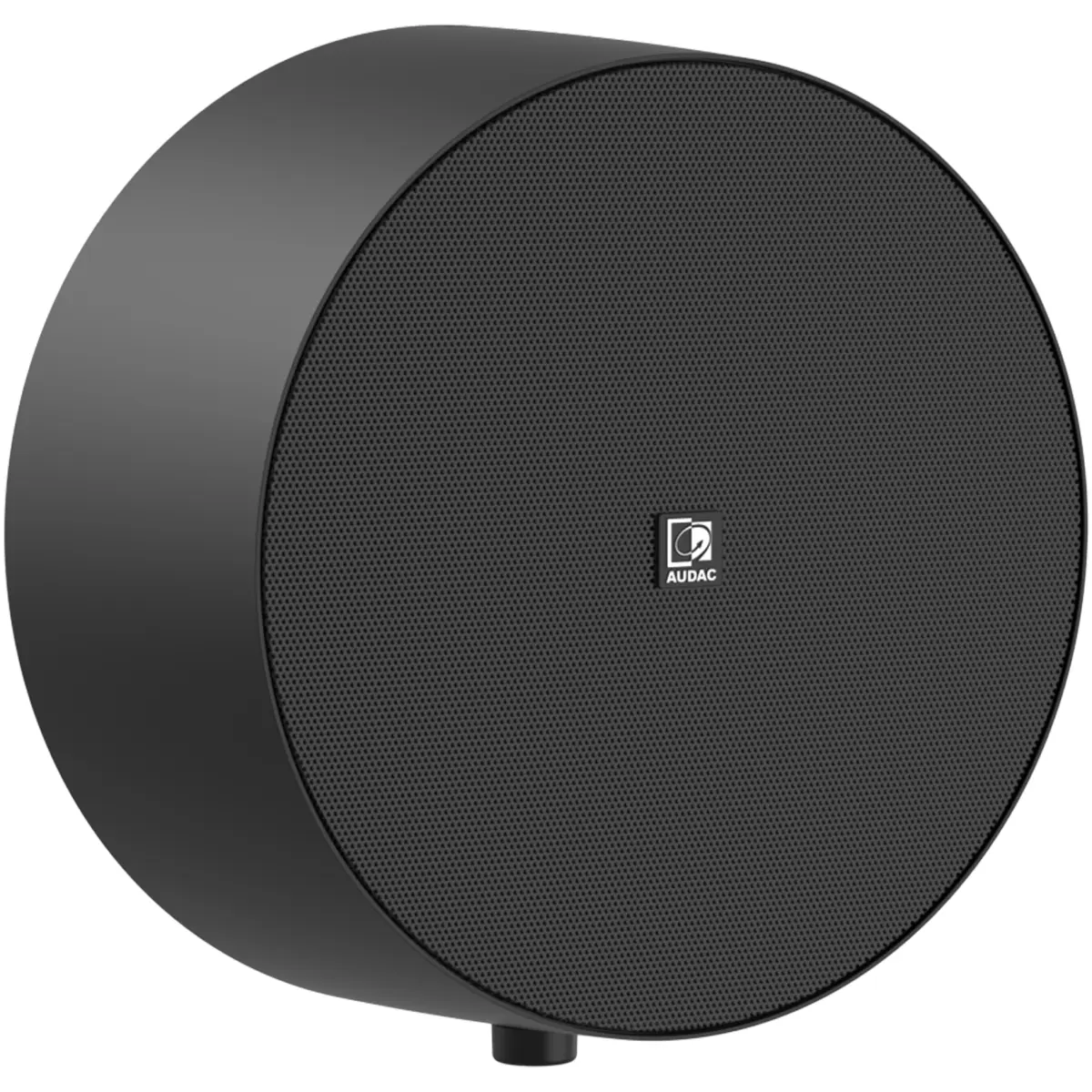

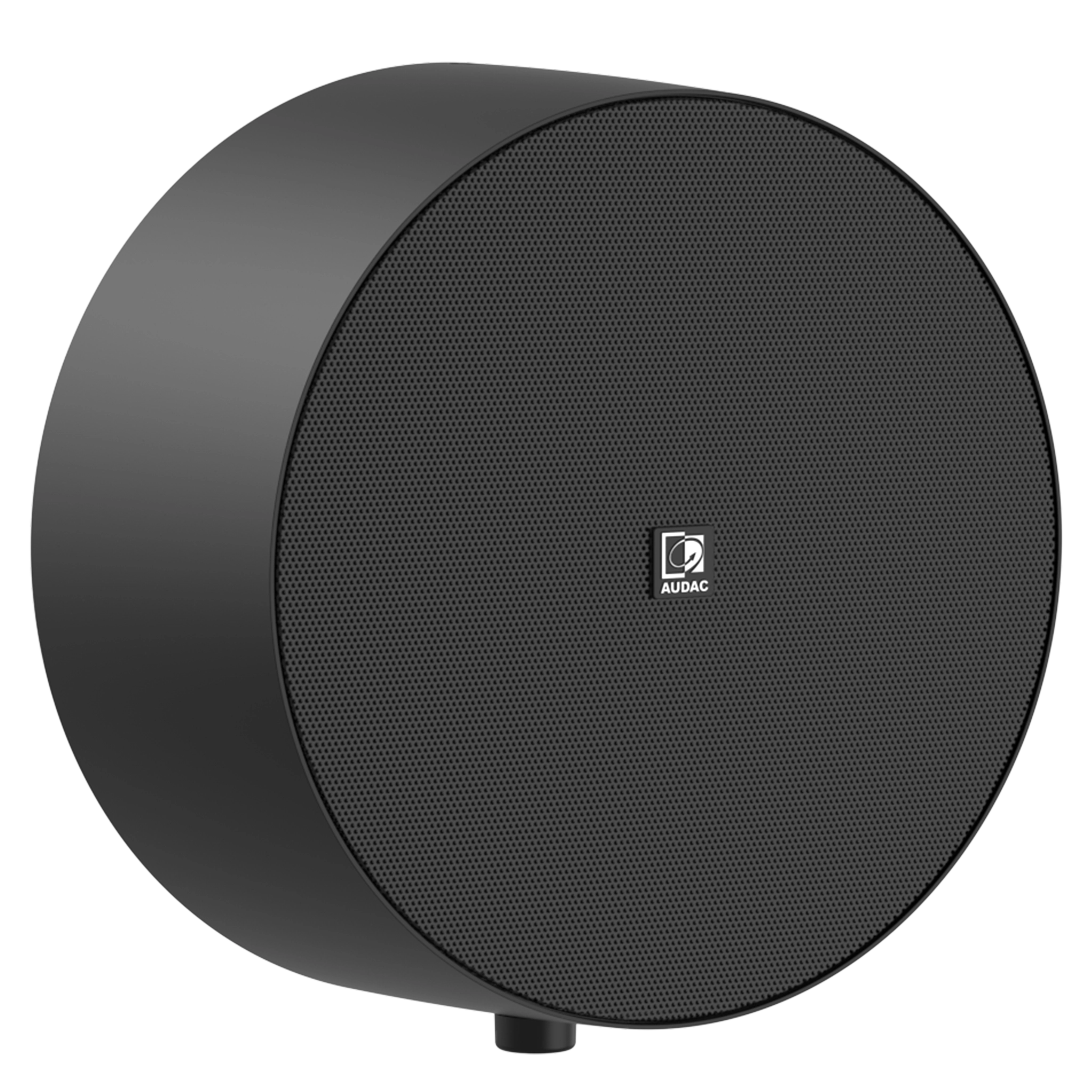

NELO706V/B Black version with volume controller
NELO706VI/W White version (RAL9016) with volume controller
System specifications
Peak power handling 40 W
Program power handling 20 W
Continuous power (AES) 10 W
Sensitivity (1W/1m) 96 dB
Sound Pressure (Max. W/1m) @ 100 V 106 dB
Speaker type Broadband
Connection SnapConnect™
Drivers 6.5” Full Range
Volume control Integrated rotary volume controller (only NELO706V)
Frequency Response (± 3 dB) 100 Hz – 15 kHz
Range (-10 dB) 70 Hz – 18 kHz
Line Transformer Tappings 1 833 Ω – 100 V / Not used – 70 V / 6 W
2 1667 Ω – 100 V / 6 W – 70 V / 3 W
3 3333 Ω – 100 V / 3 W – 70 V / 1.5 W
Dispersion Conical 140°
Product Features
Colours Black & White
Front finish Steel grill
Construction ABS
Mounting Wall/Ceiling mounting (two screw holes)
CSK100 ceiling suspension kit (optional)
Colours White (RAL9003) (NELO706/W)
White (RAL9003) (NELO706V/W)
White (RAL9016 grill + RAL9003 housing) (NELO706I/W)
White (RAL9016 grill + RAL9003 housing) (NELO706VI/W)
Black (RAL9005) (NELO706/B)
Dimensions 206.5 x 95 mm (Ø x D)
Operating temperature -25 °C ~ 70 °C
