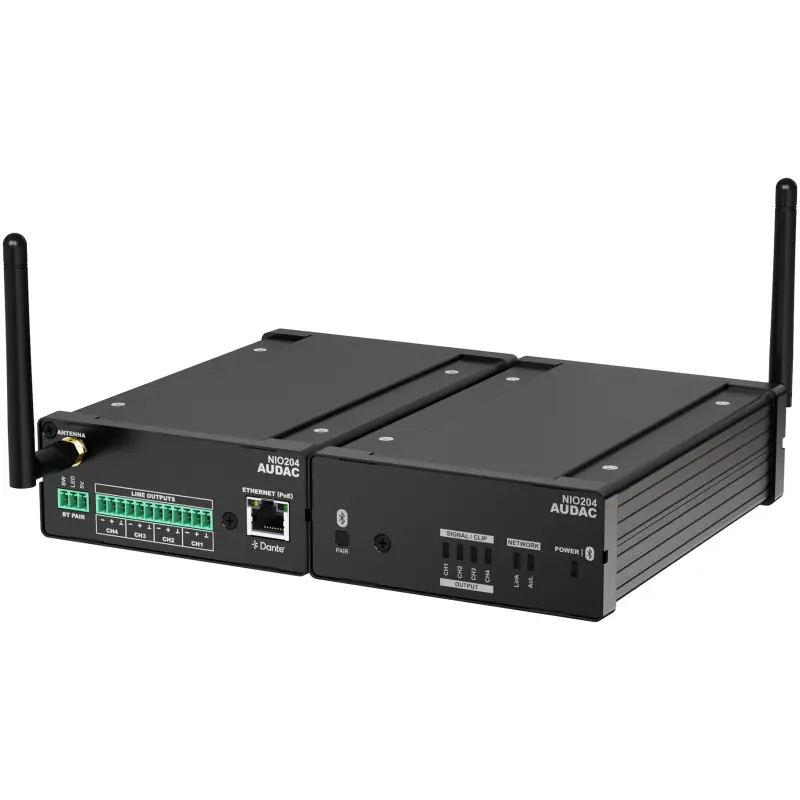

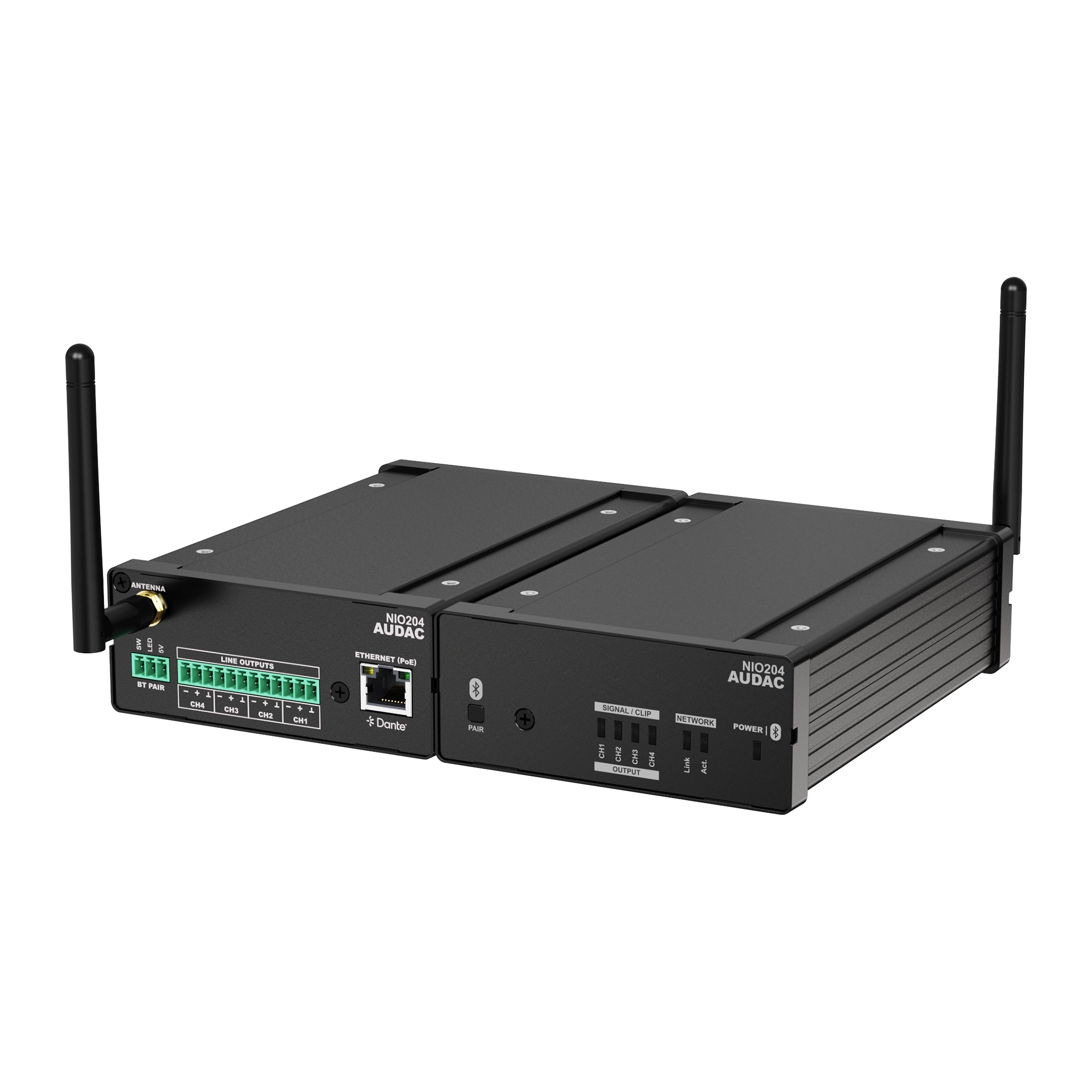

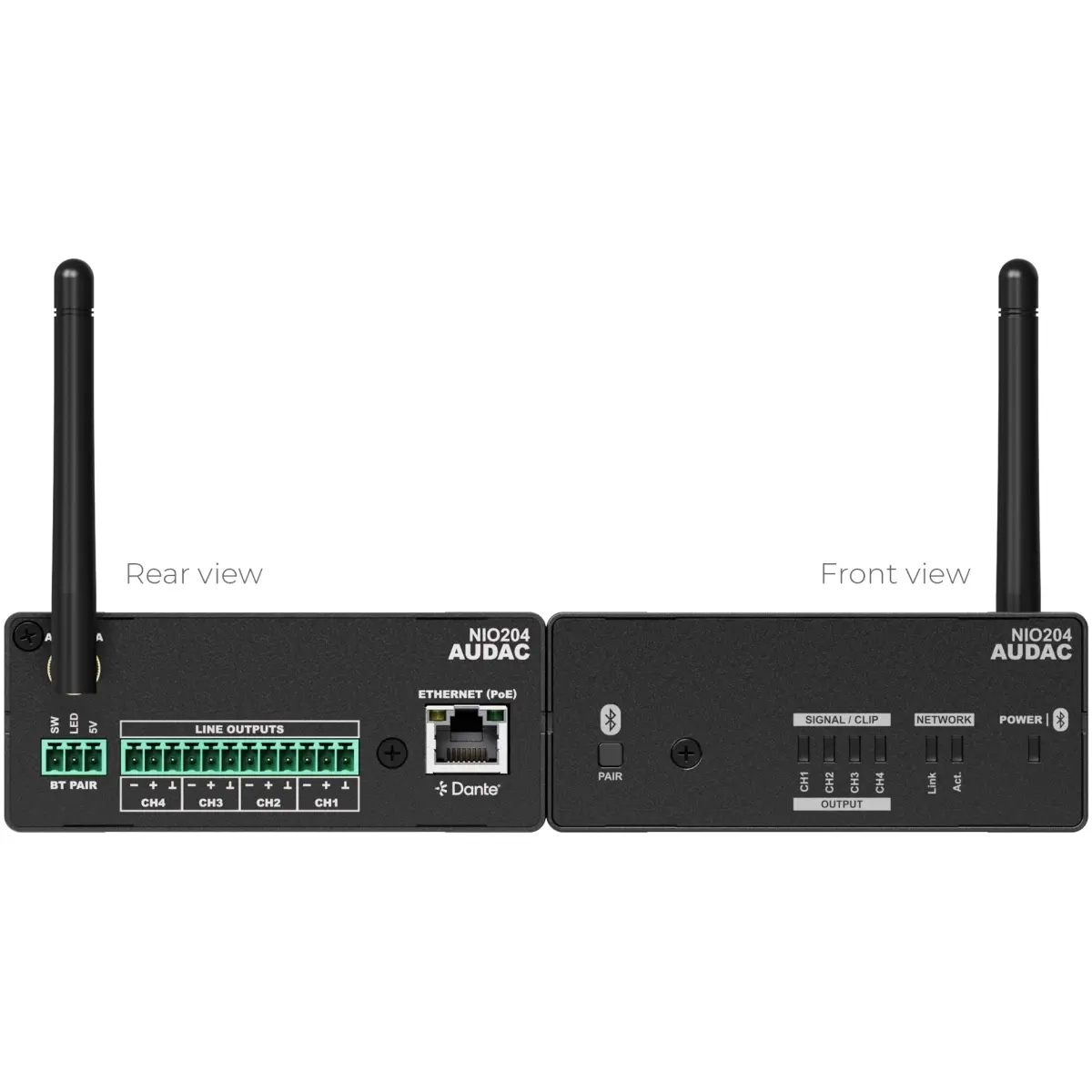

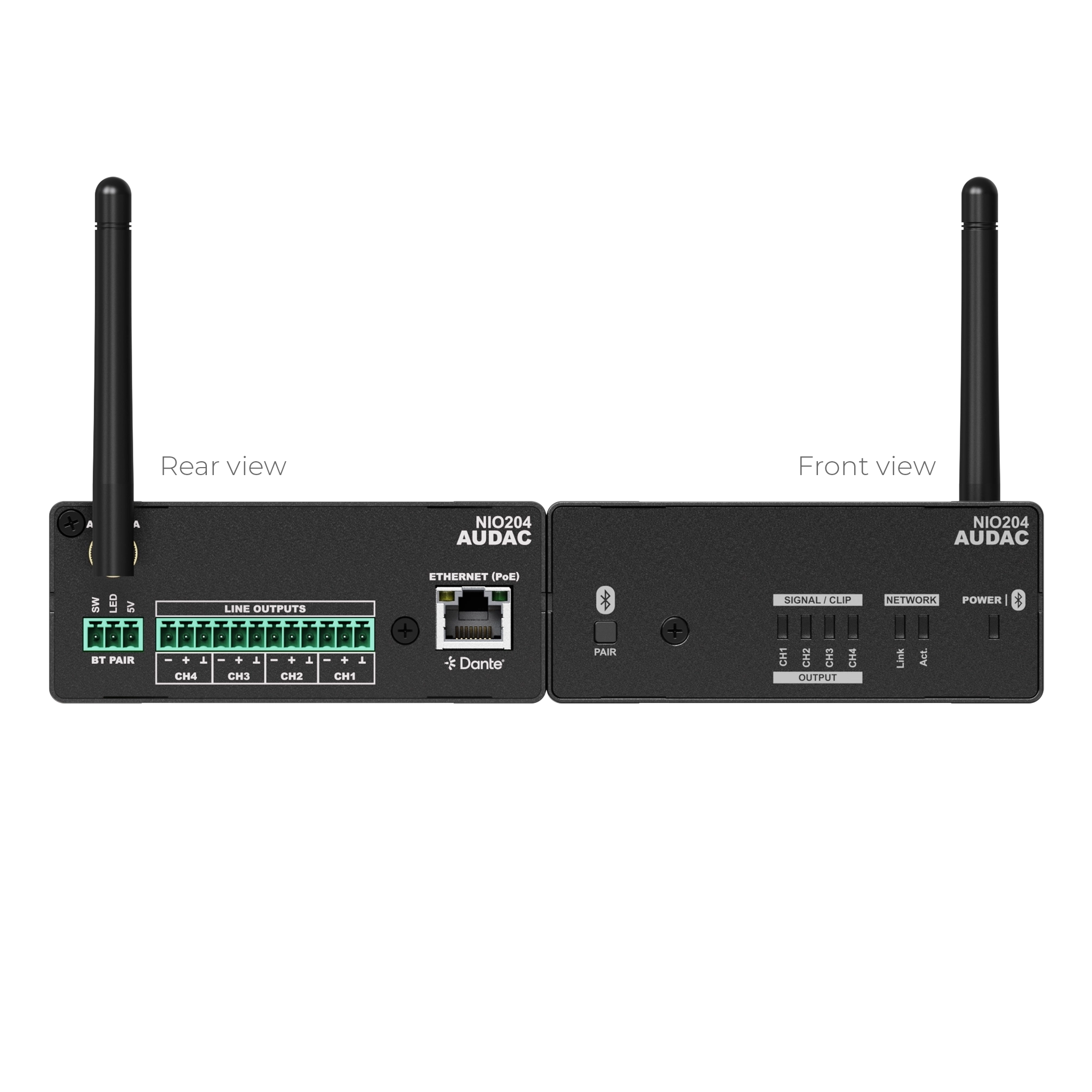

Audac NIO204 Network I/O Mixing Breakout Box

NIO series are Dante™/AES67 network I/O mixing breakout boxes featuring terminal block input and output audio and Bluetooth connections. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the input connectors for powering condenser microphones.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products.

The NIO series is compatible with any PoE network-based installation thanks to the limited PoE power consumption. The networked I/O expanders are compatible with MBS1xx setup box installation accessories which allow them to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or a 19” equipment rack.

FEATURES:

• All-in-one mixing & sound processing
• 4 x 4 channels Dante™ & AES67
• 4 x Balanced Line outputs
• Integrated Bluetooth receiver (Version 4.2)
• Compatible with BAE100 extender kit for a higher gain and reception range
• S-box™ modular multifunctional enclosure

Technical specifications
System specifications
Inputs Type Bluetooth receiver (Version 4.2)
Dante™/AES67 (4 channels)
RJ45 (With indicator LED’s)
Impedance 10 kΩ Unbalanced
20 kΩ balanced
Configurable Settings Gain
AGC
Maximum Volume
Noise Gate
WaveTune™
Outputs Type 4 x Balanced Line
Dante™/AES67 (4 channels)
Connector 4 x 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Impedance 52 Ω
Connector RJ45
Configurable Settings 6 Channels Mixer
Gain
Maximum Volume
Power Supply PoE powered (IEEE 802.3af)
Consumption 3.59 W
Phantom power +48 V DC
Product Features
Dimensions 108 x 44 x 165 mm (W x H x D)
Weight 0.48 kg
Accessories Included Bluetooth antenna
Optional MBS1xx Optional Wall mounting brackets
