Audac NPM200 Dante™/AES67 Paging Console

The NPM200 is a Dante™/AES67-enabled PoE paging console that lets you make announcements and send commands over the network to trigger functions. With Power over Ethernet (PoE) technology, this console can be easily connected to your network without the need for additional power cables, making it the perfect solution for busy offices and other professional environments. Featuring a user-friendly interface and intuitive controls on a 3.5” touchscreen, the NPM200 allows you to easily manage audio paging and messaging. You can create and transmit pre-recorded messages or use the console’s XLR input to make announcements in real-time.

FEATURES:

• Fully flexible & configurable touchscreen (from AUDAC Touch™)
• Push to talk button with visual LED feedback
• 48V phantom power & XLR input that allows the use of various microphones
• All-in-one free design & control platform – AUDAC Touch™
• Flexible & scalable software architecture
• Dante™ & AES67 compatible
• Quick to learn, fast to deploy
• Integrated memory for recordings & announcements
• All-in-one mixing & sound processing

Technical specifications
System specifications

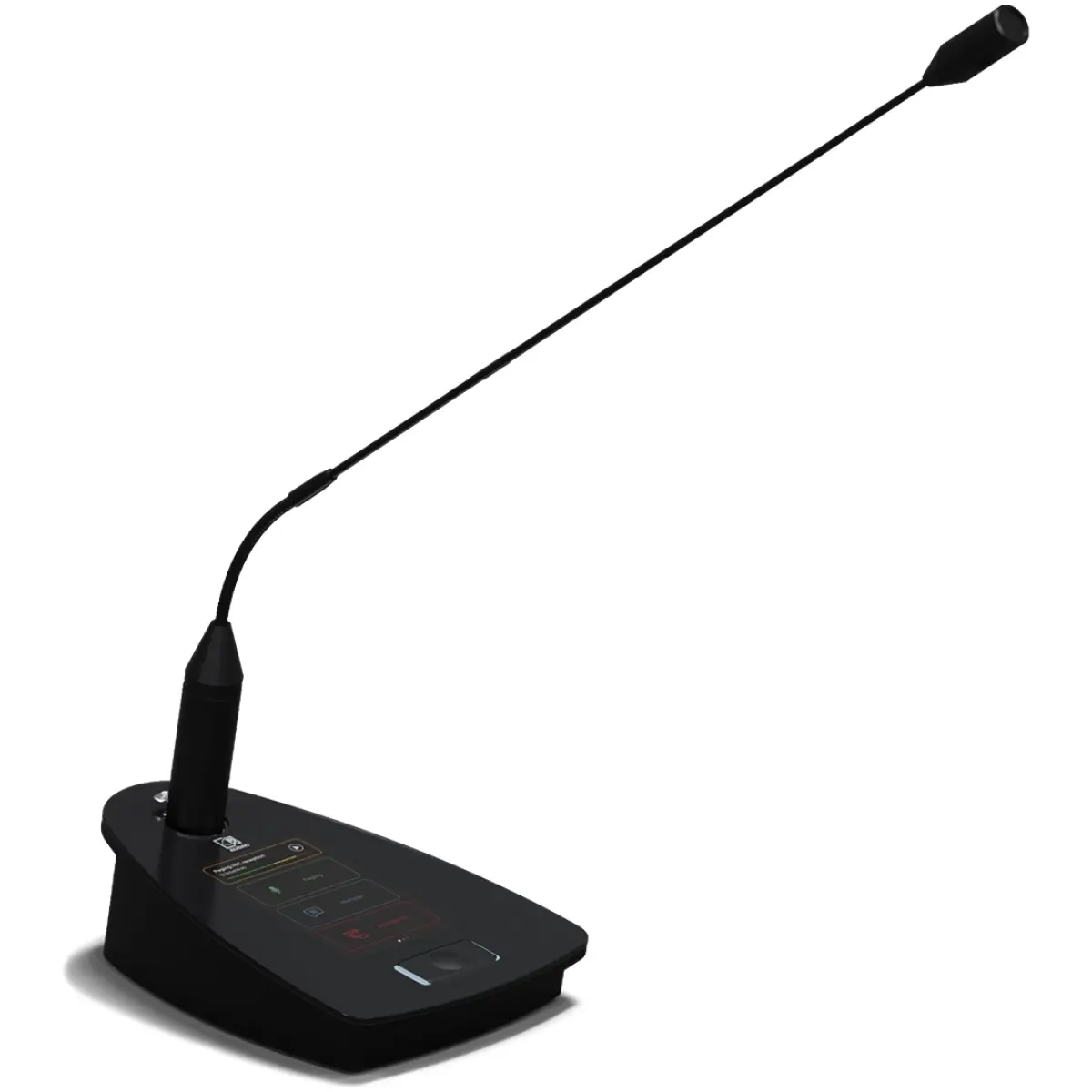

Microphone Optional (not included)
Indicators Fully configurable touchscreen interface
Touchscreen interface (3.5”) + RGB LED (PTT) VU, Clipping
Audio status (recording, playback, paging, …)
Device status
Bus / priority status
Zones / functions overview
Configuration Audac Touch™

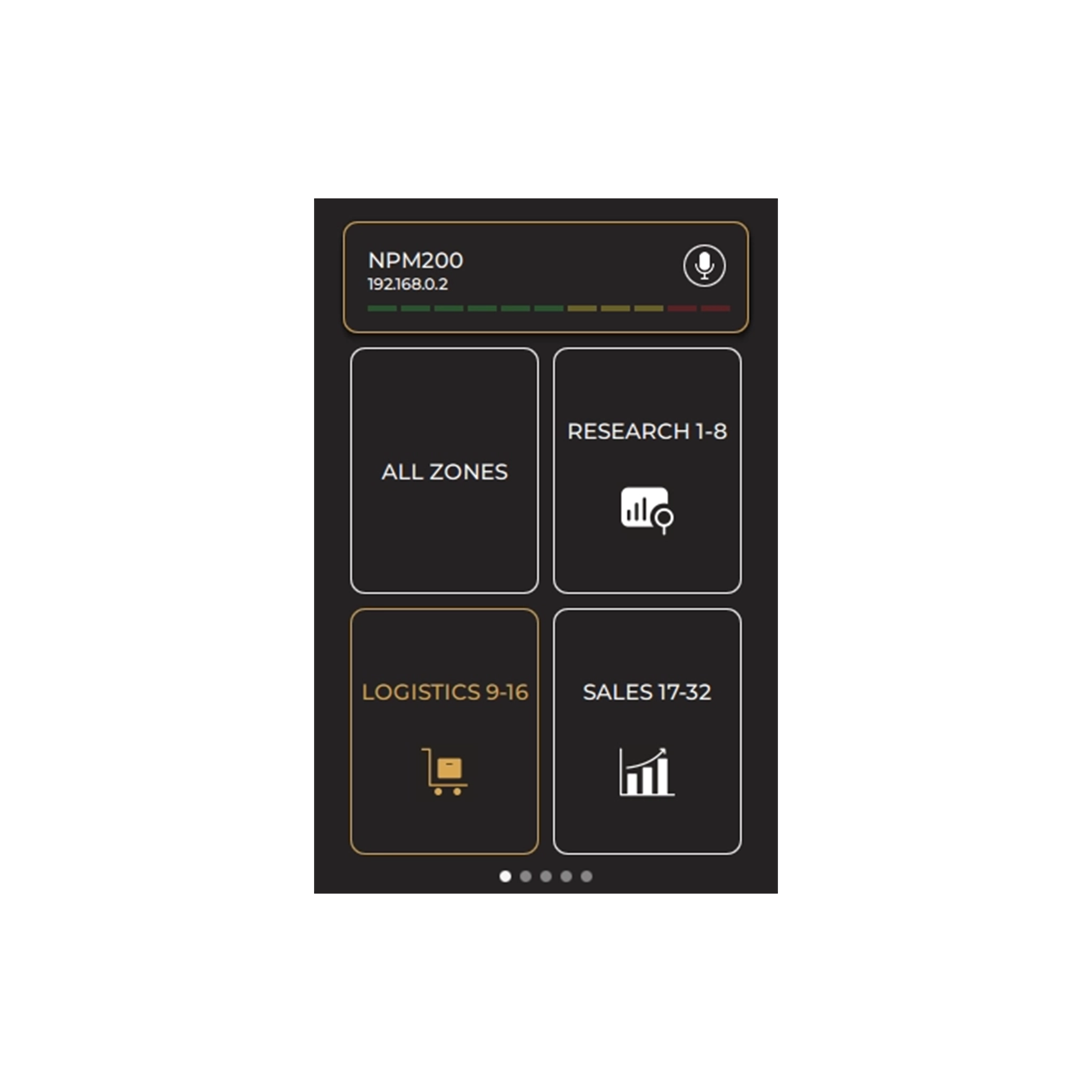

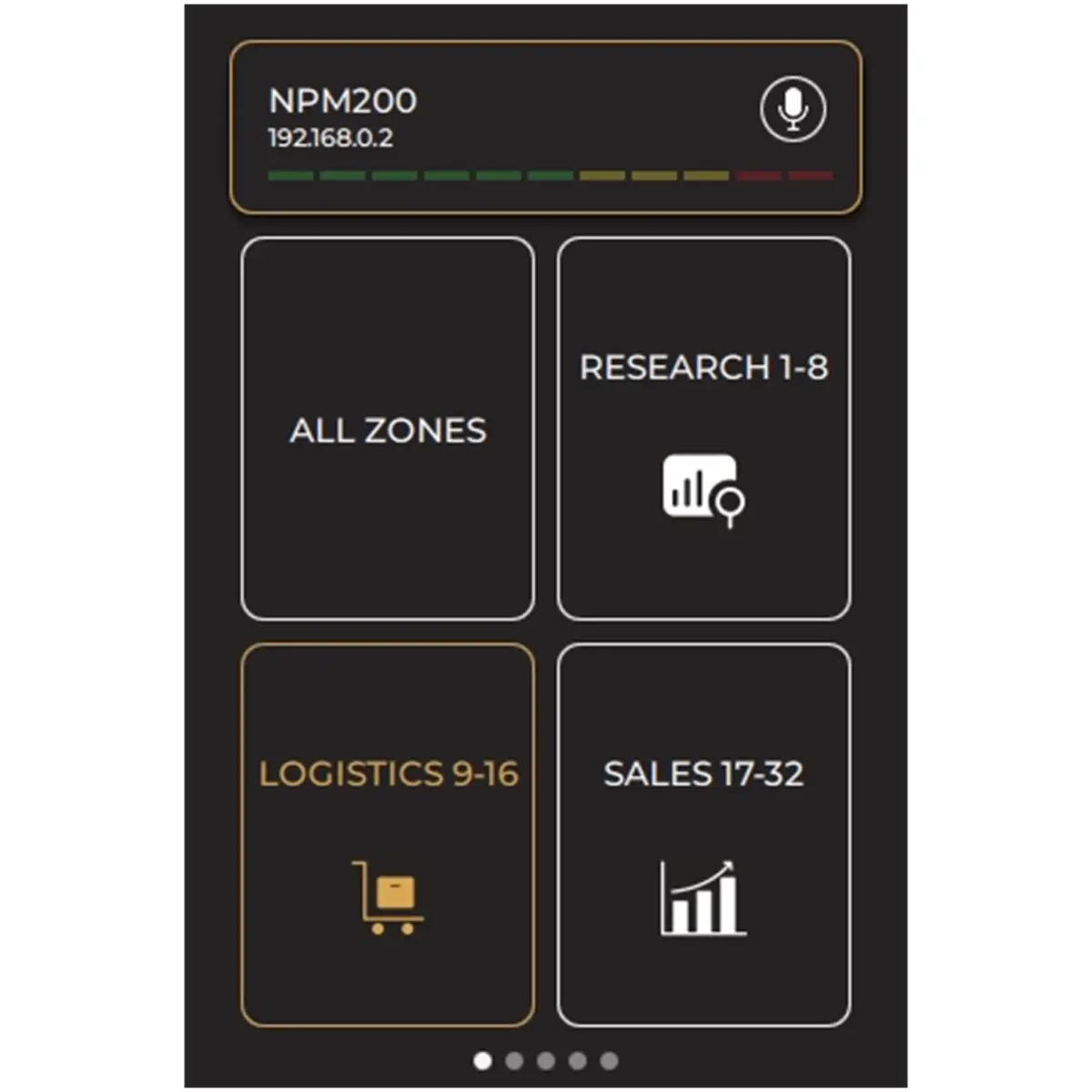

Configurable settings Fully configurable user interface – Group selection
Fully configurable user interface – Message selection

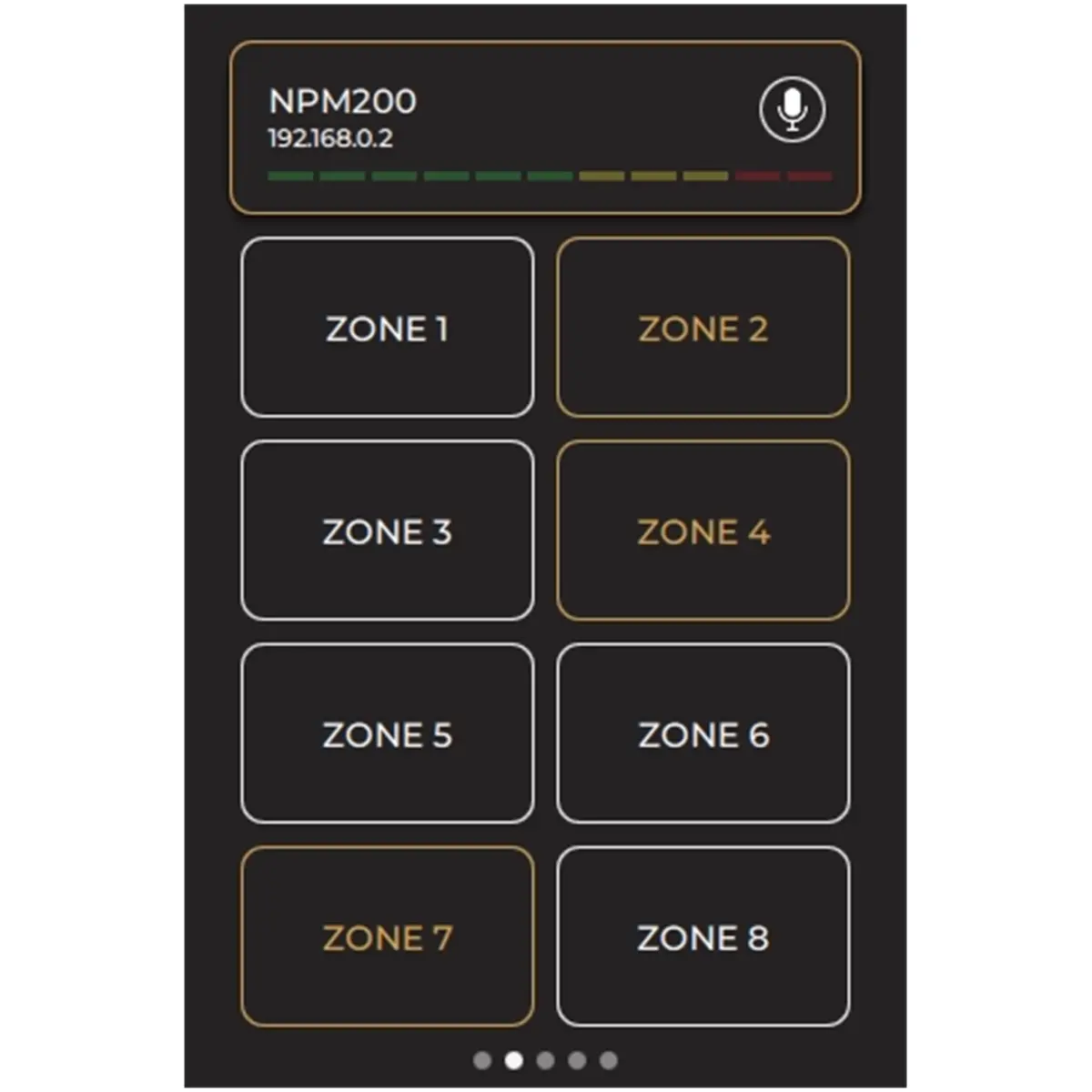

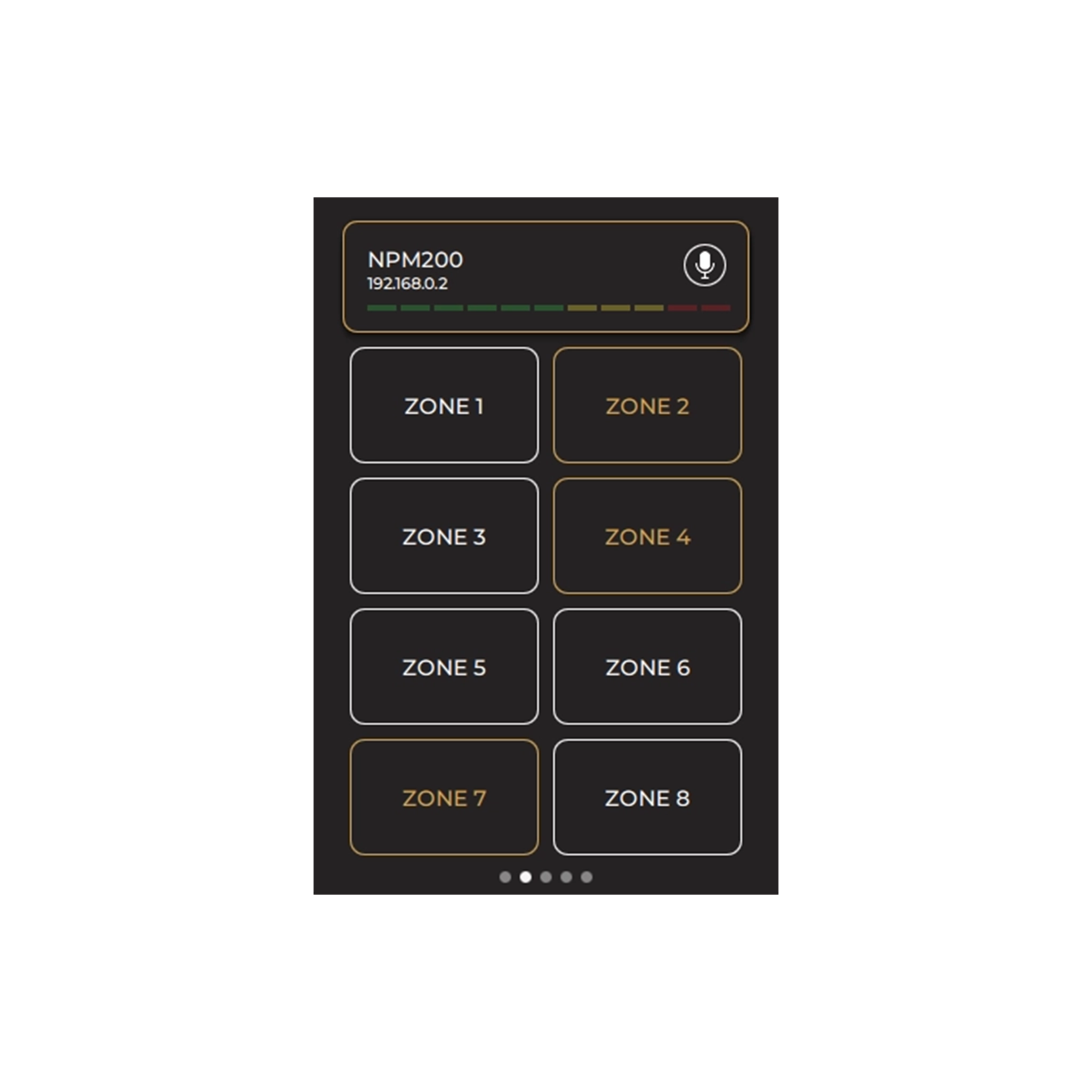

Fully configurable user interface – Zones selection
PTT (toggle* & press & hold) *Coming later
IP settings
Device name
Gain
Phantom power
Pilot tone
DSP (EQ, Filters)
Pre-recorded messages Yes
Pre-programmed events Yes
Integrated DSP Yes (EQ, Filters, …)
Integrated chime Yes (Programmable)
Phantom power +48 V DC
Connectors XLR Female (mic in)

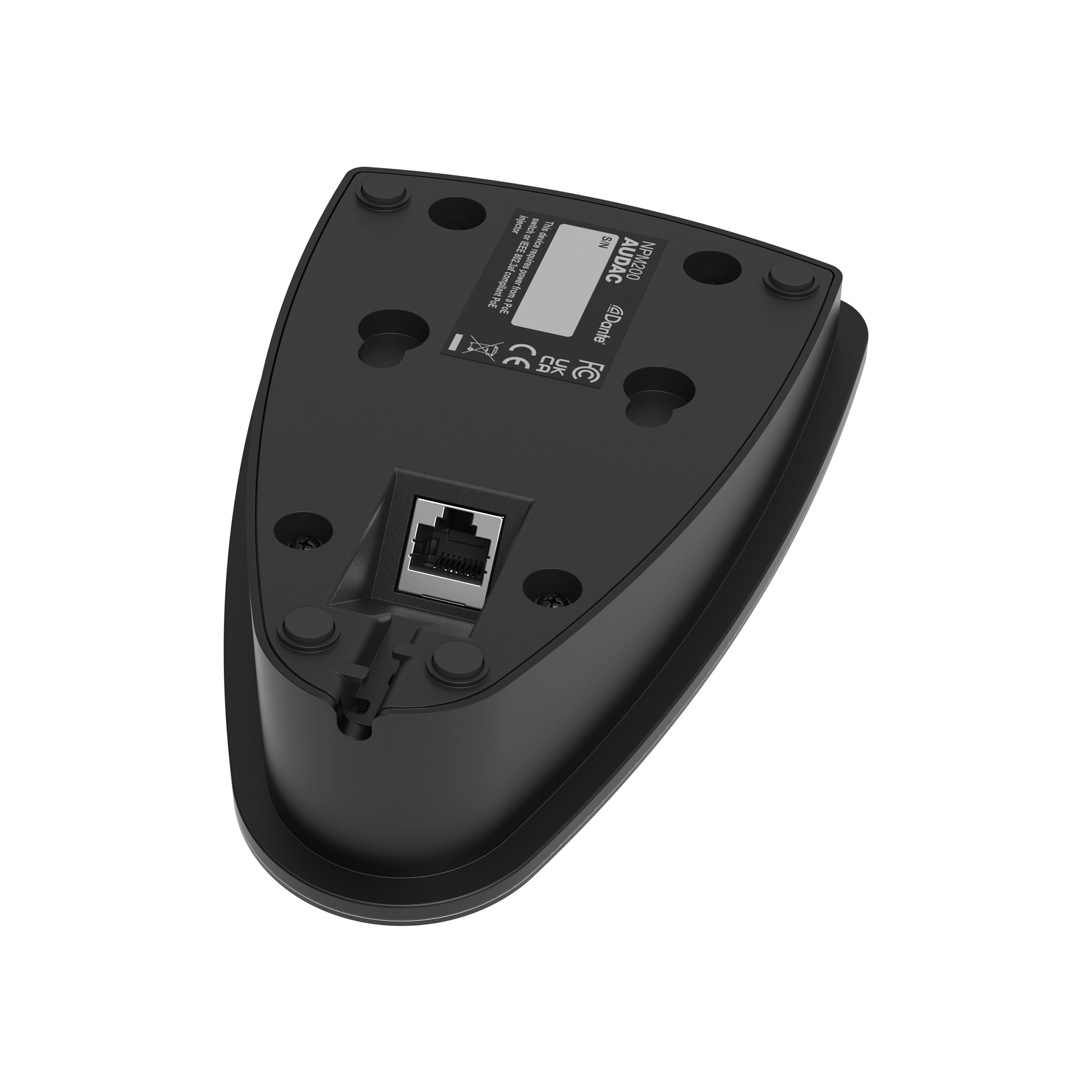

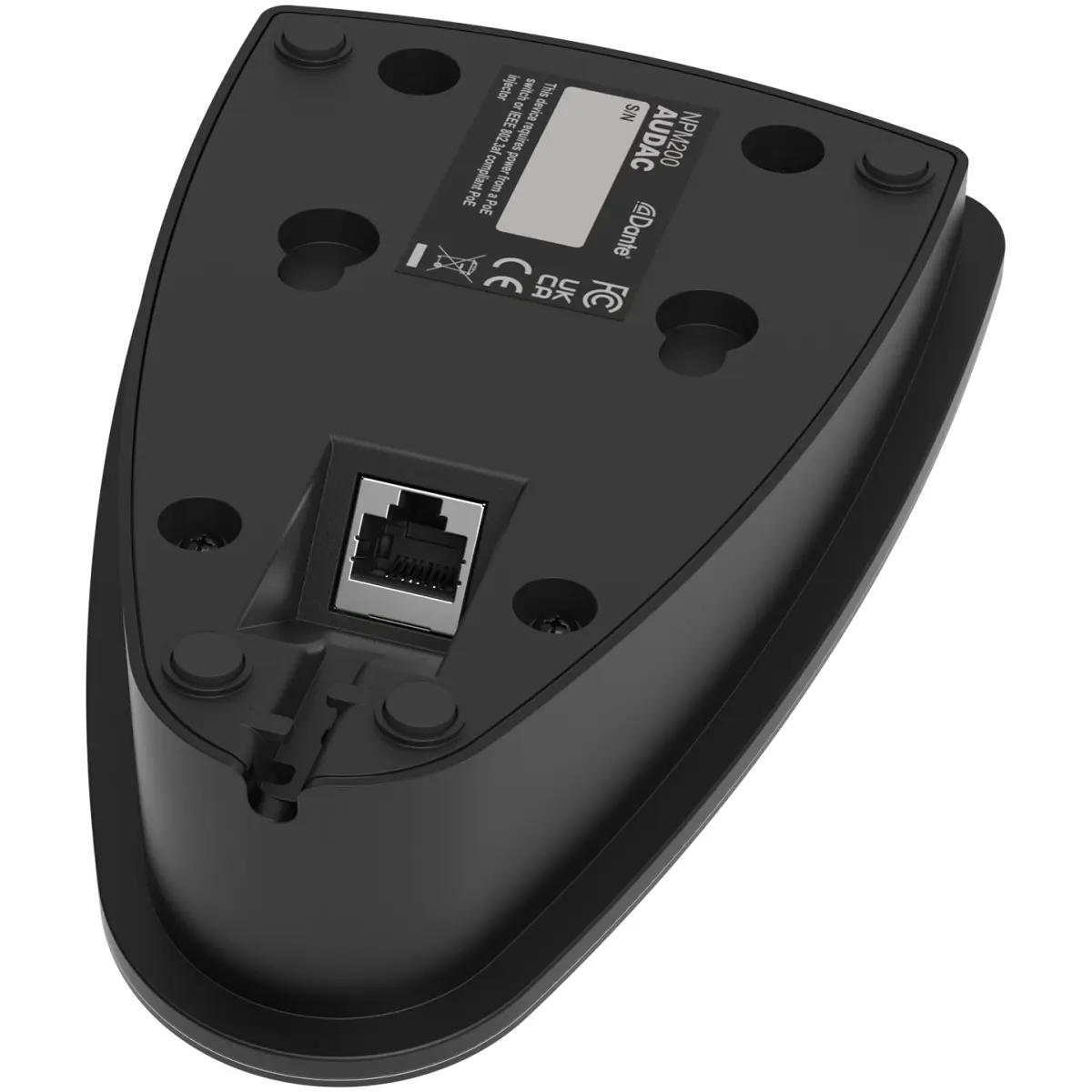

RJ45 (network + PoE)
Power Supply PoE powered (IEEE 802.3af)
Product Features
Colours Black (RAL9005) (NPM200)
Dimensions 110 x 58 x 166 mm (W x H x D)
Weight 0.5 kg (Approx)
Construction Die-cast metal
Front finish Elegant front panel with glass
