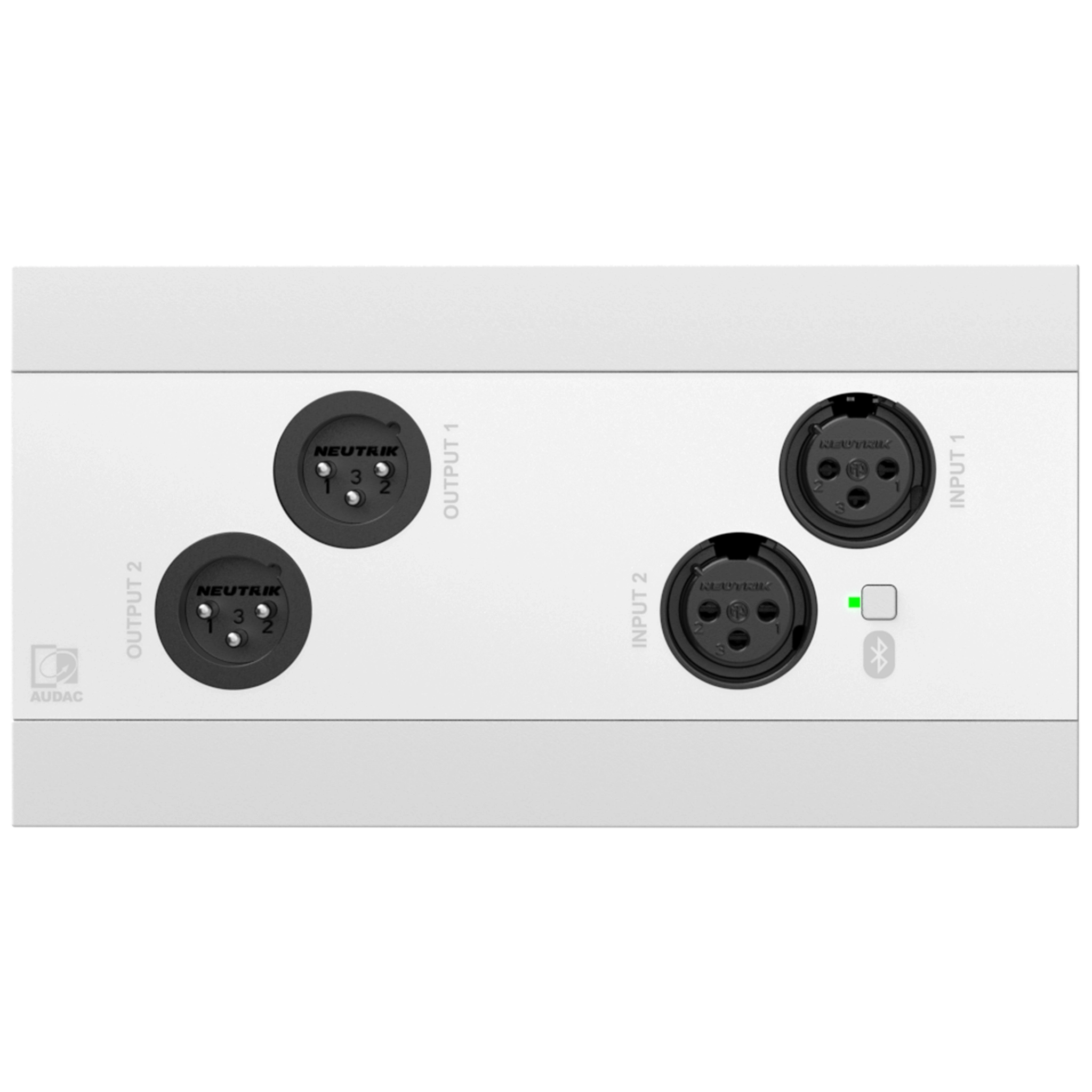

Audac NWP222 White Network Input & Output Pane

The NWP222 is a Dante™/AES67 network input panel, featuring two XLR input and output connectors and an integrated Bluetooth receiver, which can be used to transmit or receive audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones.

Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app.

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 2-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

FEATURES:

• 2 x XLR inputs & outputs
• Integrated Bluetooth receiver (Version 4.2)
• 4 x 4 channels Dante™ & AES67
• All-in-one mixing & sound processing
• Ultra efficient cooling
• Superior sound quality & low latency

Technical specifications
Available models
NWP222/B Black version – EU-style standard
NWP222/W White version – EU-style standard
NWP222US/B Black version – 2-gang US standard
NWP222US/W White version – 2-gang US standard
System specifications
Inputs 2 x XLR female (in)
2 x XLR male (out)
Control 1 button – Bluetooth discoverable
Indicators 1 LED (RGB) – Bluetooth status
Configurable settings IP settings
Device name
Input range (Mic / Line)
Gain
Phantom power
DSP (EQ)
Mixing
Configuration Audac Touch™
Integrated DSP Yes (EQ)
Automatic level control Yes
Phantom power +48 V DC
Power Supply PoE powered (IEEE 802.3af)
Connectors XLR Female (mic in)
RJ45 (network + PoE)
2 x XLR female (audio in)
2 x XLR male (audio out)
Product Features
Construction ABS
Front finish Elegant ABS front panel with glass
Dimensions 160 x 88 mm (W x H) (Remote wall panel)
Colours White (RAL9003) (DWP240/W)
Black (RAL9005) (DWP240/B)
Compatible devices Any Dante™/AES67 compatible audio device
Installation standard Compatible with EU installation materials
2-gang US standard (NWP222US)
