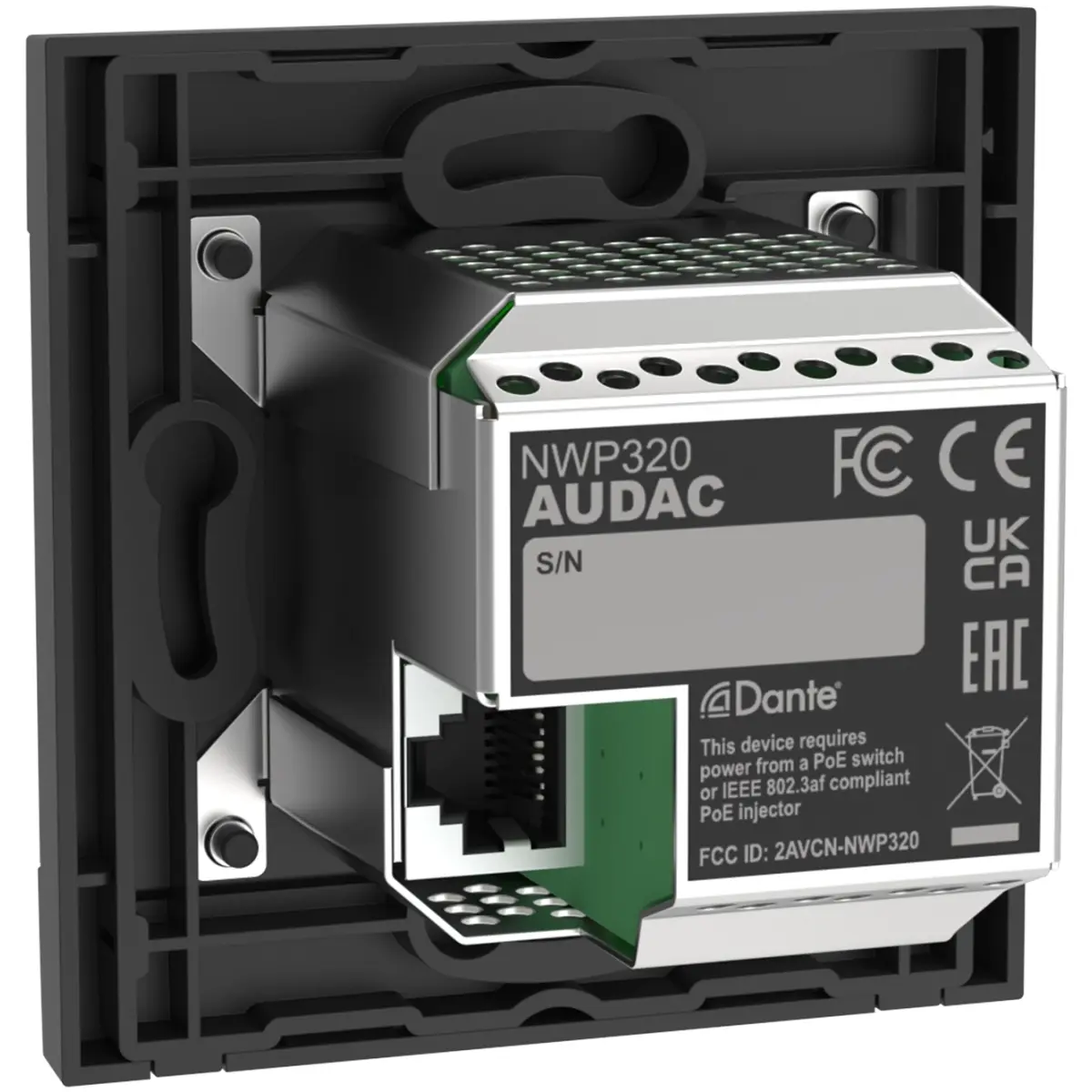

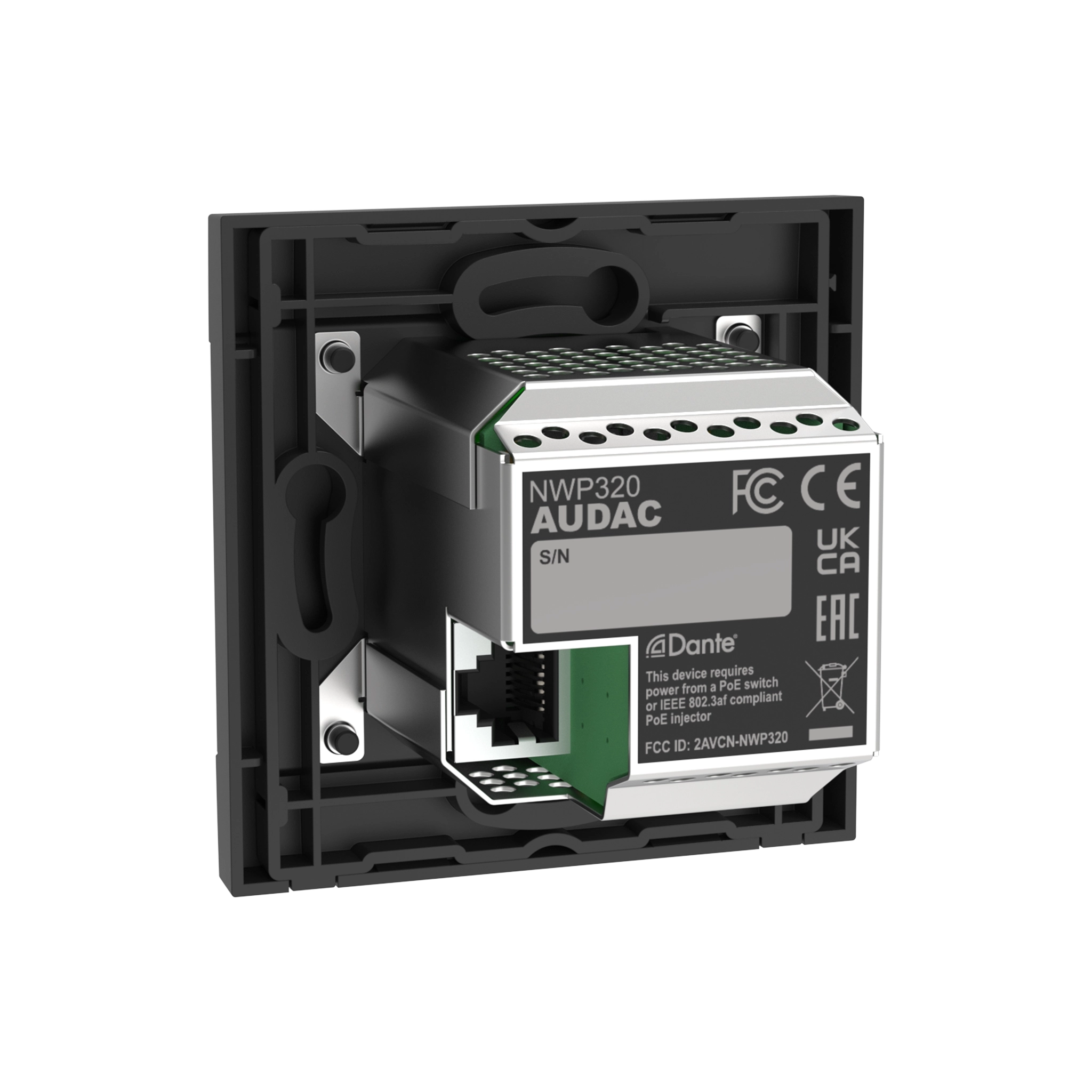

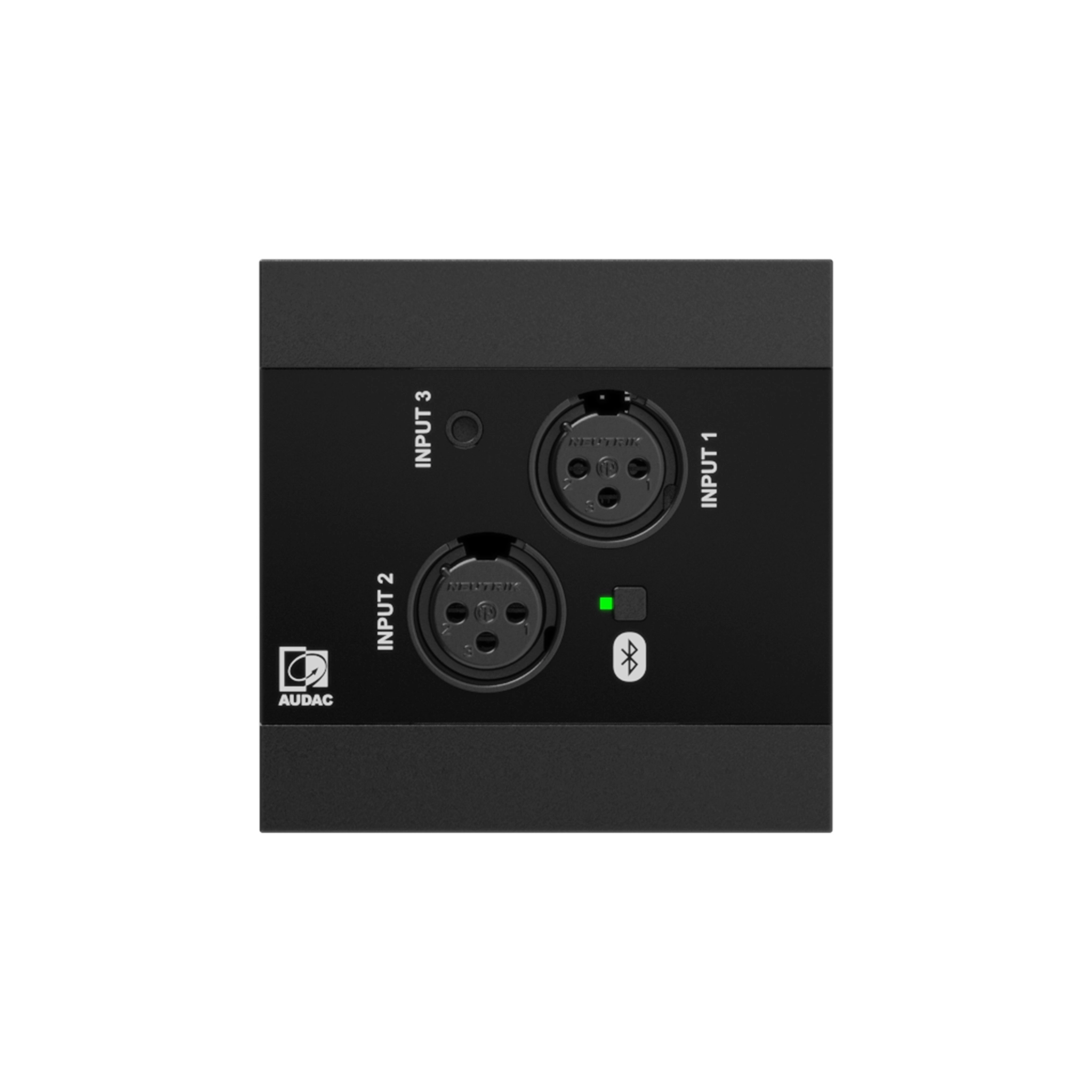

The NWP320 is a Dante™/AES67 network input panel, featuring two XLR input connectors, a single 3.5 mm stereo jack stereo input connection, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP320 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
FEATURES:
- 2 x XLR inputs
- 3.5mm stereo jack input
- Integrated Bluetooth receiver (Version 4.2)
- 4 x 4 channels Dante™ & AES67
- All-in-one mixing & sound processing
- Ultra efficient cooling
- Superior sound quality & low latency
Technical specifications
Technical specifications
Available models
NWP320/B Black version – EU-style standard
NWP320/W White version – EU-style standard
NWP320US/B Black version – 1-gang US standard
NWP320US/W White version – 1-gang US standard
System specifications
Inputs 2 x XLR female (in)
3.5 mm Jack (Stereo)
Control 1 button – Bluetooth discoverable
Indicators 1 LED (RGB) – Bluetooth status
Configurable settings IP settings
Device name
Input range (Mic / Line)
Gain
Phantom power
DSP (EQ)
Mixing
Configuration Audac Touch™
Integrated DSP Yes (EQ)
Automatic level control Yes
Phantom power +48 V DC
Power Supply PoE powered (IEEE 802.3af)
Connectors 3.5 mm Jack stereo (audio in)
RJ45 (network + PoE)
2 x XLR female (audio in)
Product Features
Construction ABS
Front finish Elegant front panel with glass
Colours White (RAL9003) (NWP320/W)
Black (RAL9005) (NWP320/B)
Compatible devices Any Dante™/AES67 compatible audio device
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Installation standard Compatible with EU installation materials
1-gang US standard (NWP320US)
