Audac SMA500 WaveDynamics™ Dual-channel Power Amplifier

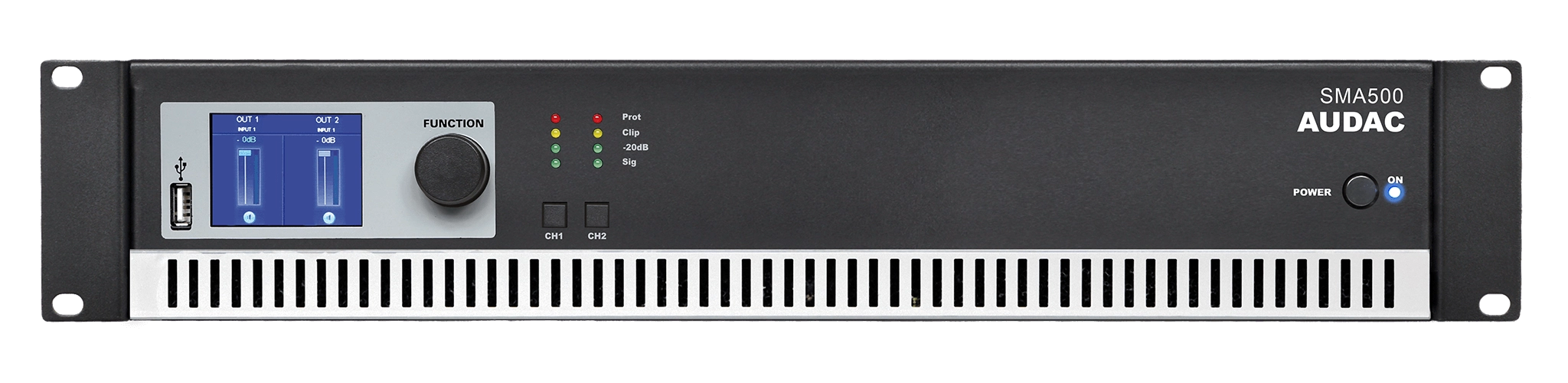

The SMA series are dual channel (stereo) power amplifiers providing a new standard for affordable audio amplification in both fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt and 750 Watt provide an enormous flexibility for numerous applications. The WaveDynamics™ DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel and Linkwitz-Riley filters with selectable rolloff which can be configured as Low / High & Band Pass and the 7-Band equalizer which has adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. A great input flexibility and source compatibility is provided by the input selection matrix in combination with the XLR and terminal block signal connections. The outputs are made using Speaker and Terminal block connections. System integration is made easy using the RS-232 control port. An optional Dante™ interface is available for the WaveDynamics™ amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network.

Technical specifications
System specifications
Continuous power (AES) @ 4 Ω Stereo 2 x 500 W
@ 8 Ω Stereo 2 x 300 W
@ 8 Ω Bridge 1000 W
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Signal / Noise > 95 dB
THD+N (@ 1 kHz) < 0.05% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Inputs Sensitivity -19.5 dB ~ 27 dB
Impedance 10 kΩ balanced

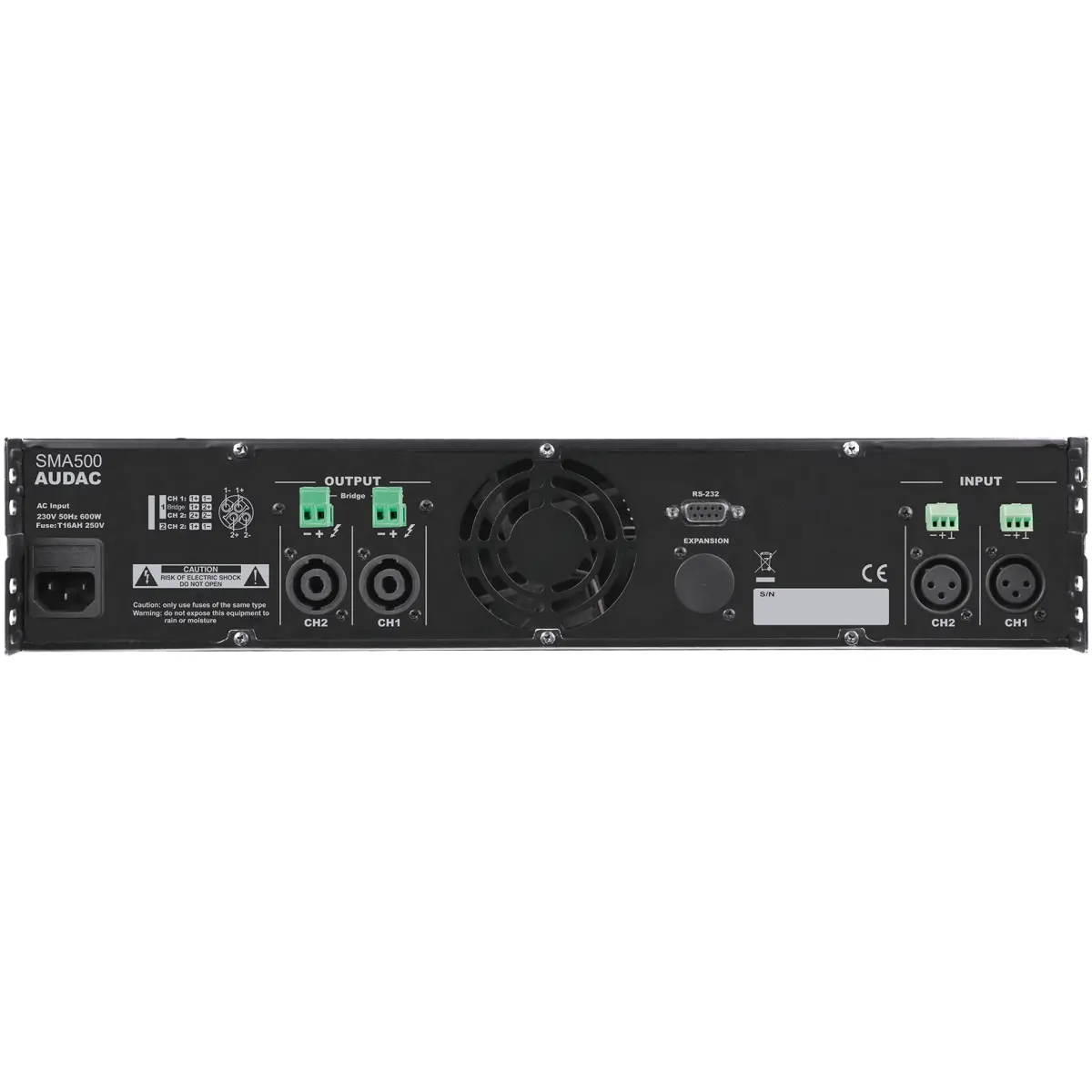

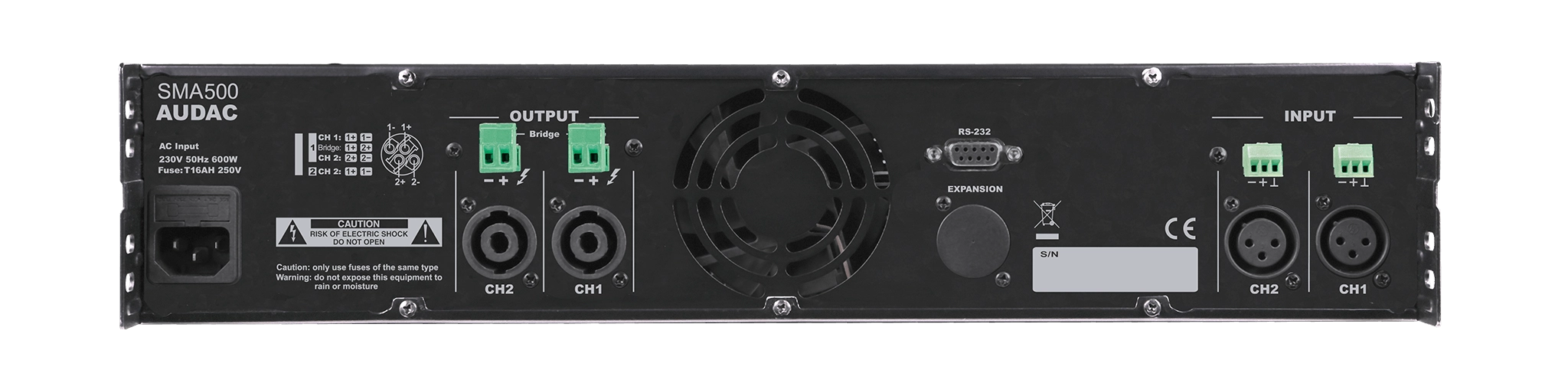

Connector XLR & 3-pin Euro Terminal Block (3.81 mm)
Outputs Connector Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
Common mode rejection ratio 70 dB
Damping factor > 200
Protection Amplifier DC Short circuit
Over heating
Over load
Signal limiting
Loudspeaker Power limiter
Access User & Administrator level (Through password and USB-key protection)
Cooling Temperature controlled fan
Operating temperature 0° ~ 40° @ 95% Humidity
Power Supply Switching mode
AC Input: 100-120V/220-240V~ 50/60Hz
Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility.
Product Features
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 7.450 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
